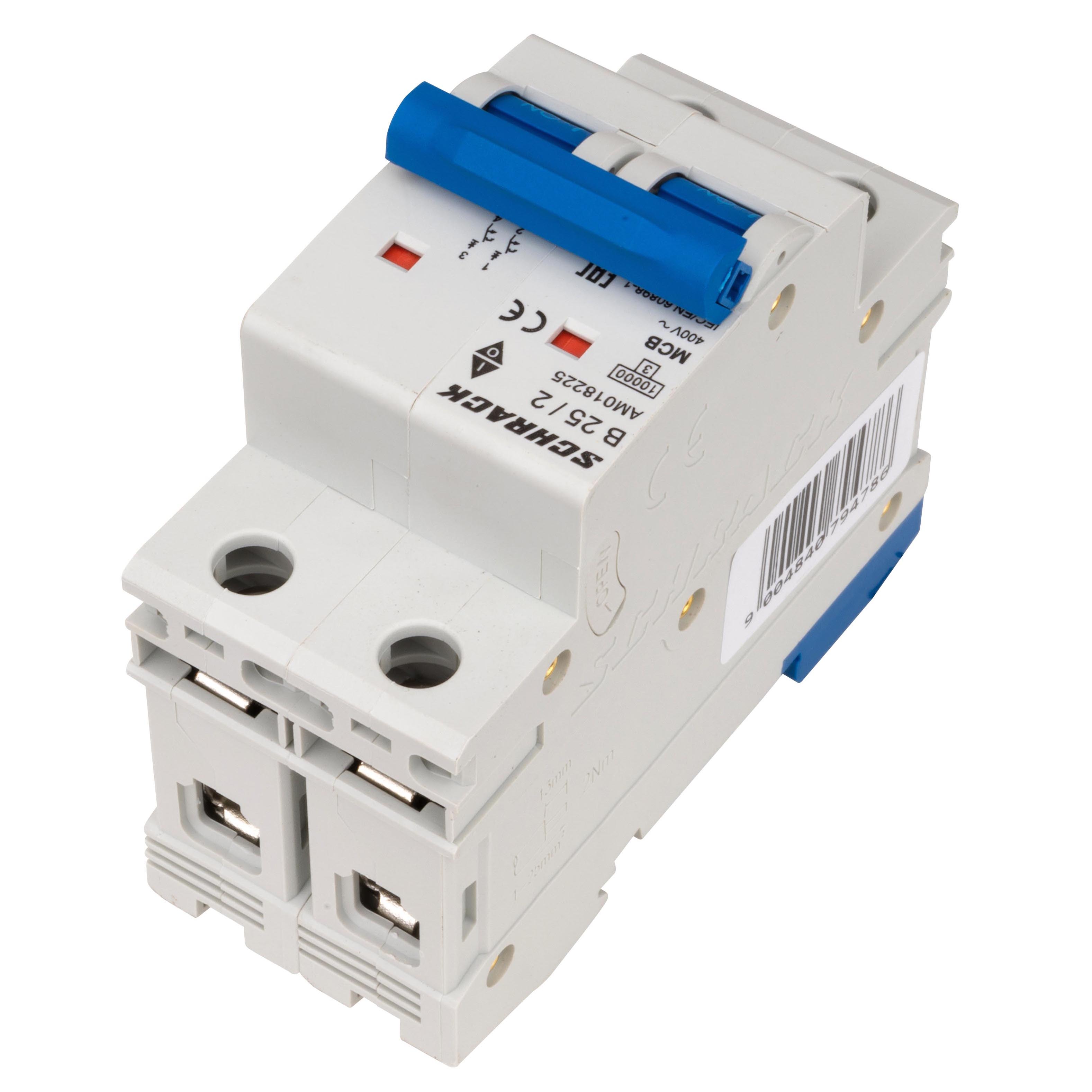

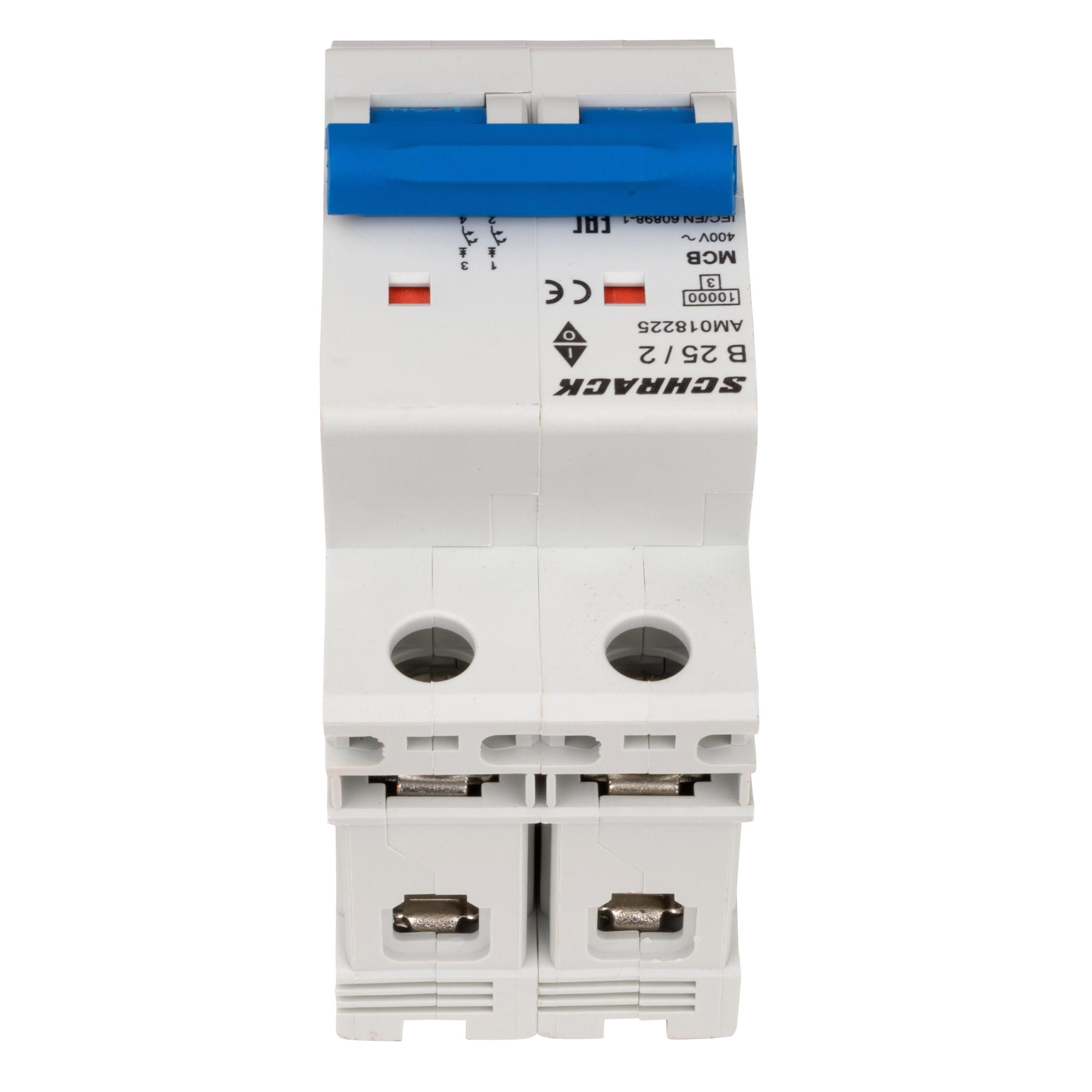

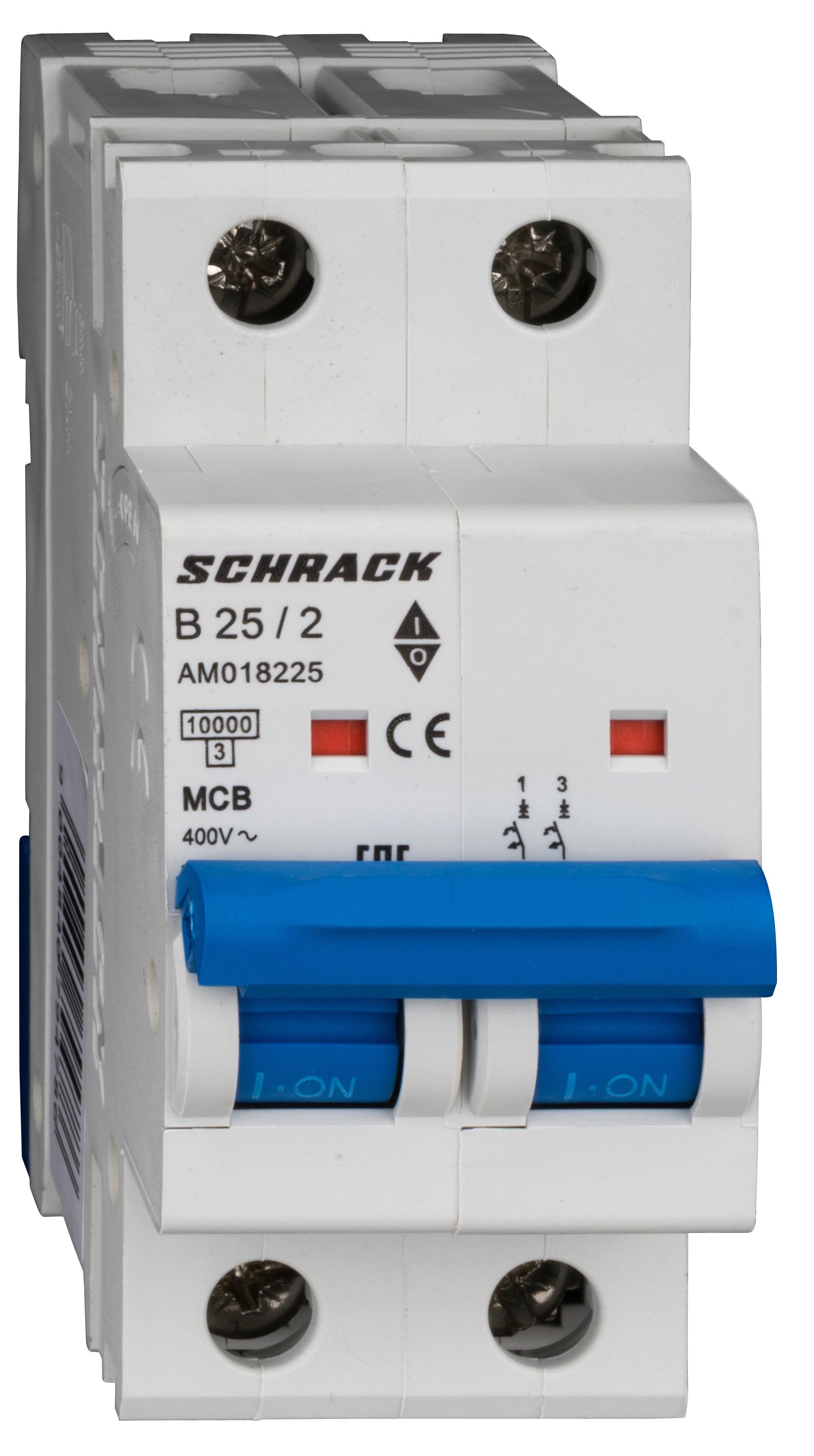

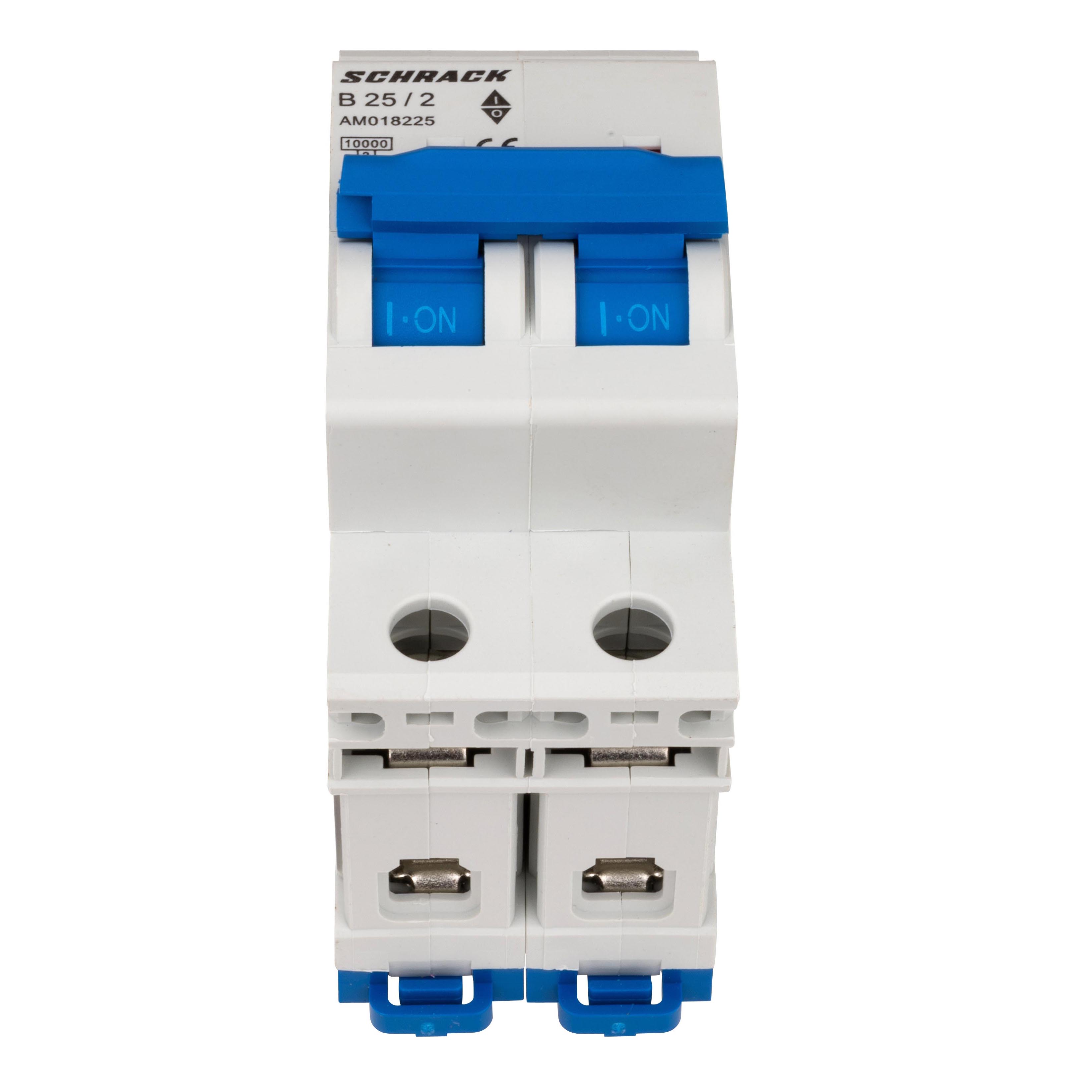

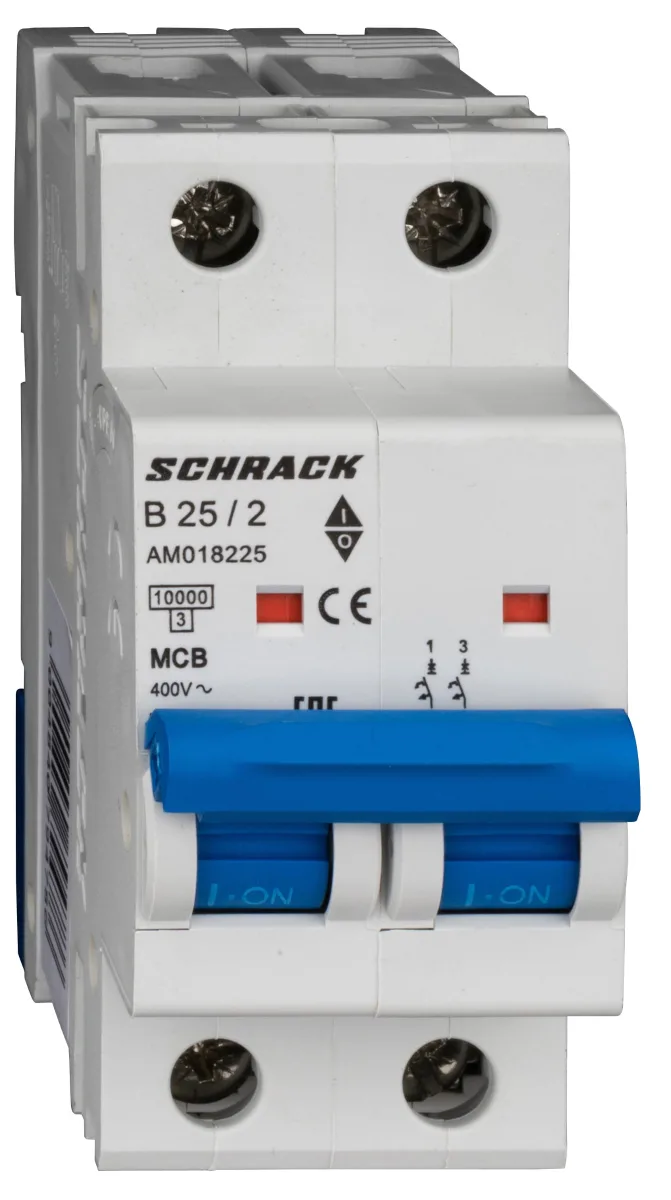

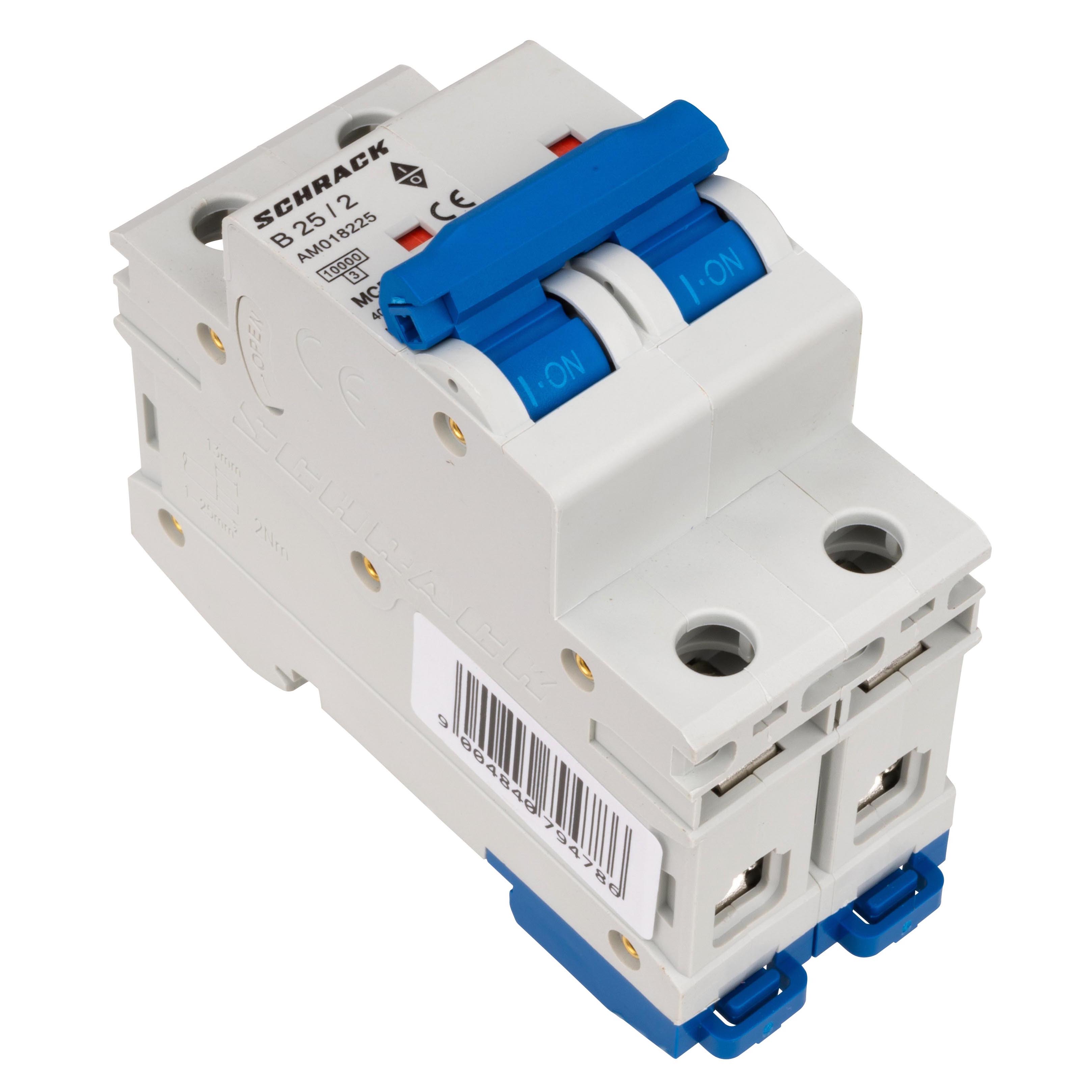

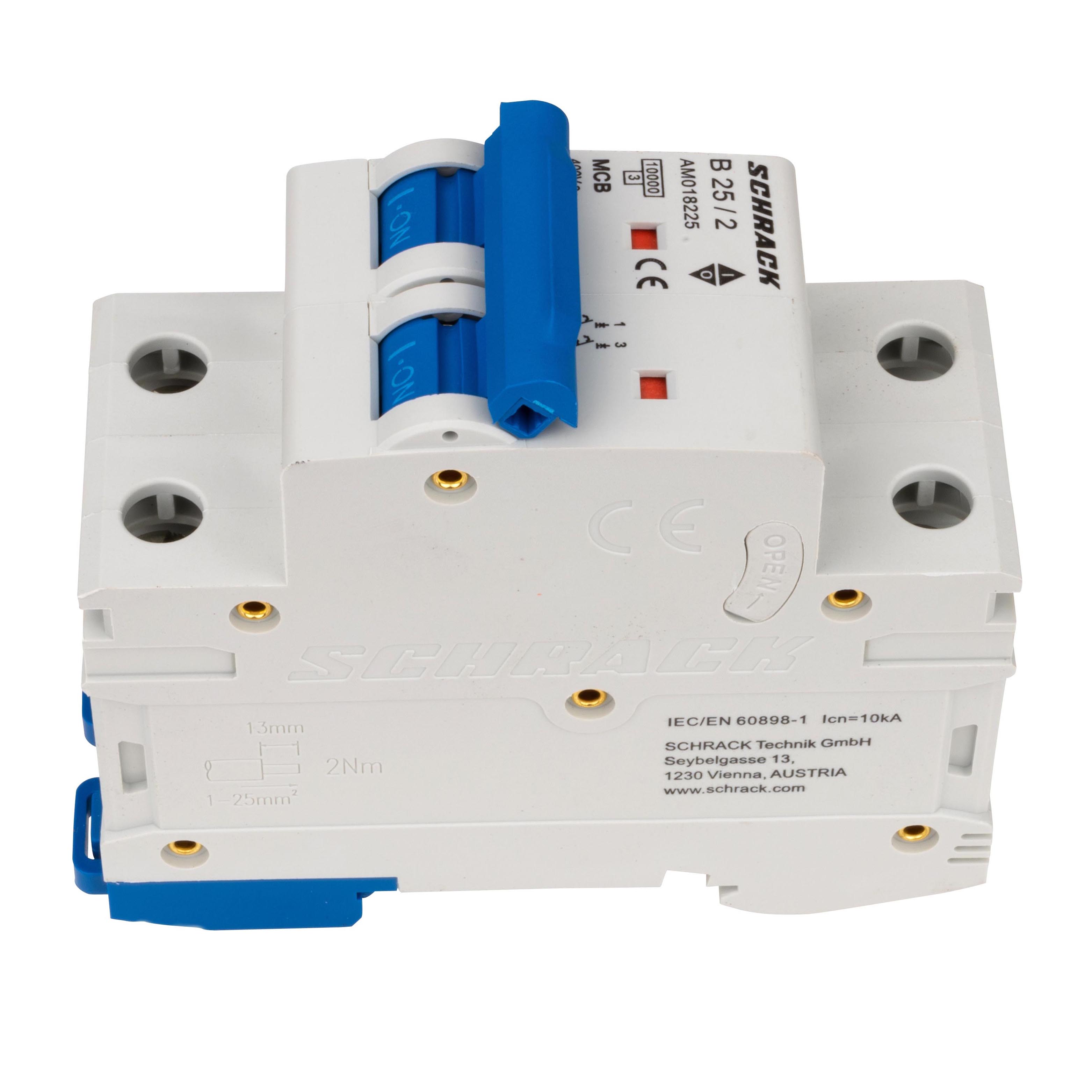

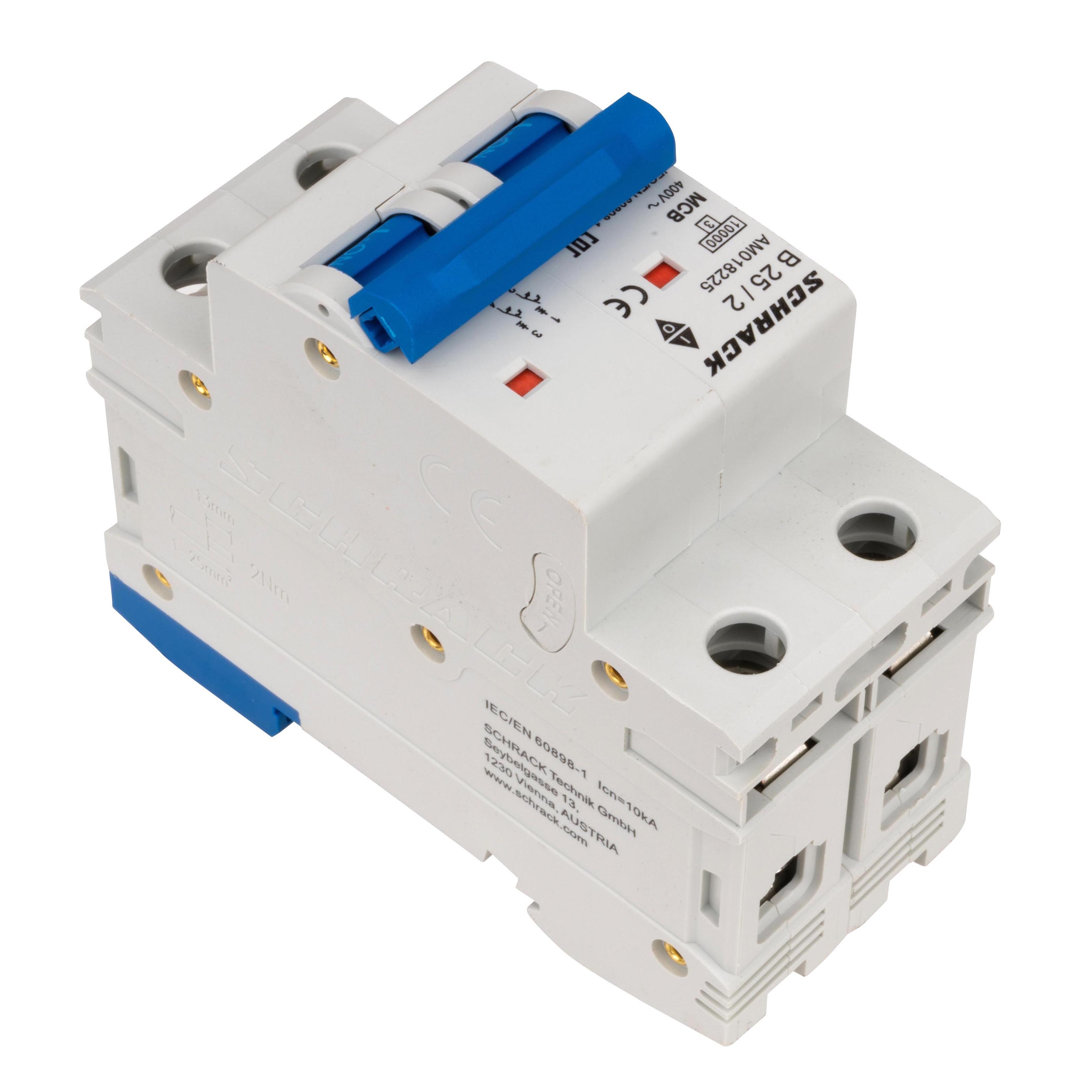

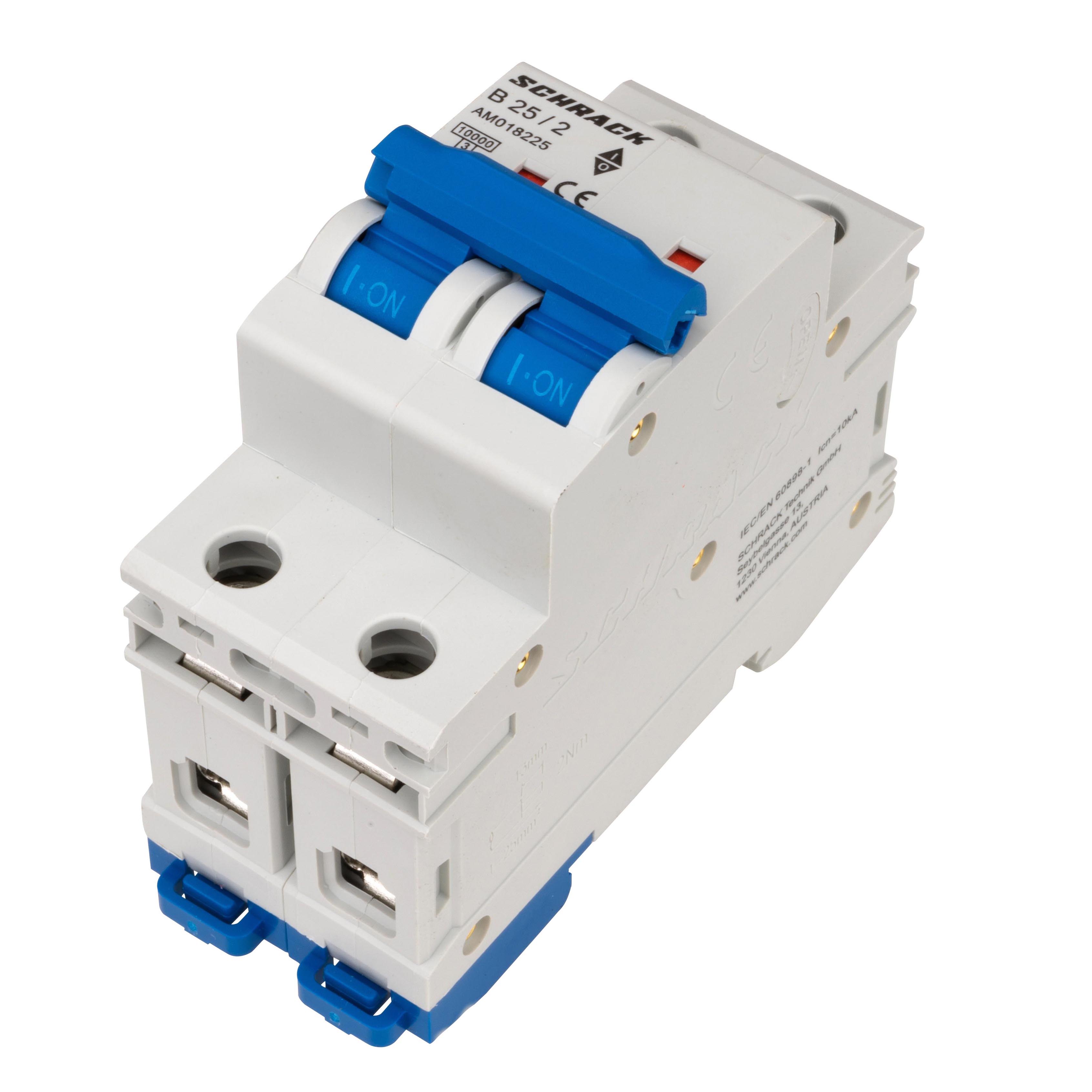

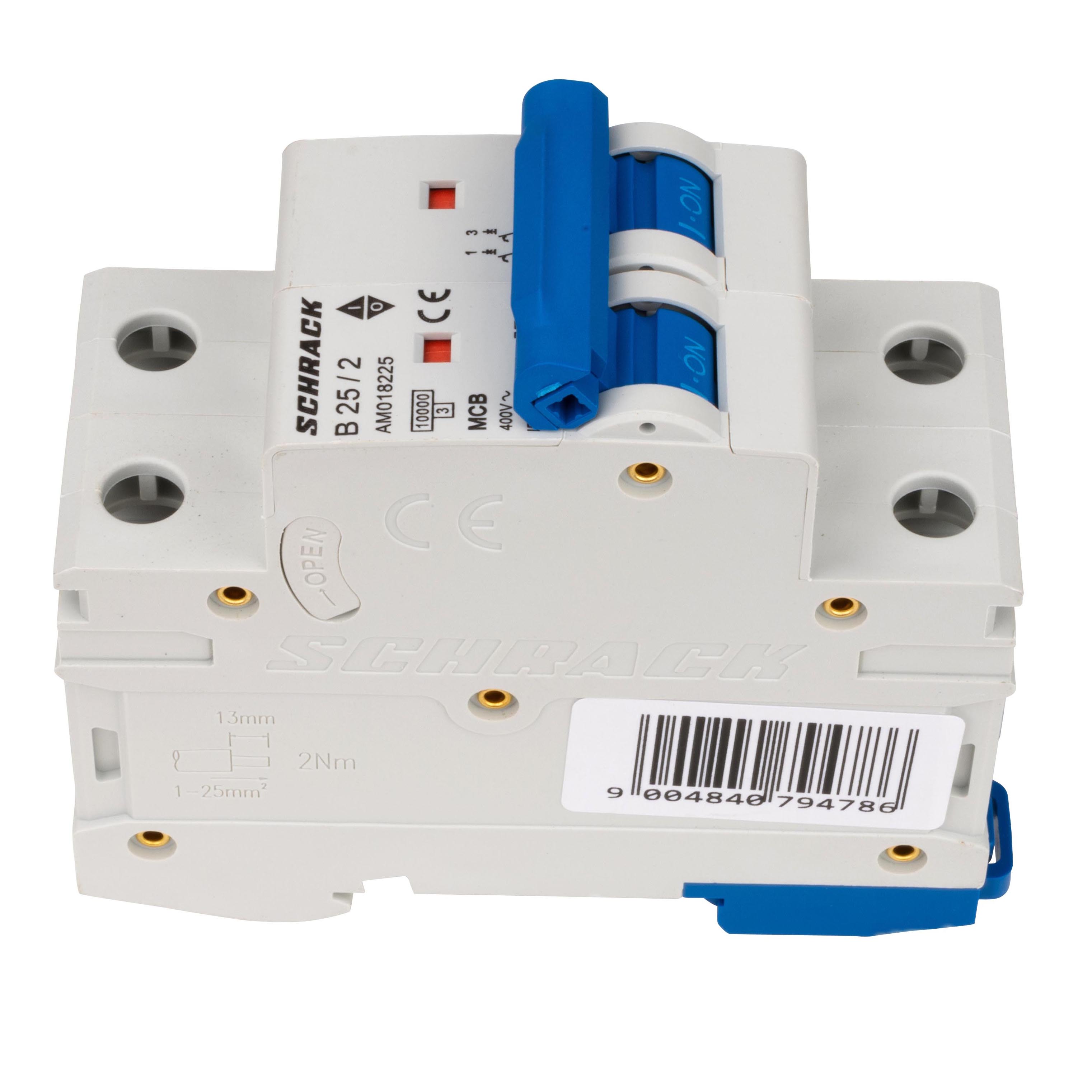

Automatic Circuit Breaker B25A/2, 10kA

Two-pole automatic circuit breaker with a nominal current of 25A and breaking capacity of 10kA. Designed to protect alternating current electrical circuits from overloads and short-circuit currents.

Technical Parameters:

• Trip characteristic: B (for protection of cable lines and distribution networks)
• Number of poles: 2 (two-pole design)
• Nominal current: 25A
• Breaking capacity: 10kA (according to EN 60898-1)
• Series type: AMPARO (AM10 series)
• Execution: AC-MCB (modular automatic circuit breaker)
• Power loss: 8.05W

Operating Conditions:

• Operating temperature range: from -25°C to +70°C

Physical Dimensions:

• Length: 86.00mm
• Width: 36.00mm
• Height: 77.00mm
• Net weight: 0.23kg

Standards Compliance: EN 60898-1:2019, IEC 60898-1

Manufacturer: Schrack

Packaging and Availability: supplied in packages of 1, 6, or 90 pieces.
