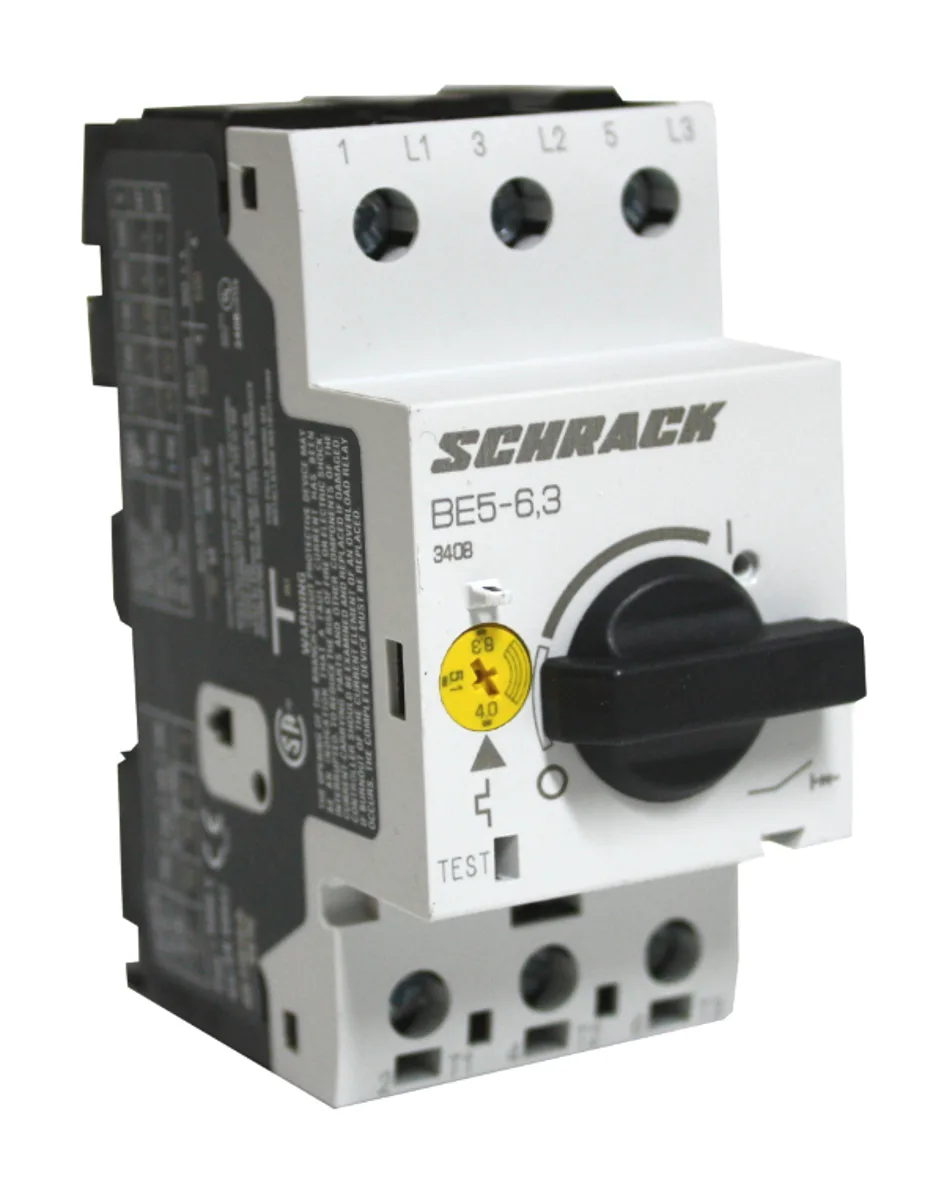

Motor Protection Automatic Switch 4.0-6.3A/3 BE5
Article: BE506300--
26 160 ₸
To order
Motor protection automatic switch designed to protect electric motors from overloads and short circuits. The device provides reliable operation across a wide range of operating conditions.
Key characteristics:
- Current range: 4.0-6.3 A
- Rated breaking capacity: 100 kA
- Housing size: BE5 (modular format)
- Power loss: 6.00 W
- Temperature range: -25°C to +55°C
Dimensions and weight:
- Width: 45 mm
- Height: 93 mm
- Depth: 76 mm
- Weight: 0.36 kg
Manufacturer: Schrack. Reliable motor protection in industrial and power generation installations.
| EAN code | 9004840256222 |
|---|---|
| Width (net) | 45.00 mm |
| Height (net) | 93.00 mm |
| Depth (net) | 76.00 mm |
| Net weight | 0.36 kg |
| Power loss | 6.00 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 55°C |
| Current range | 4.0-6.3 A |
| Rated short-circuit breaking capacity | 100 kA |
| Type | Motor protection switch |
| Size | BE5 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 70 pcs. |
