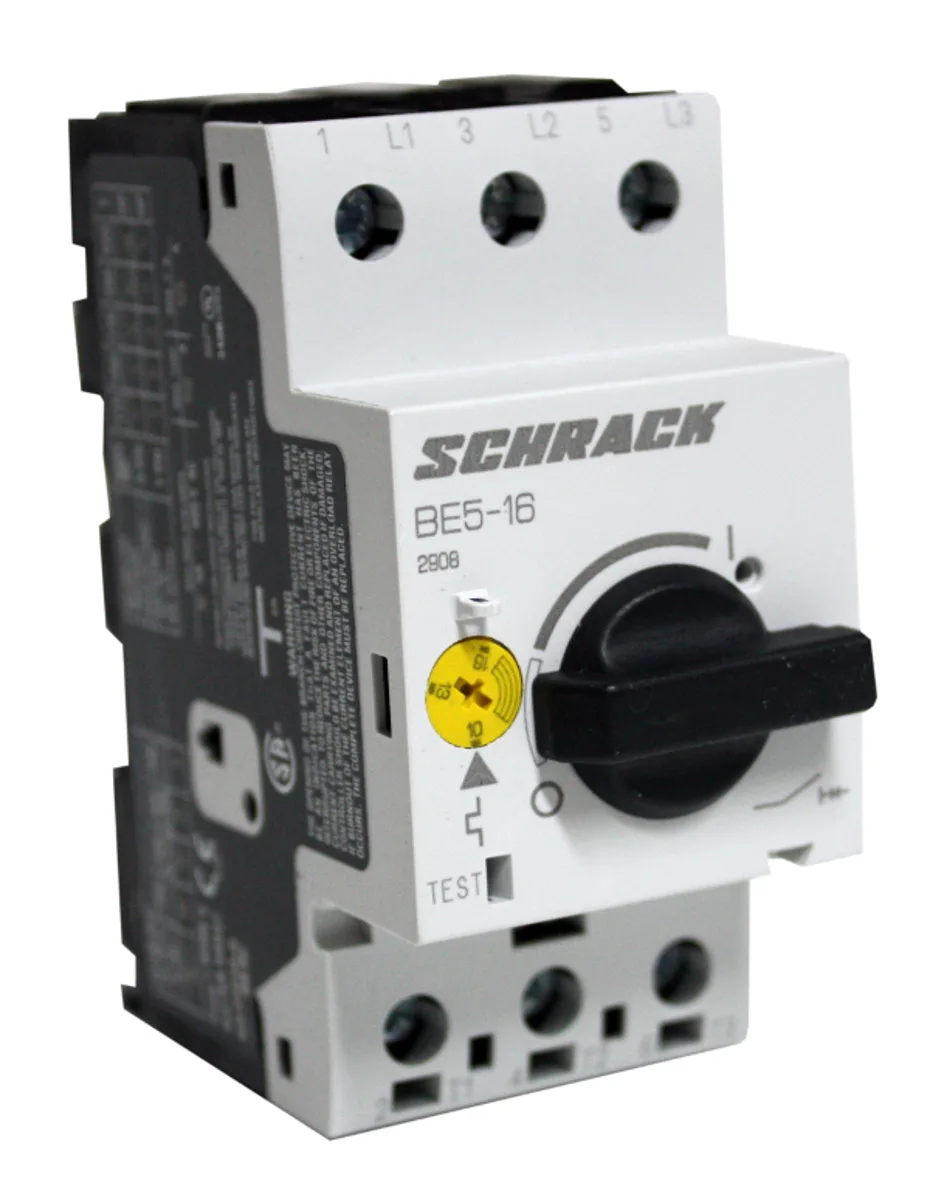

Motor Protection Switch 10-16A/3 BE5
Article: BE516000--
29 840 ₸
In stock
Motor protection switch designed for protection of asynchronous electric motors from overloads and short circuits. The device provides reliable disconnection of the circuit when the set current is exceeded.
Main Characteristics:
- Nominal Current Range: 10–16 A
- Short Circuit Breaking Capacity: 50 kA
- Power Loss: 6 W
- Size: BE5 (single-module form factor)
- Ambient Temperature Range: –25 °C to +55 °C
- Installation: Standard DIN rail width 45 mm
Physical Dimensions:
- Width: 45 mm
- Height: 93 mm
- Depth: 76 mm
- Weight: 0.30 kg
The motor protection switch is manufactured by Schrack and designed for installation in distribution panels and electrical control panels for industrial and municipal applications.
| EAN Code | 9004840256246 |
|---|---|
| Net Width | 45.00 mm |
| Net Height | 93.00 mm |
| Net Depth | 76.00 mm |
| Net Weight | 0.30 kg |
| Power Loss | 6.00 W |
| Minimum Ambient Temperature | –25 °C |
| Maximum Ambient Temperature | +55 °C |
| Current Range | 10.0–16.0 A |
| Short Circuit Breaking Capacity | 50 kA |
| Type | Motor Protection Switch |
| Size | BE5 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 70 pcs. |
