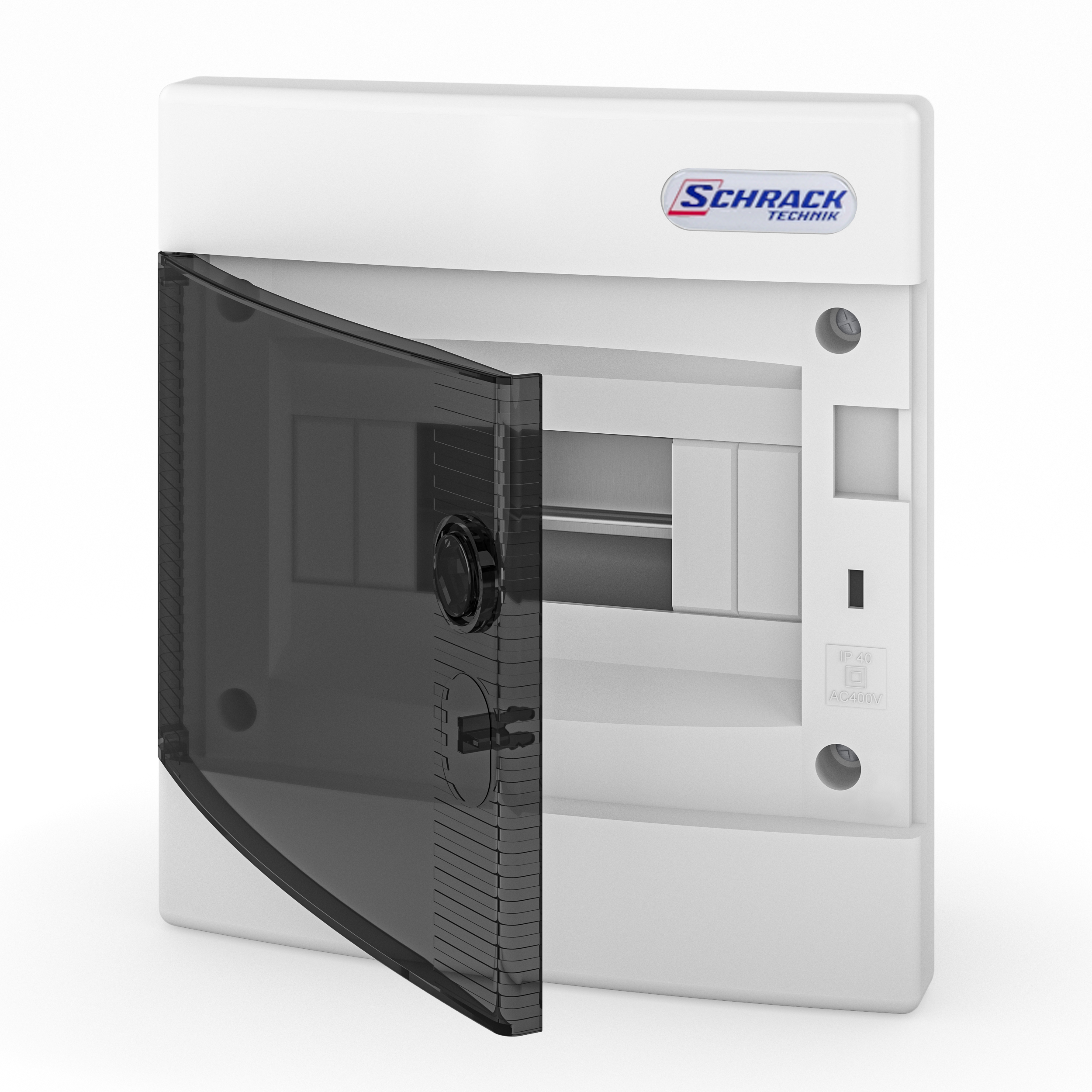

Recessed Distribution Board, 1 Row, 8 Modules, Transparent Door

Recessed single-row distribution board for 8 modules (TE) manufactured by Schrack.

Main Characteristics:

• Construction: concealed (built-in) wall mounting
• Number of modules: 8 TE in a single row
• Door: transparent plastic, allows monitoring of equipment condition without opening
• Protection degree: IP40
• Enclosure color: RAL 9010 (pure white)

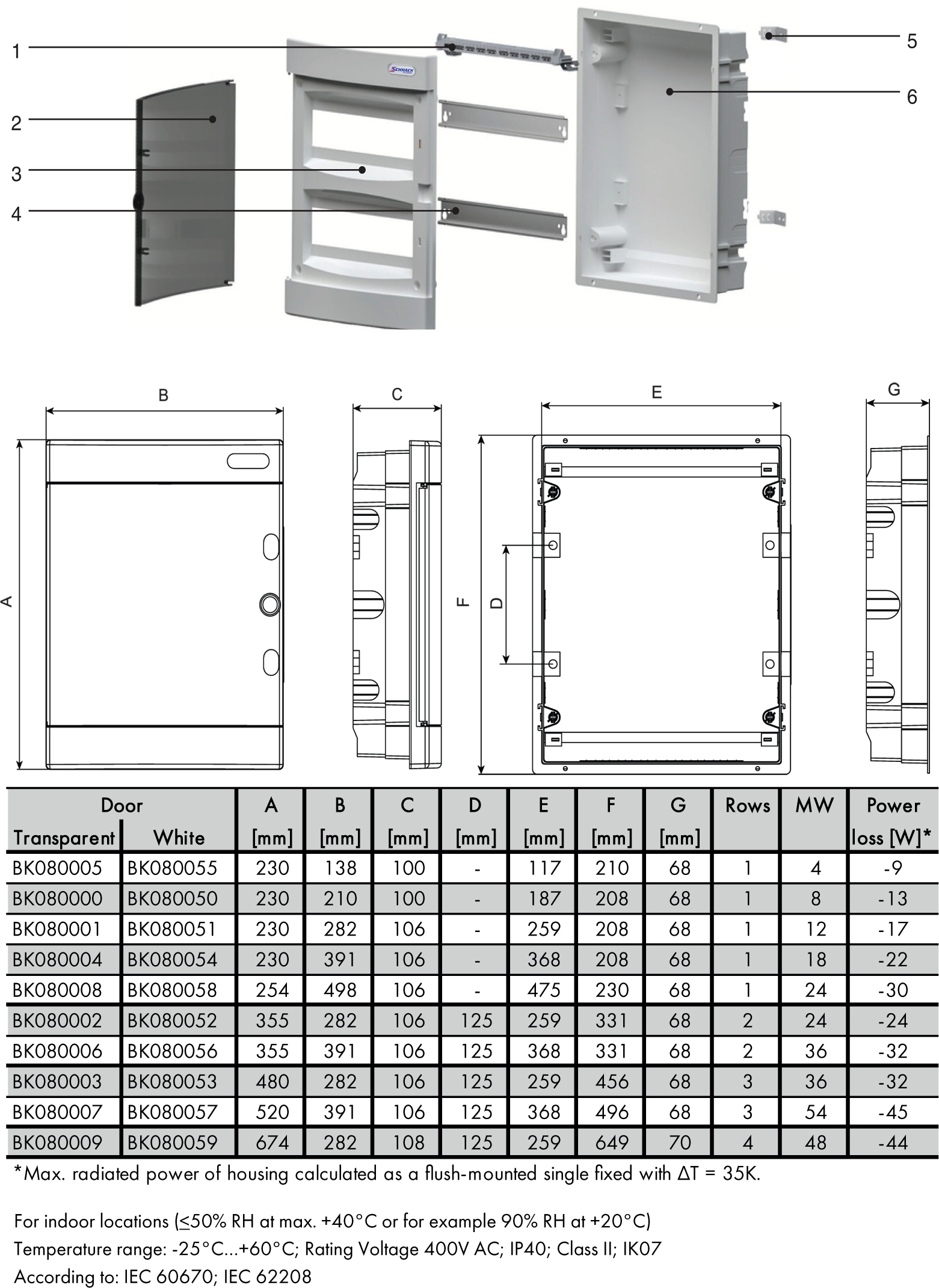

Physical Dimensions:

• Width: 210 mm
• Height: 230 mm
• Depth: 100 mm
• Weight: 0.68 kg

Operating Parameters:

• Operating temperature range: from −25 °C to +60 °C
• Door material: transparent plastic
• Enclosure material: halogen-free
• Power loss at rated load: −13 W

Packaging and Delivery:

Available packaging options: individual unit (1 pc.) and carton (5 pcs.)

EAN: 9004840000047

The board is intended for installation in walls and is designed to accommodate standard single-phase and three-phase modular devices (circuit breakers, RCDs, meters, etc.).
