Flush-mounted distribution board, 1 row, 18 modules, transparent door
Article: BK080004--
15 580 ₸
In stock

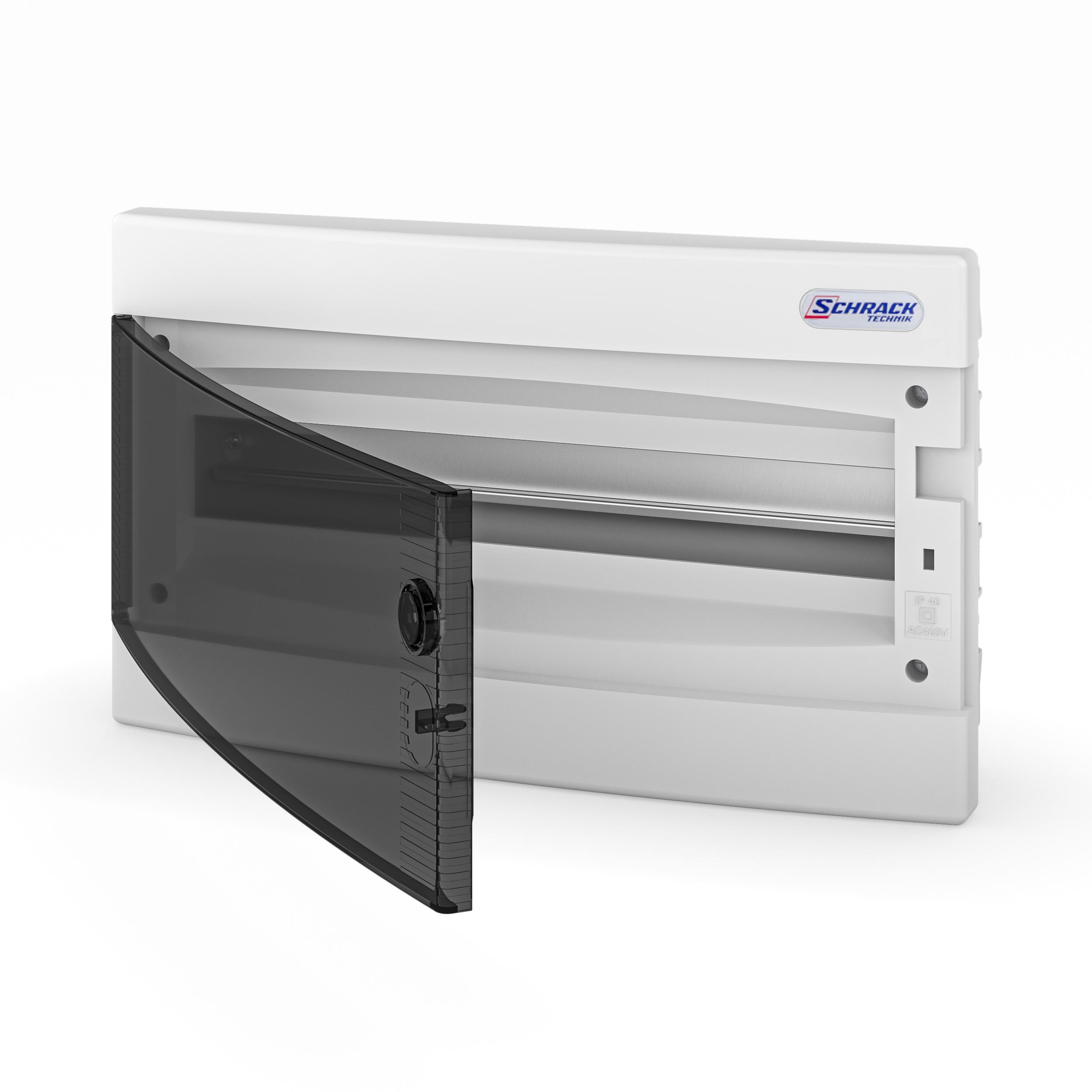

Flush-mounted electrical distribution board in single-row design with capacity for 18 modules. Designed for concealed wall installation with protective transparent door, allowing visual inspection of circuit breakers without opening.
Main Characteristics:
- Number of modules: 18 TE (in single row)
- Degree of protection: IP40 — reliable protection against dust and accidental contact
- Type of installation: flush-mounted (concealed in wall)
- Door material: transparent plastic
- Color: RAL 9010 (pure white)

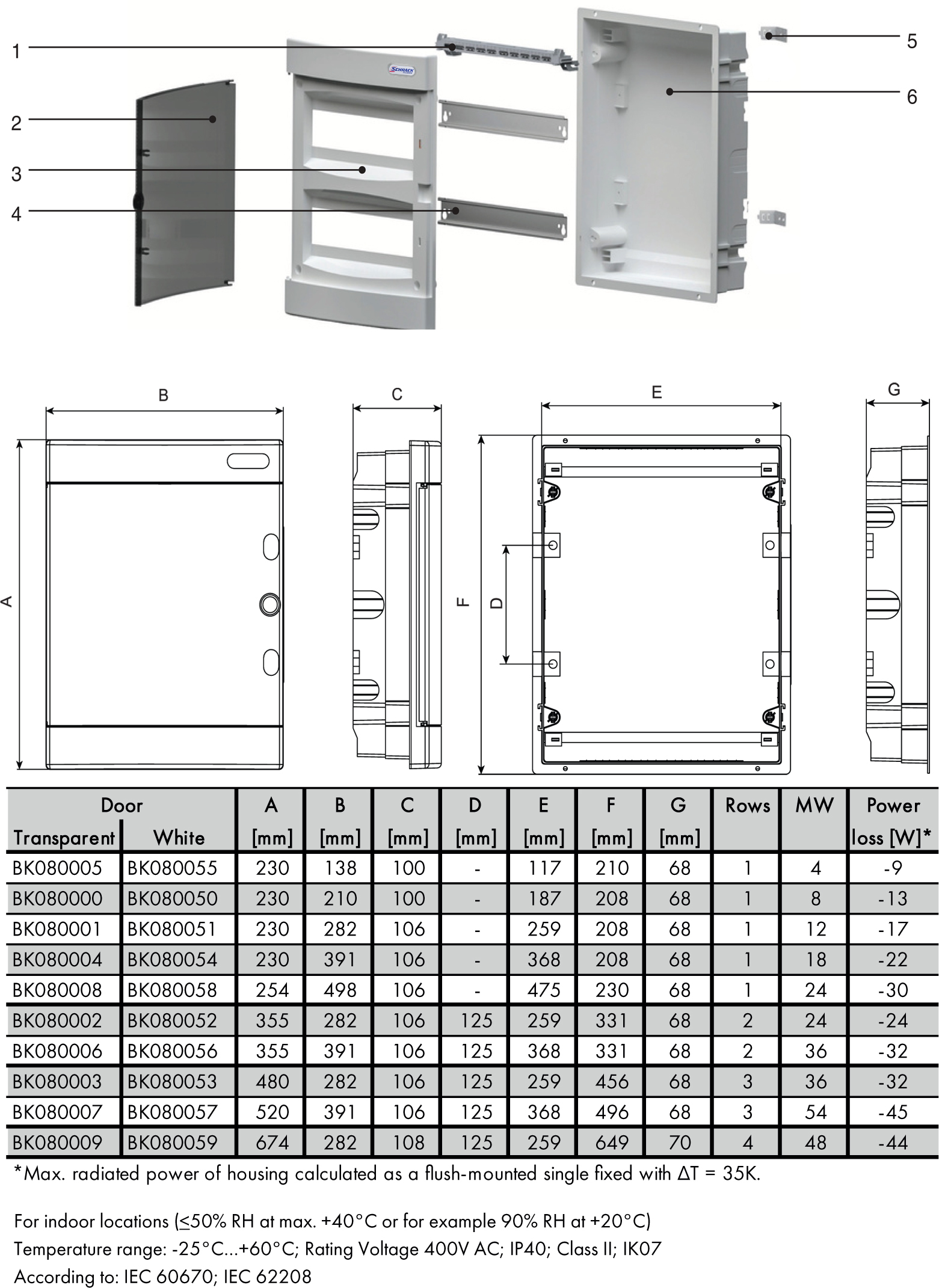

Dimensions and weight:
- Width: 391 mm
- Height: 230 mm
- Depth: 106 mm
- Net weight: 1.21 kg
Operating conditions:
- Operating temperature range: from −25°C to +60°C
- Power loss at rated load: 22 W
- Enclosure material: halogen-free
Manufacturer: Schrack (reliable Austrian manufacturer of electrical equipment)
The distribution board is ready for assembly with modular protection and control devices: automatic circuit breakers, differential modules, monitoring relays, and other modular devices.
| EAN code | 9004840590579 |
|---|---|
| Net width | 391.00 mm |
| Net height | 230.00 mm |
| Net depth | 106.00 mm |
| Net weight | 1.21 kg |
| Power loss | 22.00 W |
| Minimum ambient temperature | -25°C |
| Maximum ambient temperature | 60°C |
| Design | Flush-mounted installation with door |
| Rows | 1 |
| Modules per series | 18 |
| Degree of protection | IP40 |
| Color | RAL 9010 (pure white) |
| Manufacturer | Schrack |
| Installation | Flush-mounted |
| Material - Door | Plastic, transparent |
| Halogen-free | Yes |
| Packaging | 1 pcs., 5 pcs. |
