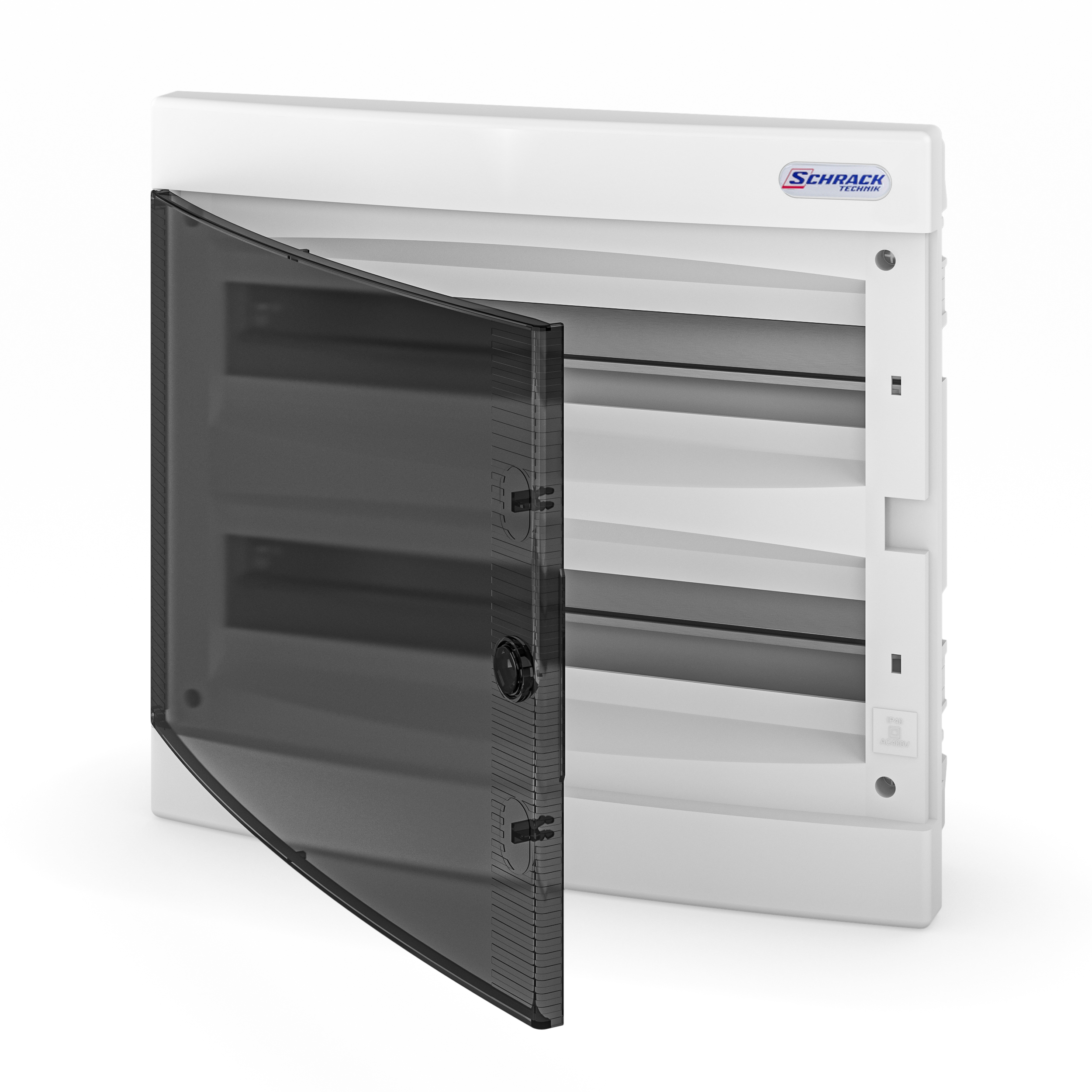

Recessed Distribution Board, 2 Rows, 36 Modules, Transparent Door
Article: BK080006--
21 810 ₸
In stock
Recessed distribution board for 36 modules (2 rows × 18 TE) with transparent plastic door for concealed installation in walls.
Key Characteristics:
- Design: Recessed mounting, concealed installation design
- Modularity: 2 rows, 18 modules per row (1 TE = 17.5 mm)
- Protection: IP40 — protection against direct contact and splashing
- Door Material: Transparent plastic, provides visual control
- Enclosure Color: RAL 9010 (pure white)
- Operating Temperature Range: from −25°C to +60°C
- Environmental: Halogen-free
- Manufacturer: Schrack
Net Dimensions:
- Width: 391 mm
- Height: 355 mm
- Depth: 106 mm
- Weight: 2.41 kg
Electrical Parameters:
- Power Loss: −32 W
Supply Package: 1 or 5 pieces per package
The board is intended for installation within walls and is suitable for distribution and protection of electrical circuits in residential and commercial facilities.
| EAN Code | 9004840669114 |
|---|---|
| Net Width | 391.00 mm |
| Net Height | 355.00 mm |
| Net Depth | 106.00 mm |
| Net Weight | 2.41 kg |
| Power Loss | -32.00 W |
| Min. Ambient Temperature | -25°C |
| Max. Ambient Temperature | 60°C |
| Design | Concealed mounting, with door |
| Rows | 2 |
| TE per Row | 18 |
| Degree of Protection | IP40 |
| Color | RAL 9010 (pure white) |
| Manufacturer | Schrack |
| Mounting Type | Recessed |
| Material - Door | Plastic, transparent |
| Halogen-free | Yes |
| Packaging | 1 piece, 5 pieces |
