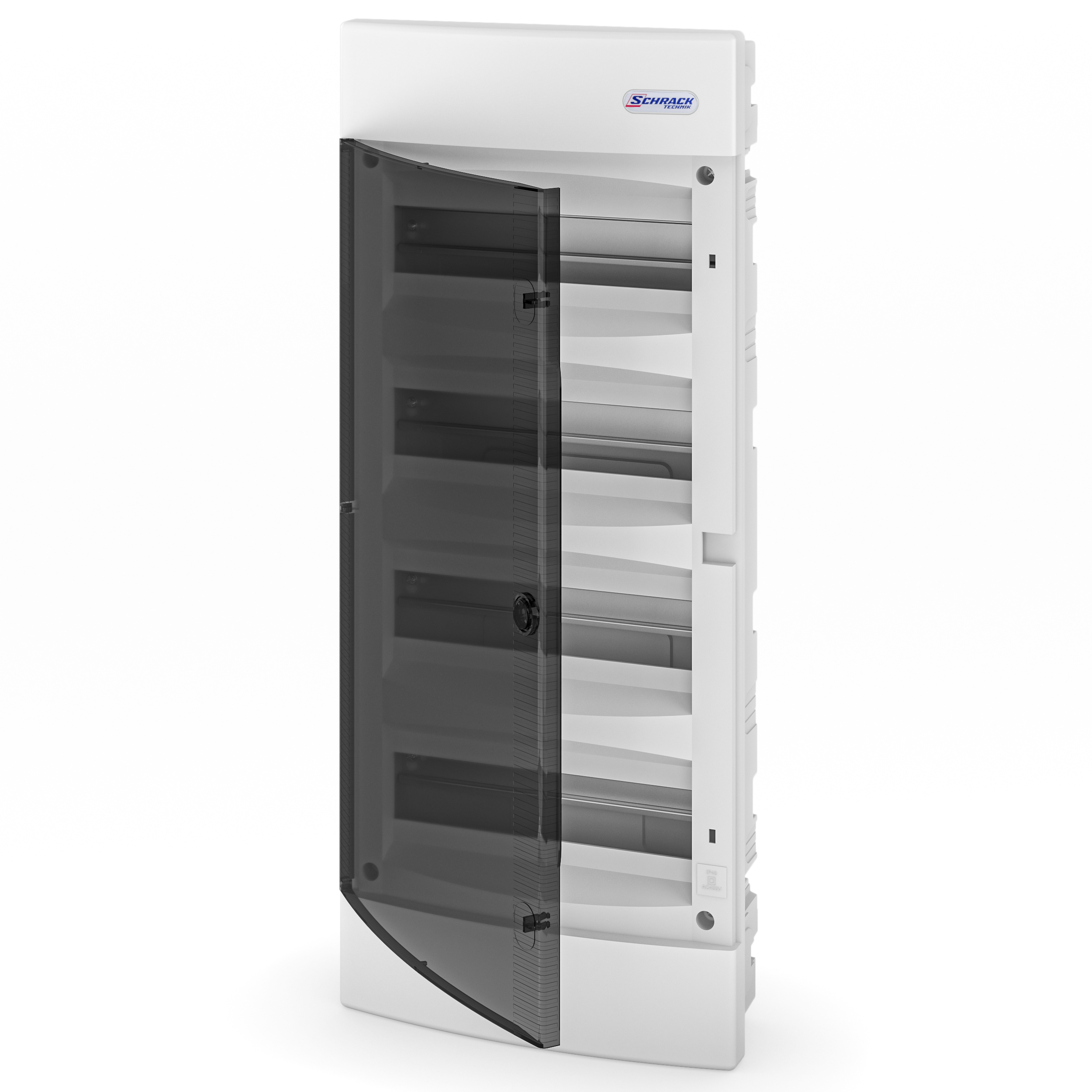

Flush-mounted distribution board, 4 rows, 48 modules, transparent door

Flush-mounted distribution board for concealed installation in the wall, designed for placement of modular electrical equipment.

Main characteristics:

• Number of rows: 4
• Number of modules: 48 (12 TE per row)
• Degree of protection: IP40
• Door: Transparent plastic, allows visual monitoring of equipment status without opening

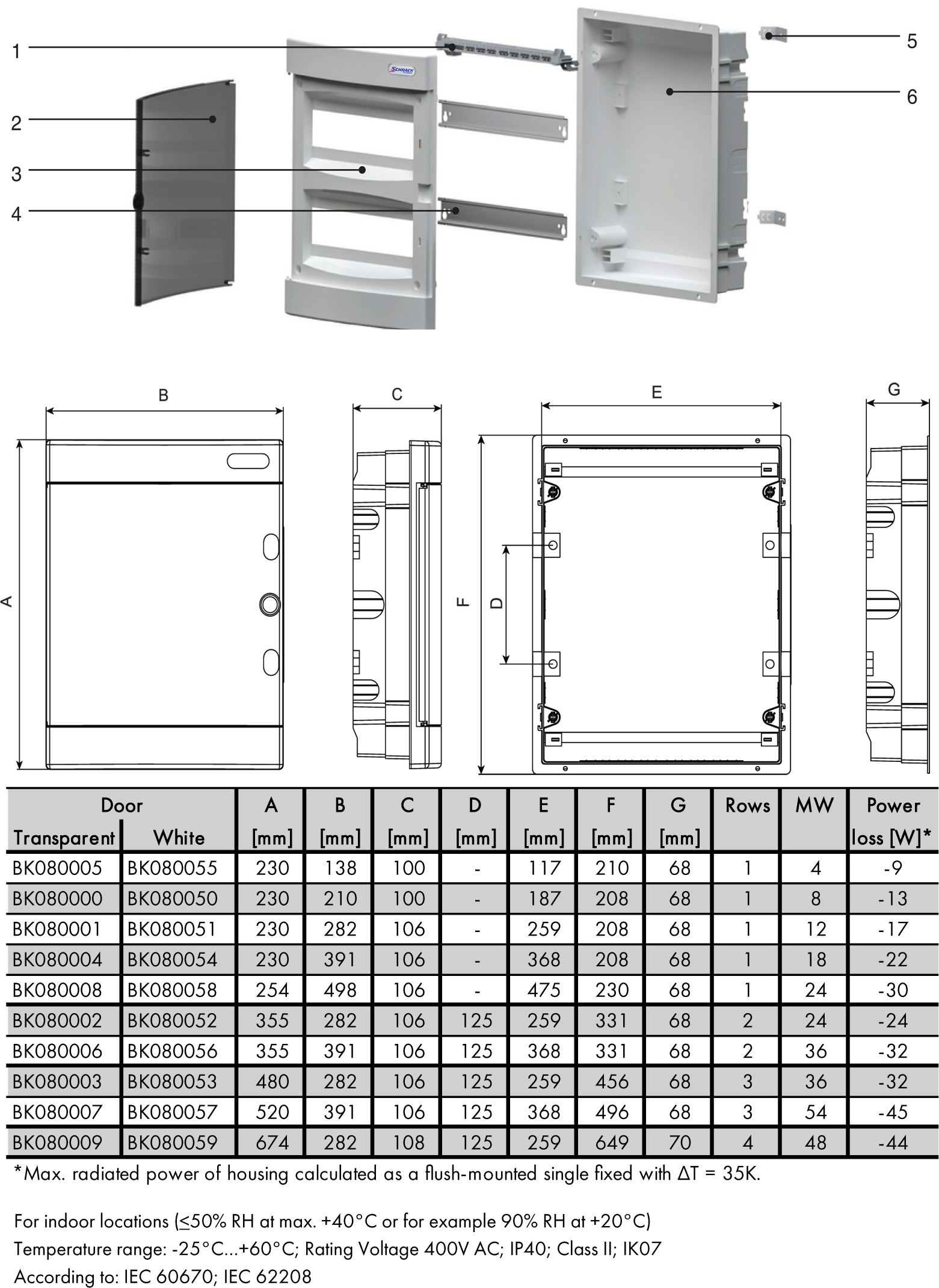

Dimensions and weight:

• Width: 282 mm
• Height: 674 mm
• Depth: 108 mm
• Weight: 2.20 kg

Technical parameters:

• Installation: Flush-mounted (concealed in wall)
• Housing material: Metal, painted in RAL 9003 (white) color
• Door material: Transparent plastic
• Operating temperature range: from −25°C to +60°C
• Power loss: 44 W
• Halogen-free: Yes

Manufacturer: Schrack

Available packaging options: 1 pc., 5 pc.

The board is designed for placement of modular protection and control devices (automatic circuit breakers, differential circuit breakers, relays and other DIN standard equipment). The transparent door provides convenience for monitoring and diagnostics without disassembly.
