Lock Cylinder for BK08---- IP40 TOPO Distribution Boards
SKU: BK080096--In stock

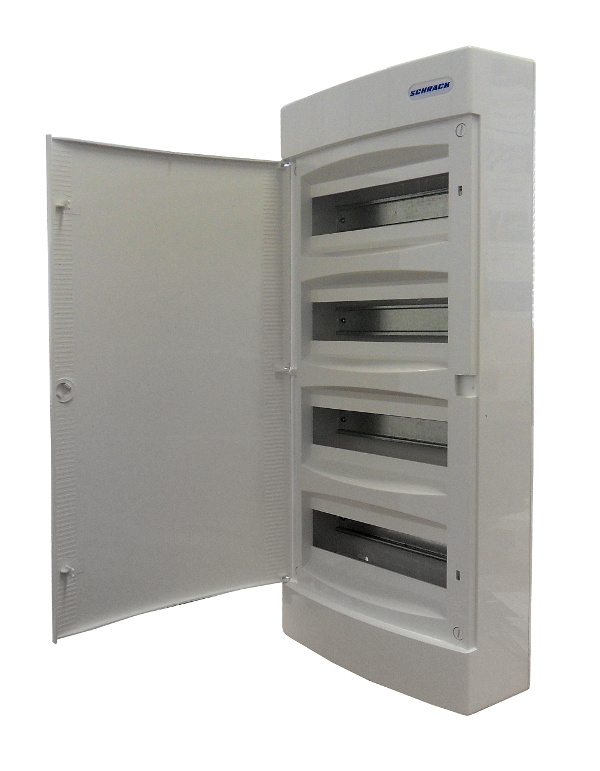

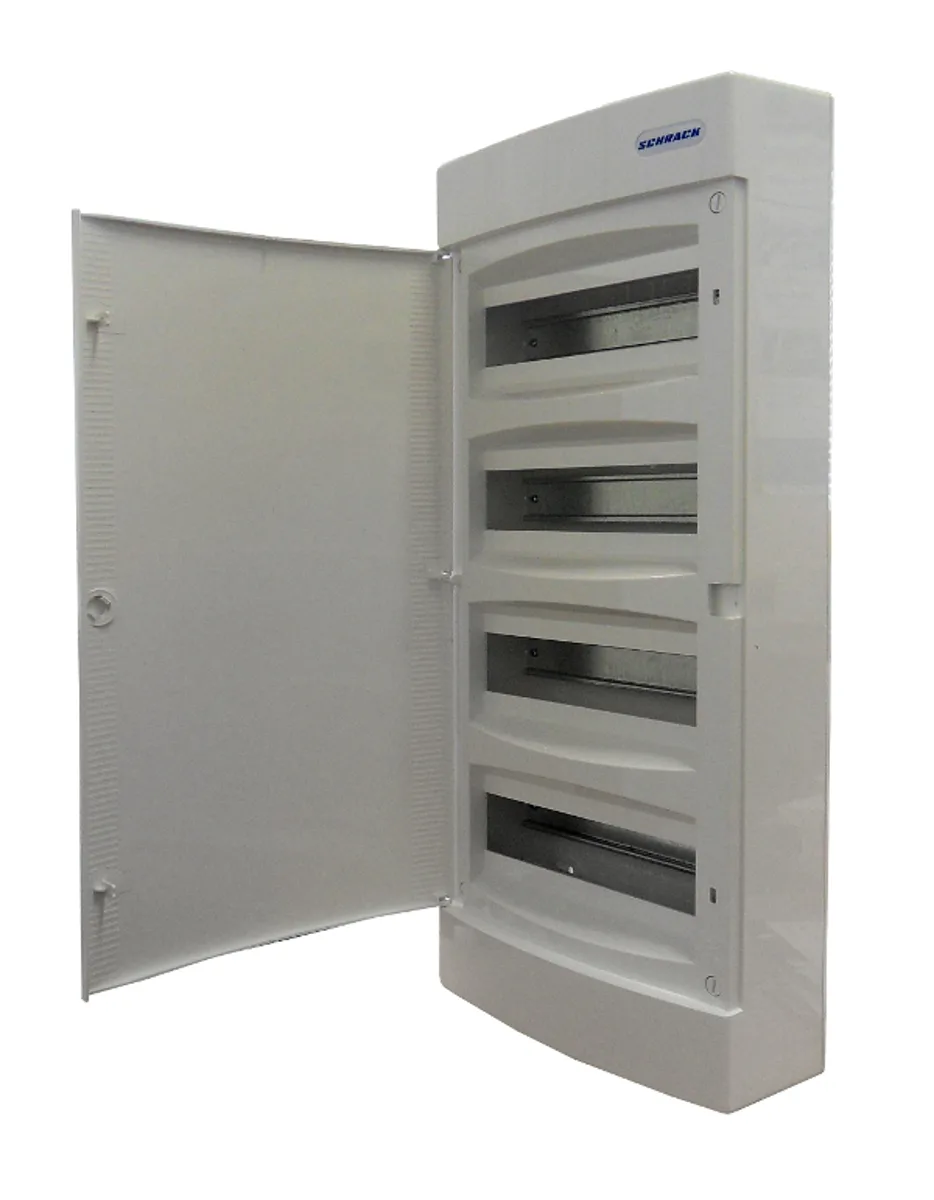

Surface-mounted distribution board, 4 rows, 48 modules, white door
Article: BK080155--
28 600 ₸
In stock
Surface-mounted distribution board with 48 modules (4 rows of 12 TE each) for surface installation with white plastic door. Designed for distribution and protection of electrical circuits in residential and commercial premises.
Key specifications:
- Design: flush-mounted installation (surface-mounted), solid metal enclosure with door
- Capacity: 4 rows, 48 modules (12 TE per row)
- Degree of protection: IP40 — protection against dust and water splashes
- Door: plastic, color RAL 9003 (signal white)
- Operating temperature range: from -25°C to +60°C
- Door material: plastic, halogen-free (Halogen-free)
- Power loss: -54 W
Dimensions (net):
- Width: 287 mm
- Height: 650 mm
- Depth: 112 mm
- Weight: 2.20 kg
Manufacturer: Schrack
Packaging: available in 1 pc. and 5 pc. options.
| EAN-code | 9004840614930, 9007985024053 |
|---|---|
| Width (net) | 287.00 mm |
| Height (net) | 650.00 mm |
| Depth (net) | 112.00 mm |
| Weight (net) | 2.20 kg |
| Power loss | -54.00 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Design | Flush-mounted, with door |
| Rows | 4 |
| TE in series | 12 |
| Degree of protection | IP40 |
| Color | RAL 9003 (signal white) |
| Manufacturer | Schrack |
| Installation | Surface-mounted installation |
| Material - Door | Plastic |
| Halogen-free | Yes |
| Packaging | 1 pc., 5 pc. |
Optional accessories (1)
