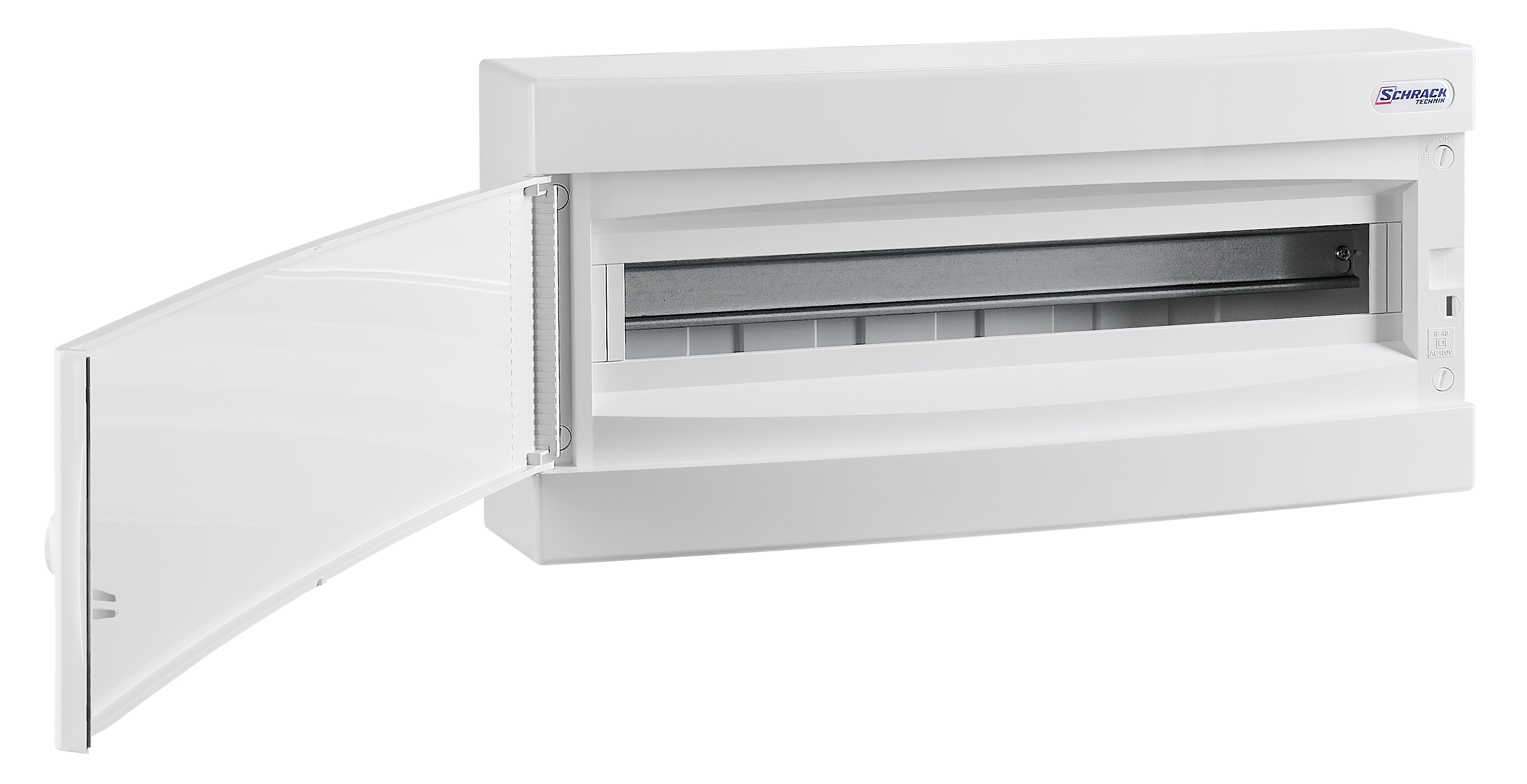

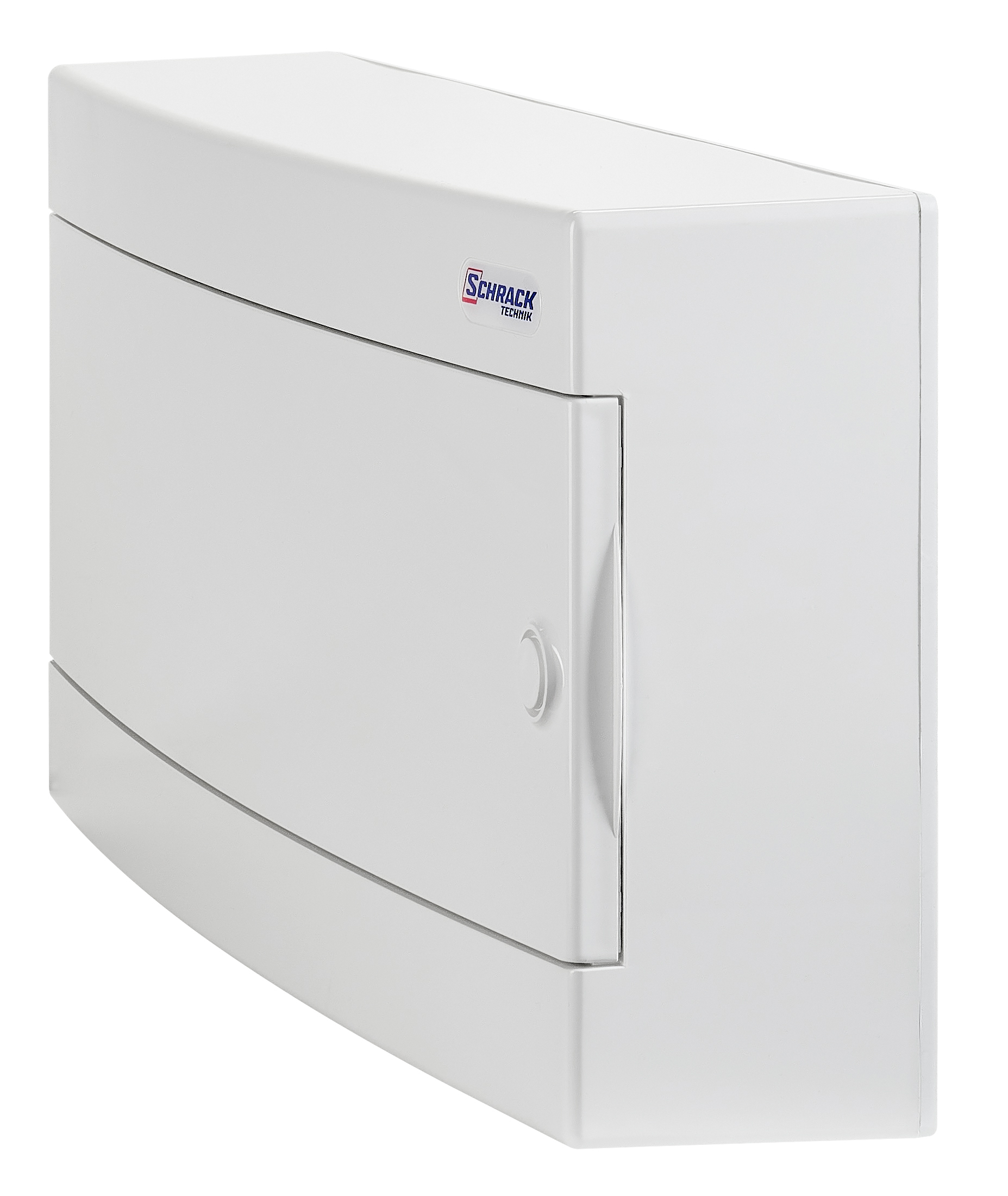

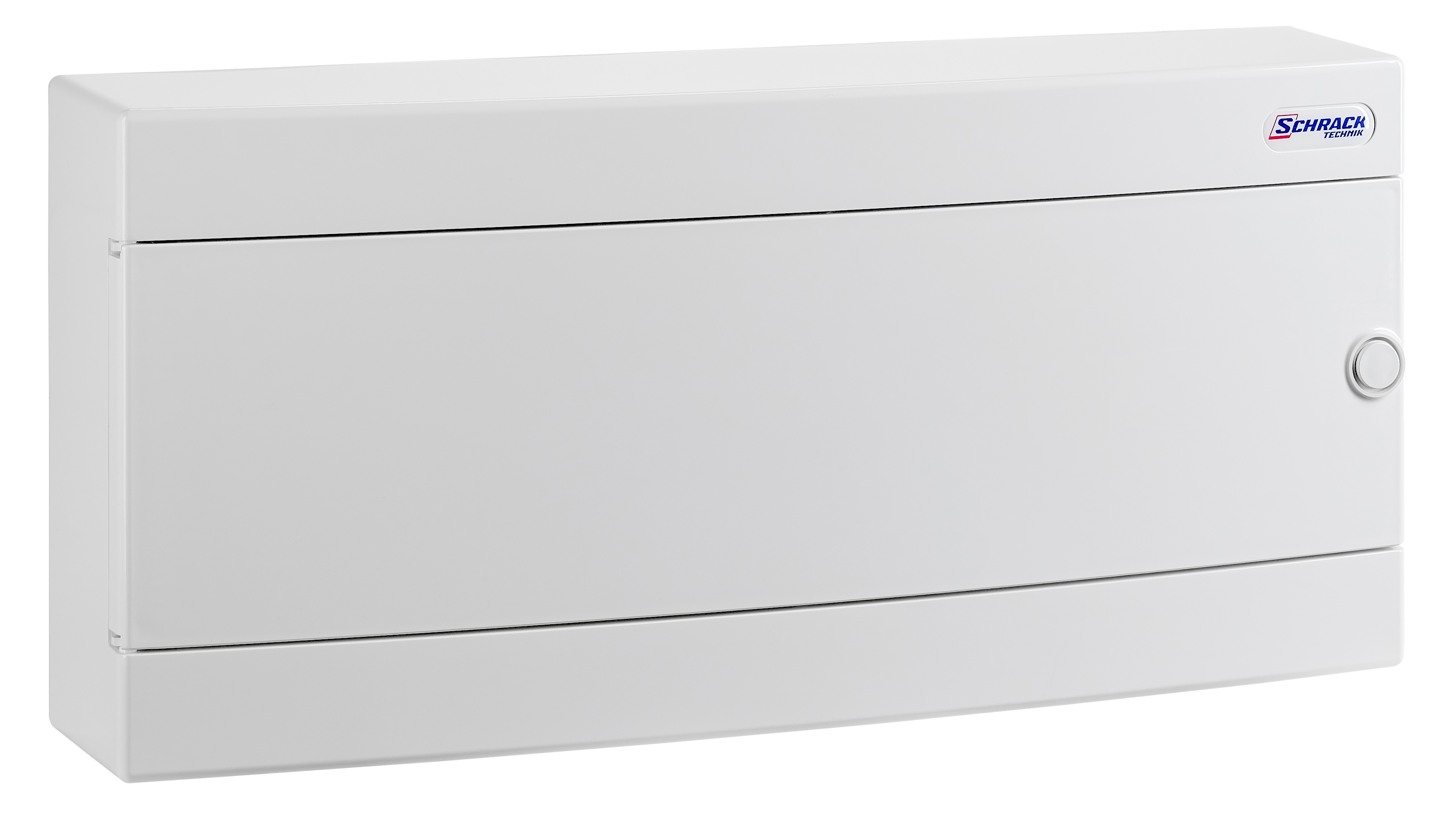

Flush-mounted distribution board, 1 row, 24 modules, white door

Single-row flush-mounted distribution board for 24 modules designed for surface mounting in indoor applications. The enclosure is made of fire-resistant material, with a durable white plastic door (RAL 9003). The board provides reliable protection and organization of electrical circuits in accordance with applicable standards.

Key technical parameters:

• Number of modules: 24 TE (DIN standard modules)
• Degree of protection: IP40 (protection against direct impact of solid objects and splashes)
• Door material: plastic
• Color: RAL 9003 (signal white)
• Execution: surface mounting with door
• Operating temperature range: -25°C to +60°C
• Power loss: -36 W
• Safety class: halogen-free
• Manufacturer: Schrack

Overall dimensions:

• Width: 502 mm
• Height: 235 mm
• Depth: 112 mm
• Weight: 1.44 kg

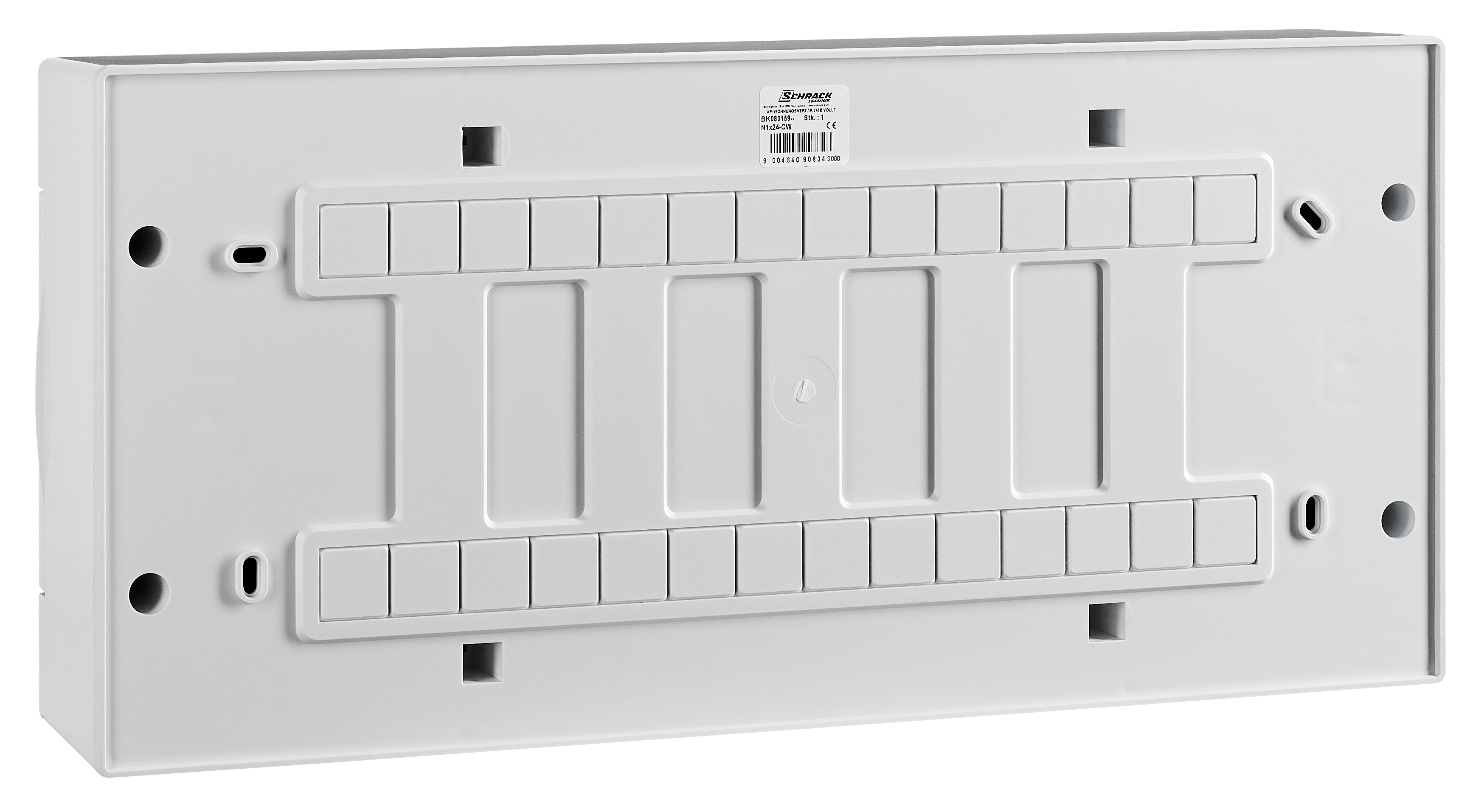

The board is supplied in packages of 1 or 5 units. Easy wall mounting with supplied fastening elements.
