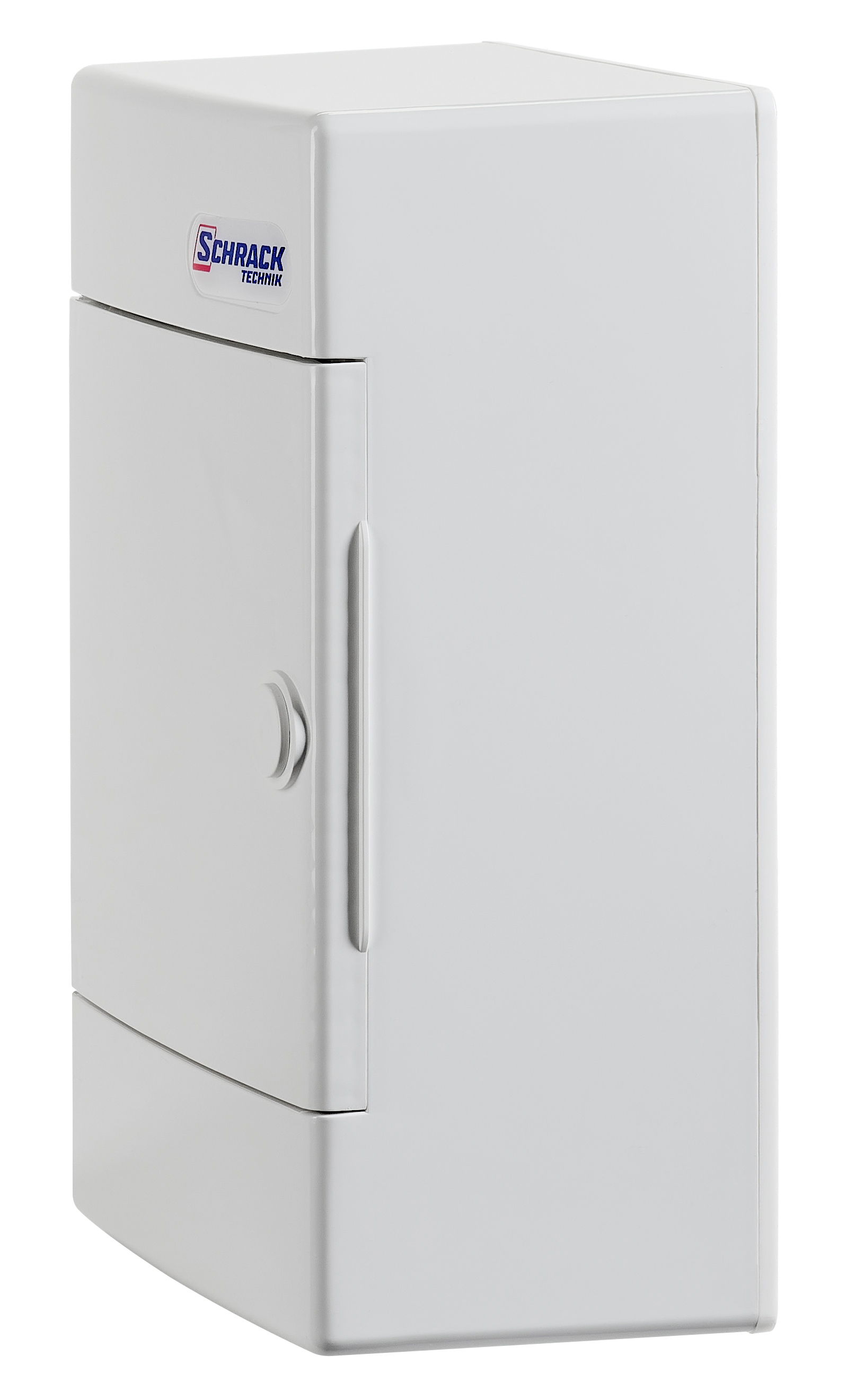

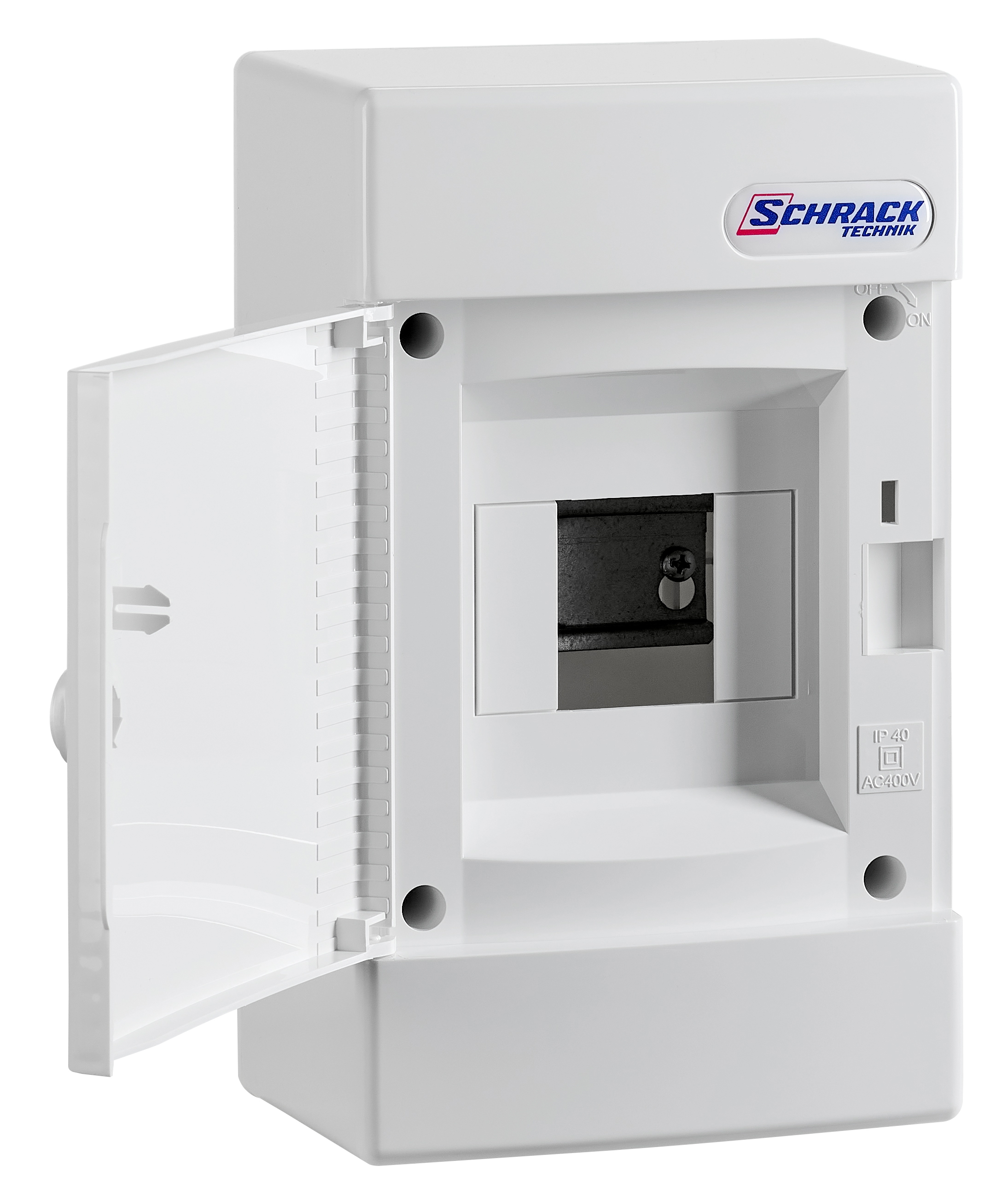

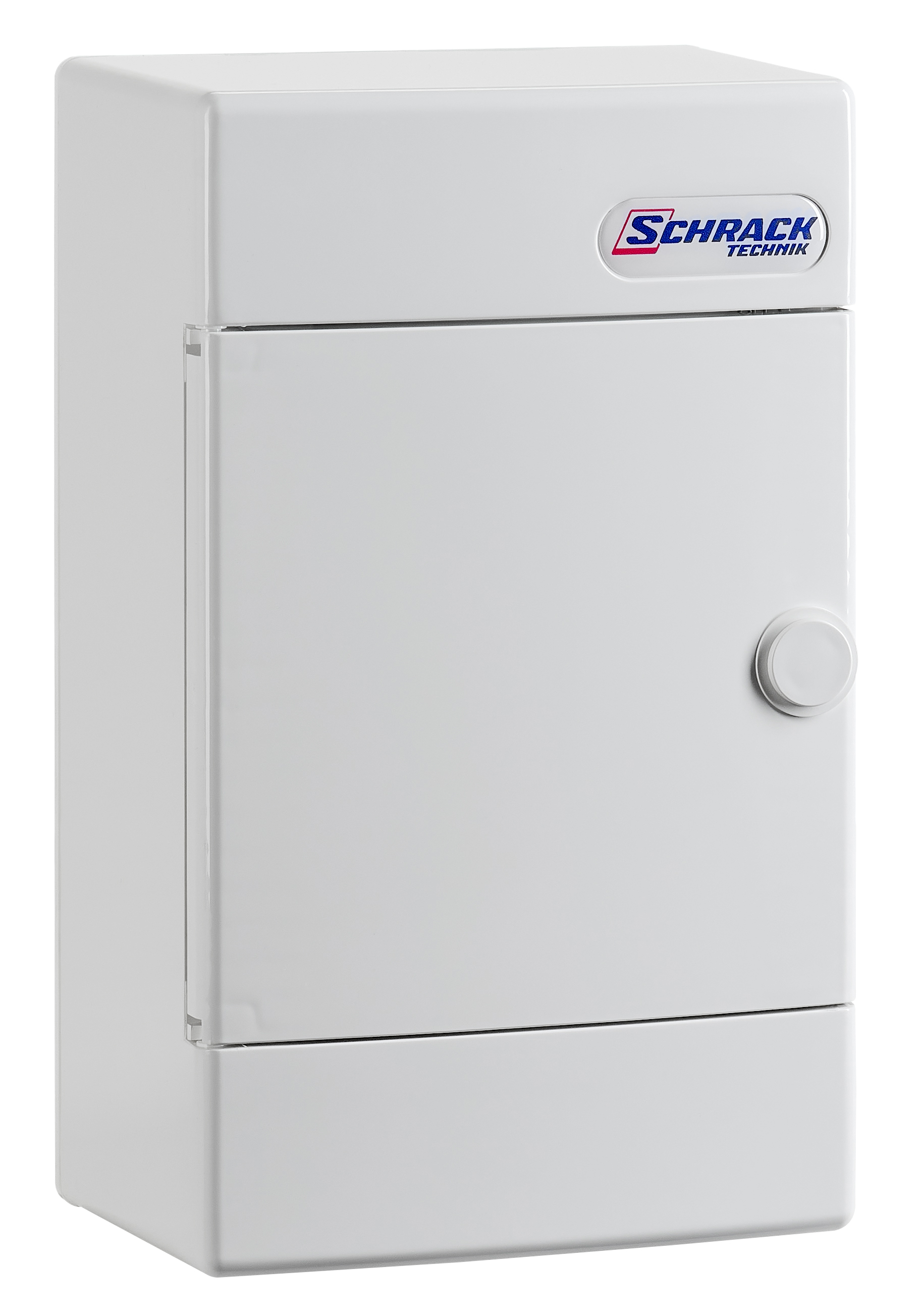

Recessed Distribution Board, 1 Row, 4 Modules, White Door

Single-row surface-mounted distribution board designed for installation and switching of electrical circuits in residential and industrial premises. The construction provides surface mounting on walls with a white plastic door.

Key Specifications:

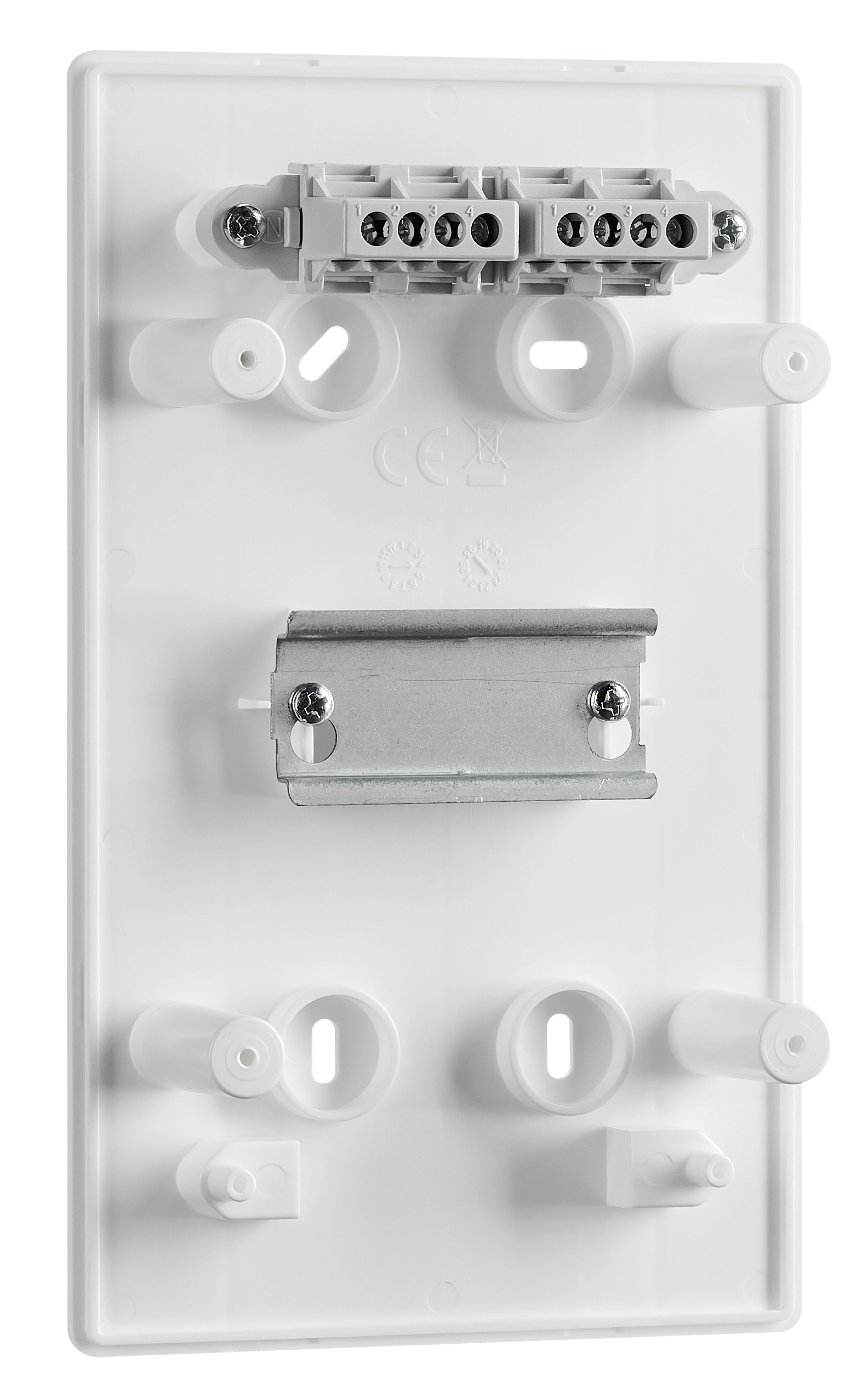

• Configuration: 1 row, 4 modules (TE) on DIN rail
• Degree of Protection: IP40 — protection against direct water splashes and contact with objects larger than 1 mm
• Color: RAL 9003 (signal white) in accordance with current standards for electrical equipment design
• Door Material: Plastic, halogen-free, complies with environmental requirements

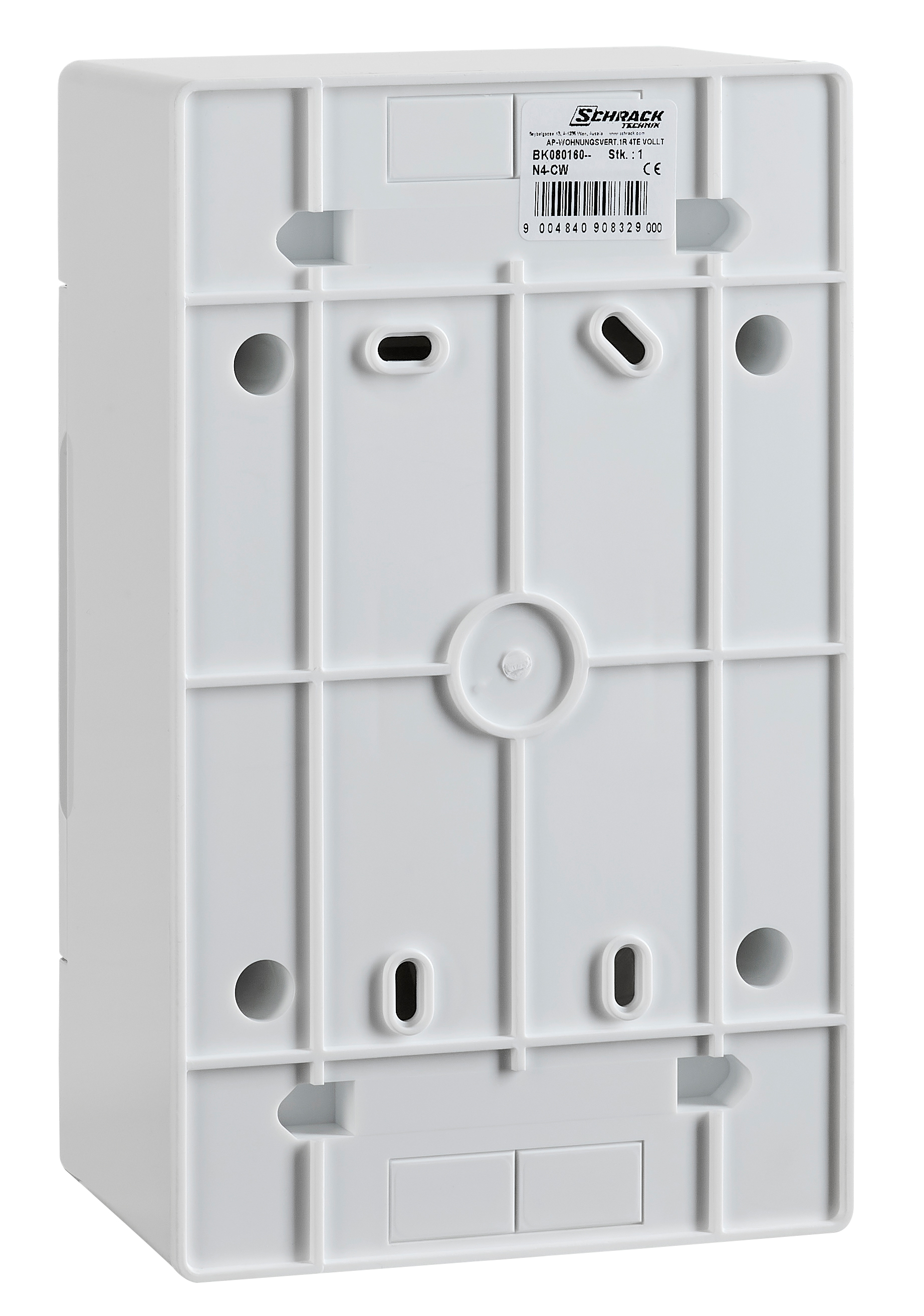

• Mounting Type: Surface (flush) wall mounting

Geometric Parameters:

• Width: 143 mm
• Height: 235 mm
• Depth: 97 mm
• Weight: 0.49 kg

Operating Conditions:

• Operating temperature range: from -25°C to +60°C
• Power loss during operation: -13 W

Manufacturer: Schrack (Austria)

Packaging: supplied as single units or in packs of 5 units.
