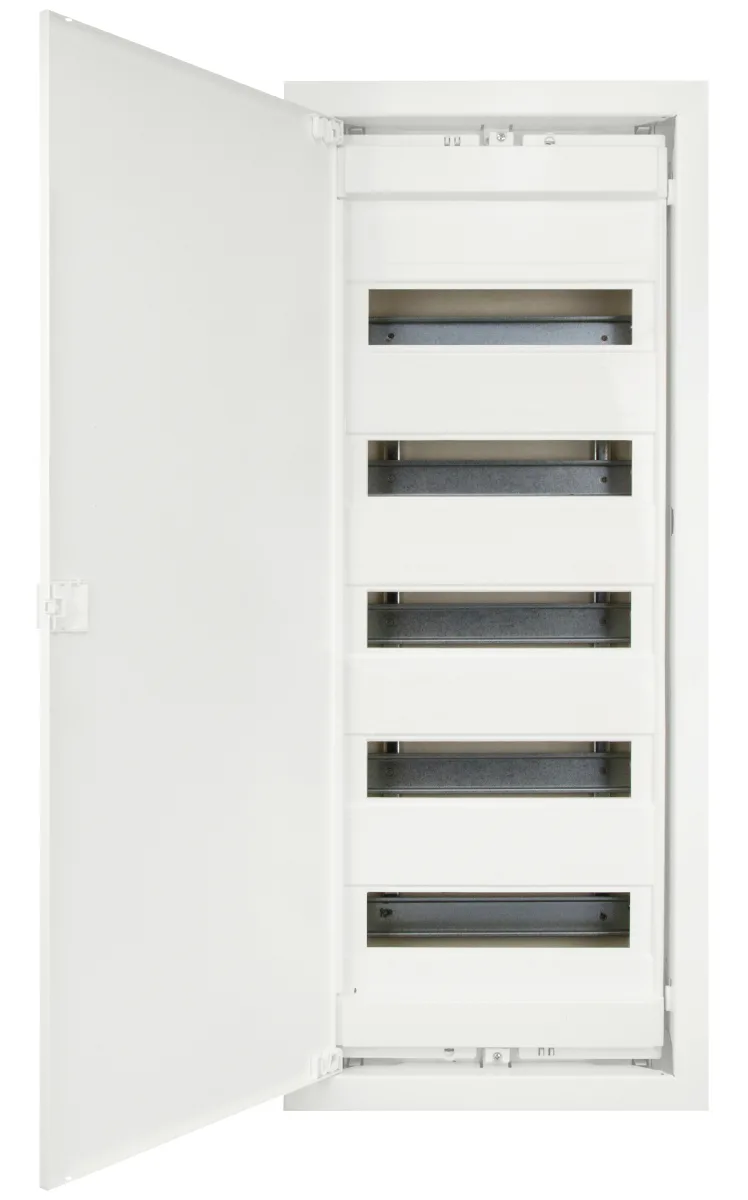

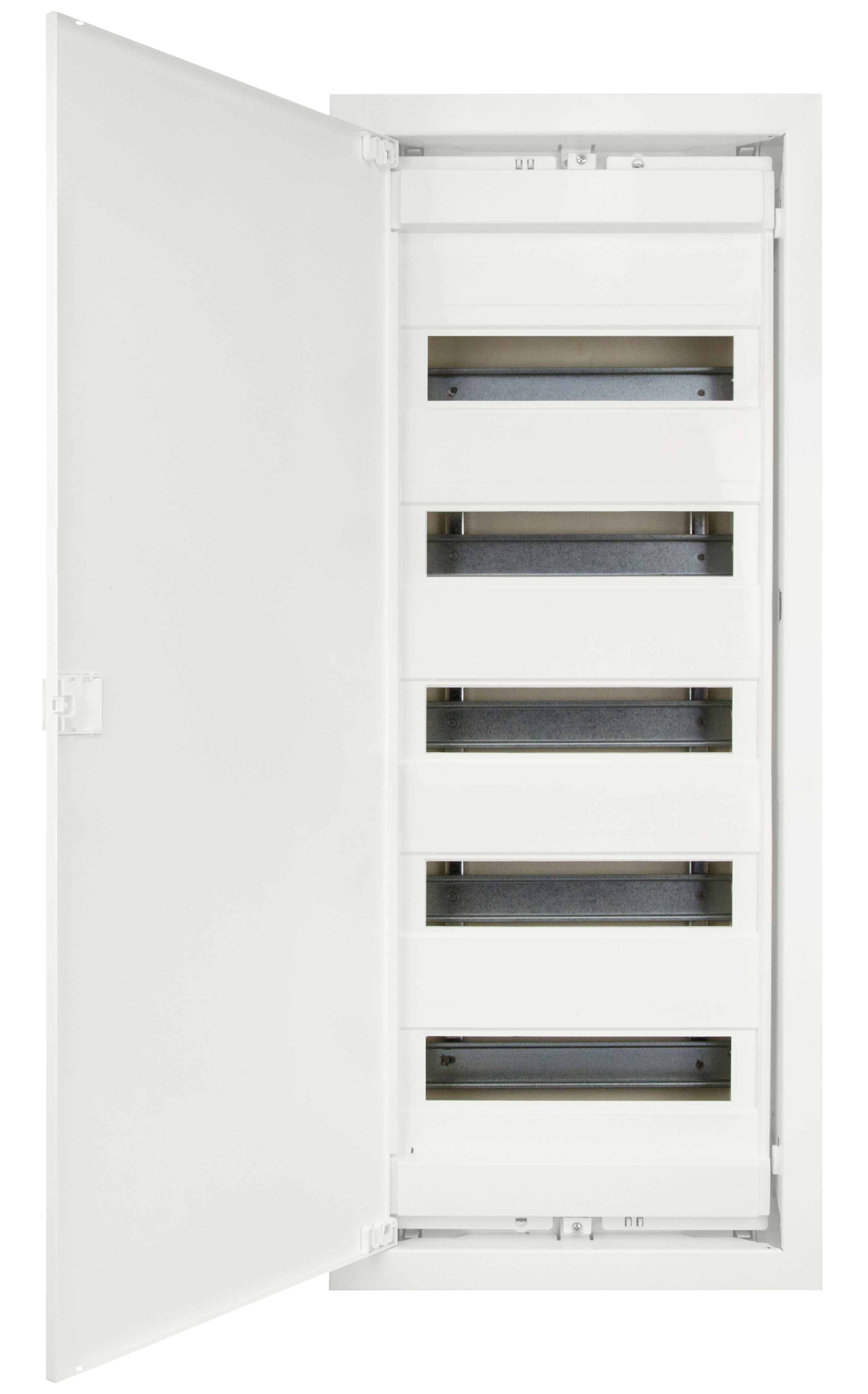

Flush-mounted shield, 5 rows, 60+10 modules, metal door

Flush-mounted modular shield designed for installation in a wall recess and for accommodation of electrical equipment in low voltage distribution networks of residential and industrial facilities.

Main characteristics:

• Design: flush-mounted (for installation in a wall recess)
• Row arrangement: 5 rows
• Modularity: 60 + 10 modules (70 modular spaces)
• Door: metal, provides protection and reliable closure
• Field of application: distribution and management of electrical energy in low voltage circuits

Functional capabilities:

The shield is designed for placement of modular protective devices: automatic circuit breakers, differential circuit breakers, RCDs, protection against impulse overvoltages and other components of modular equipment of standard width (17.5 mm per module).

Application:

Used in electrical supply systems of residential buildings, administrative and industrial facilities for equipping distribution devices and control panels of electrical installations up to 1000 V alternating current.
