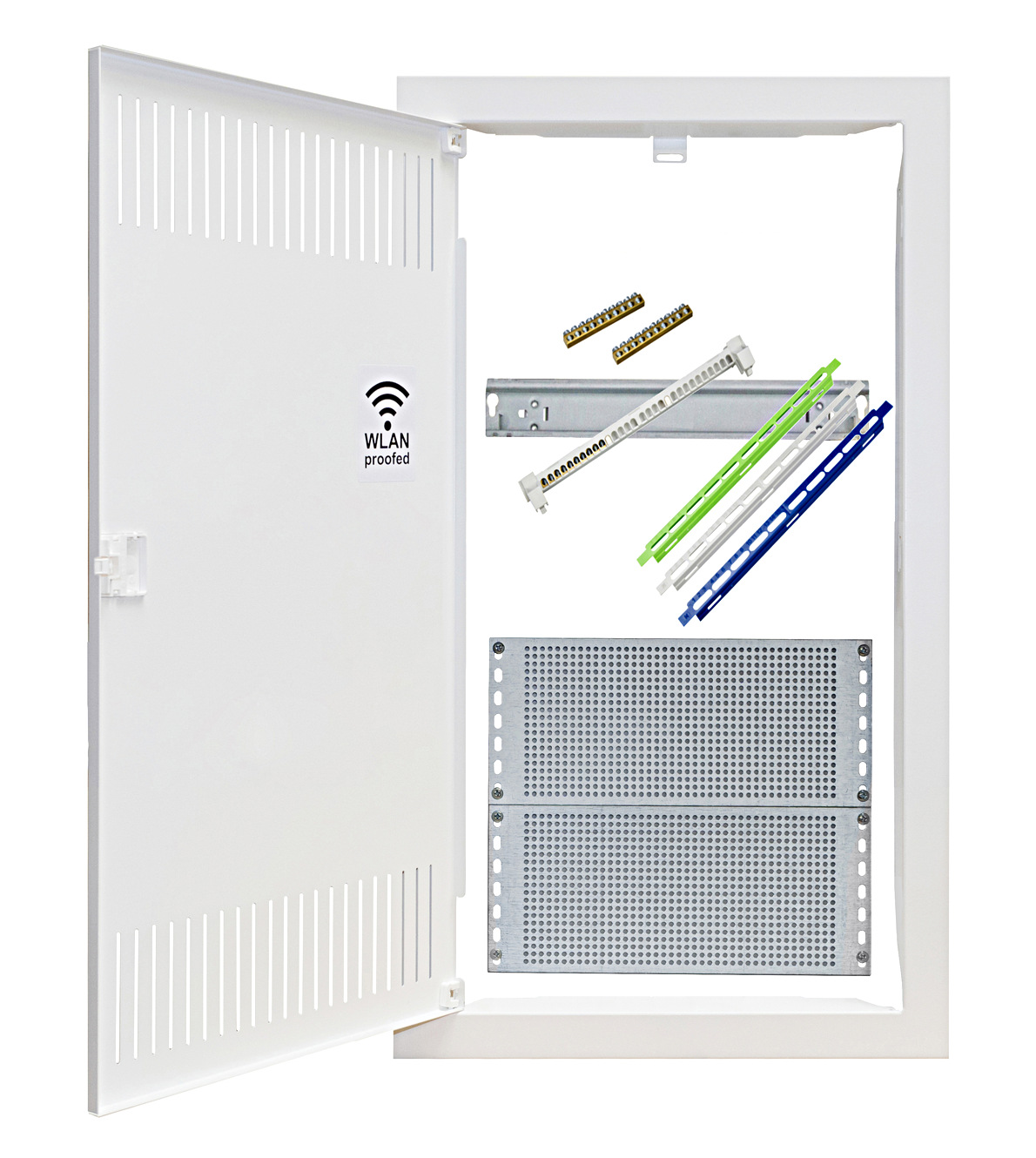

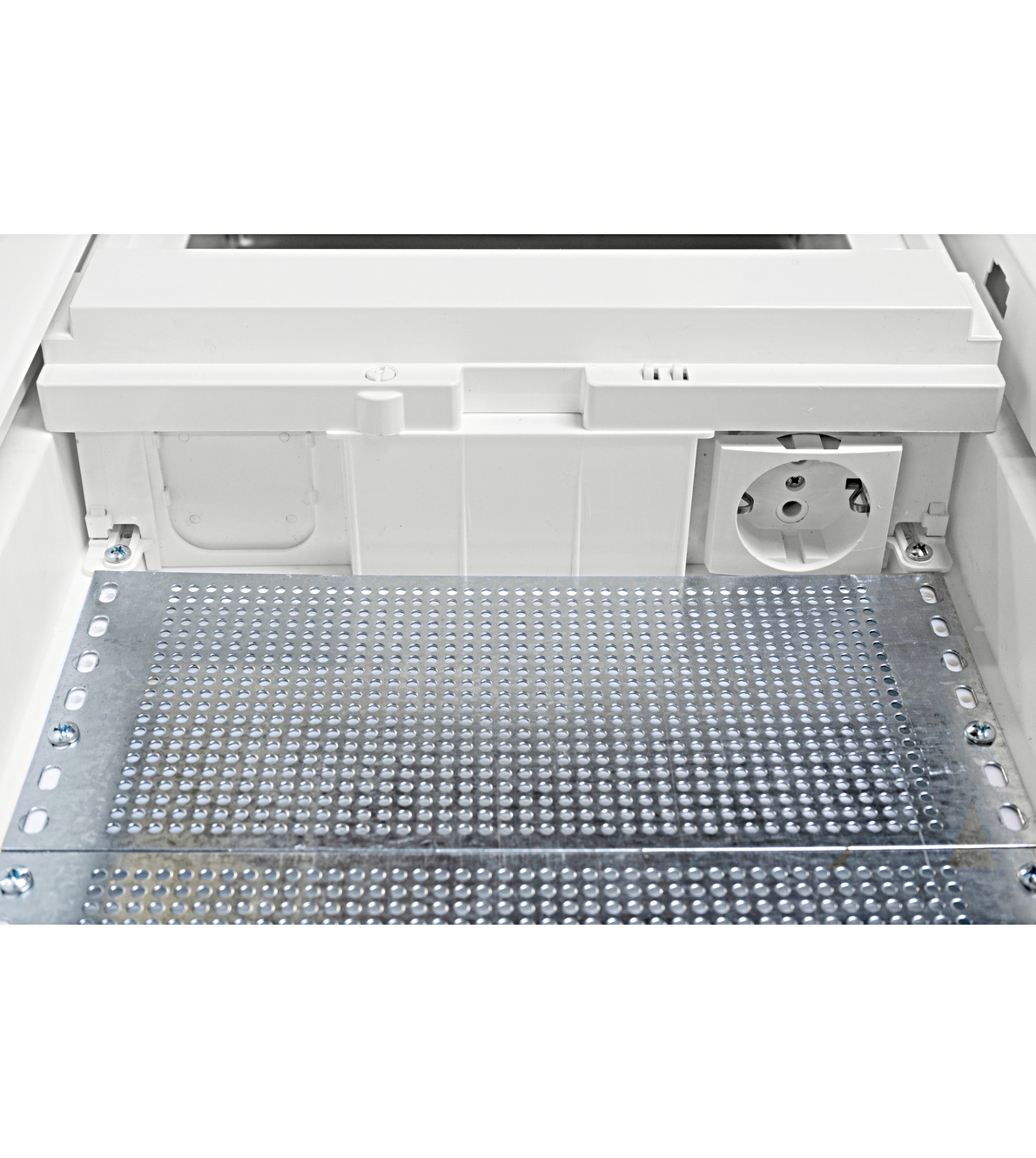

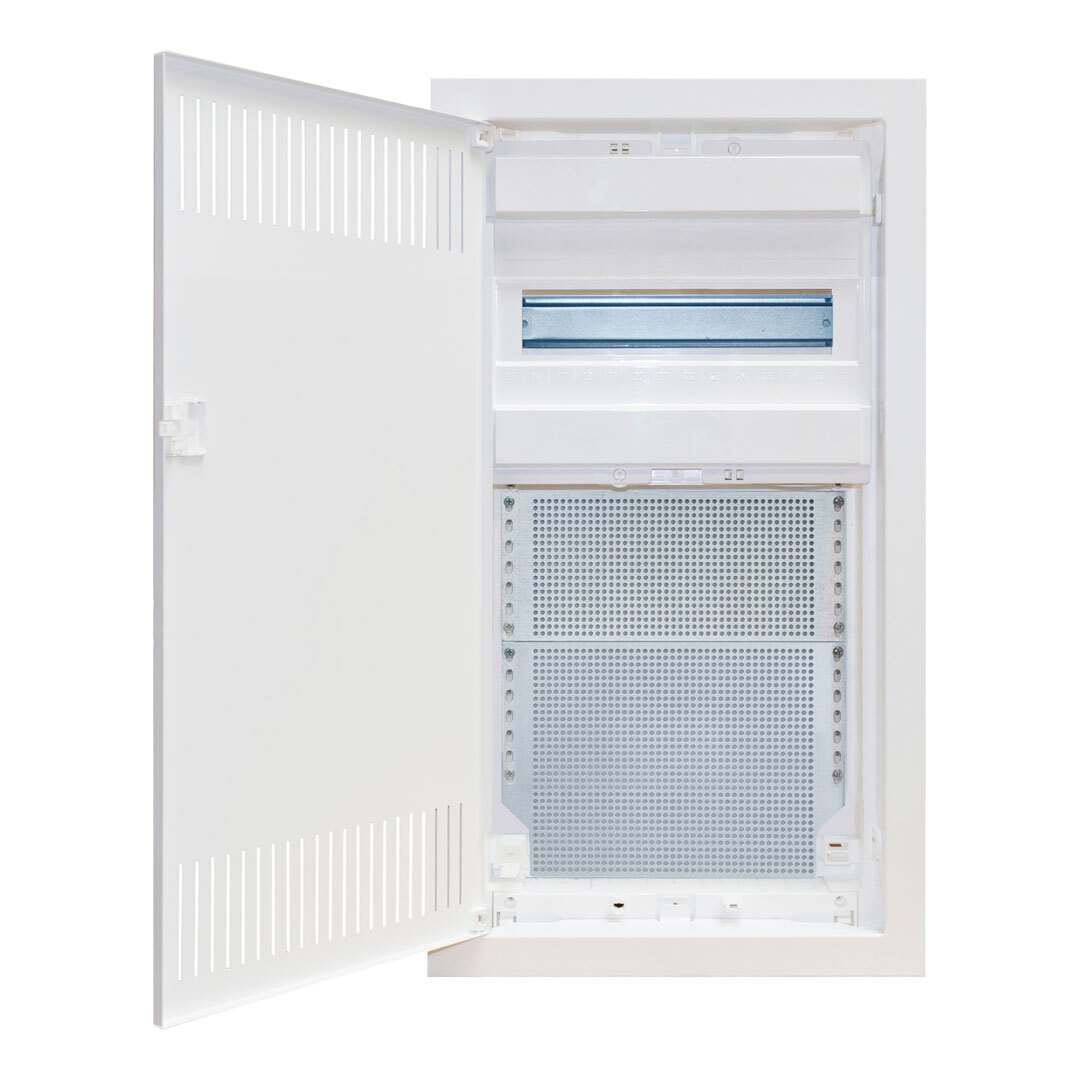

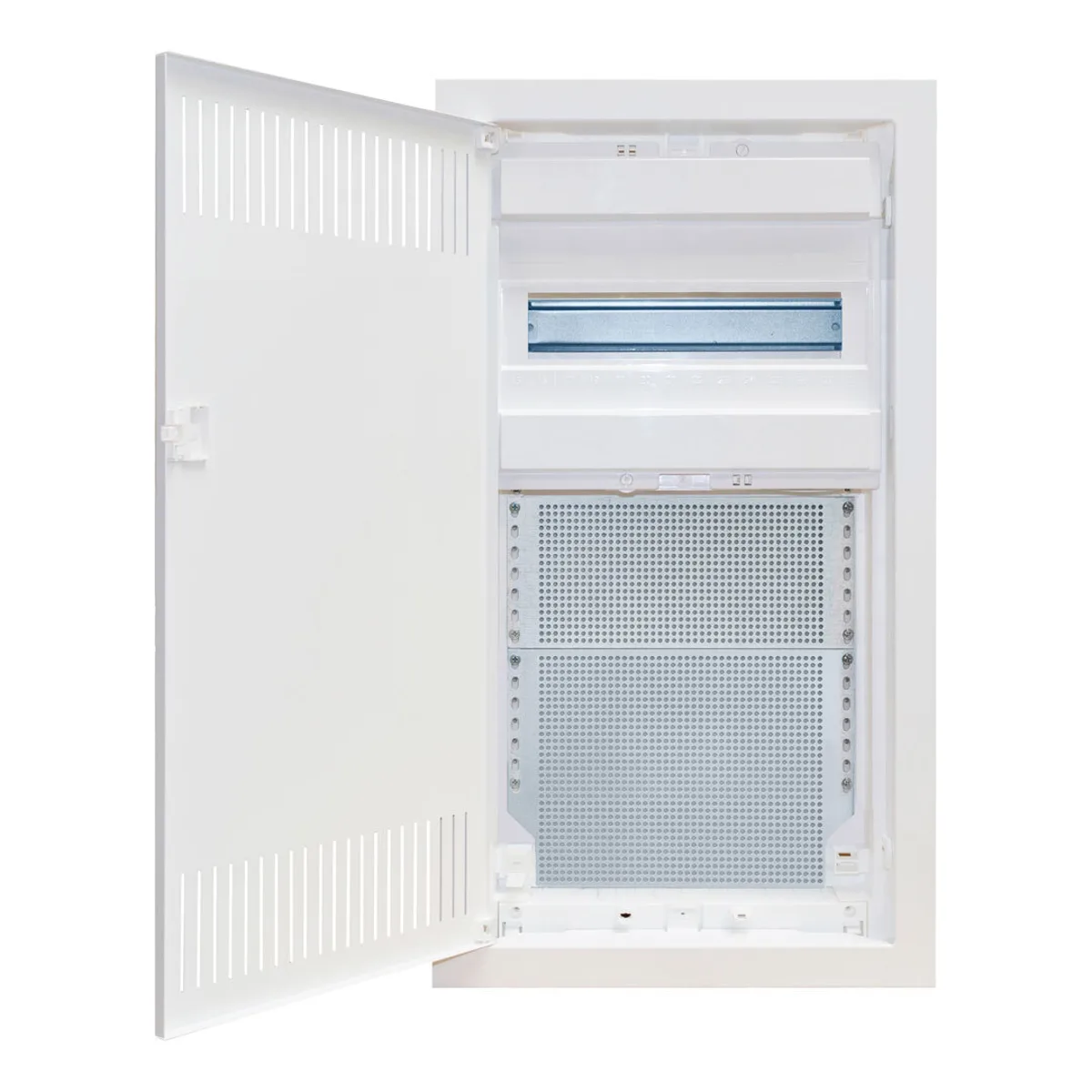

Flush-mounted combined distribution board, 12+2 modules+2 IT mounting panels, metal door

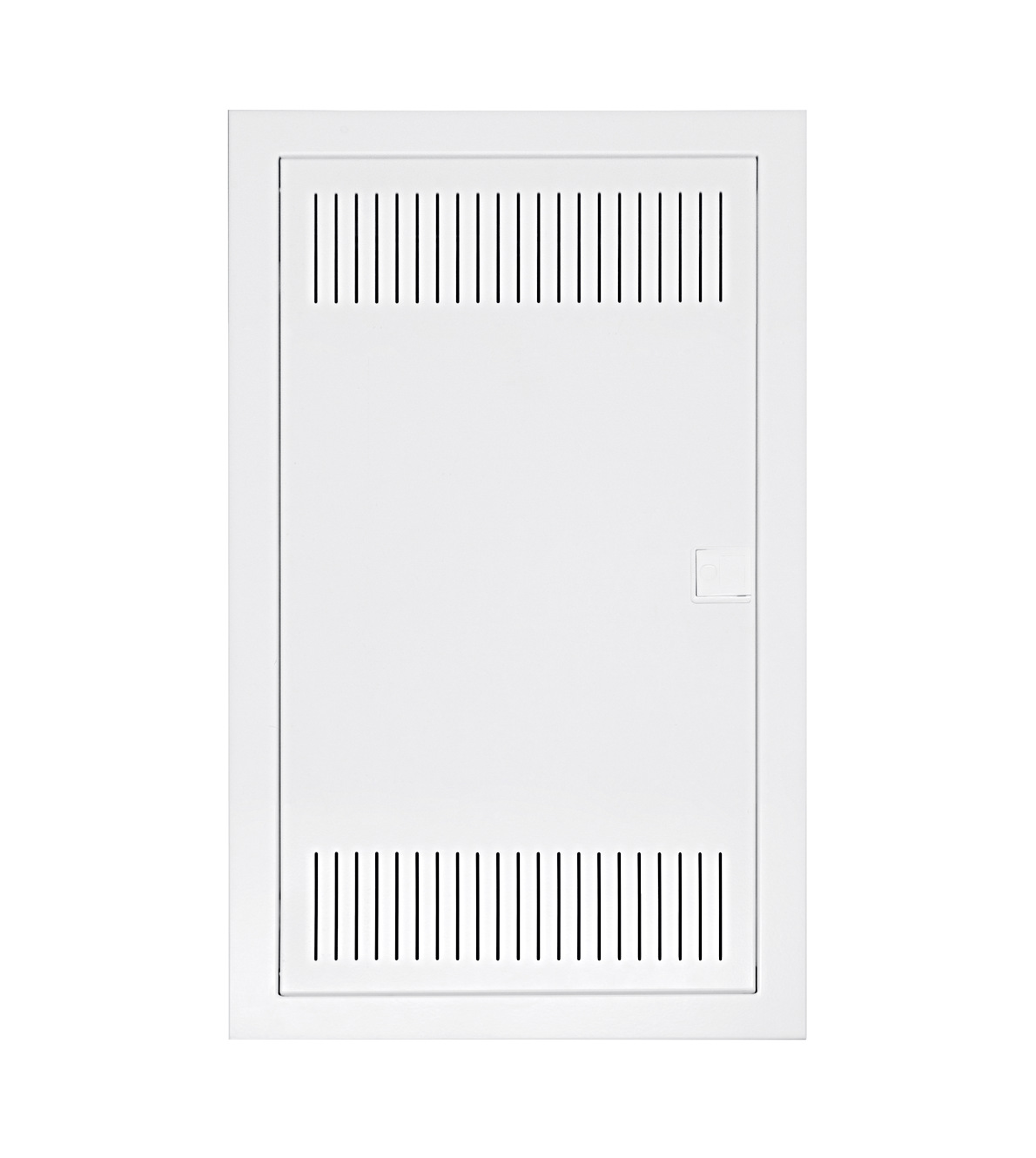

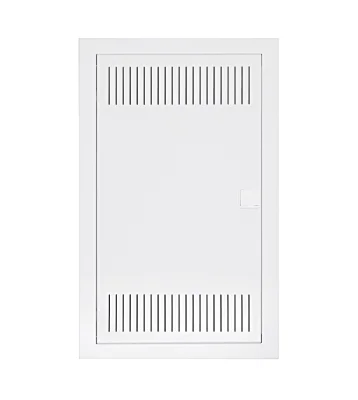

A flush-mounted combined distribution board designed for concealed wall installation. The board is rated for 12 modules + 2 modules + 2 IT mounting panels in a single row. Equipped with a metal door in RAL 9003 color (signal white) and provides secure storage for electrical equipment.

Key characteristics:

• Protection degree: IP30 — protection against contact with hazardous parts and vertically falling drops
• Protection class: 2 (double or reinforced insulation)
• Impact resistance: IK08 — resistance to mechanical impact of 5 J energy
• Door material: sheet steel with protective coating
• Execution: flush-mounted with door
• Color: RAL 9003 (signal white)
• Safety: halogen-free

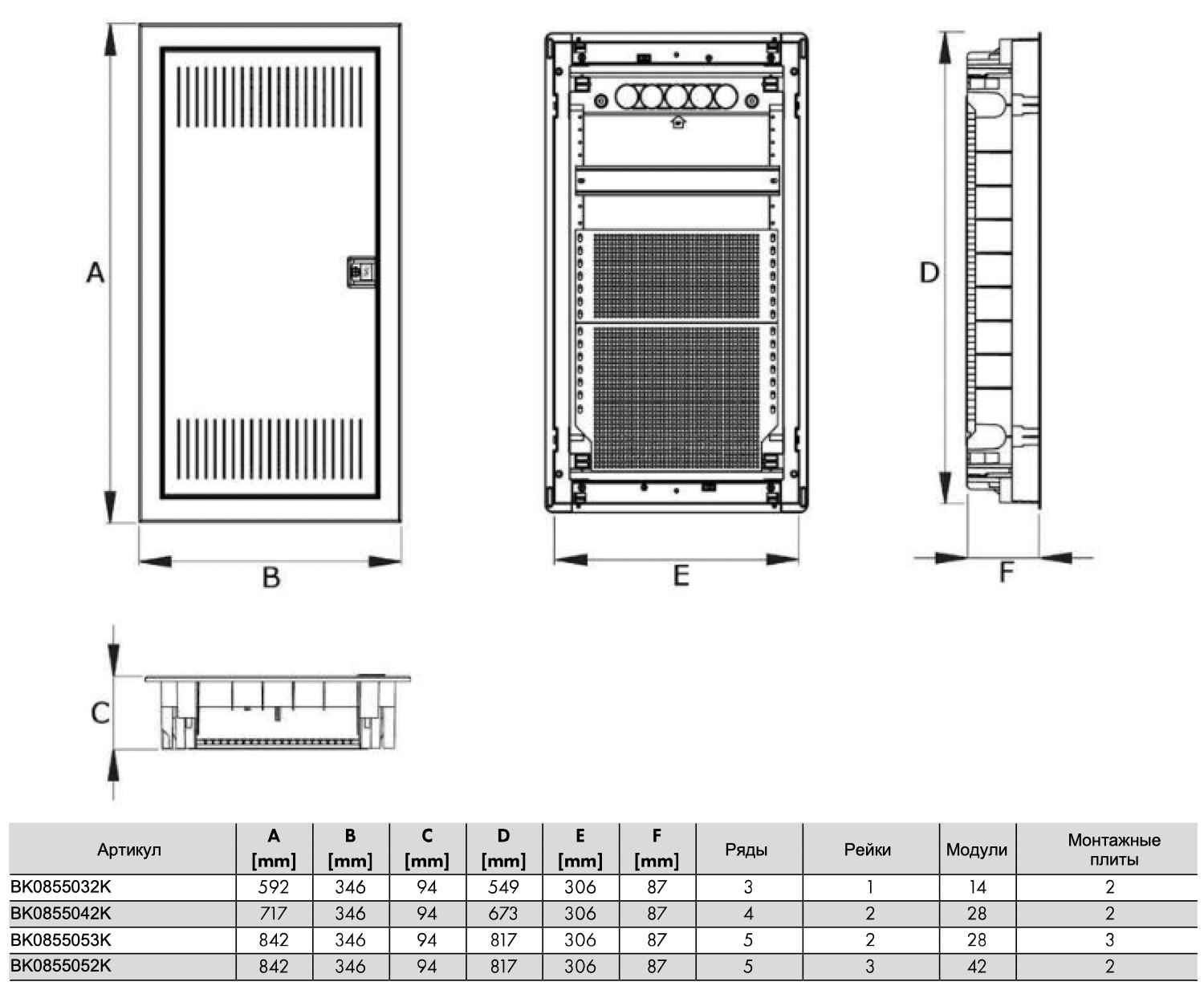

Net dimensions:

• Width: 346 mm
• Height: 592 mm
• Depth: 36 mm
• Weight: 2.90 kg

Operating conditions:

• Operating temperature range: -25°C to +60°C
• Power loss: 45 W

Manufacturer: Schrack (high quality electrical equipment). Supplied in a package of 1 unit.
