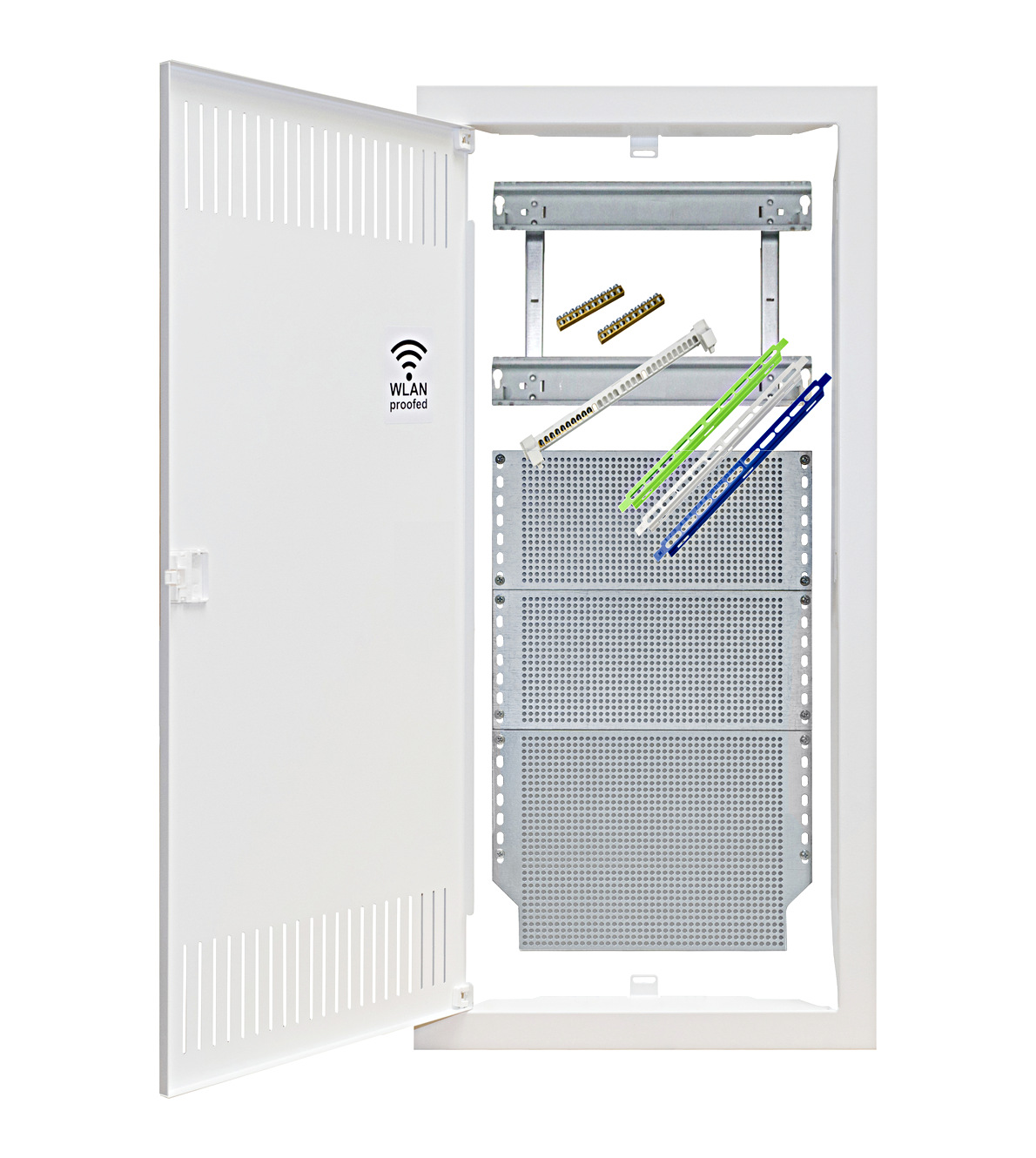

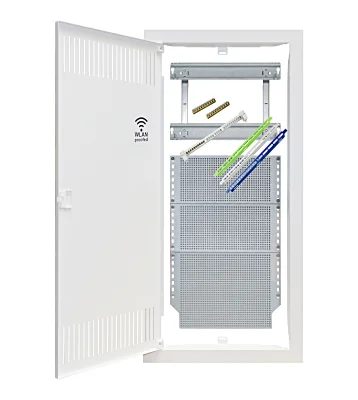

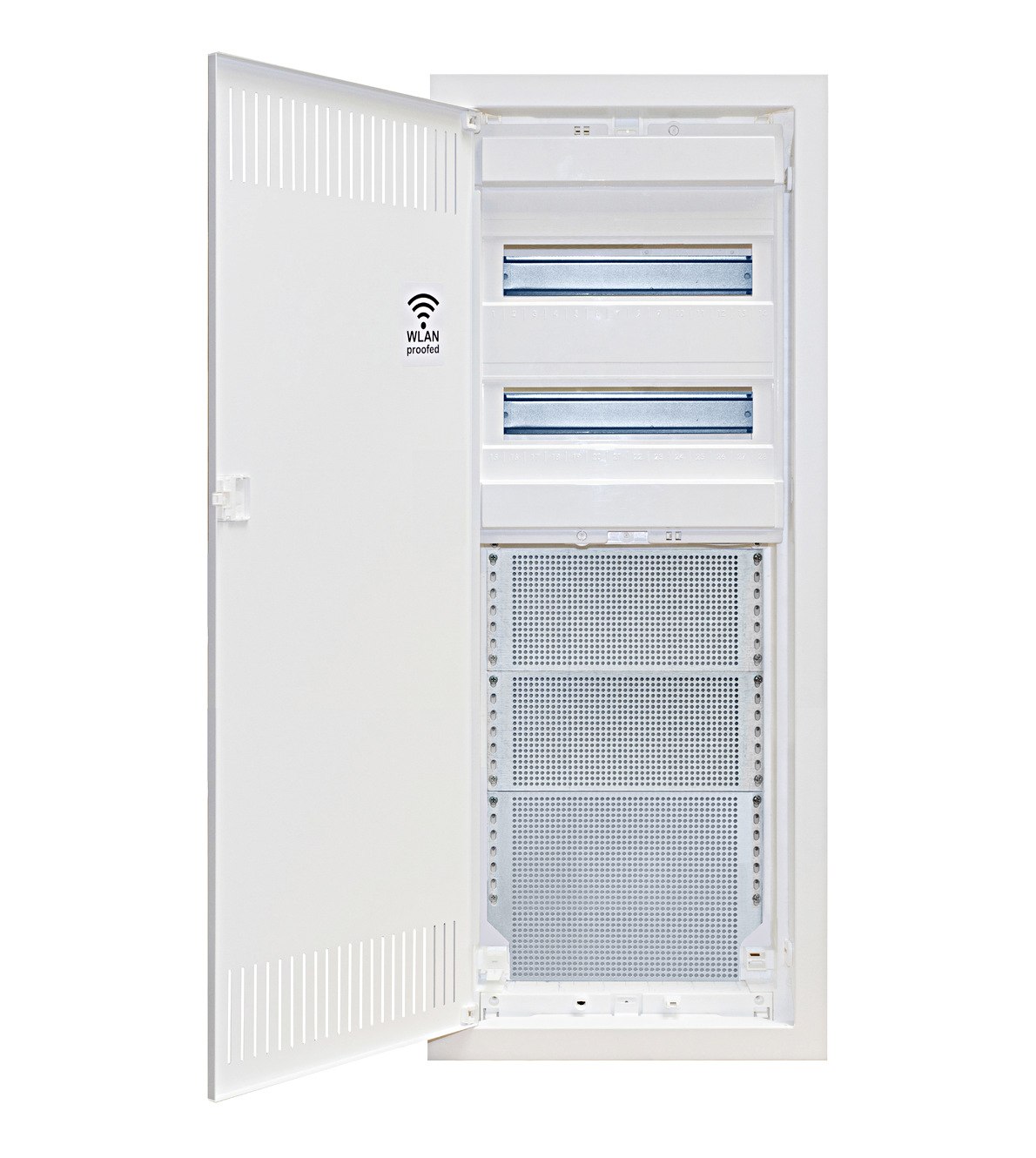

Recessed combination electrical enclosure, 24+4 mod.+3 IT mounting panels, metal door

Recessed combination electrical enclosure designed for installation in a wall or cavity. The construction includes 24 modular positions for installing circuit breakers, differential automats and other modular devices, 4 additional modules and 3 IT mounting panels for telecommunications equipment placement.

Technical specifications:

• Enclosure material: steel structure with powder coating

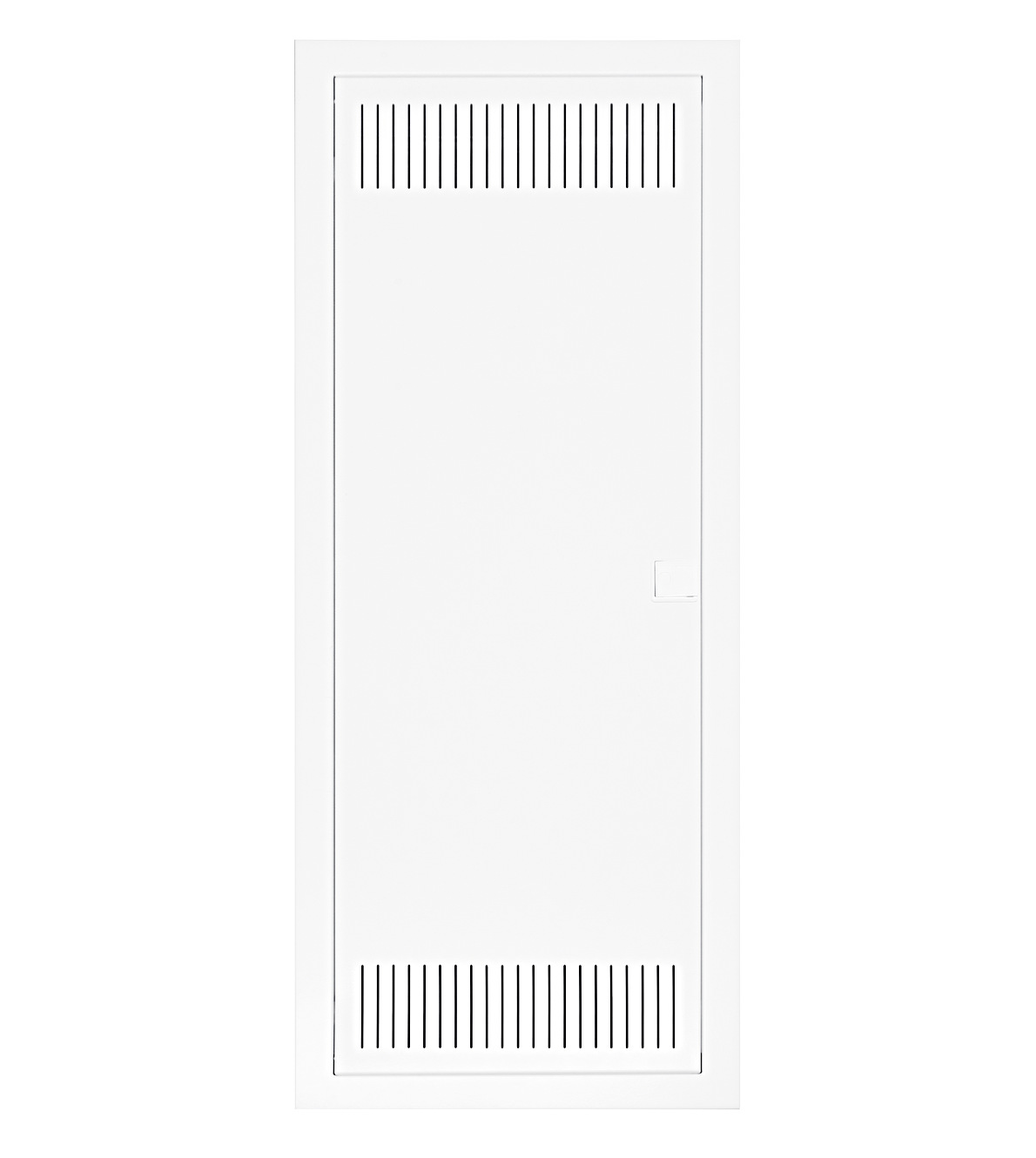

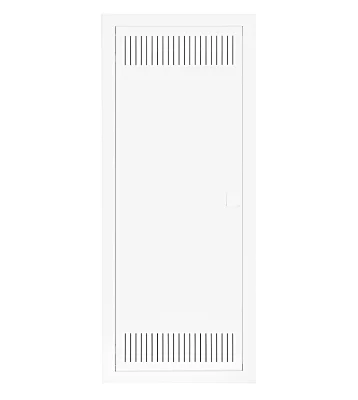

• Door: metal, provides reliable protection of contents
• Degree of protection: IP30 — protection against accidental contact and entry of small objects
• Safety class: II (double insulation)
• Impact resistance: IK08 — resistance to mechanical damage
• Operating temperature range: from -25°C to +60°C
• Halogen-free material: yes (Halogen-free)

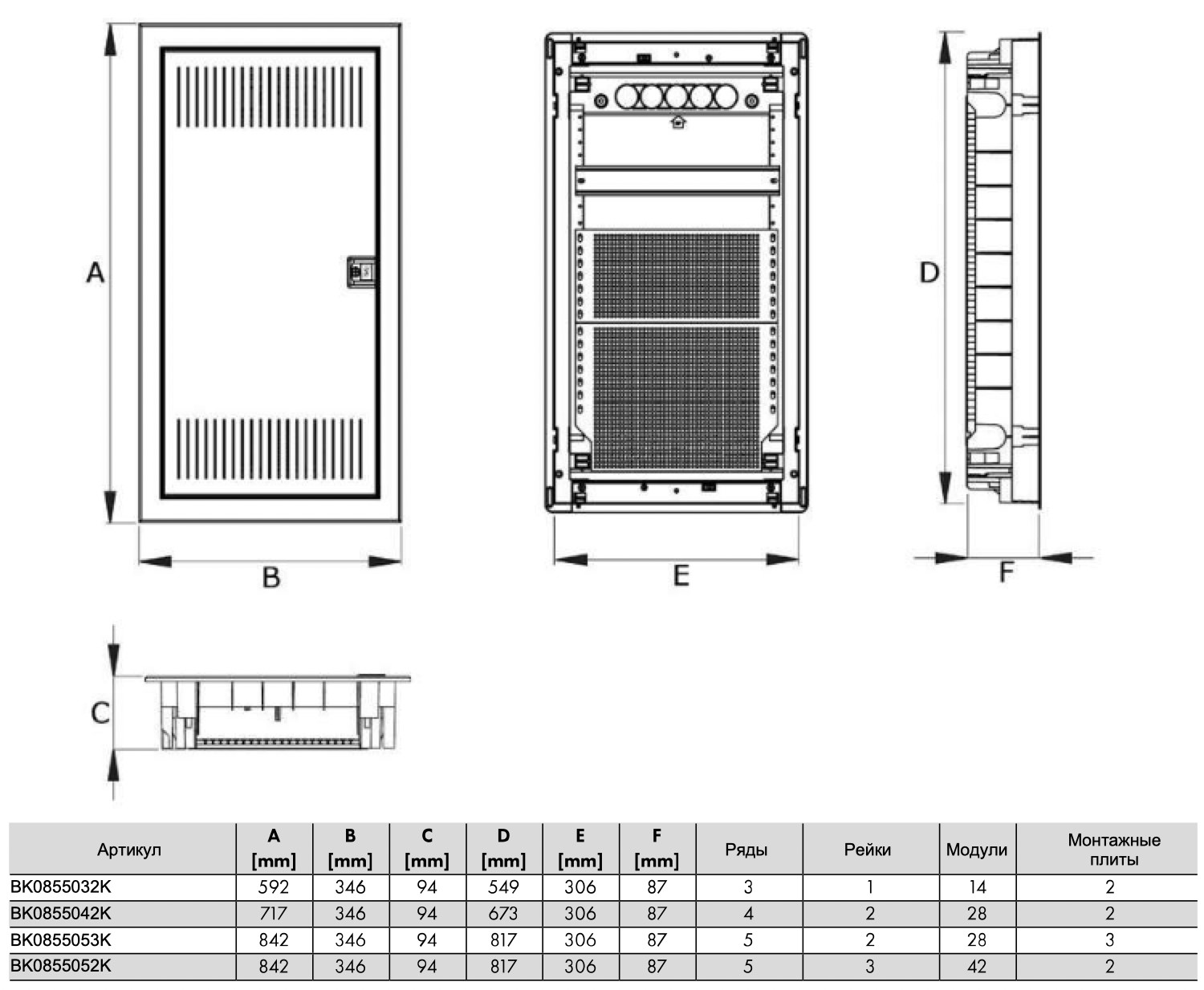

Dimensions:

• Width: 346 mm
• Height: 842 mm
• Depth: 36 mm
• Net weight: 5 kg

Operating parameters:

• Mounting type: recessed (in wall)
• Power loss: -61 W
• Manufacturer: Schrack (Austria)
• EAN code: 9004840977790
• Supply quantity: 1 unit.
