Embedded switchboard box, 5-row, 60+10 modules, for brick and stone walls
Article: BK0850052A
22 280 ₸
In stock
Embedded switchboard distribution box designed for flush mounting in brick and stone walls. The construction is rated for accommodating 60 modules in 5 rows plus 10 additional modules, providing flexibility in the design of medium-capacity electrical switchboards.
Technical specifications:
- Design: flush installation, without door
- Number of rows: 5
- Modularity: 60 + 10 modules (TE per row — 12)
- Protection class: 2
- Housing material: plastic, halogen-free
- Internal dimensions: 324 × 817 × 87 mm (W × H × D)
- Net weight: 1.0 kg
- Temperature range: from −25°C to +60°C
- Manufacturer: Schrack
- EAN: 9004840711721
The box is made of fire-resistant plastic and is intended for embedding into building structures during wall construction. The absence of halogens in the material composition ensures safety in case of fire.
| EAN code | 9004840711721 |
|---|---|
| Net width | 324.00 mm |
| Net height | 817.00 mm |
| Net depth | 87.00 mm |
| Net weight | 1.00 kg |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Design | Flush mounting, without door |
| Rows | 5 |
| TE per row | 12 |
| Protection class | 2 |
| Manufacturer | Schrack |
| Material | Plastic |
| Halogen-free | Yes |
| Packaging | 1 unit |

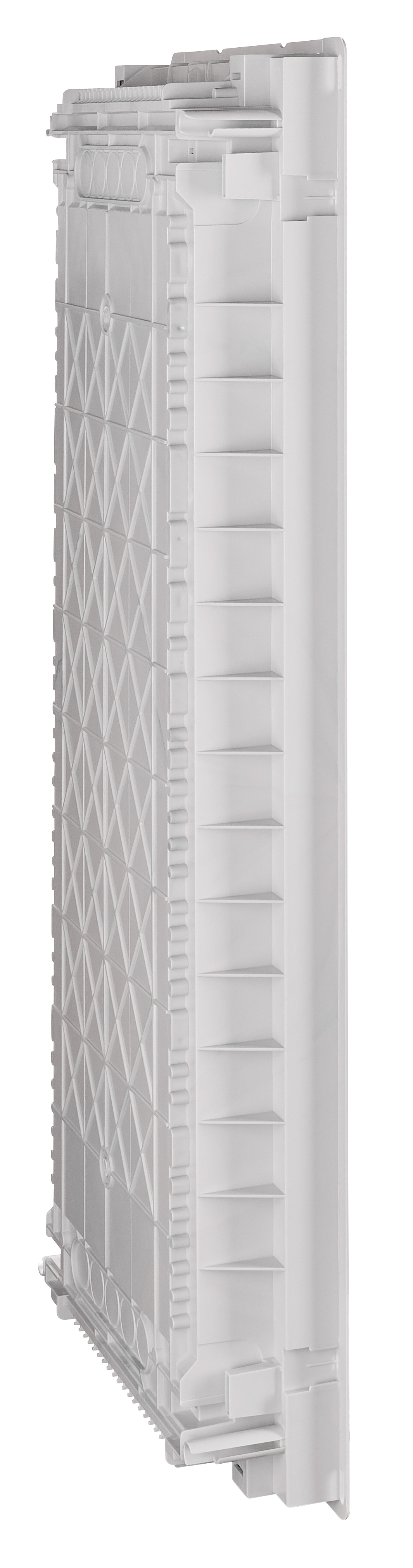

- Photo 1: Embedded switchboard box, 5-row, 60+10 modules, for brick and stone walls (JPG, 2.3 MB)

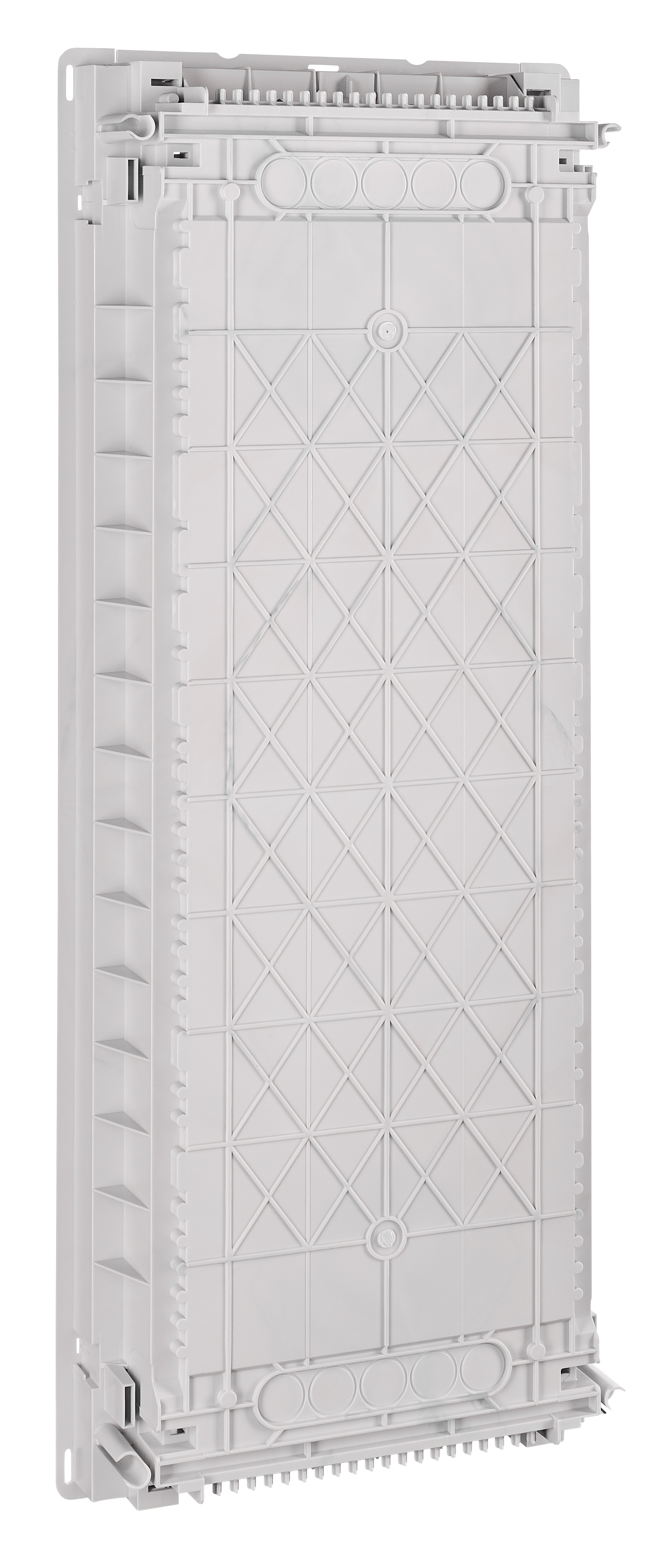

- Photo 2: Embedded switchboard box, 5-row, 60+10 modules, for brick and stone walls (JPG, 1.4 MB)

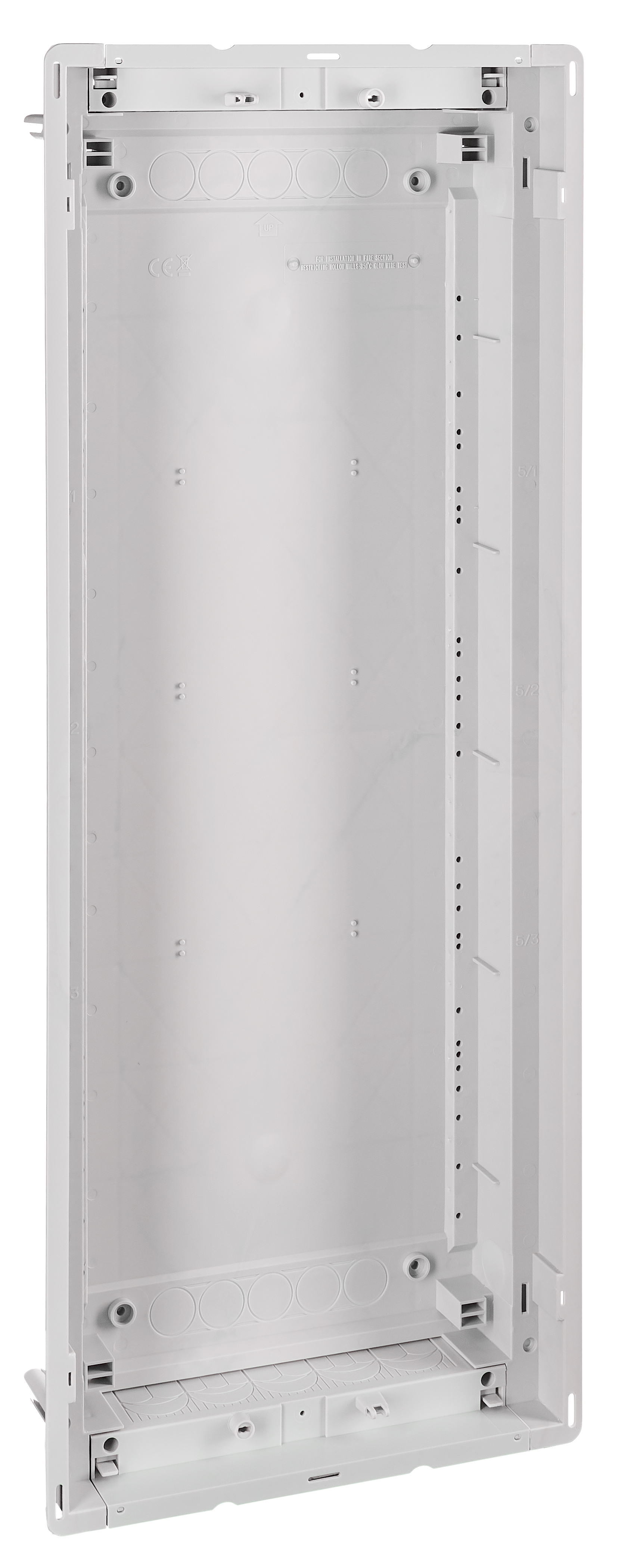

- Photo 3: Embedded switchboard box, 5-row, 60+10 modules, for brick and stone walls (JPG, 1.3 MB)

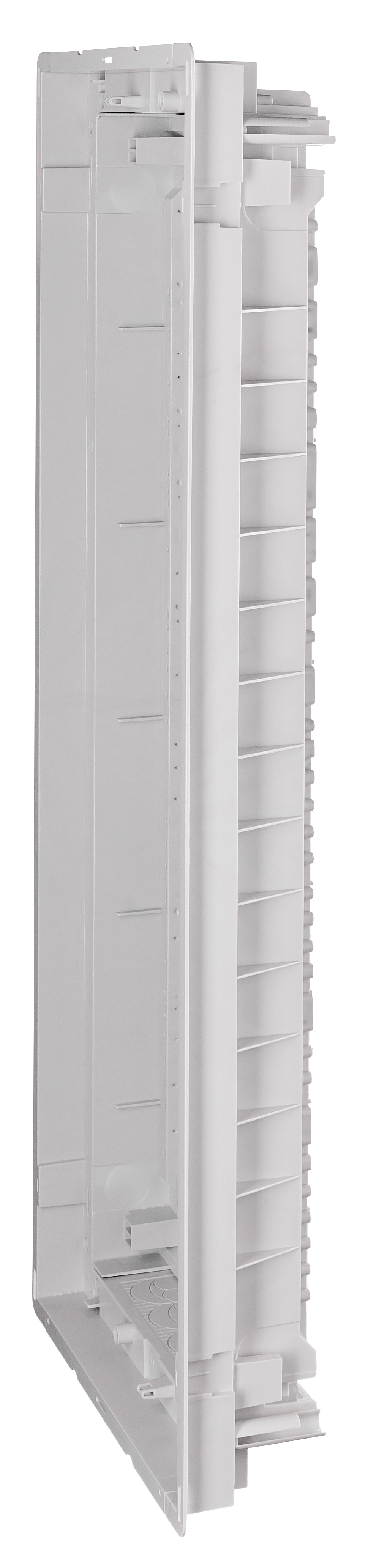

- Photo 4: Embedded switchboard box, 5-row, 60+10 modules, for brick and stone walls (JPG, 2.5 MB)

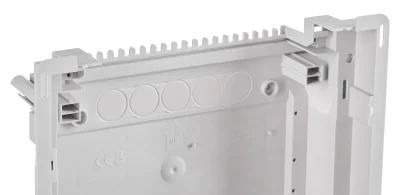

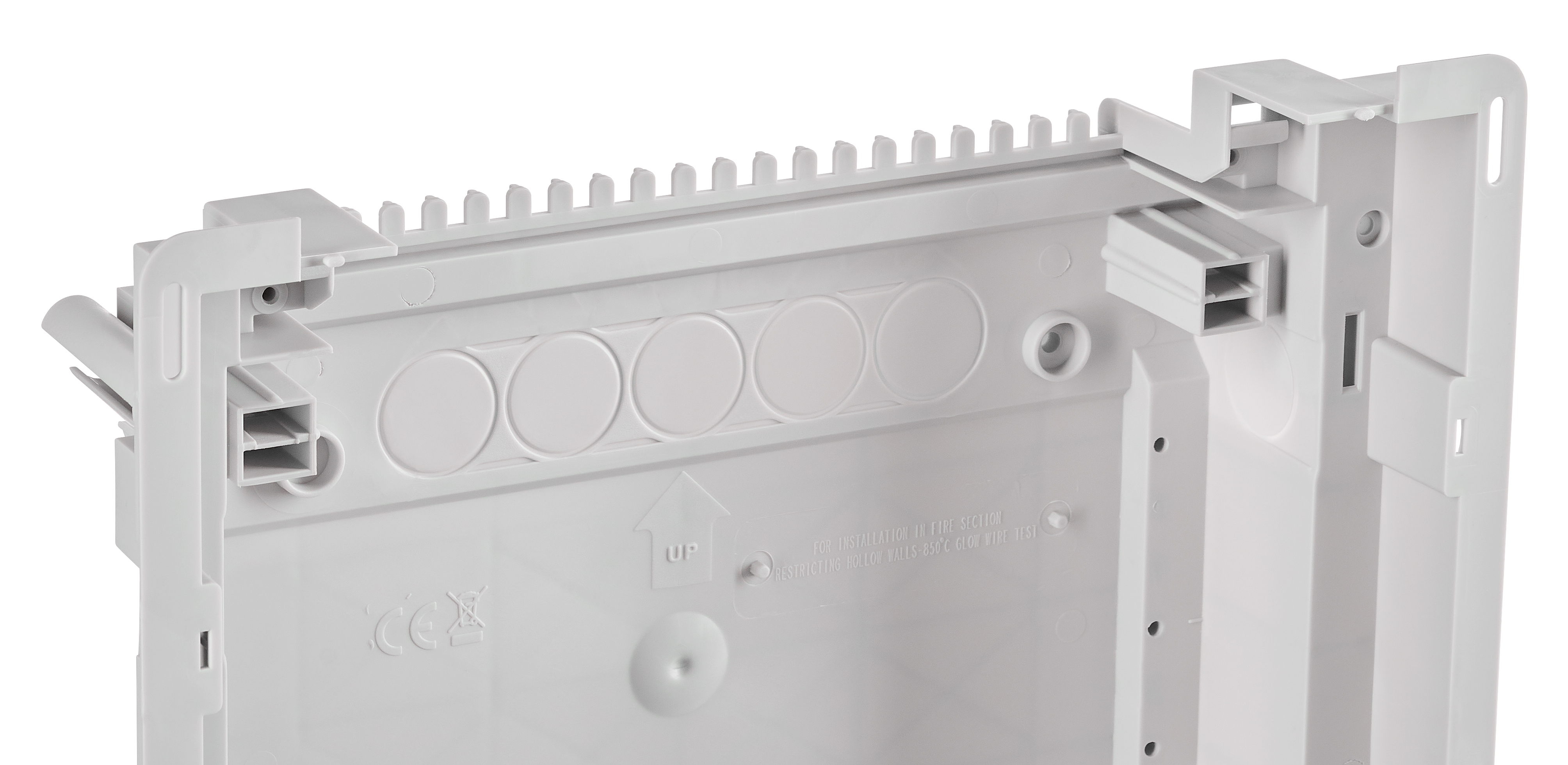

- Photo 5: Embedded switchboard box, 5-row, 60+10 modules, for brick and stone walls (JPG, 2.6 MB)
