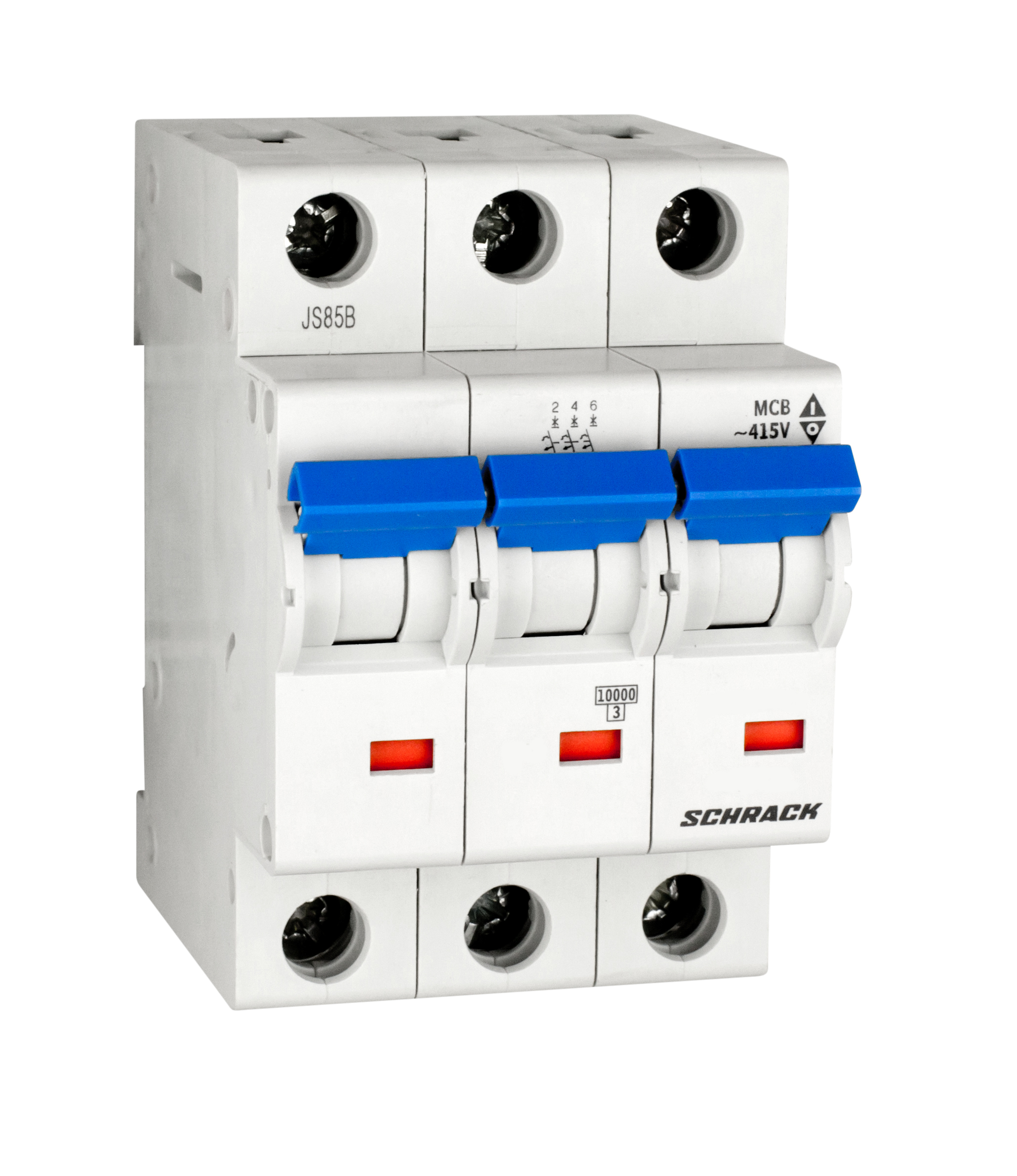

Automatic Circuit Breaker BM ME C6/3, 10kA
Article: BM017306ME
11 900 ₸
To order
Automatic Circuit Breaker BM ME C6/3 is designed to protect electrical circuits from overloads and short circuits in alternating current distribution systems. The modular device is manufactured in accordance with modern European standards and ensures reliable operation over a wide temperature range.
Main Specifications:
- Rated Current: 6A
- Number of Poles: 3 (three-pole)
- Breaking Capacity: 10kA
- Trip Characteristic: C (for circuits with normal inrush currents)
- Voltage Type: Alternating Current (AC)
- Design: MCB-ME (miniature circuit breaker with electromagnetic release)
Physical Dimensions and Installation:
- Width: 53.40 mm
- Height: 83.00 mm
- Depth: 74.90 mm
- Weight: 0.37 kg
- Mounting: on DIN-rail of standard profile
Operating Conditions:
- Temperature Range: from -40°C to +75°C
- Power Dissipation at Rated Current: 4.40 W
Standards and Certification:
The circuit breaker complies with the following requirements:
- EN 60898-1:2019 (automatic circuit breakers for protection against overcurrent)
- EN 60947-2:2006 + A1:2009 + A2:2013 (low voltage switchgear and control gear)
- EN 60947-2:2017 + A1:2020 (updated edition)
- EN 63000:2018 (dangerous substances in electrical equipment)
Manufacturer: Schrack (Austrian electrical equipment manufacturer)
Available Packaging Options: 1 pcs., 4 pcs., 40 pcs.
| EAN Code | 9004840527209 |
|---|---|
| Width (net) | 53.40 mm |
| Height (net) | 83.00 mm |
| Depth (net) | 74.90 mm |
| Weight (net) | 0.37 kg |
| Power Dissipation | 4.40 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 75°C |
| Characteristic | C |
| Pole | 3 |
| Rated Current | 6A |
| Type | BMS0-ME |
| Series | BMS0 |
| Breaking Capacity | 10kA |
| Design | AC-MCB-ME |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 4 pcs., 40 pcs. |
