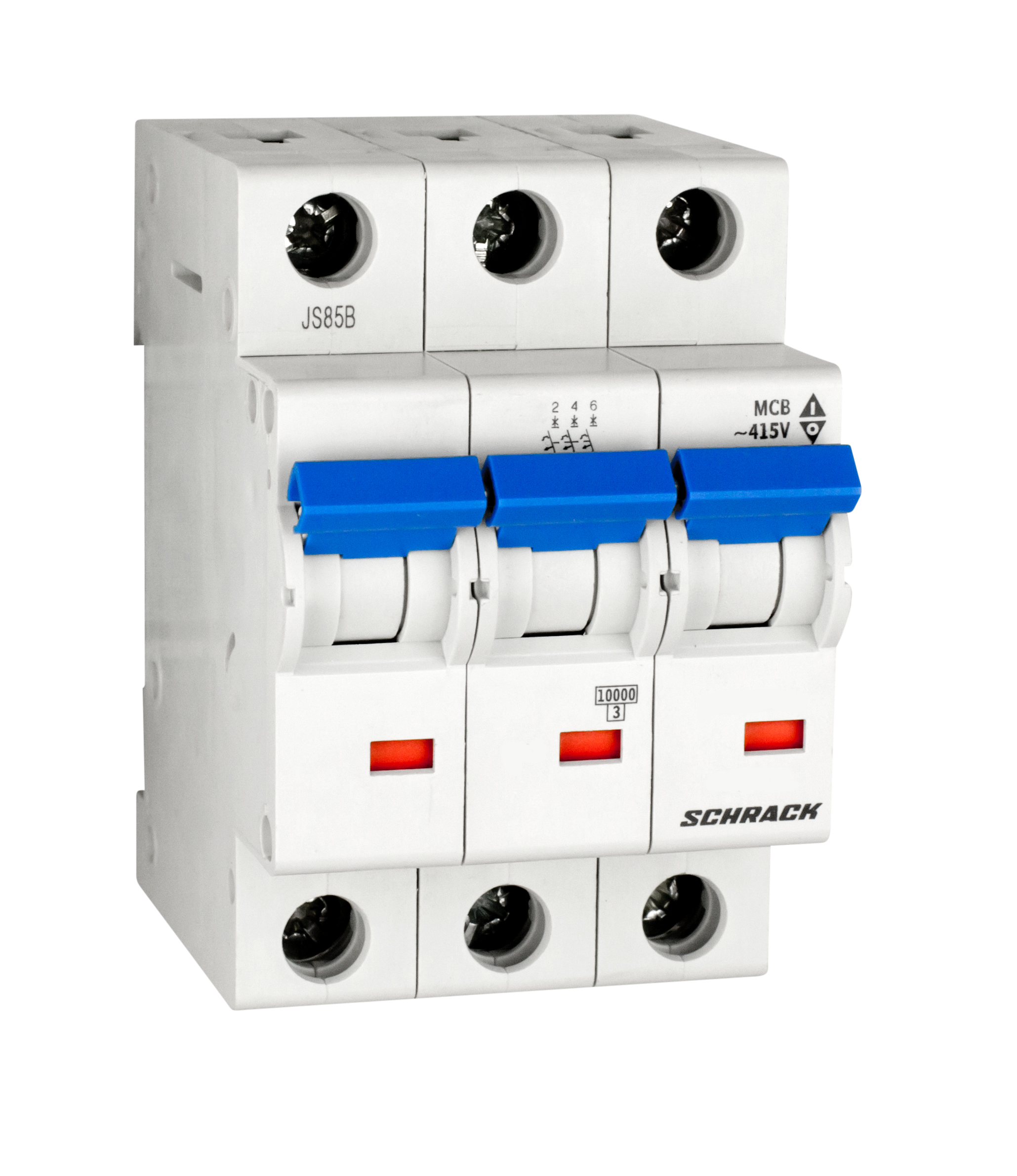

Automatic Circuit Breaker BM ME C50/3, 10kA
Article: BM017350ME
23 680 ₸
To order
Automatic circuit breaker for protection of alternating current electrical circuits. Modular design for installation on DIN rail in distribution boards and control cabinets.
Main Characteristics:
- Rated Current: 50A
- Number of Poles: 3 (three-phase)
- Characteristic Type: C (tripping curve for protection against overloads and short circuits)
- Switching Capacity: 10 kA
- Rated Voltage: AC (alternating current)
- Device Type: BMS0-ME (micro-modular circuit breaker)
Technical Parameters:
- Power loss at rated mode: 14.90 W
- Operating temperature range: from -40°C to +75°C
- Dimensions (width × height × depth): 53.40 × 83.00 × 74.90 mm
- Weight: 0.37 kg
Normative Framework:
The device is developed and certified in accordance with the following standards:
- EN 60898-1:2019 (household and similar overcurrent protective devices)
- EN 60947-2:2006 + A1:2009 + A2:2013 (switchgear of general purpose)
- EN 60947-2:2017 + A1:2020 (updated requirements)
- EN 63000:2018 (hazardous substances in electrical equipment)
Manufacturer: Schrack (Austria)
Packaging Options: individual packaging, packaging of 4 units, packaging of 40 units
| EAN Code | 9004840527285 |
|---|---|
| Net Width | 53.40mm |
| Net Height | 83.00mm |
| Net Depth | 74.90mm |
| Net Weight | 0.37kg |
| Power Loss | 14.90W |
| Minimum Ambient Temperature | -40°C |
| Maximum Ambient Temperature | 75°C |
| Characteristic | C |
| Poles | 3 |
| Rated Current | 50A |
| Type | BMS0-ME |
| Series | BMS0 |
| Switching Capacity | 10kA |
| Design | AC-MCB-ME |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 unit, 4 units, 40 units |
