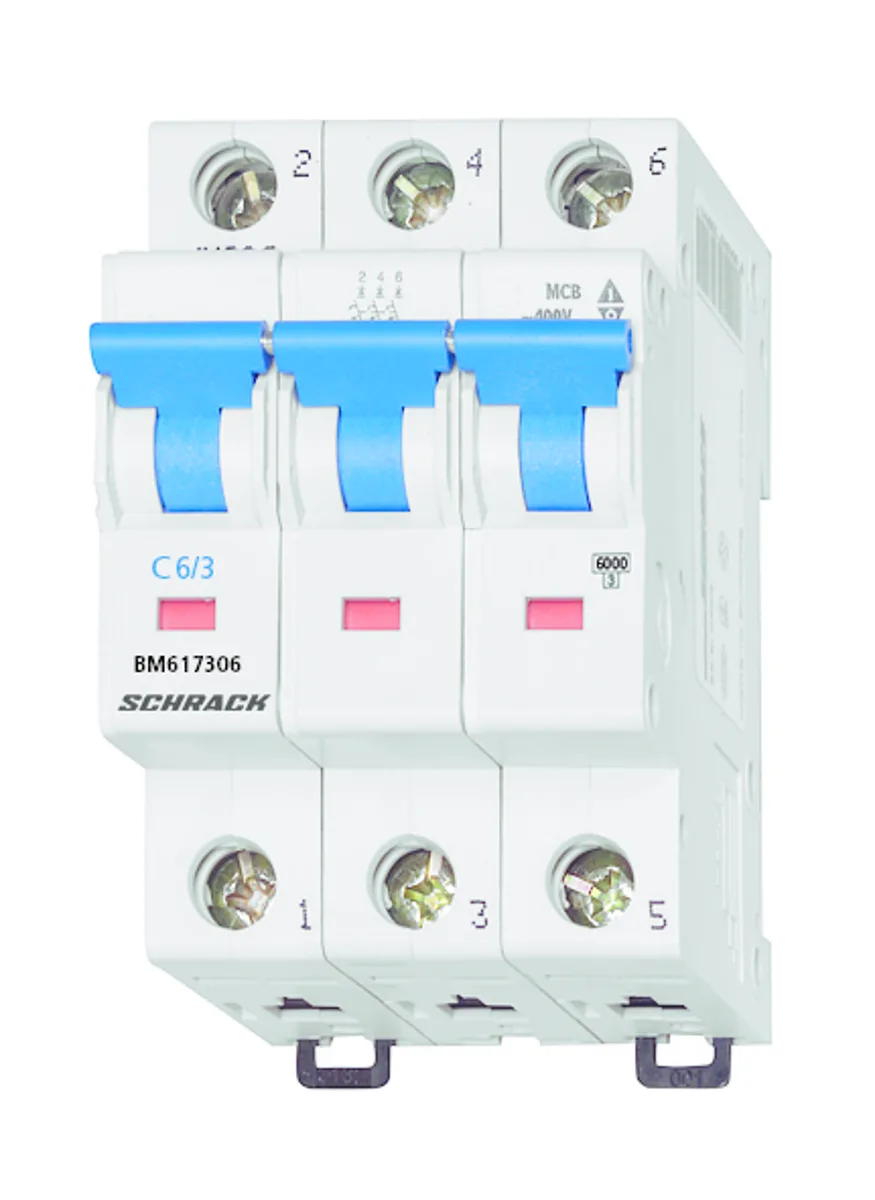

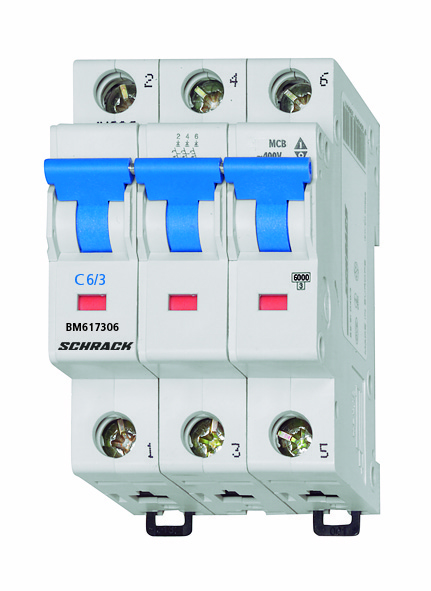

Automatic Circuit Breaker BM C6/3, 6kA
Article: BM617306--
12 160 ₸
In stock
The BMS6 series automatic circuit breaker is designed to protect electrical circuits from overloads and short circuit faults. The three-pole device with a rated current of 6A and a breaking capacity of 6 kA ensures reliable operation in alternating current networks.
Main characteristics:
- Trip characteristic: C (for circuits with moderate inrush currents)
- Number of poles: 3
- Rated current: 6 A
- Breaking capacity: 6 kA
- Design: AC-MCB (automatic circuit breaker for alternating current)
- Operating temperature range: -40°C to +75°C
- Power loss: 4.40 W
Physical dimensions:
- Width: 53.40 mm
- Height: 83.00 mm
- Depth: 74.90 mm
- Weight: 0.36 kg
Regulatory compliance:
The circuit breaker complies with international standards EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.
Manufacturer: Schrack
Packaging options: 1 pc., 4 pcs., 40 pcs.
EAN code: 9004840397130
| EAN code | 9004840397130 |
|---|---|
| Width (net) | 53.40 mm |
| Height (net) | 83.00 mm |
| Depth (net) | 74.90 mm |
| Weight (net) | 0.36 kg |
| Power loss | 4.40 W |
| Minimum ambient temperature | -40°C |
| Maximum ambient temperature | 75°C |
| Characteristic | C |
| Poles | 3 |
| Rated current | 6A |
| Type | BMS6 |
| Series | BMS6 |
| Breaking capacity | 6kA |
| Design | AC-MCB |
| Standards | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 4 pcs., 40 pcs. |
