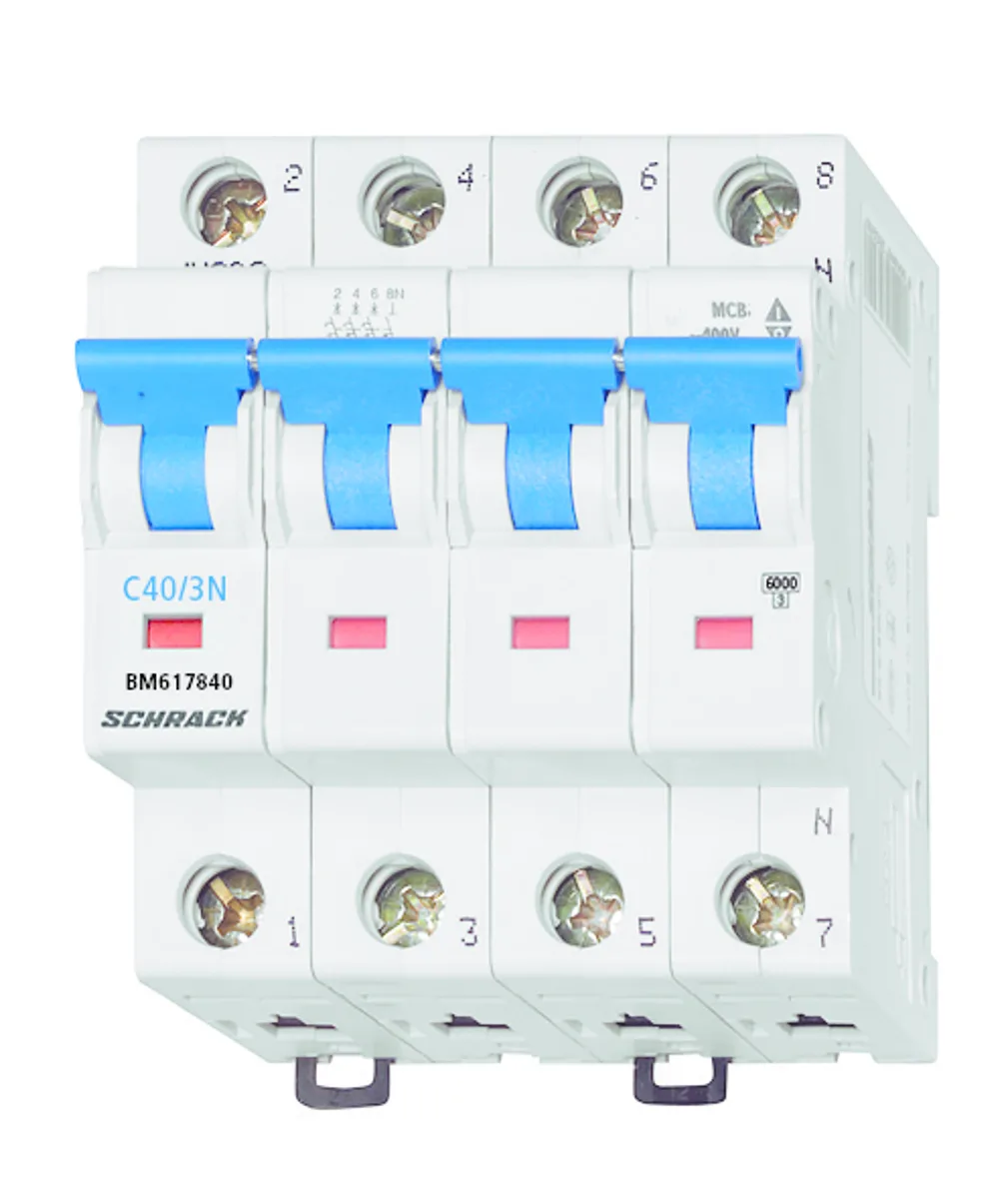

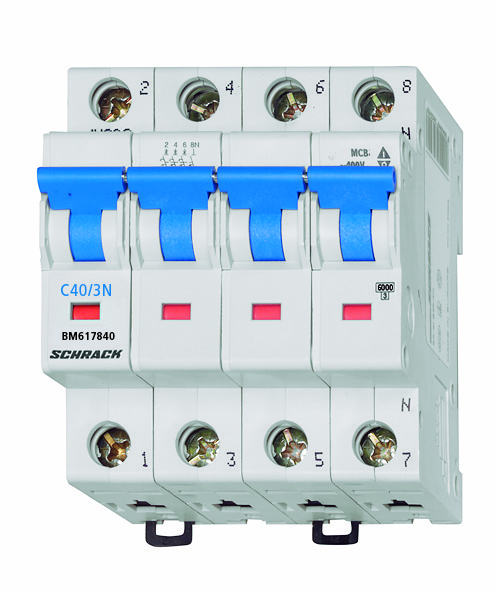

Automatic Circuit Breaker BM C40/3+N, 6kA

Automatic Circuit Breaker BM C40/3+N, 6kA

Article: BM617840--

Автоматические выключатели BM

20 290 ₸

In stock
WhatsAppTelegram

Automatic circuit breaker for protecting electrical circuits from overloads and short circuits. Intended for installation in distribution cabinets and control panels.

Main Parameters:

  • Rated Current: 40A
  • Breaking Capacity: 6kA
  • Number of Poles: 3+N (three-phase with neutral)
  • Trip Characteristic: C (for circuits with moderate inrush currents)
  • Design: AC-MCB (alternating current automatic circuit breaker)

Technical Specifications:

  • Rated Voltage: in accordance with EN 60898-1
  • Operating Temperature Range: from -40°C to +75°C
  • Power Loss: 11.50W
  • Dimensions (H×W×D): 83.00 × 71.20 × 74.90 mm
  • Weight: 0.45 kg

Standards Compliance:

The circuit breaker complies with standards EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.

Manufacturer: Schrack

Available Packaging Options: 1 pc., 3 pcs., 30 pcs.

EAN Code9004840397581
Width (Net)71.20 mm
Height (Net)83.00 mm
Depth (Net)74.90 mm
Weight (Net)0.45 kg
Power Loss11.50 W
Min. Ambient Temperature-40°C
Max. Ambient Temperature75°C
CharacteristicC
Poles3+N
Rated Current40 A
TypeBMS6
SeriesBMS6
Breaking Capacity6 kA
DesignAC-MCB
StandardEN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
ManufacturerSchrack
Packaging1 pc., 3 pcs., 30 pcs.
