Terminal block, single-pole 160A, 1×70+1×16mm², 6×16mm²
SKU: IKBC1070--In stock

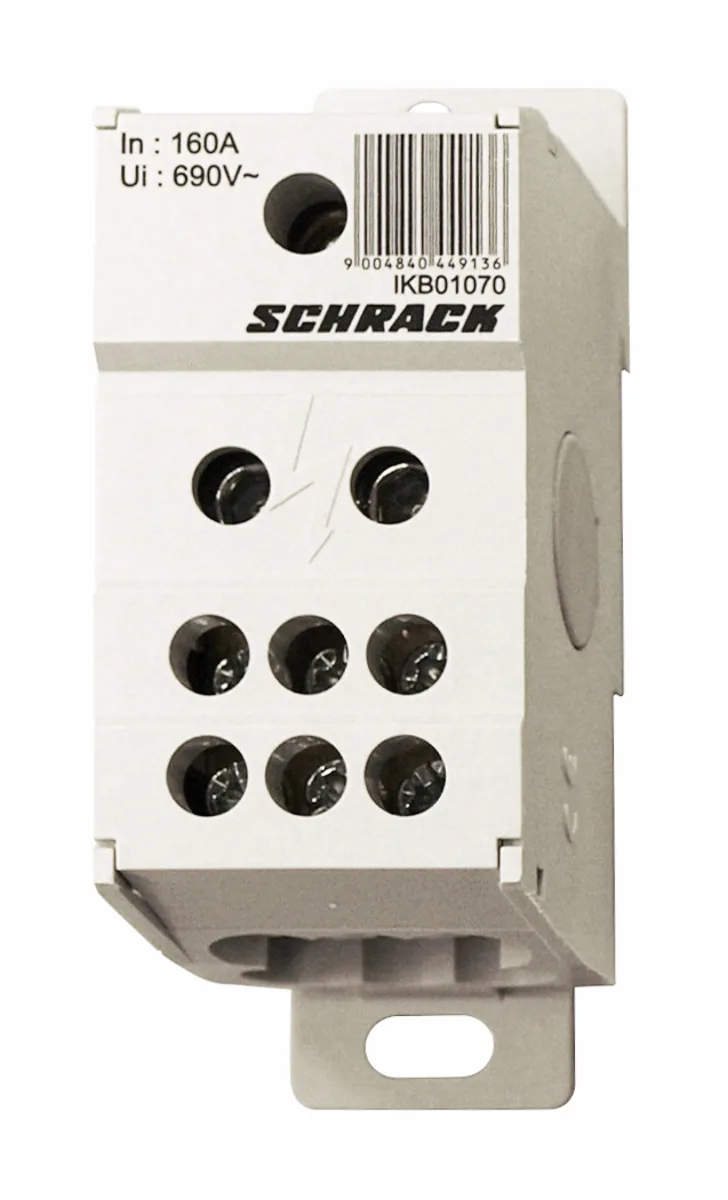

Terminal Block, Single Pole, 160A
Article: IKB01070--
22 500 ₸
In stock
Single Pole Terminal Block 160A is designed for distribution and switching of electrical power in power supply systems. The block is manufactured from high-conductivity copper and is rated for a maximum current of 160 amperes with cable cross-section up to 70 mm².
Technical Parameters:
- Number of poles: 1
- Nominal current: 160 A
- Maximum cable cross-section: 70 mm²
- Number of 16 mm² branch terminals: 1 pair, 6 branches
- Connection material: copper
- Power loss at nominal load: 0.50 W
- Housing color: gray
Dimensions and Weight:
- Width: 35 mm
- Height: 92 mm
- Depth: 50 mm
- Net weight: 0.24 kg
Operating Conditions:
- Ambient temperature range: -25°C to +65°C
- Purpose: power distribution terminals
Manufacturer: Schrack (Austria). Block is supplied in packaging of 1 unit.
| EAN Code | 9004840449136 |
|---|---|
| Net Depth | 50.00 mm |
| Net Width | 35.00 mm |
| Net Height | 92.00 mm |
| Net Weight | 0.24 kg |
| Power Loss | 0.50 W |
| Min. Ambient Temperature | -25°C |
| Max. Ambient Temperature | 65°C |
| Execution | Power Distribution Terminals |
| Poles | 1 |
| Maximum Cross-Section | 70 mm² |
| 16 mm² Branches | 1 pair, 6 branches |
| Color | Gray |
| Connection Material | Copper |
| Manufacturer | Schrack |
| Packaging | 1 unit |
