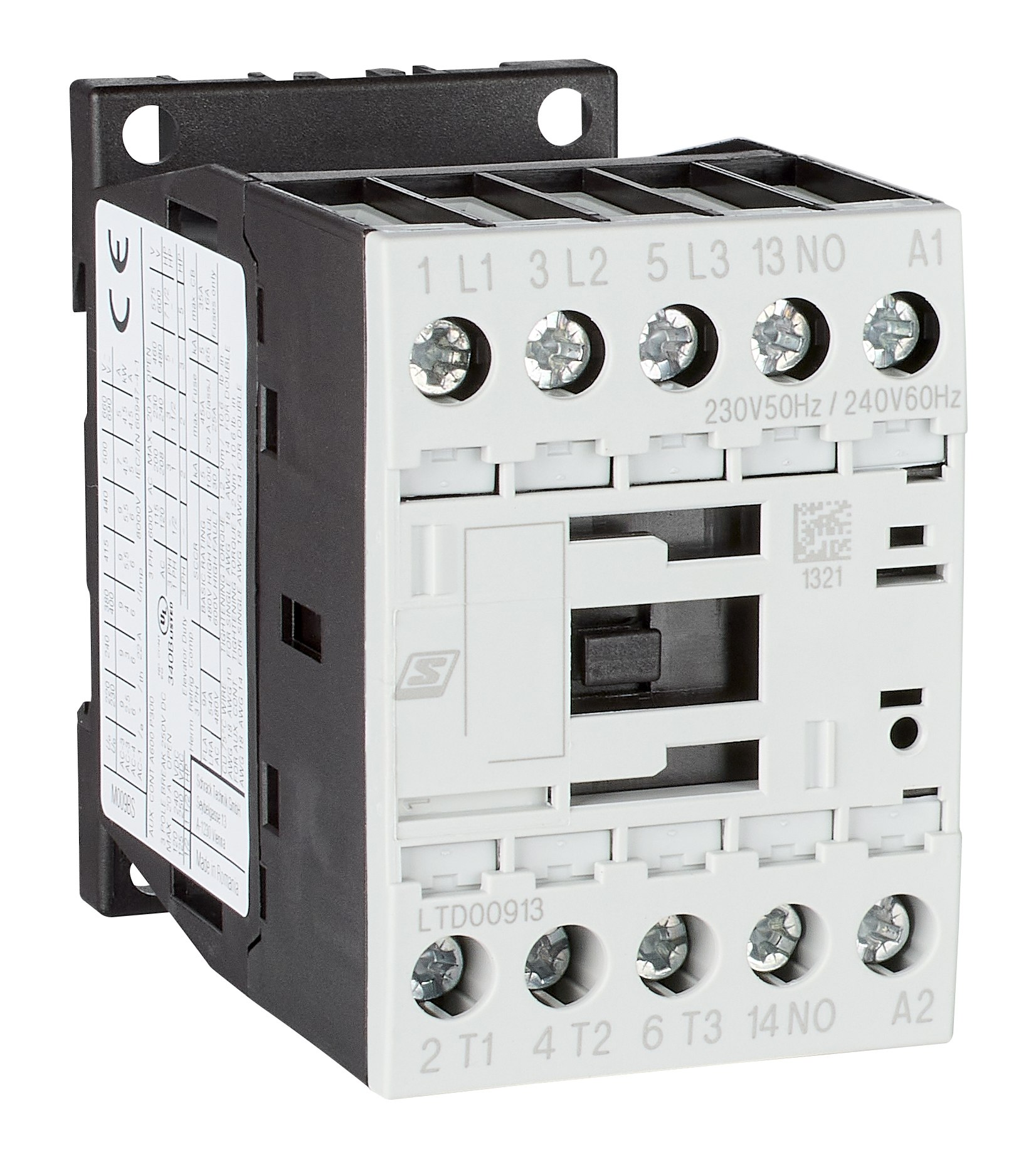

Contactor 4kW/400V/9A/1NO, coil 230VAC
Article: LTD00913--
15 620 ₸
In stock
A power contactor designed for switching three-phase asynchronous motors and other loads in AC networks. The device provides reliable on/off switching of power up to 4 kW at 400 V.
Key Specifications:
- Rated current of main contacts: 9 A
- Main contacts: 3 closing contacts (3NO)
- Auxiliary contacts: 1 closing contact (1NO)
- Control voltage: 230 V AC
- Power dissipation: 4.40 W
- Application category: AC-3 (asynchronous motors)
- Compact DIN-rail mounting, width 45 mm
Physical Parameters:
- Dimensions (H × W × D): 68 × 45 × 75 mm
- Net weight: 0.24 kg
- Manufacturer: Schrack (Austrian electrotechnical manufacturer)
- EAN code: 9004840841091
Packaging: Supplied as single unit or in packages of 102 units for bulk purchases.
| EAN code | 9004840841091 |
|---|---|
| Net width | 45.00 mm |
| Net height | 68.00 mm |
| Net depth | 75.00 mm |
| Net weight | 0.24 kg |
| Power loss | 4.40 W |
| Size | 0 |
| Type | Power contactor |
| Included auxiliary contacts | 1 closing contact |
| Coil voltage AC | 230 V AC |
| Rated current | 9 A |
| Main contacts | 3 closing contacts |
| Manufacturer | Schrack |
| AC-3 380 V 400 V [P] | 4 kW |
| Packaging | 1 pcs., 102 pcs. |
