Contactor 4kW/400V/9A/1NO, Coil 24VDC
Article: LTD00915--
18 180 ₸
To order
A power contactor designed for switching three-phase AC circuits in industrial electrical installations. Rated network voltage: 400V (AC-3). Rated current: 9A. Load capacity: 4 kW. Control coil voltage: 24 VDC, ensuring reliable operation in low-voltage control systems.

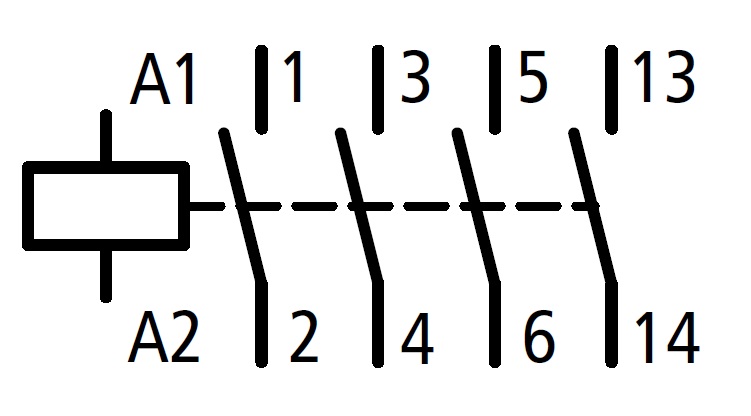

Contact system: 3 closing main contacts for the power circuit + 1 closing auxiliary contact for control and signaling. This configuration allows the contactor to be used in circuits with feedback and position monitoring.
Technical specifications:
- Power loss: 8.90 W
- Weight: 0.30 kg
- Dimensions: 45 × 68 × 75 mm
- EAN code: 9004840840766
- Manufacturer: Schrack (reliable European electrical equipment manufacturer)
The contactor meets industrial equipment standards and is suitable for modular installation in distribution cabinets and control panels.
| EAN code | 9004840840766 |
|---|---|
| Net width | 45.00 mm |
| Net height | 68.00 mm |
| Net depth | 75.00 mm |
| Net weight | 0.30 kg |
| Power loss | 8.90 W |
| Size | 0 |
| Type | Power contactor |
| Auxiliary contacts included | 1 closing contact |
| DC coil voltage | 24 V |
| Rated current | 9 A |
| Main contacts | 3 closing contacts |
| Manufacturer | Schrack |
| AC-3 380 V 400 V [P] | 4 kW |
| Packaging | 1 pcs., 102 pcs. |
