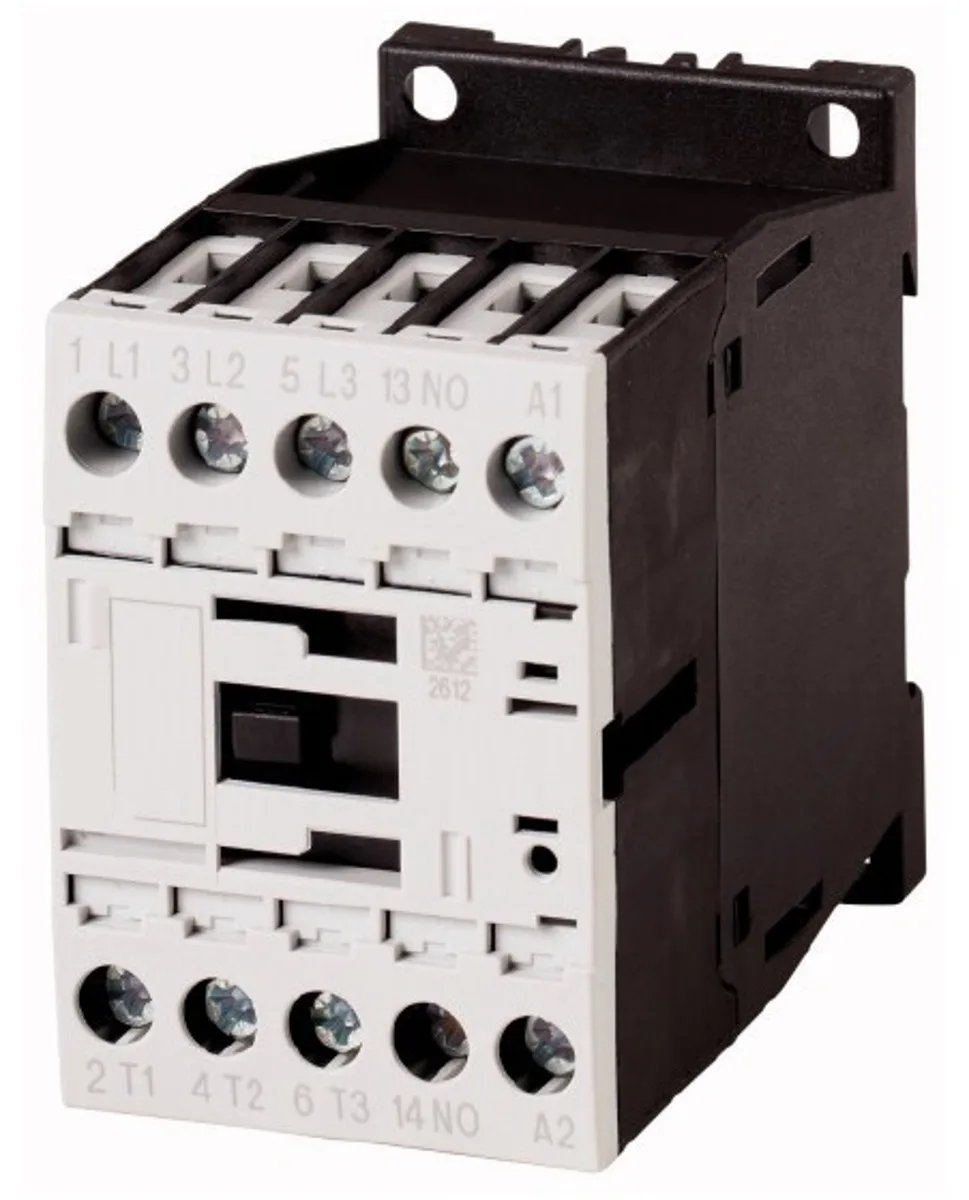

Contactor 7.5kW/400V/15.5A/1NO, coil 110VAC
Article: LTD01512--
22 120 ₸
To order
Power contactor designed for switching three-phase asynchronous electric motors and other electrical loads in AC circuits.
Main parameters:
- Rated power (AC-3): 7.5 kW at 380/400 V
- Rated current: 15.5 A
- Coil supply voltage: 110 V AC
- Main contacts: 3 normally open contacts (3NO)
- Auxiliary contacts: 1 normally open contact (1NO)
- Power loss: 3.90 W
Physical characteristics:
- Width: 45 mm
- Height: 68 mm
- Depth: 75 mm
- Net weight: 0.24 kg
Manufacturer: Schrack
Packaging: 1 piece, box of 102 pieces.
The contactor provides reliable switching on/off of electric motors with rated power up to 7.5 kW. Used in electrical distribution cabinets, motor starter units and automatic control systems for electric drives.
| EAN code | 9004840841183 |
|---|---|
| Width net | 45.00 mm |
| Height net | 68.00 mm |
| Depth net | 75.00 mm |
| Net weight | 0.24 kg |
| Power loss | 3.90 W |
| Type | Power contactor |
| Auxiliary contacts | 1 normally open contact |
| Coil AC voltage | 110 V AC |
| Rated current | 15.50 A |
| Main contacts | 3 normally open contacts |
| Manufacturer | Schrack |
| AC-3 380 V 400 V [P] | 7.5 kW |
| Packaging | 1 piece, 102 pieces |
