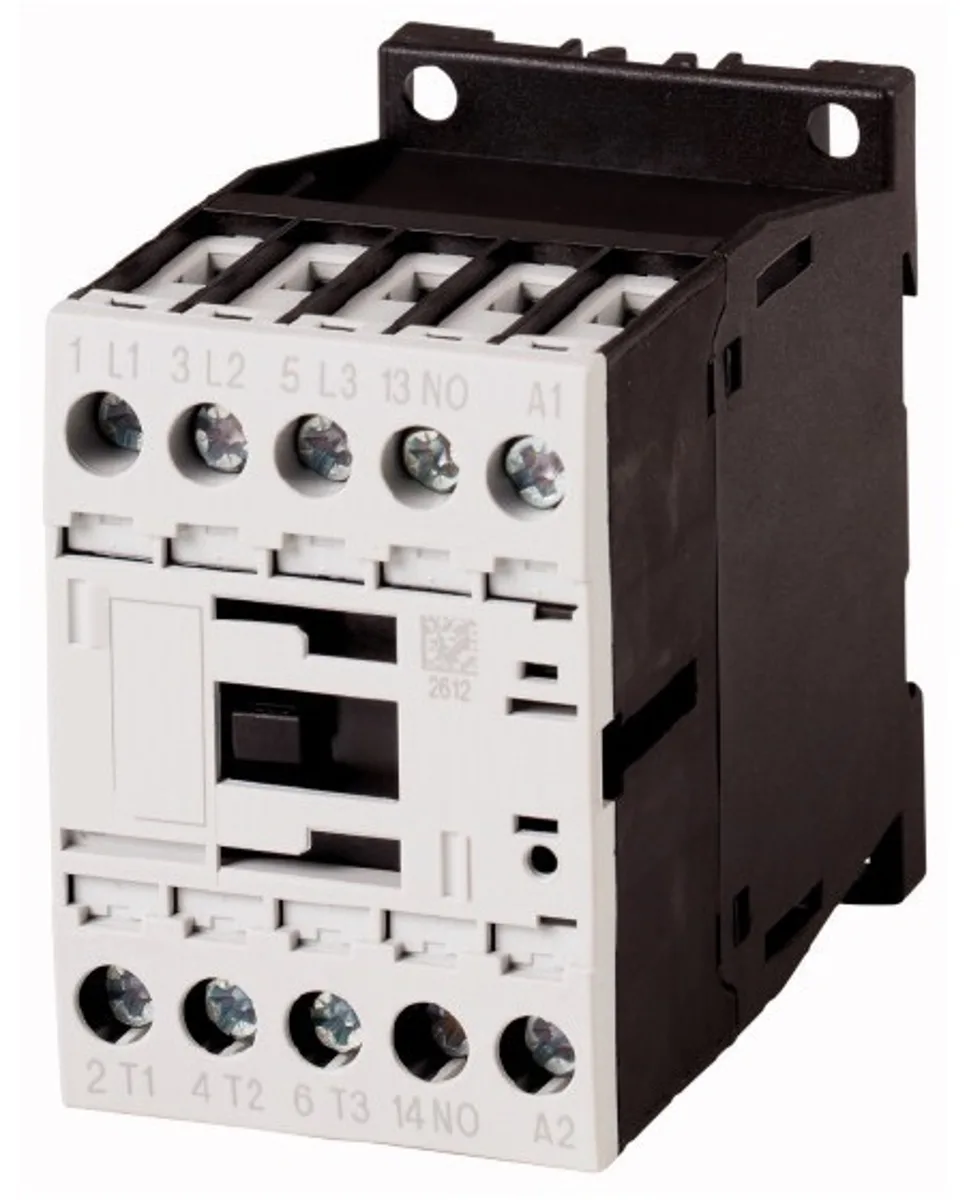

Contactor 7.5kW/400V/15.5A/1NO, Coil 24VDC

Contactor 7.5kW/400V/15.5A/1NO, Coil 24VDC

Article: LTD01515--

Контакторы ALEA II LT

38 570 ₸

To order
WhatsAppTelegram

Power contactor designed for controlling asynchronous electric motors and other inductive loads in alternating current networks.

Main Parameters:

  • Rated Power: 7.5 kW (at 380-400 V voltage, category AC-3)
  • Rated Current: 15.5 A
  • Main Contacts: 3 closing contacts (3NO)
  • Auxiliary Contacts: 1 closing contact (1NO)
  • Coil Voltage: 24 VDC
  • Power Loss at Switching: 8.5 W

Physical Characteristics:

  • Width: 45 mm
  • Height: 68 mm
  • Depth: 75 mm
  • Weight: 0.30 kg
  • Manufacturer: Schrack
  • EAN: 9004840840803

The contactor is mounted on a standard DIN rail and provides reliable commutation of three-phase circuits in industrial applications.

EAN Code9004840840803
Net Width45.00 mm
Net Height68.00 mm
Net Depth75.00 mm
Net Weight0.30 kg
Power Loss8.50 W
TypePower Contactor
Auxiliary Contacts1 closing contact
DC Coil Voltage24 V
Rated Current15.50 A
Main Contacts3 closing contacts
ManufacturerSchrack
AC-3 380 V 400 V [P]7.5 kW
Packaging1 piece, 102 pieces
