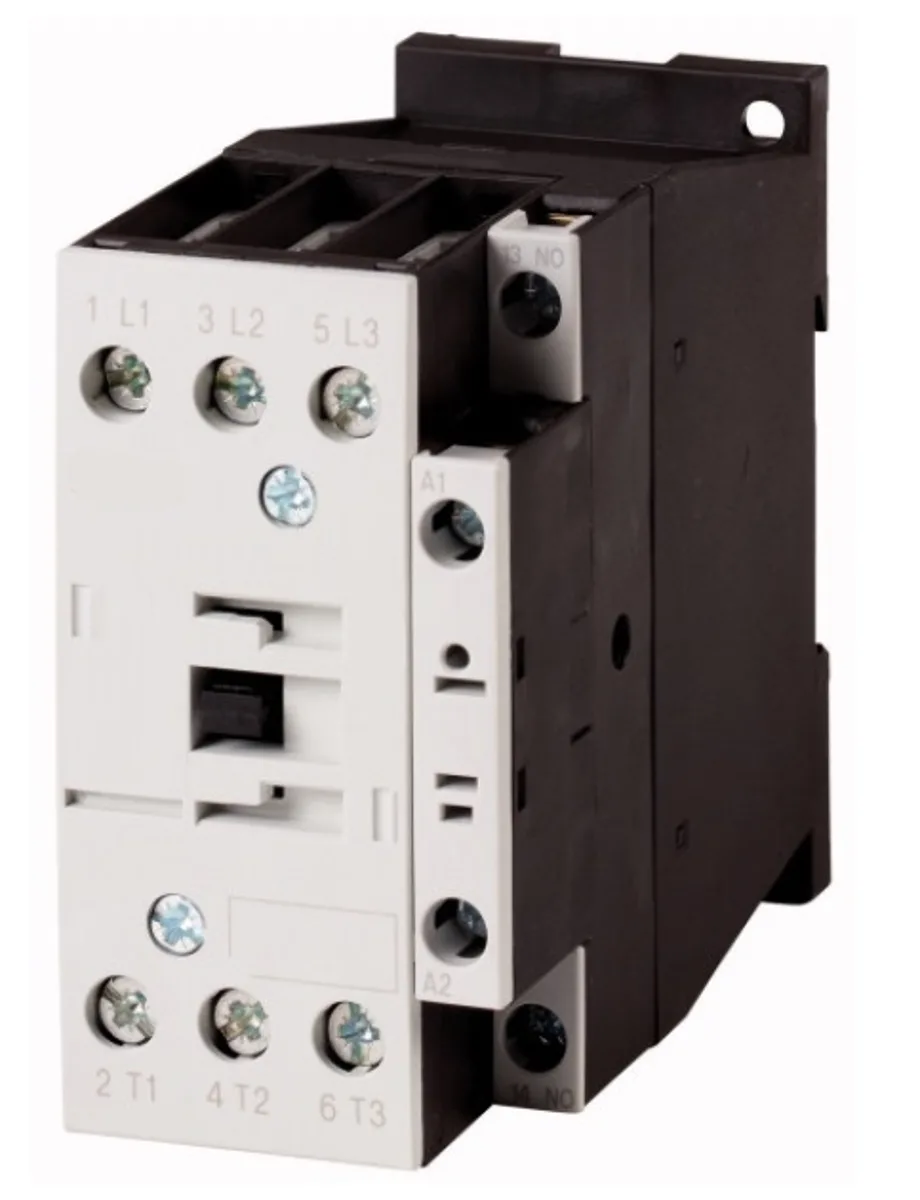

Contactor 15kW/400V/32A/1NO, 110VAC Coil
Article: LTD13222--
47 630 ₸
To order
A power contactor designed for switching three-phase induction motors and other loads in industrial AC networks. The device provides reliable closure and opening of electrical circuits with a rated power of up to 15 kW at a voltage of 400 V.
Main Characteristics:
- Rated Current: 32 A
- Main Contacts: 3 closing contacts (for three-phase network)
- Auxiliary Contacts: 1 opening contact
- Coil Voltage: 110 V alternating current
- Power according to AC-3 (380/400 V): 15 kW
- Power Loss in Nominal Mode: 12.40 W
- Compact Size: width 45 mm, height 85 mm, depth 97.40 mm
- Weight: 0.43 kg
The contactor complies with reliability and safety standards, manufactured by Schrack — a leading manufacturer of electrical equipment. Low power loss ensures minimal heat dissipation and efficiency during extended operation. The auxiliary opening contact enables implementation of control circuits with feedback and protection against unauthorized starting.
Field of Application: motor control systems, industrial control panels, power distribution systems.
| EAN Code | 9004840840636 |
|---|---|
| Net Width | 45.00 mm |
| Net Height | 85.00 mm |
| Net Depth | 97.40 mm |
| Net Weight | 0.43 kg |
| Power Loss | 12.40 W |
| Size | 1 |
| Type | Power Contactor |
| Auxiliary Contacts | 1 opening contact |
| Coil AC Voltage | 110 V alternating current |
| Rated Current | 32 A |
| Main Contacts | 3 closing contacts |
| Manufacturer | Schrack |
| AC-3 380 V 400 V [P] | 15 kW |
| Packaging | 1 unit, 64 units |
