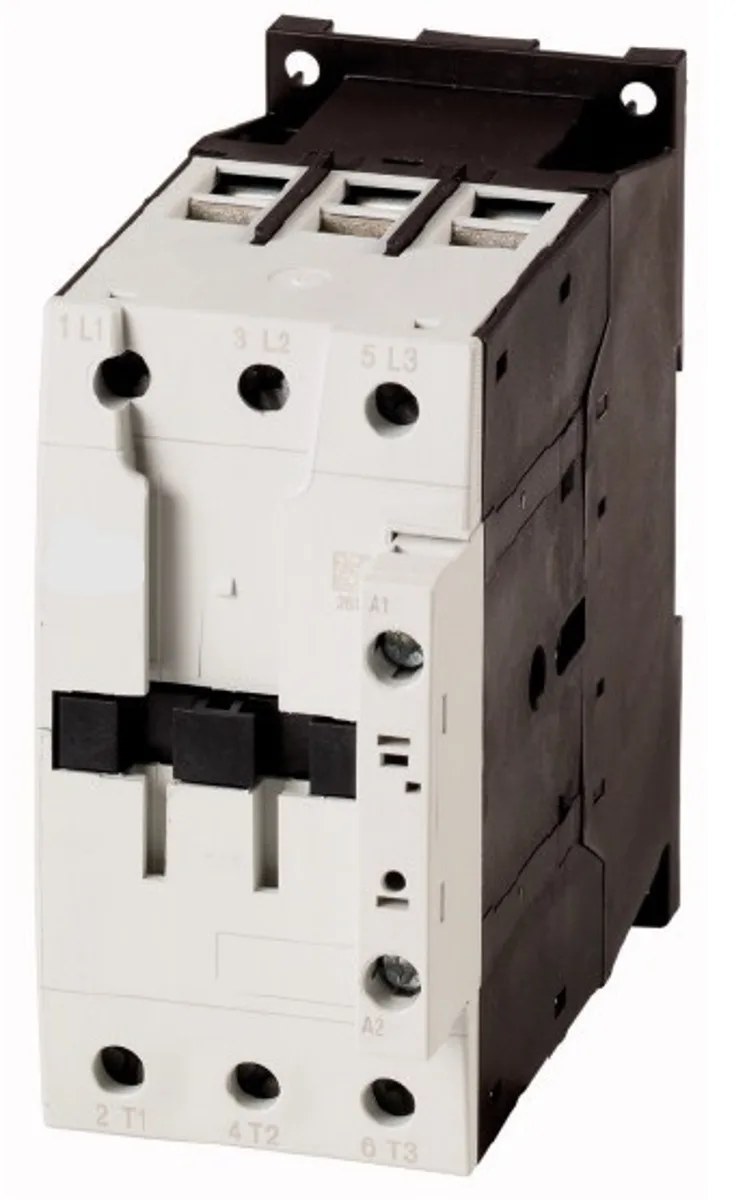

Contactor 18.5kW/400V/40A, Coil 24VAC

Contactor 18.5kW/400V/40A, Coil 24VAC

Article: LTD24030--

Контакторы ALEA II LT

54 800 ₸

To order
WhatsAppTelegram

Industrial power contactor designed for switching asynchronous electric motors and other industrial loads in alternating current circuits.

Main parameters:

  • Rated voltage: 400 V AC (50/60 Hz)
  • Rated current: 40 A
  • Power (AC-3 380/400 V): 18.5 kW
  • Control voltage: 24 V AC
  • Main contacts: 3 normally open contacts (3NO)
  • Power dissipation: 10.30 W

Design specifications:

  • Overall dimensions: width 55 mm × height 115 mm × depth 132.10 mm
  • Weight: 0.87 kg
  • Size according to standard: 2
  • Manufacturer: Schrack
  • EAN code: 9004840840209

Packaging and delivery: Available for supply from 1 piece and in multiples of 25 pieces.

The contactor provides reliable switching under rated operating conditions and conforms to IEC standards for industrial applications.

EAN code9004840840209
Width net55.00 mm
Height net115.00 mm
Depth net132.10 mm
Weight net0.87 kg
Power dissipation10.30 W
Size2
TypePower contactor
AC coil voltage24 V AC
Rated current40 A
Main contacts3 normally open contacts
ManufacturerSchrack
AC-3 380 V 400 V [P]18.5 kW
Packaging1 piece, 25 pieces
