Automatic circuit breaker with integrated RCD C20А/1+N, 10kA, 30mA, type A
Article: AK617620--
22 980 ₸
In stock
Combined automatic circuit breaker with integrated residual current device of the AMPARO series manufactured by Schrack. The device combines the functions of protection against overload/short circuit and protection against leakage current.
Main parameters:
- Rated current: 20 A
- Disconnection characteristic: C (time-current)
- Breaking capacity: 10 kA
- Configuration: 1+N (single-phase + neutral)
- Rated sensitivity of differential current: 30 mA
- Type of RCD: A (responds to alternating and pulsating direct current)
- Disconnection speed: instantaneous
Technical specifications:
- Installation width: 36 mm (2 modules)
- Length: 77 mm, height: 85 mm
- Power loss: 5.45 W
- Operating temperature range: -25 °C to +60 °C
- Weight: 0.21 kg
Normative compliance: EN 61009-1:2012 with amendments A1:2014, A2:2014, A11:2015, A12:2016; EN 61009-2-1:1994 + A11:1998; IEC 61009-1, IEC 61009-2-1
Packaging: individual or package of 90 units (EAN: 9004840862508)
| EAN code | 9004840862508 |
|---|---|
| Net length | 77.00 mm |
| Net width | 36.00 mm |
| Net height | 85.00 mm |
| Net weight | 0.21 kg |
| Power loss | 5.45 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (current response) | A (sensitive to pulsating current) |
| Type (disconnection) | instantaneous |
| Rated sensitivity IΔn | 30 mA |
| Characteristic | C |
| Poles | 1+N |
| Breaking capacity | 10 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 unit, 90 units |

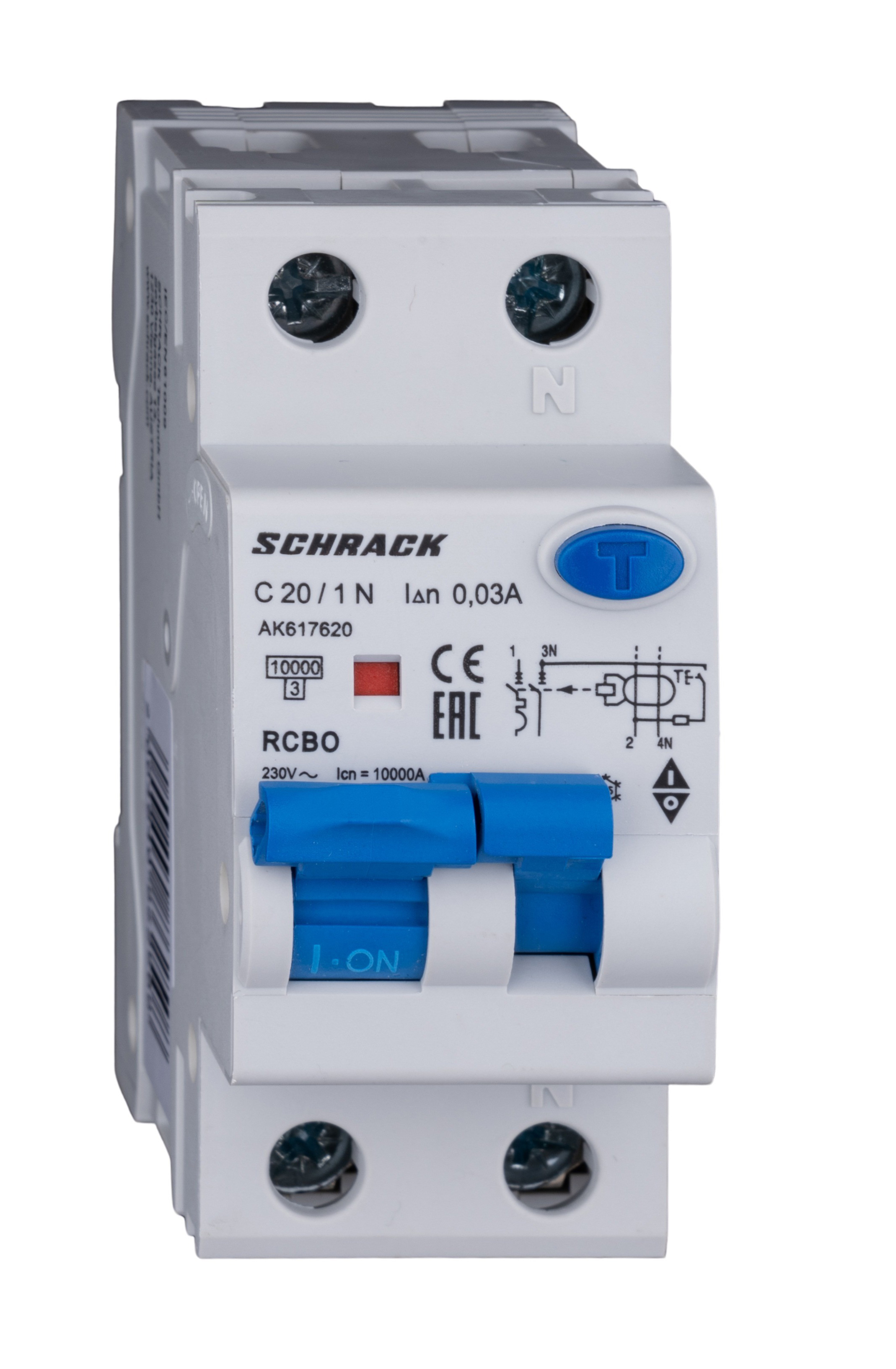

- Photo 1: Automatic circuit breaker with integrated RCD C20А/1+N, 10kA, 30mA, type A (JPG, 1.2 MB)

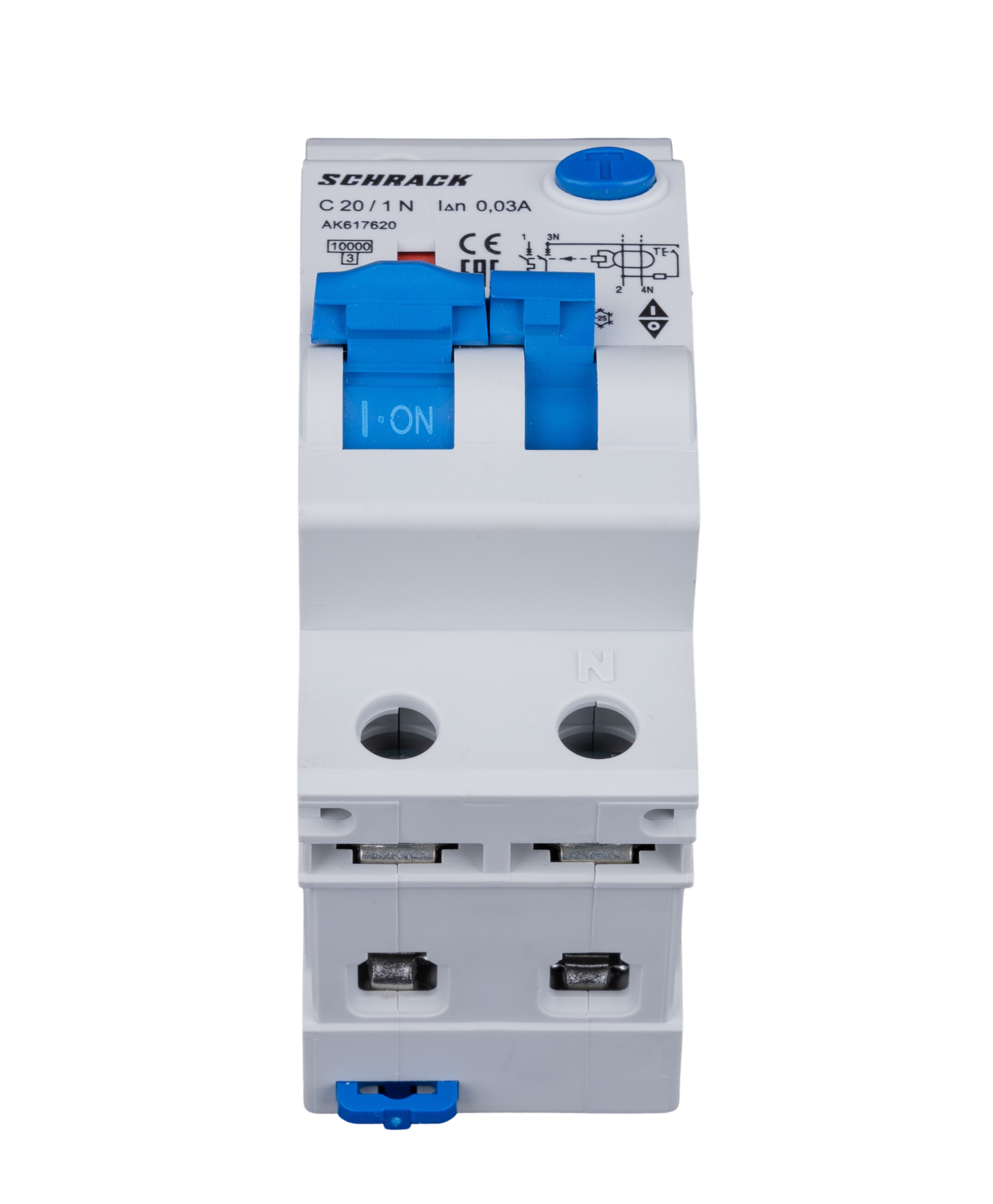

- Photo 2: Automatic circuit breaker with integrated RCD C20А/1+N, 10kA, 30mA, type A (JPG, 484 KB)

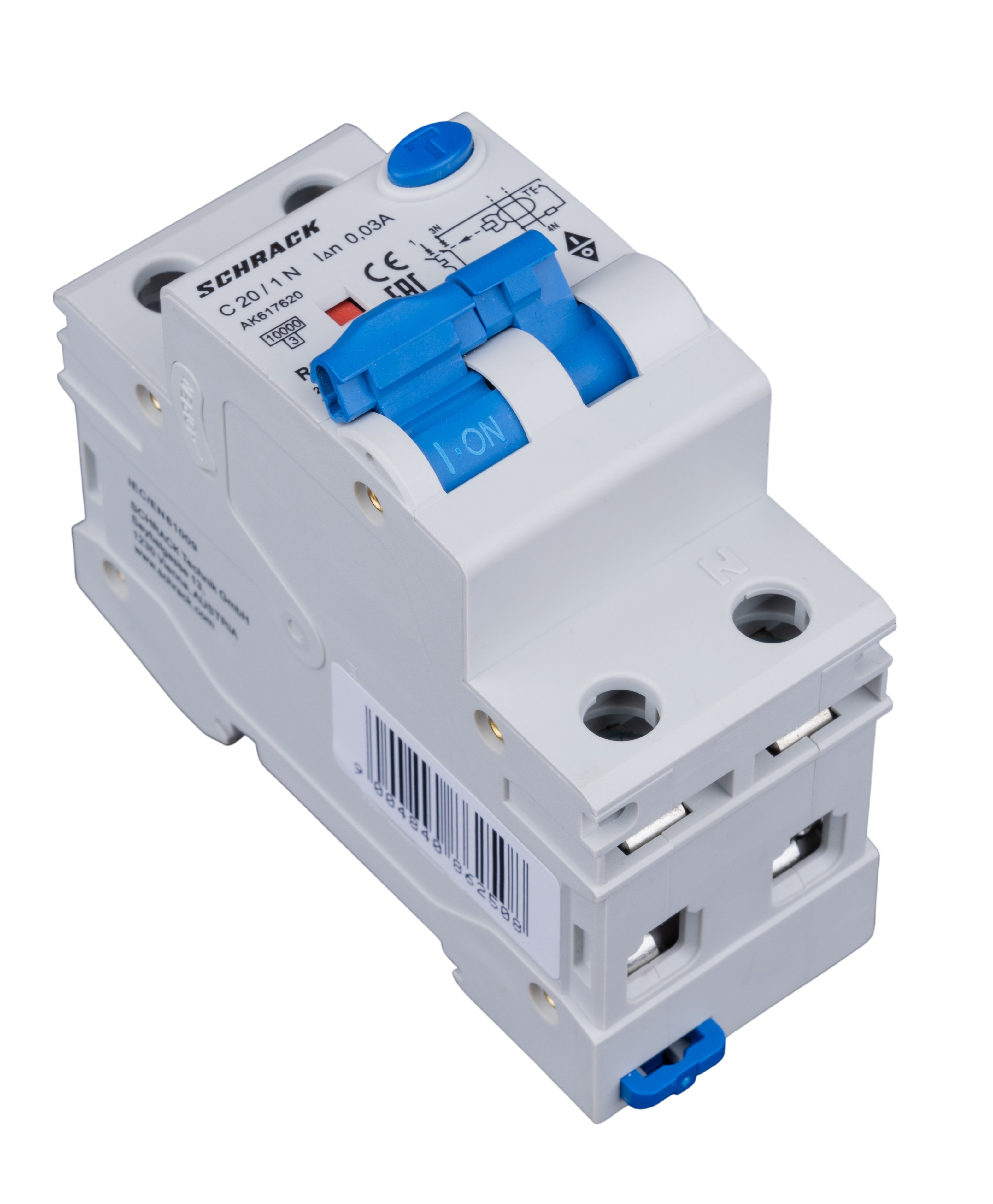

- Photo 3: Automatic circuit breaker with integrated RCD C20А/1+N, 10kA, 30mA, type A (JPG, 643 KB)

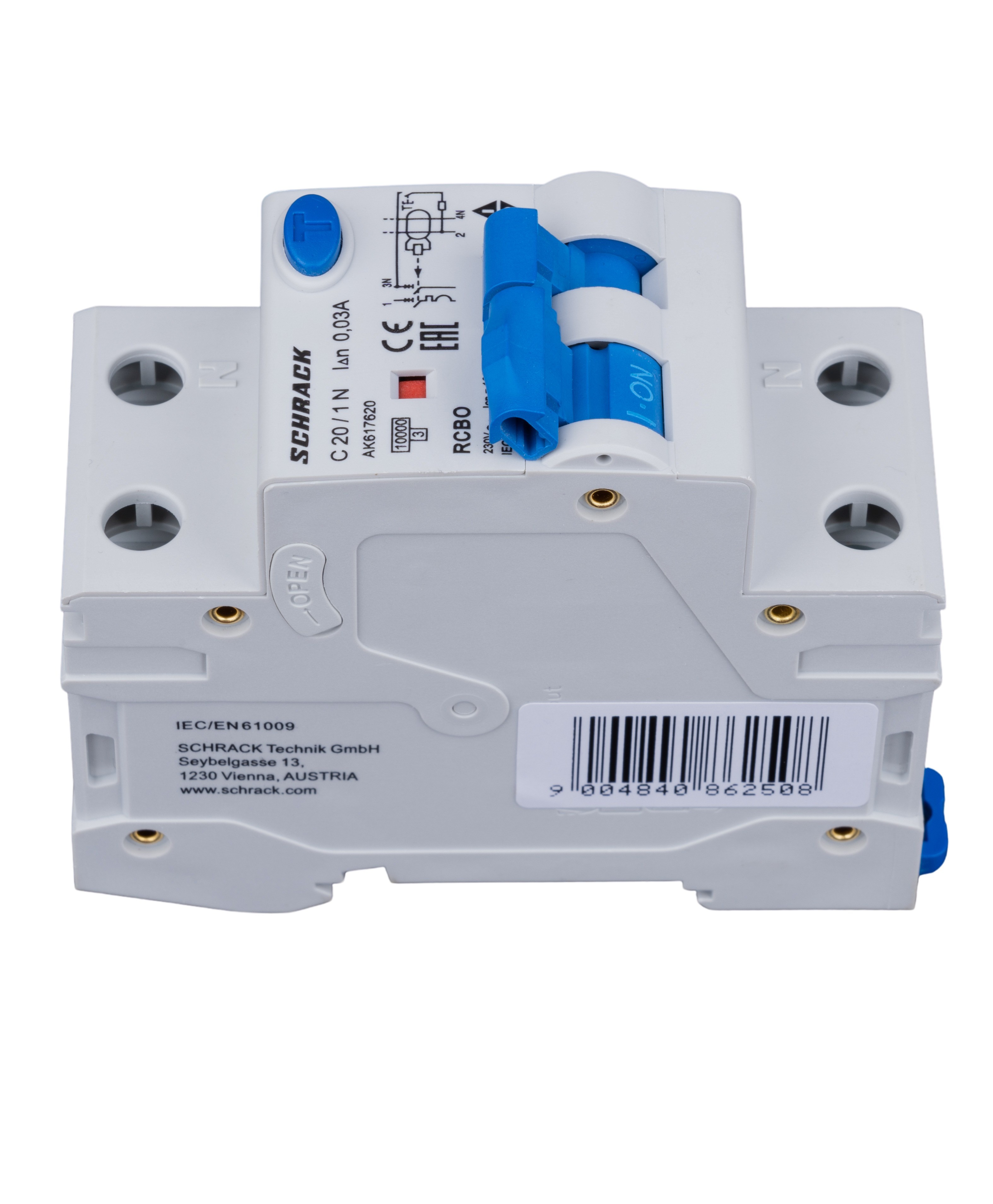

- Photo 4: Automatic circuit breaker with integrated RCD C20А/1+N, 10kA, 30mA, type A (JPG, 693 KB)

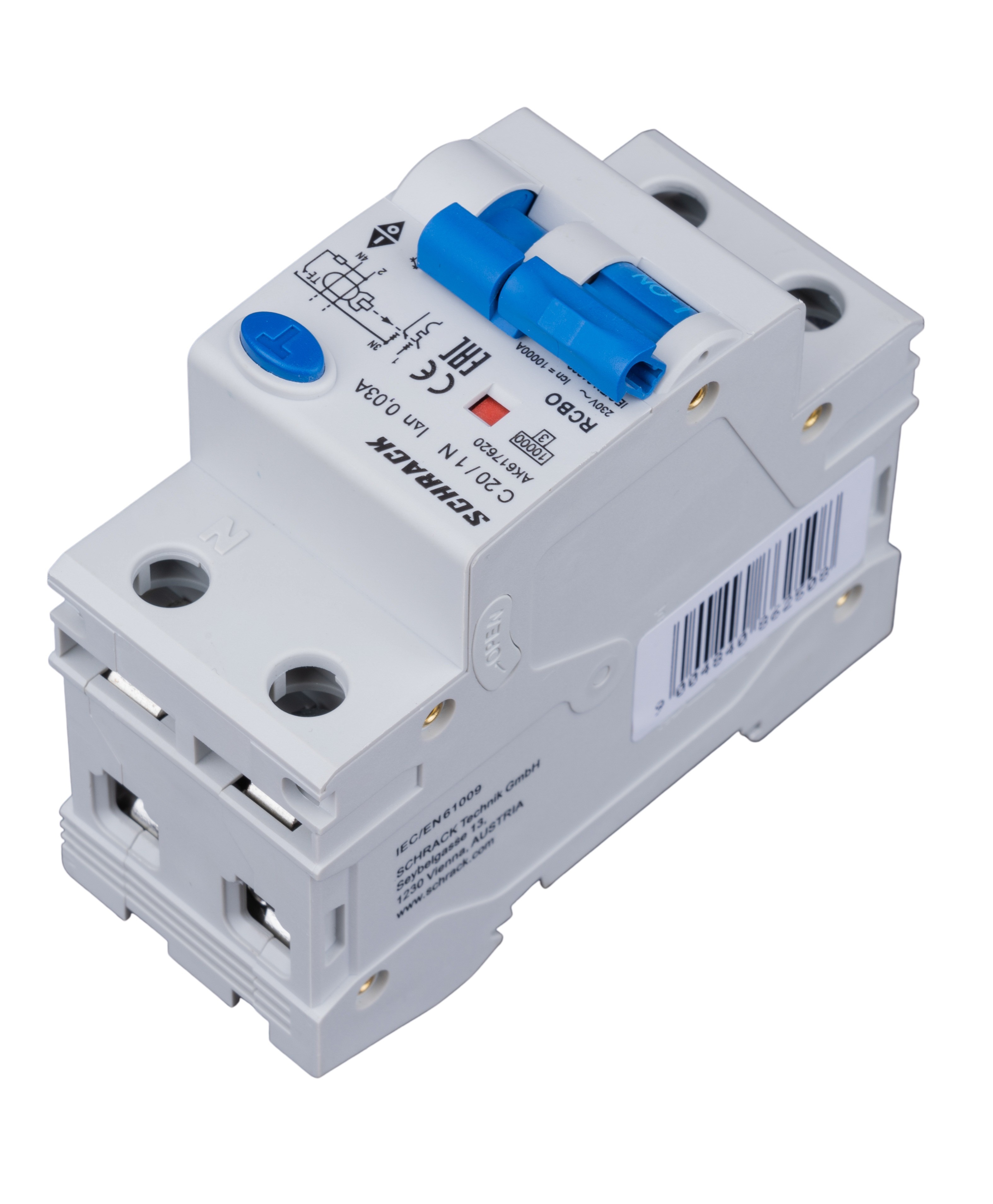

- Photo 5: Automatic circuit breaker with integrated RCD C20А/1+N, 10kA, 30mA, type A (JPG, 647 KB)

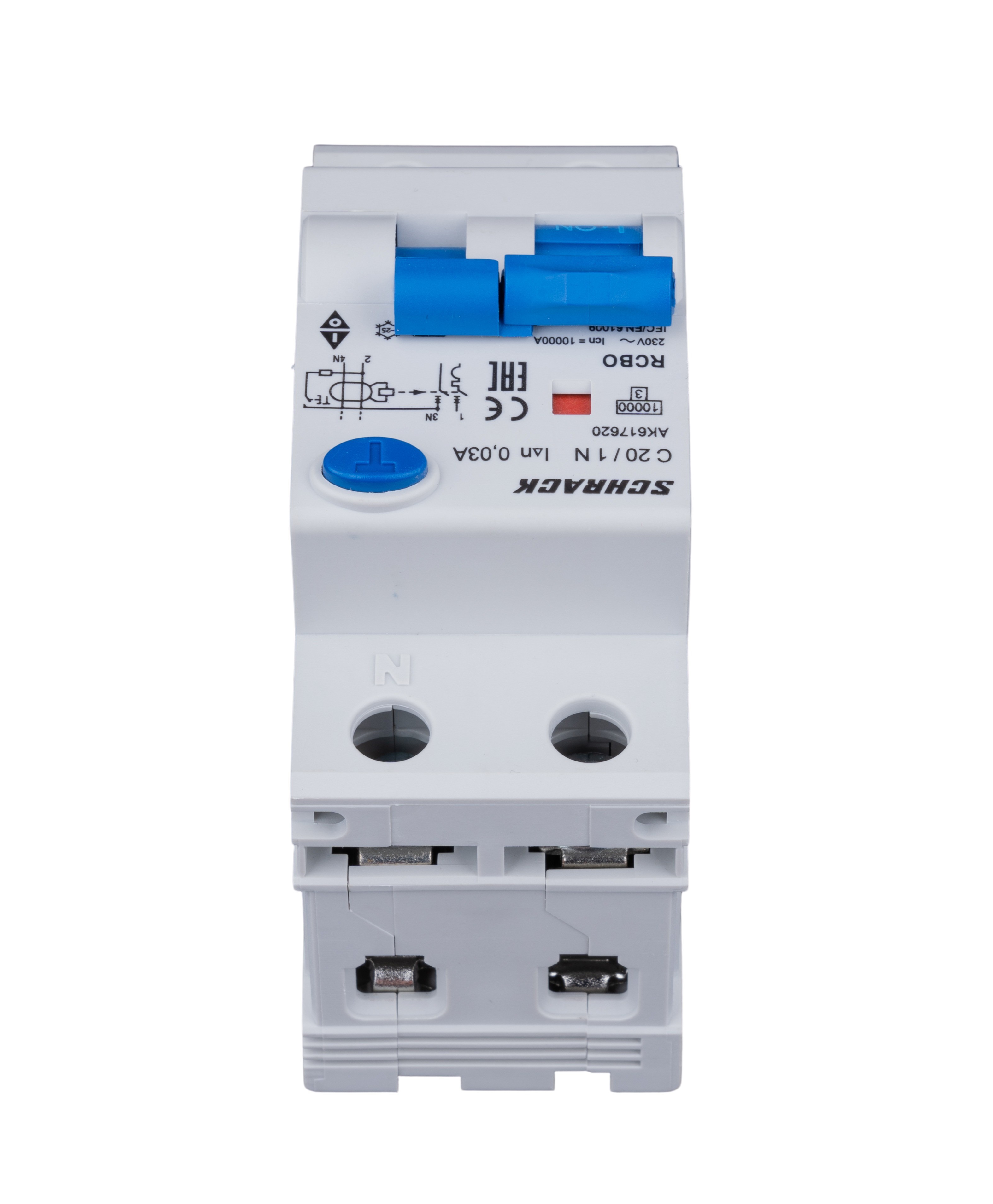

- Photo 6: Automatic circuit breaker with integrated RCD C20А/1+N, 10kA, 30mA, type A (JPG, 473 KB)

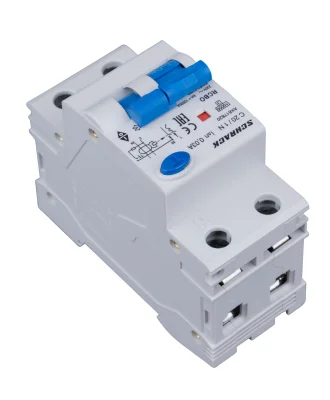

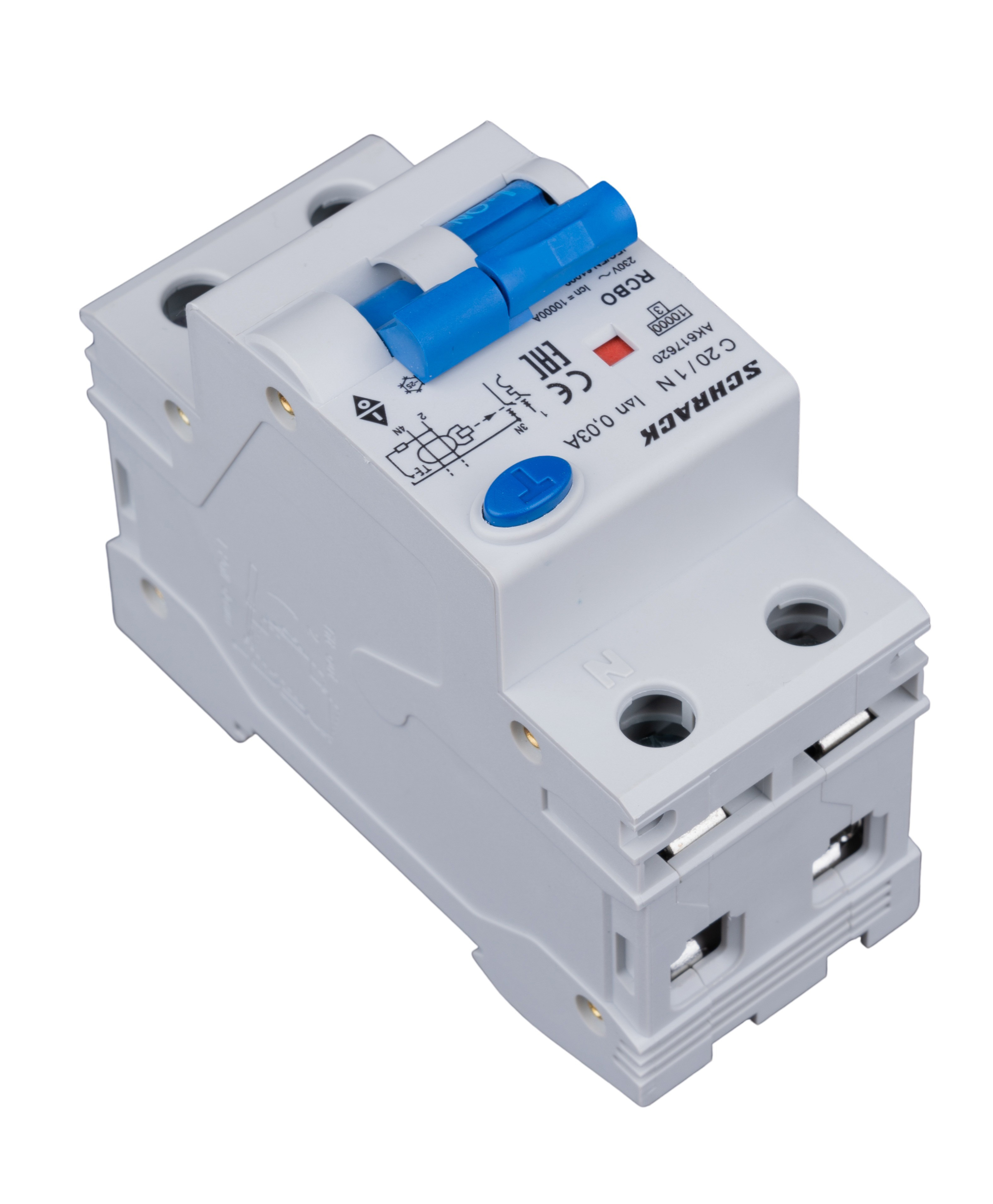

- Photo 7: Automatic circuit breaker with integrated RCD C20А/1+N, 10kA, 30mA, type A (JPG, 1.1 MB)

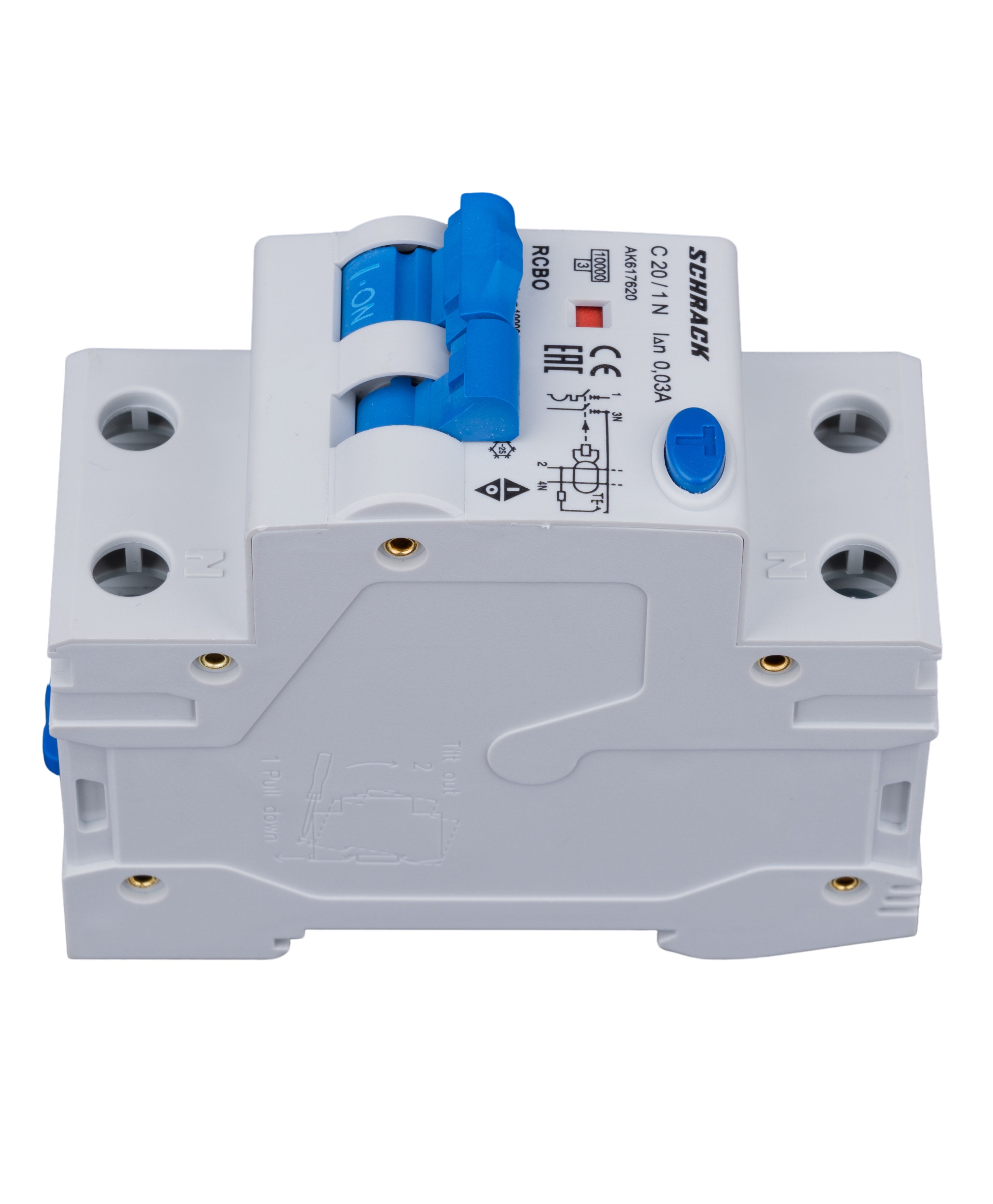

- Photo 8: Automatic circuit breaker with integrated RCD C20А/1+N, 10kA, 30mA, type A (JPG, 651 KB)

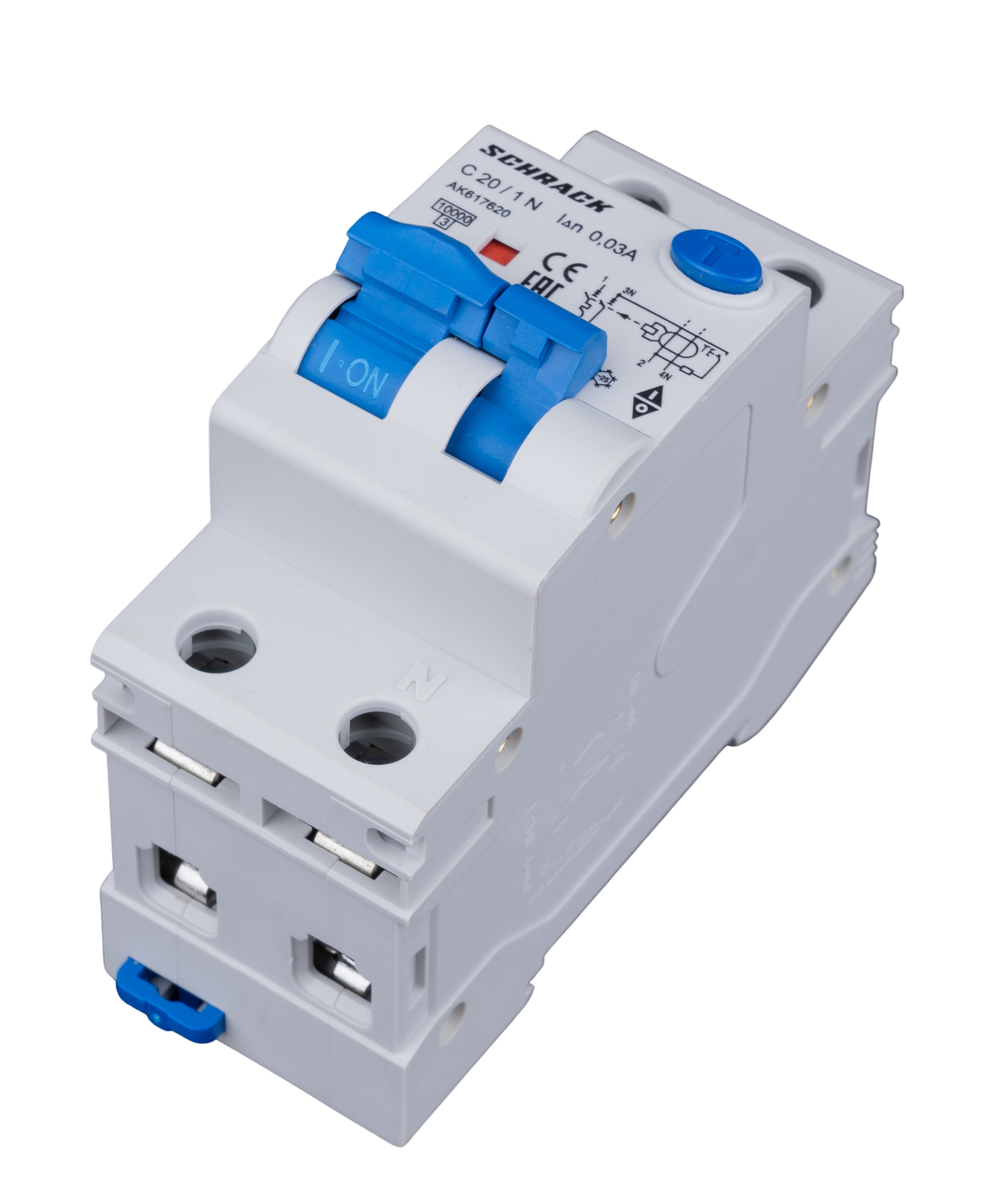

- Photo 9: Automatic circuit breaker with integrated RCD C20А/1+N, 10kA, 30mA, type A (JPG, 591 KB)
