Automatic Circuit Breaker with RCD B10A/1+N, 10kA, 30mA, Type A
Article: AK618610--
22 980 ₸
In stock
Automatic circuit breaker with integrated RCD (residual current device) from the AMPARO series by Schrack manufacturer. The device is designed to protect electrical circuits from overcurrents and earth faults simultaneously.
Main parameters:
- Rated current: 10 A
- Configuration: 1 pole + neutral (1+N)
- Rated sensitivity: 30 mA
- Breaking capacity: 10 kA
- Trip type: B (instantaneous)
- RCD type: A (sensitive to alternating and pulsating DC current)
- Power loss: 2.47 W
Operating conditions:
- Temperature range: from −25 °C to +60 °C
Standards and certification:
The device complies with the following standards: EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1.
Dimensions and weight:
- Length: 77 mm
- Width: 36 mm
- Height: 85 mm
- Weight: 0.21 kg
Package contents:
Available in packs of 1 piece and 90 pieces. EAN code: 9004840862539.
| EAN code | 9004840862539 |
|---|---|
| Length (net) | 77.00 mm |
| Width (net) | 36.00 mm |
| Height (net) | 85.00 mm |
| Weight (net) | 0.21 kg |
| Power loss | 2.47 W |
| Min. ambient temperature | −25 °C |
| Max. ambient temperature | 60 °C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (RCD) | A (sensitive to pulsating DC) |
| Type (trip) | Instantaneous |
| Rated sensitivity IΔn | 30 mA |
| Characteristic | B |
| Poles | 1+N |
| Breaking capacity | 10 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Package | 1 pcs., 90 pcs. |

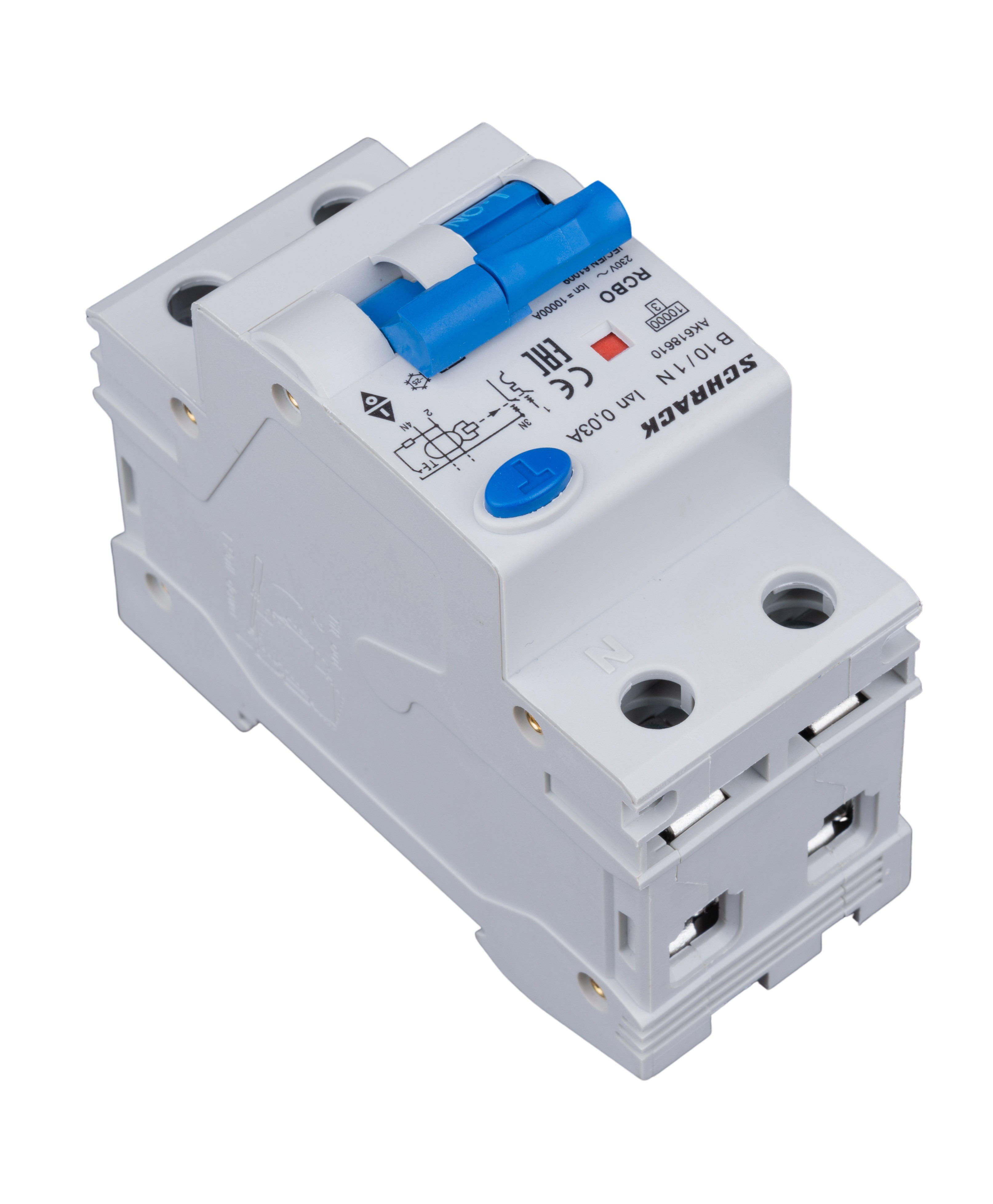

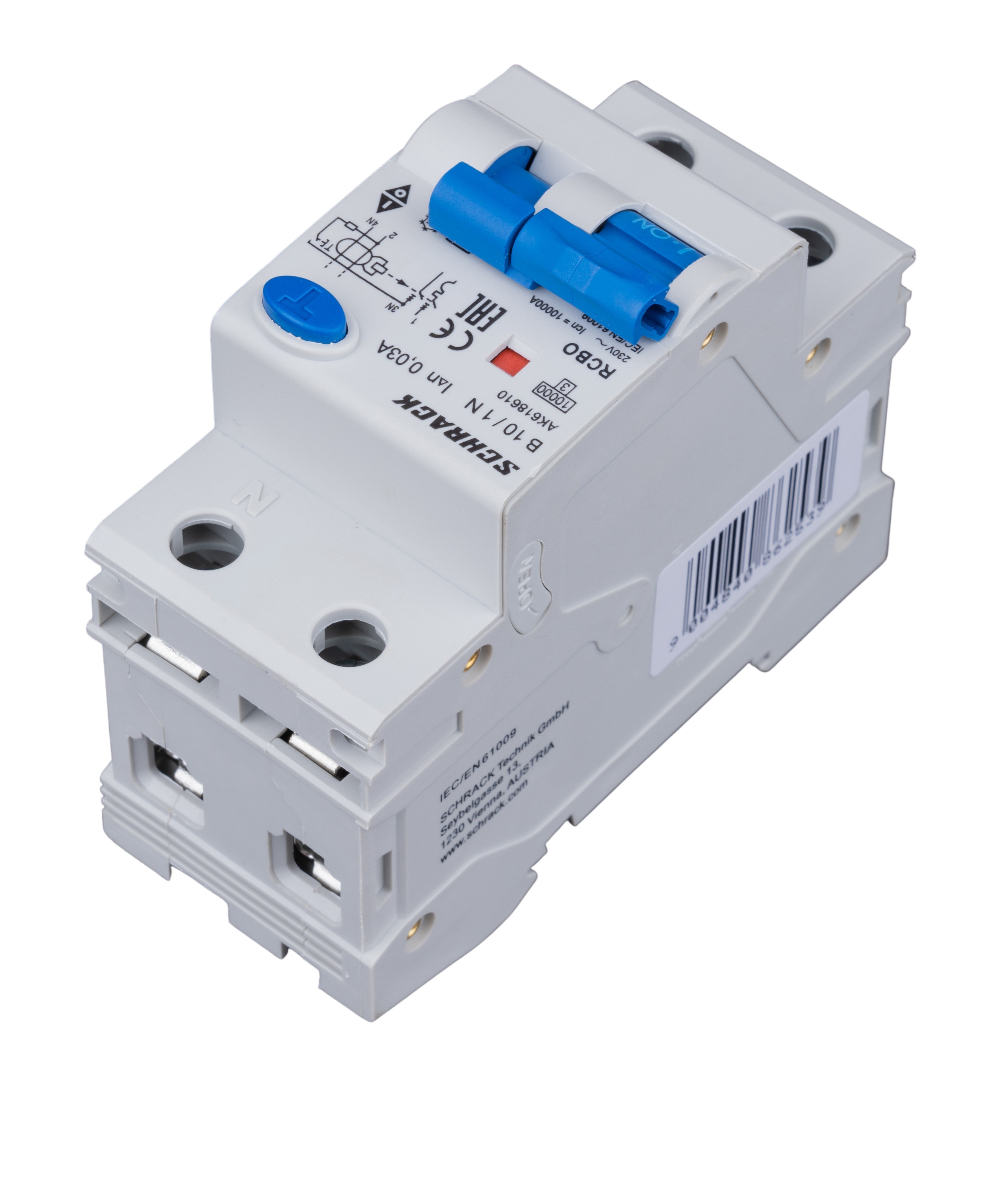

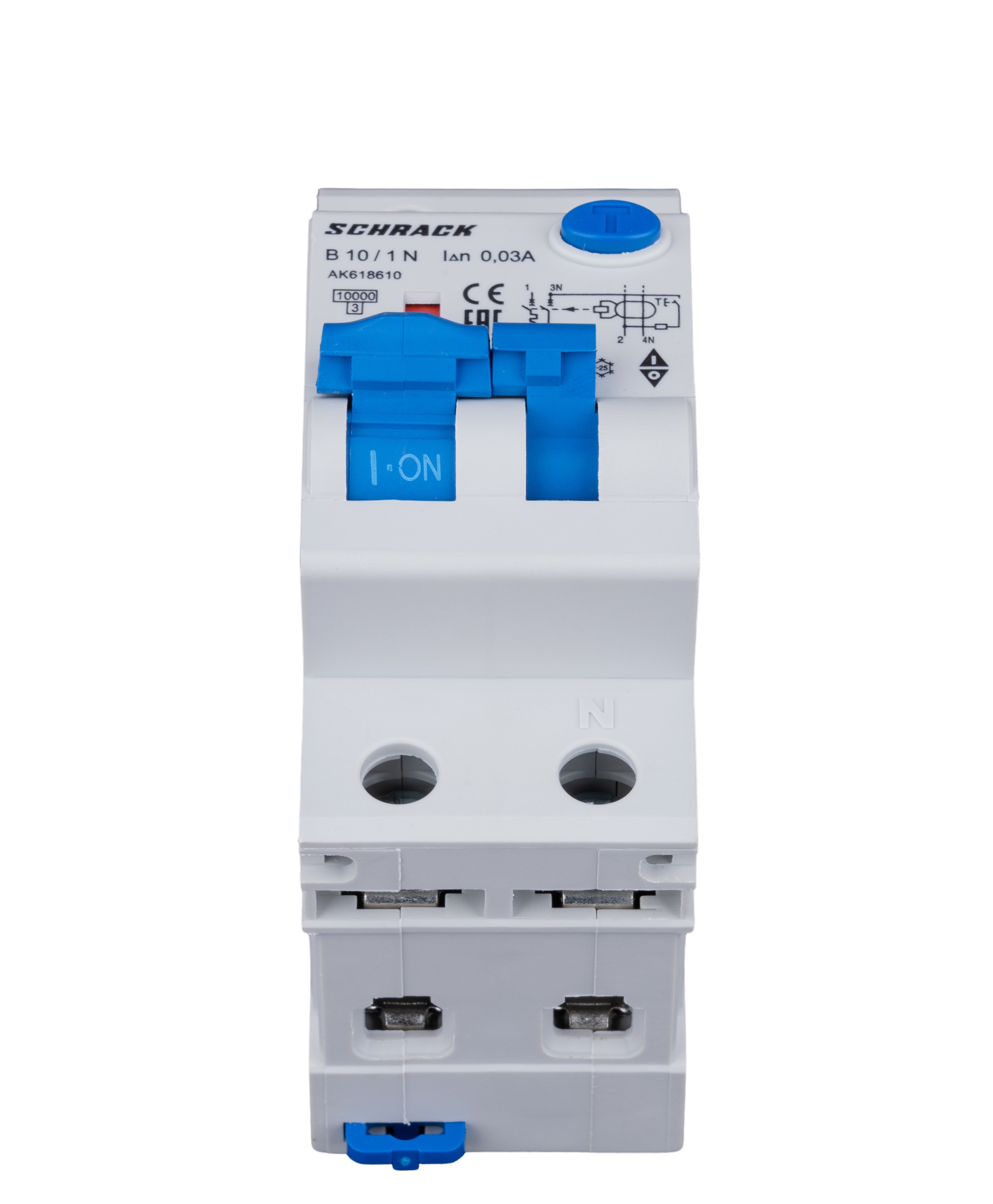

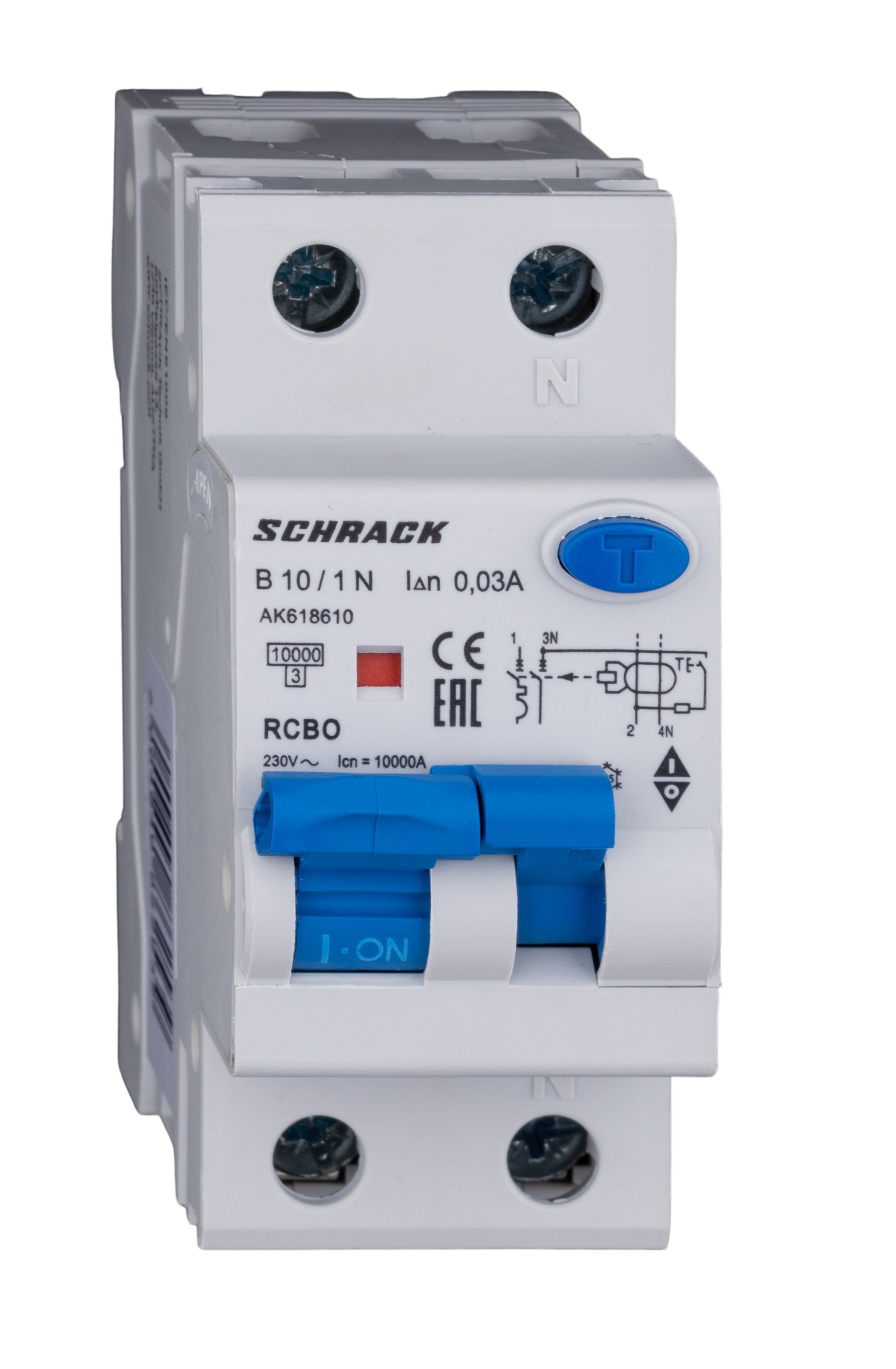

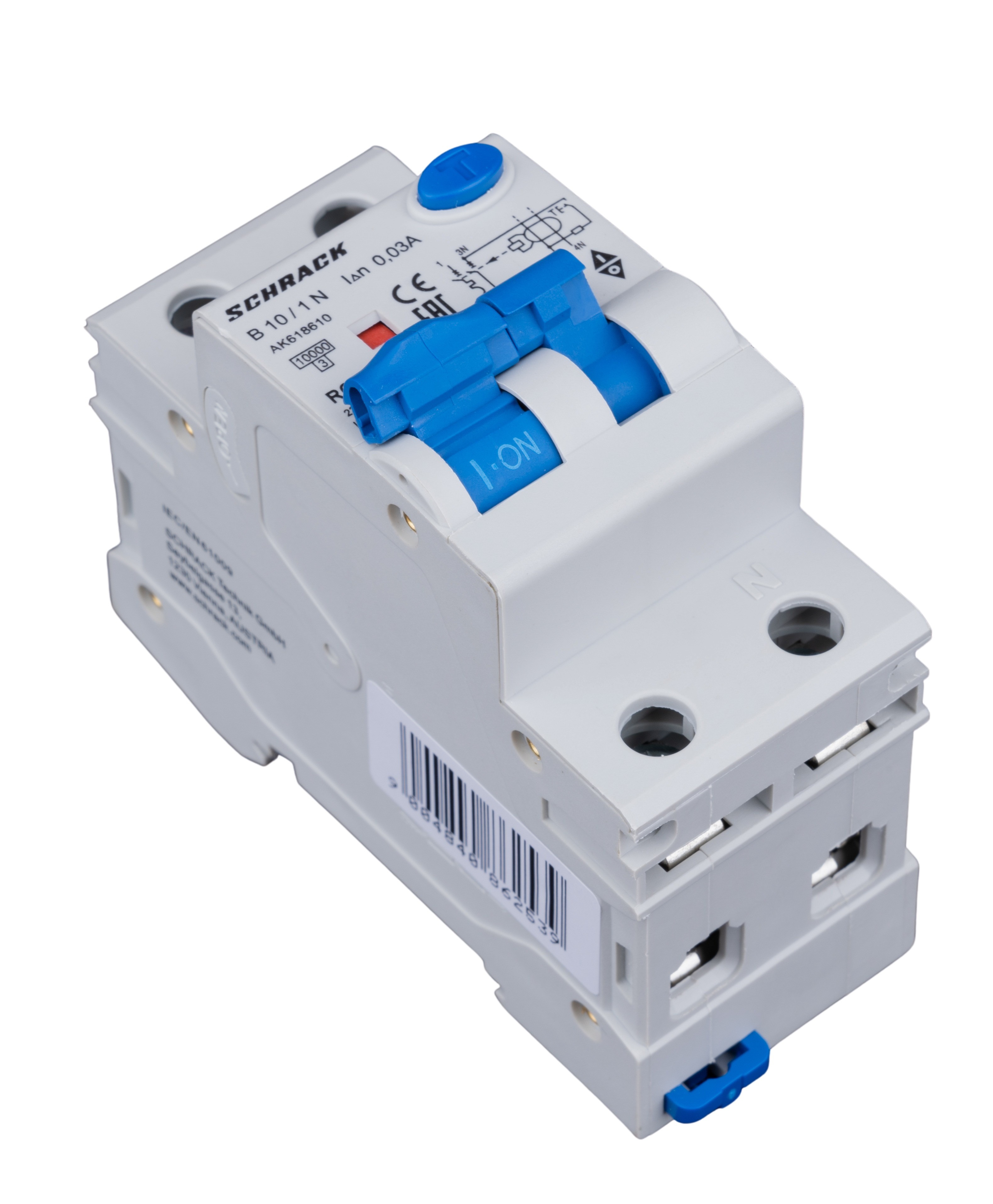

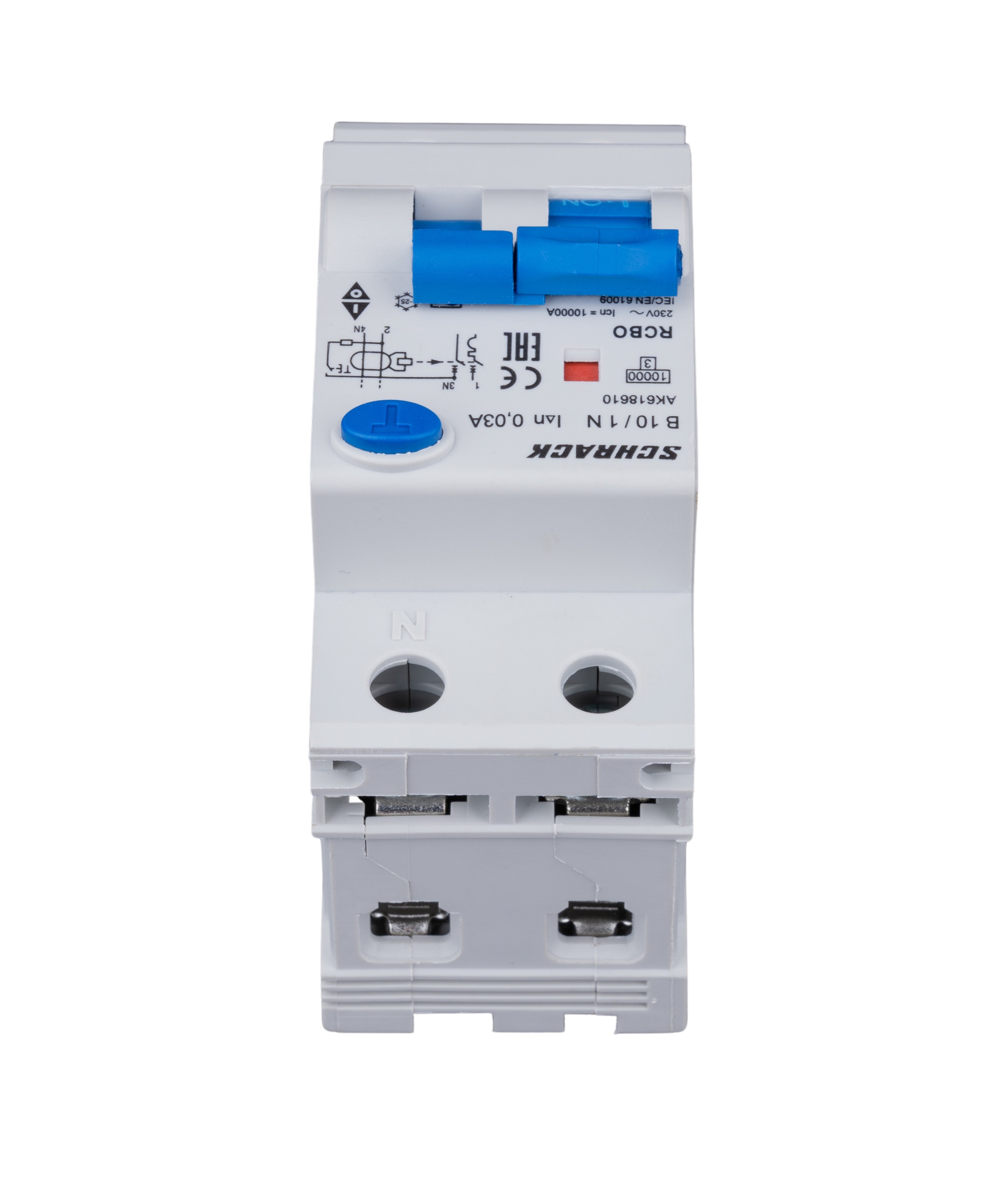

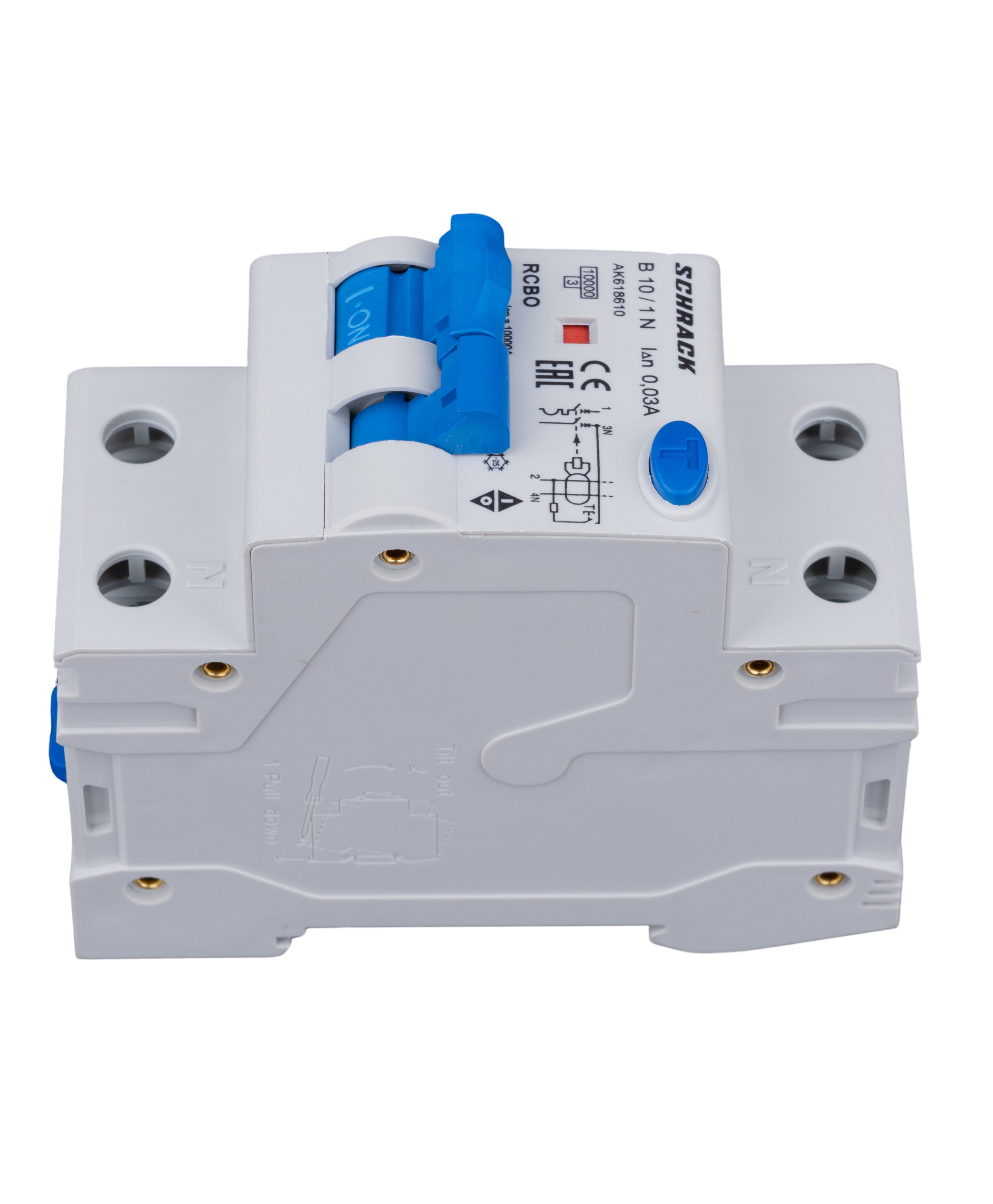

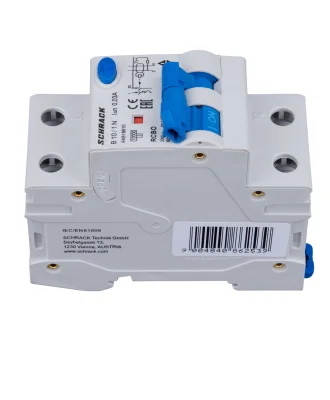

- Photo 1: Automatic Circuit Breaker with RCD B10A/1+N, 10kA, 30mA, Type A (JPG, 1.2 MB)
- Photo 2: Automatic Circuit Breaker with RCD B10A/1+N, 10kA, 30mA, Type A (JPG, 485 KB)
- Photo 3: Automatic Circuit Breaker with RCD B10A/1+N, 10kA, 30mA, Type A (JPG, 627 KB)

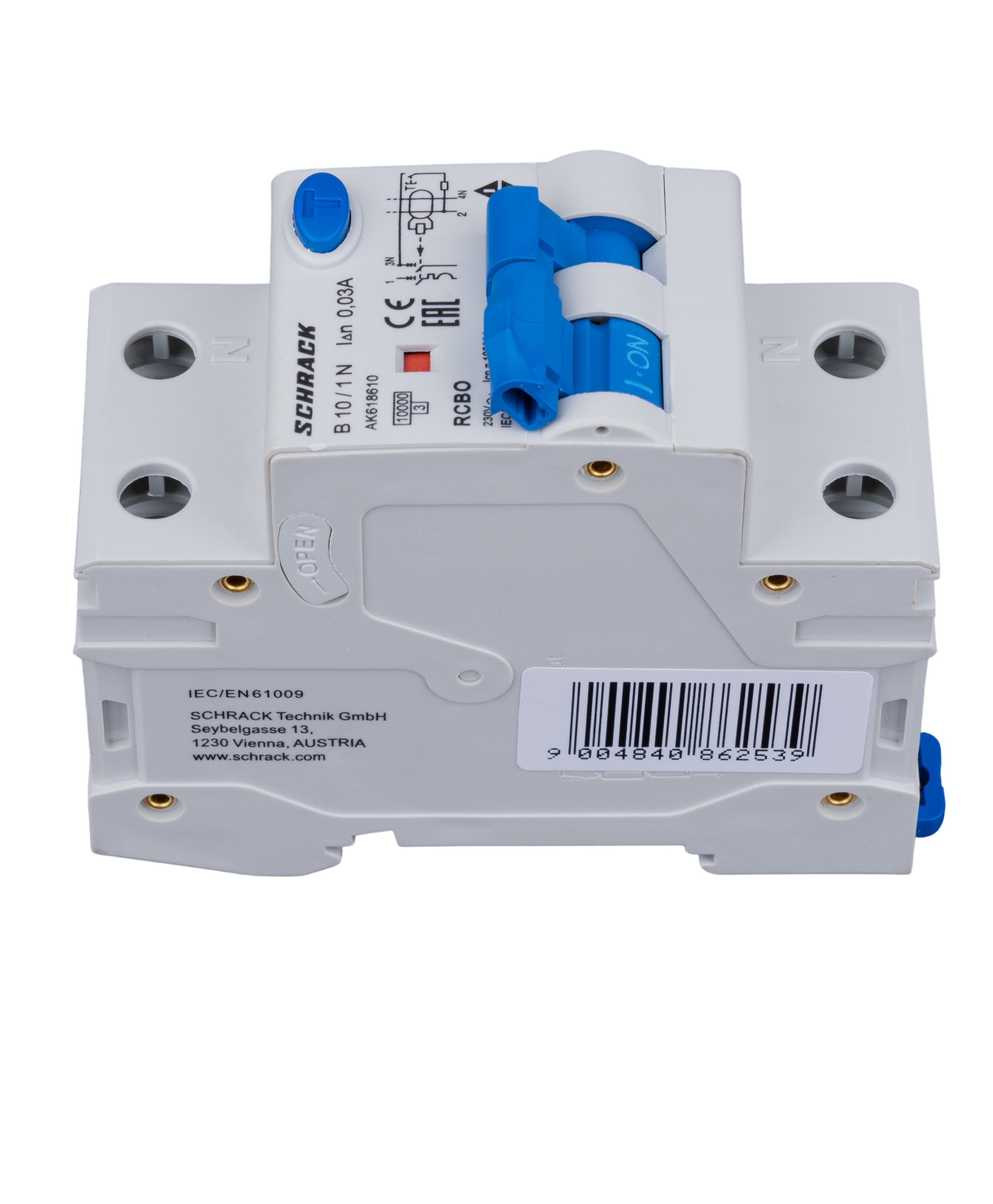

- Photo 4: Automatic Circuit Breaker with RCD B10A/1+N, 10kA, 30mA, Type A (JPG, 750 KB)
- Photo 5: Automatic Circuit Breaker with RCD B10A/1+N, 10kA, 30mA, Type A (JPG, 659 KB)
- Photo 6: Automatic Circuit Breaker with RCD B10A/1+N, 10kA, 30mA, Type A (JPG, 468 KB)
- Photo 7: Automatic Circuit Breaker with RCD B10A/1+N, 10kA, 30mA, Type A (JPG, 1.2 MB)
- Photo 8: Automatic Circuit Breaker with RCD B10A/1+N, 10kA, 30mA, Type A (JPG, 629 KB)

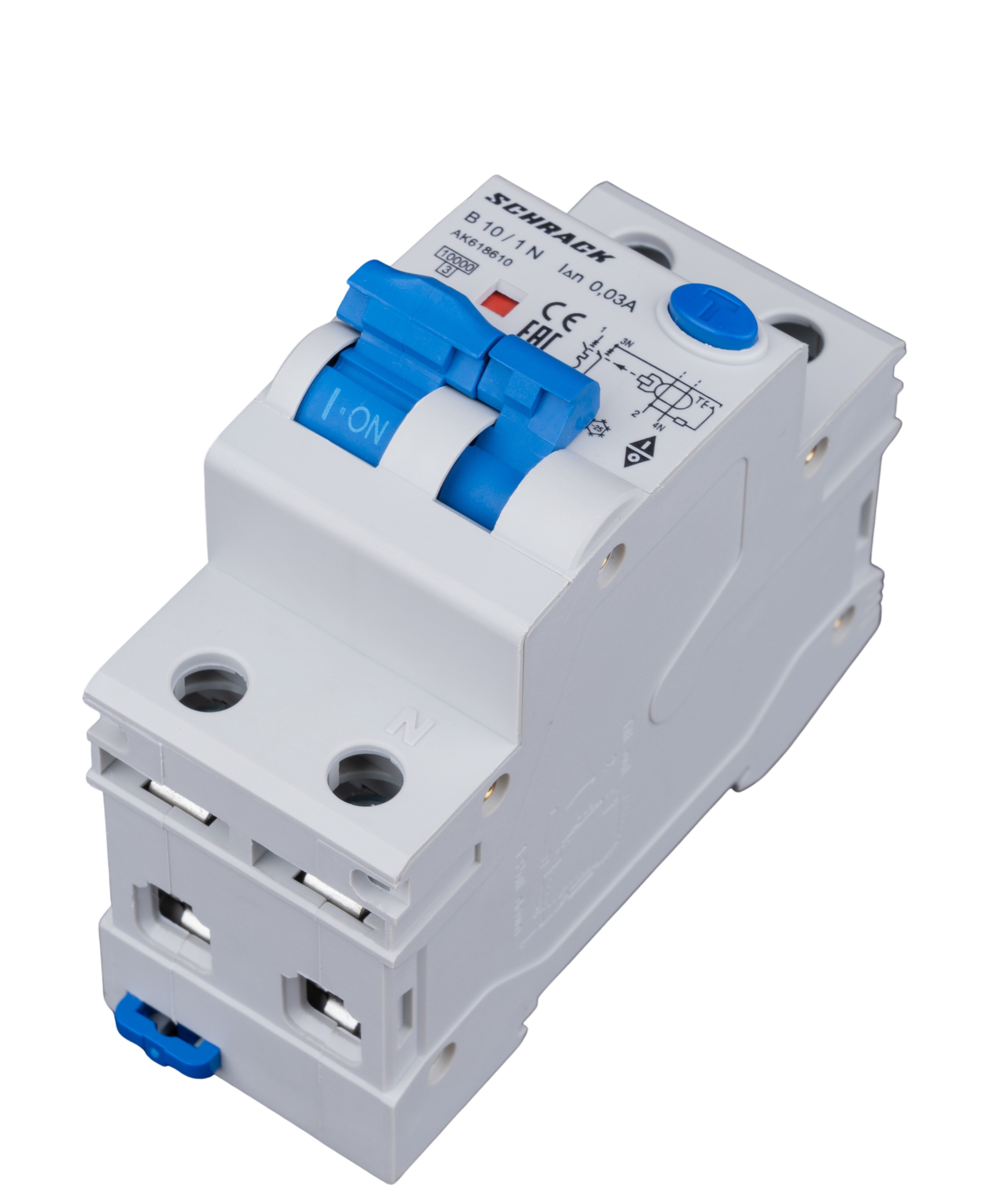

- Photo 9: Automatic Circuit Breaker with RCD B10A/1+N, 10kA, 30mA, Type A (JPG, 605 KB)
