Automatic circuit breaker with RCD B20A/1+N, 10kA, 30mA, type A
Article: AK618620--
22 980 ₸
In stock
Combined automatic circuit breaker with integrated residual current protection device (RCD). The device is designed to protect electrical circuits from overloads, short circuits, and earth faults in single-phase networks with neutral conductor.
Key technical specifications:
- Rated current: 20 A
- Connection scheme: 1 phase + neutral conductor (1+N)
- RCD tripping current (IΔn): 30 mA
- RCD type: A (sensitive to AC and pulsating DC current)
- Breaking capacity: 10 kA
- Trip characteristic: B (instantaneous disconnection)
- Temperature range: from -25°C to +60°C
- Power loss: 5.45 W
Standards compliance:
The device has been developed and tested in accordance with European and international standards: EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1.
Dimensions and weight:
- Length: 77 mm
- Width: 36 mm
- Height: 85 mm
- Weight: 0.21 kg
Manufacturer: Schrack (AMPARO series). EAN code: 9004840862553. Supplied in packages of 1 piece and 90 pieces.
| EAN code | 9004840862553 |
|---|---|
| Net length | 77.00 mm |
| Net width | 36.00 mm |
| Net height | 85.00 mm |
| Net weight | 0.21 kg |
| Power loss | 5.45 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Standards | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (RCD) | A (sensitive to pulsating current) |
| Type (disconnection) | Instantaneous |
| Rated sensitivity IΔn | 30 mA |
| Characteristic | B |
| Poles | 1+N |
| Breaking capacity | 10 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 piece, 90 pieces |

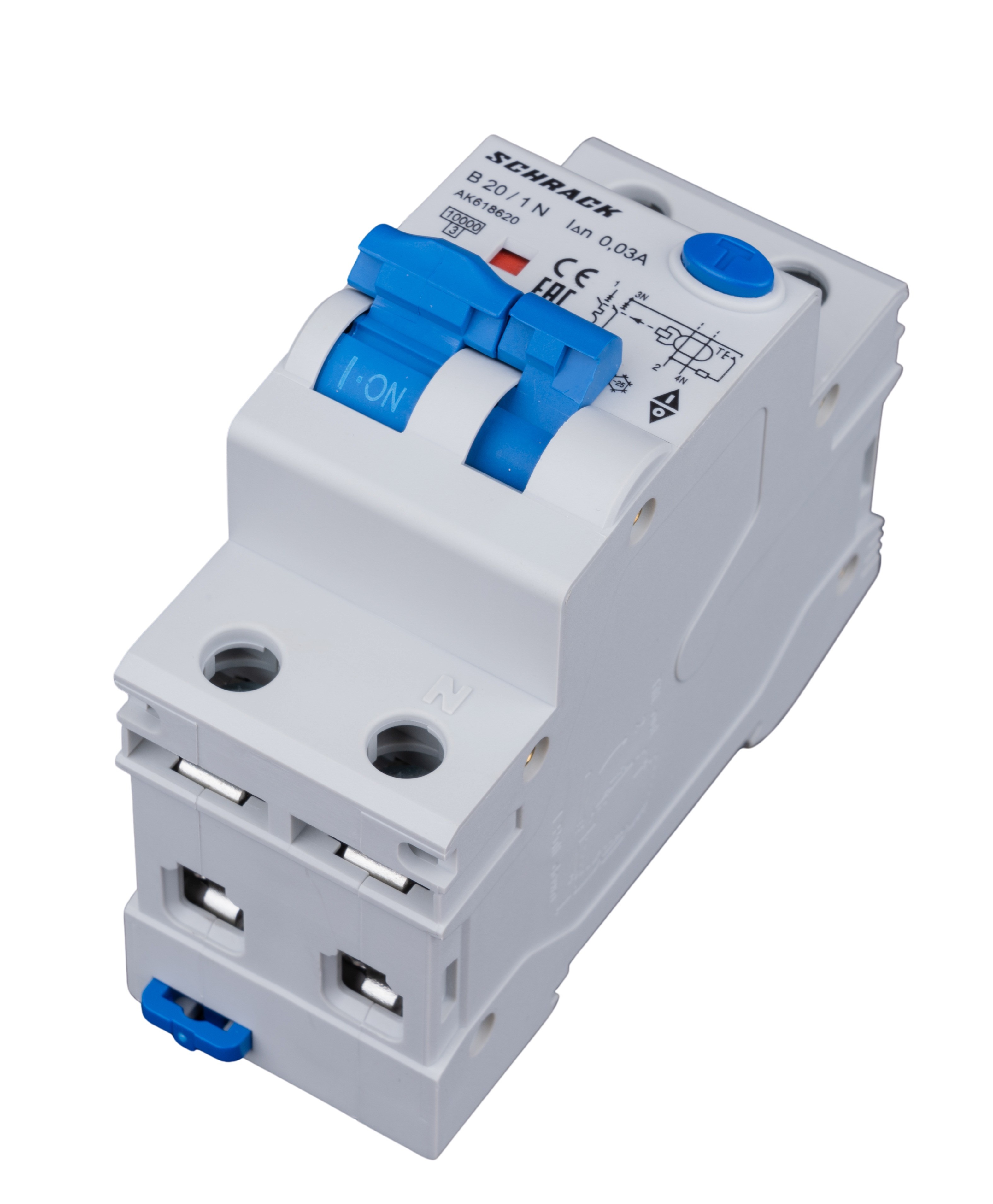

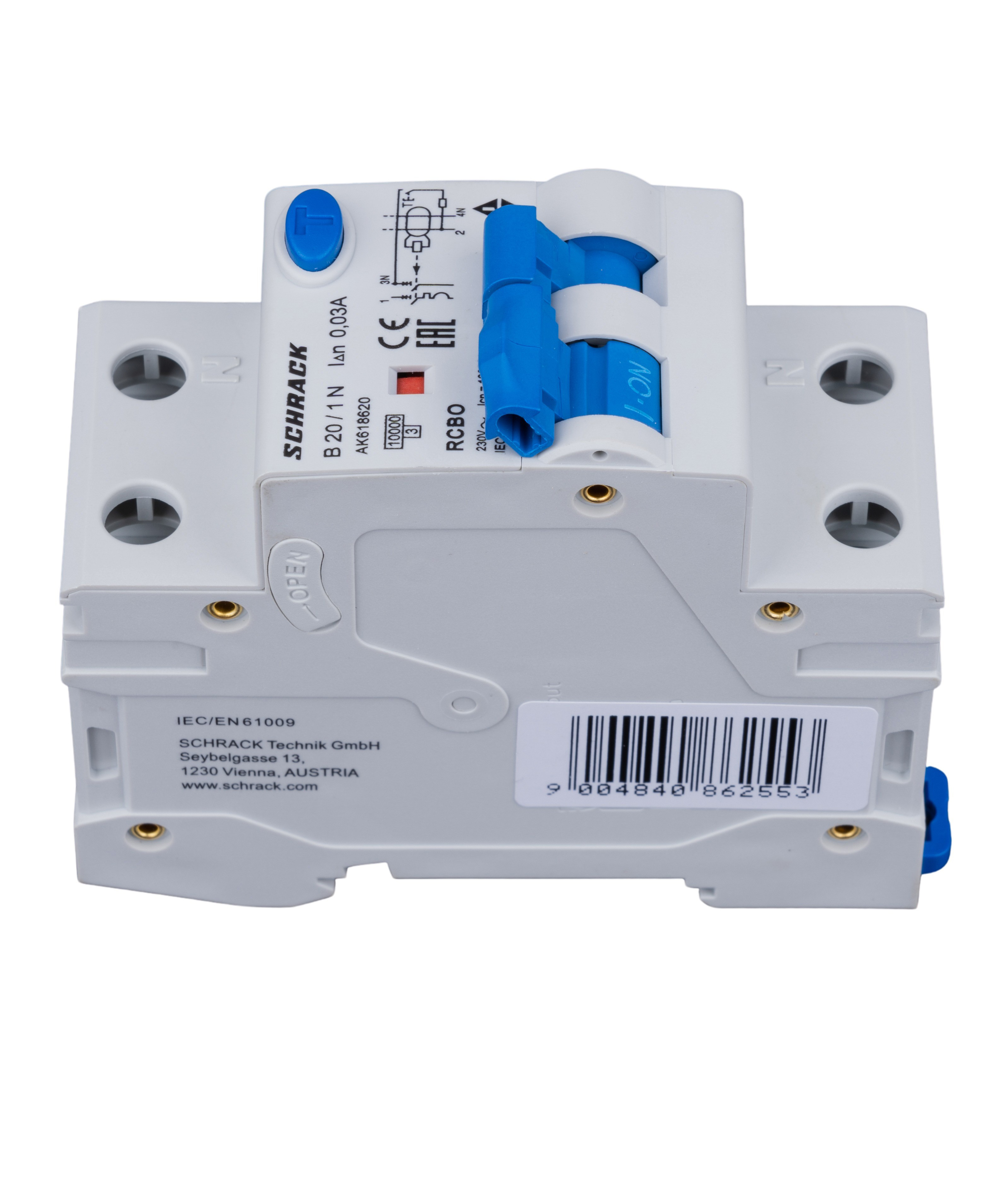

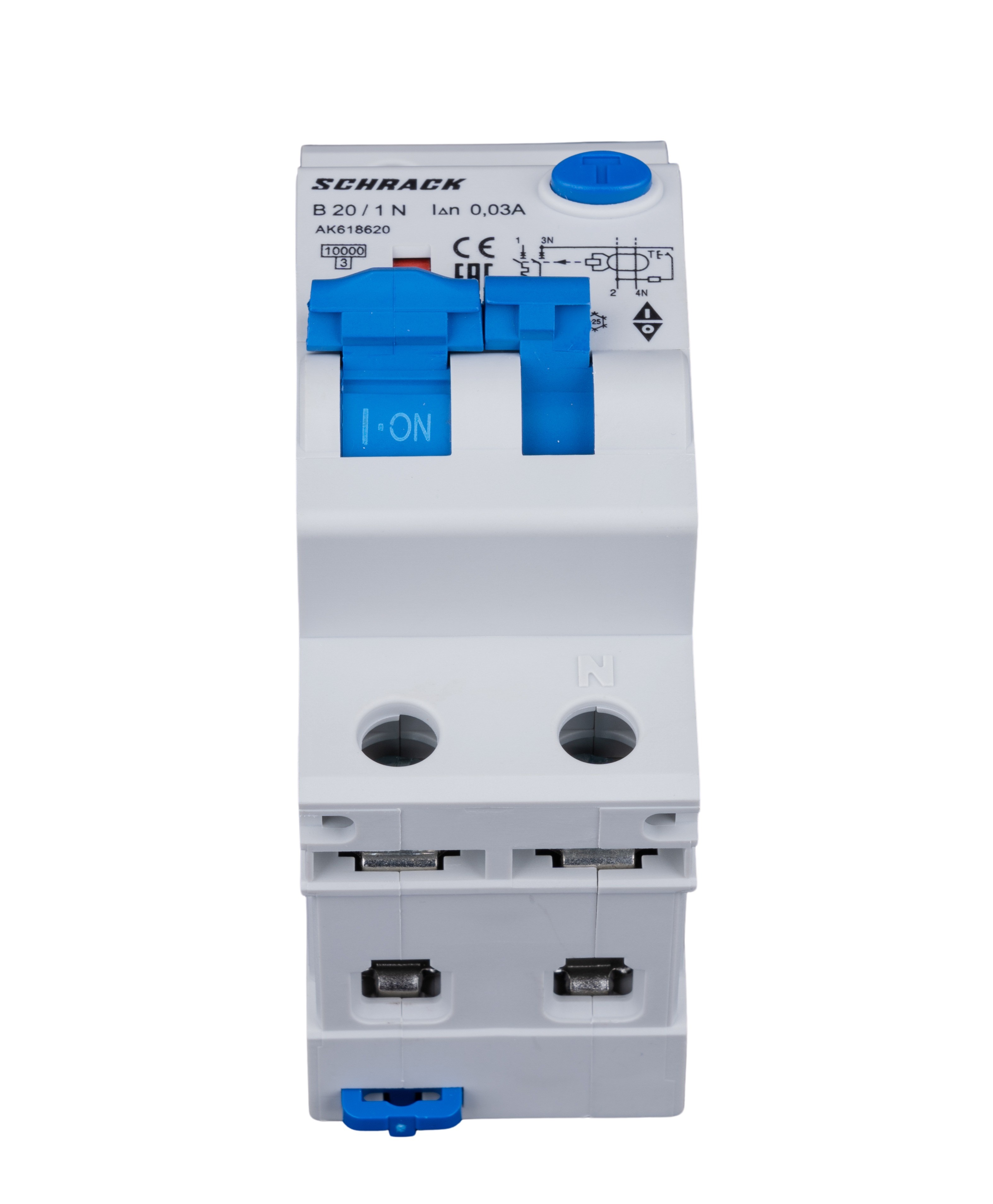

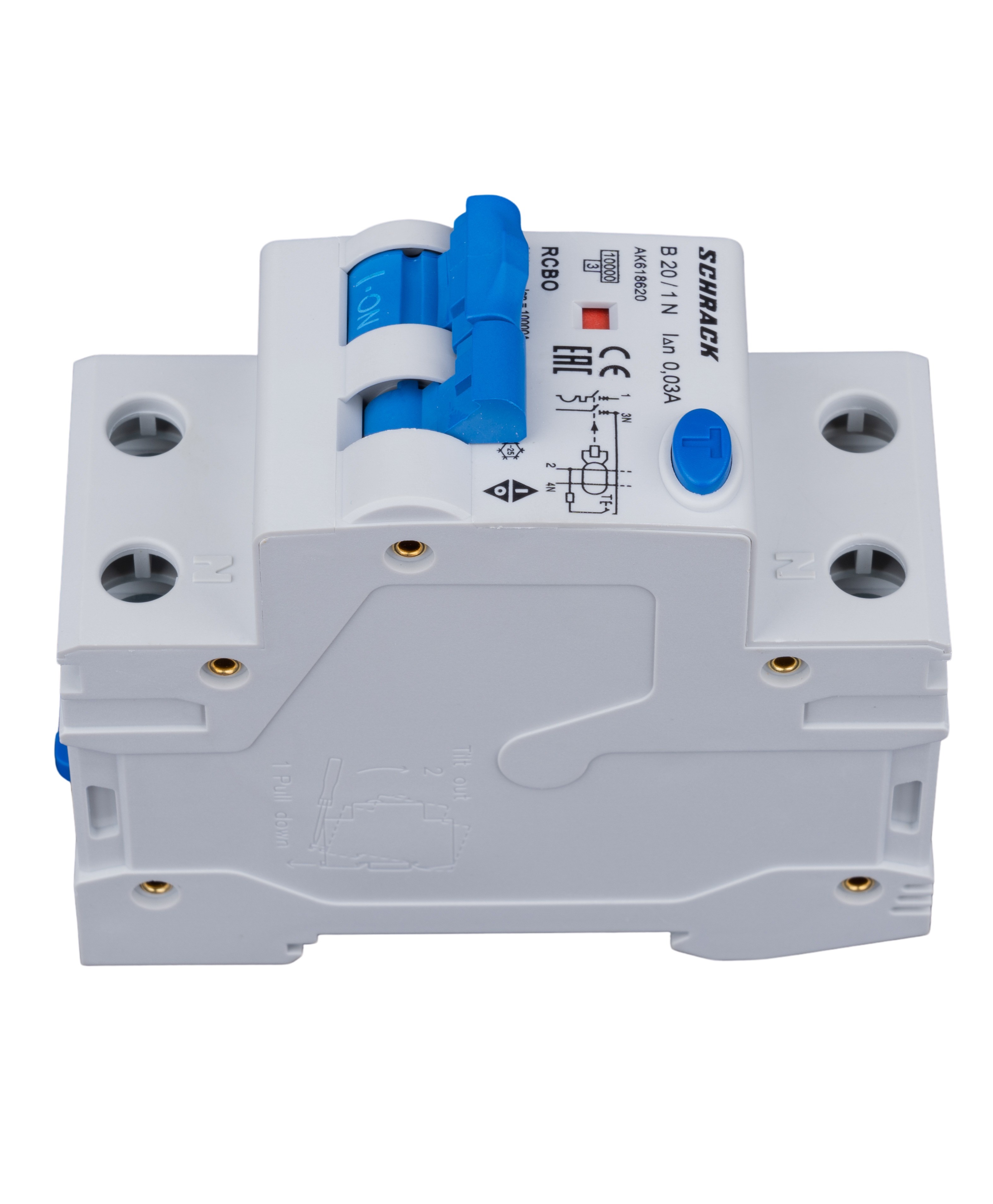

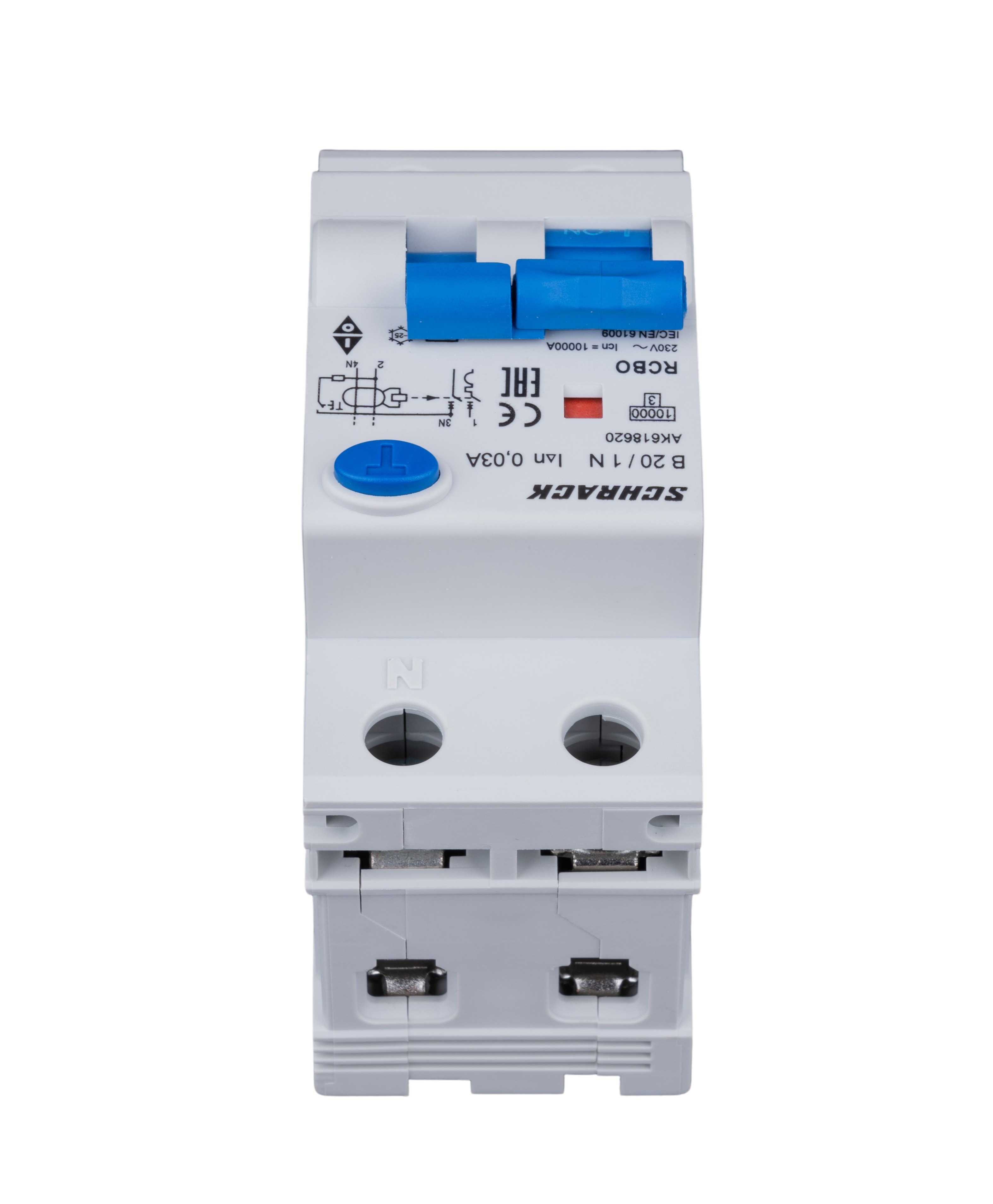

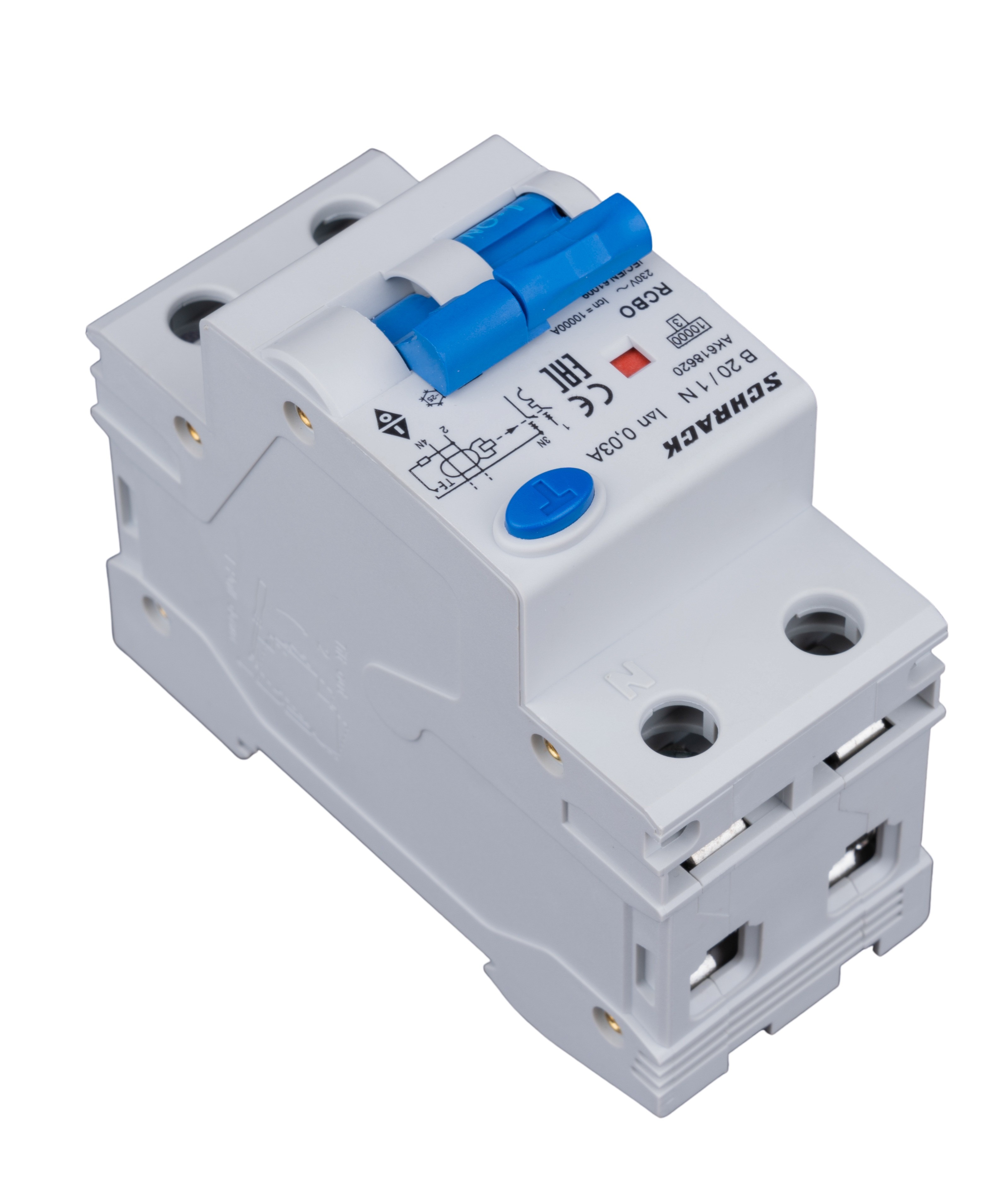

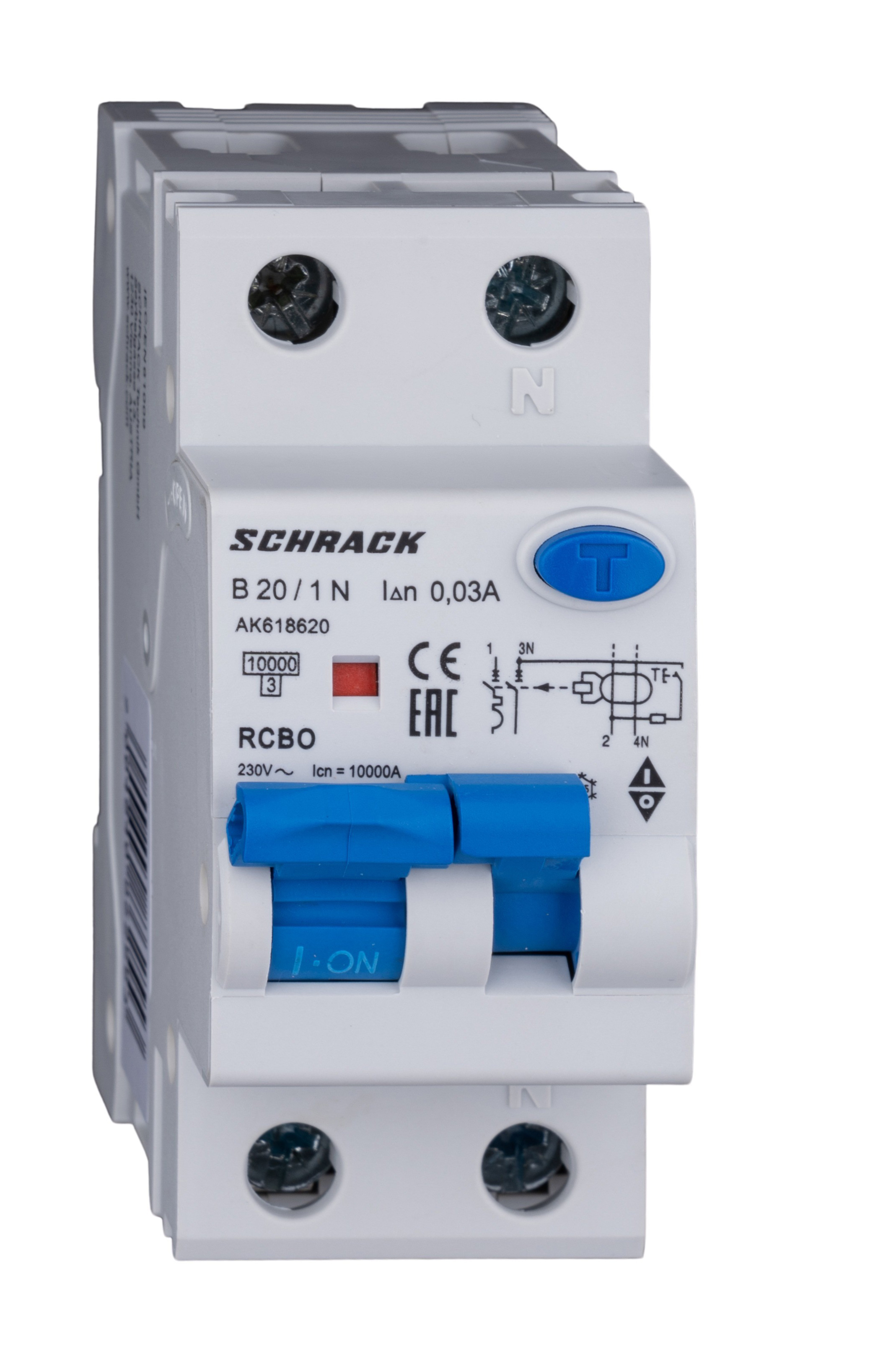

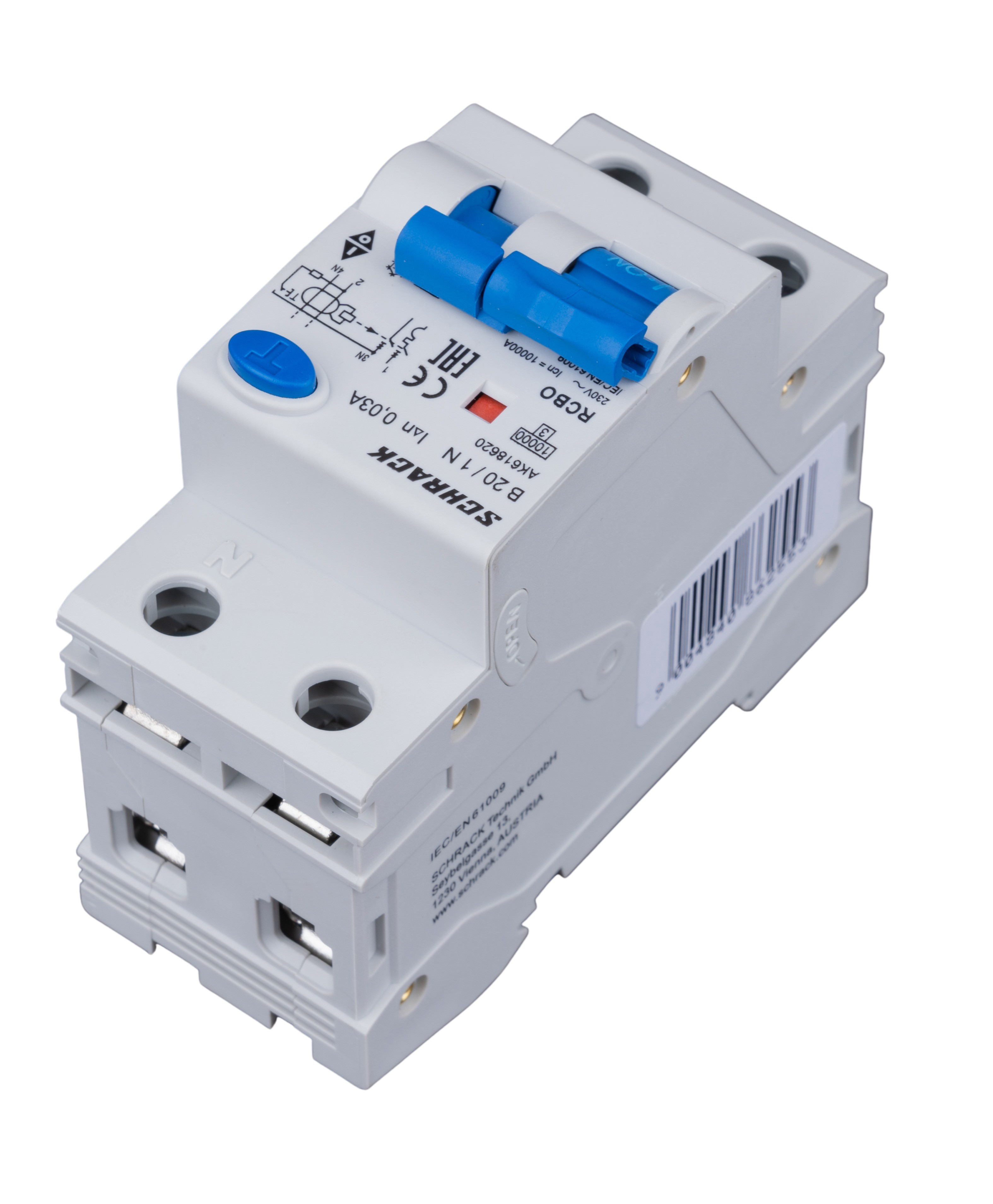

- Photo 1: Automatic circuit breaker with RCD B20A/1+N, 10kA, 30mA, type A (JPG, 1.2 MB)
- Photo 2: Automatic circuit breaker with RCD B20A/1+N, 10kA, 30mA, type A (JPG, 476 KB)

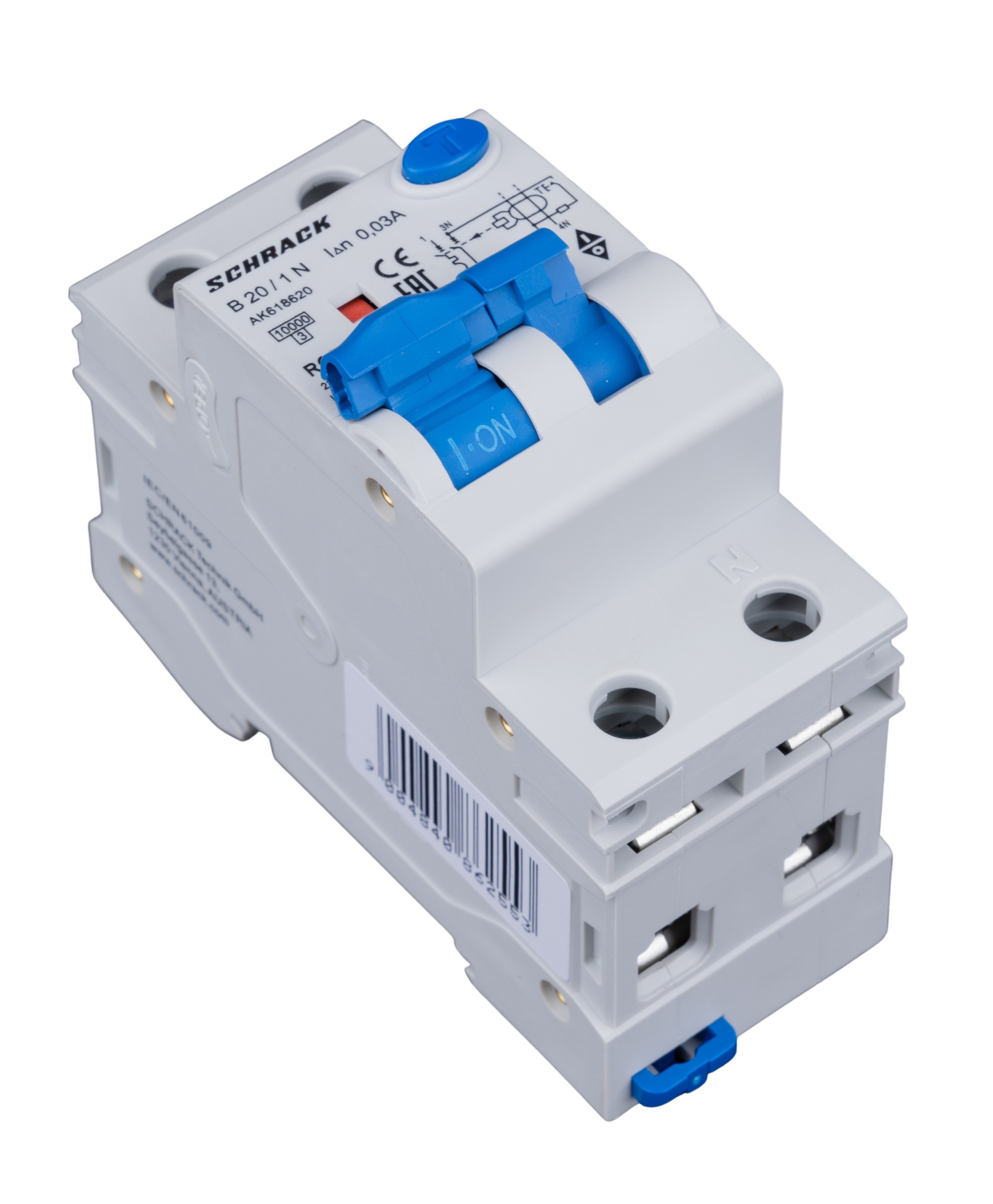

- Photo 3: Automatic circuit breaker with RCD B20A/1+N, 10kA, 30mA, type A (JPG, 612 KB)
- Photo 4: Automatic circuit breaker with RCD B20A/1+N, 10kA, 30mA, type A (JPG, 1.2 MB)
- Photo 5: Automatic circuit breaker with RCD B20A/1+N, 10kA, 30mA, type A (JPG, 1.1 MB)
- Photo 6: Automatic circuit breaker with RCD B20A/1+N, 10kA, 30mA, type A (JPG, 469 KB)
- Photo 7: Automatic circuit breaker with RCD B20A/1+N, 10kA, 30mA, type A (JPG, 598 KB)
- Photo 8: Automatic circuit breaker with RCD B20A/1+N, 10kA, 30mA, type A (JPG, 640 KB)
- Photo 9: Automatic circuit breaker with RCD B20A/1+N, 10kA, 30mA, type A (JPG, 588 KB)
