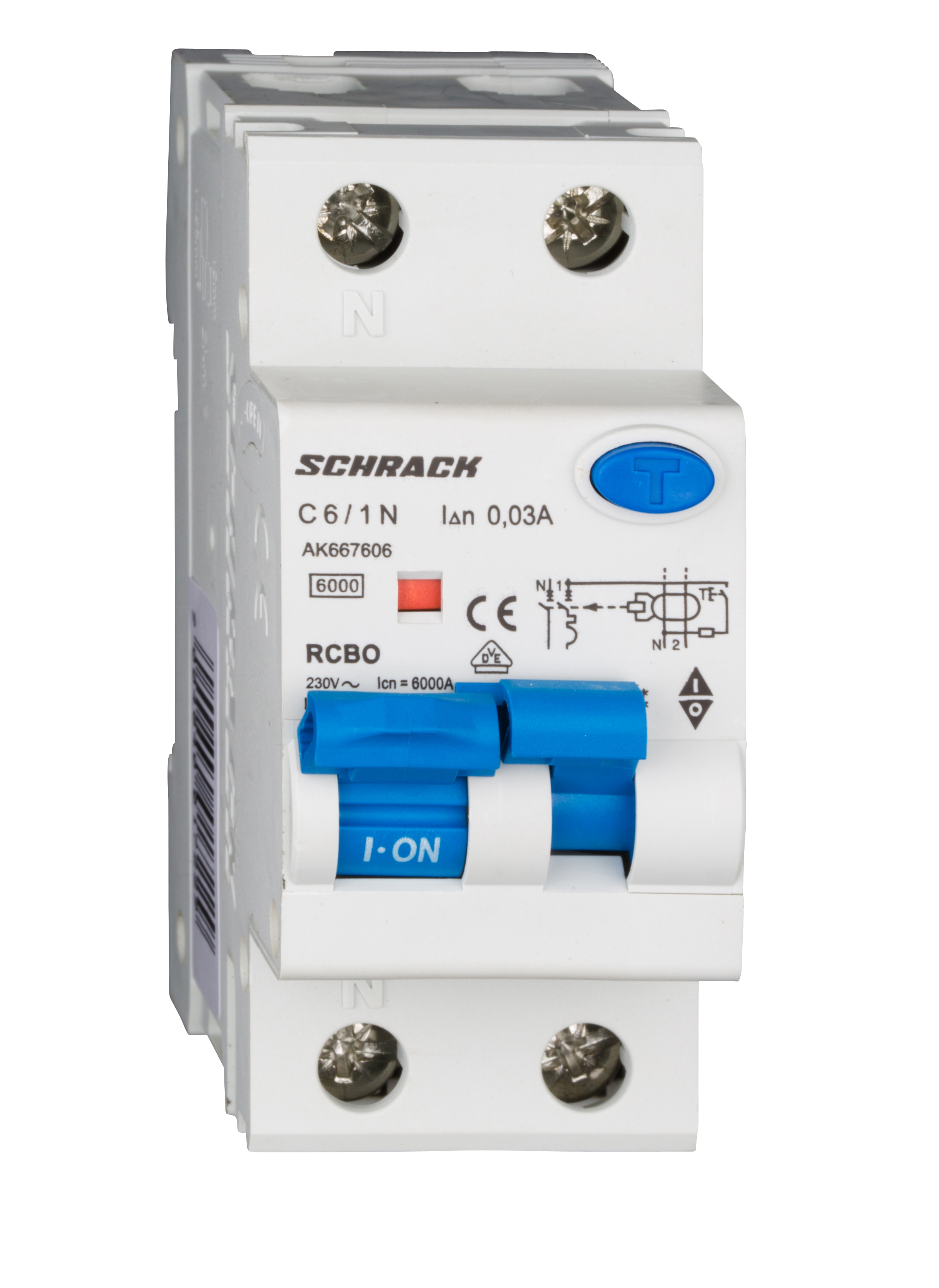

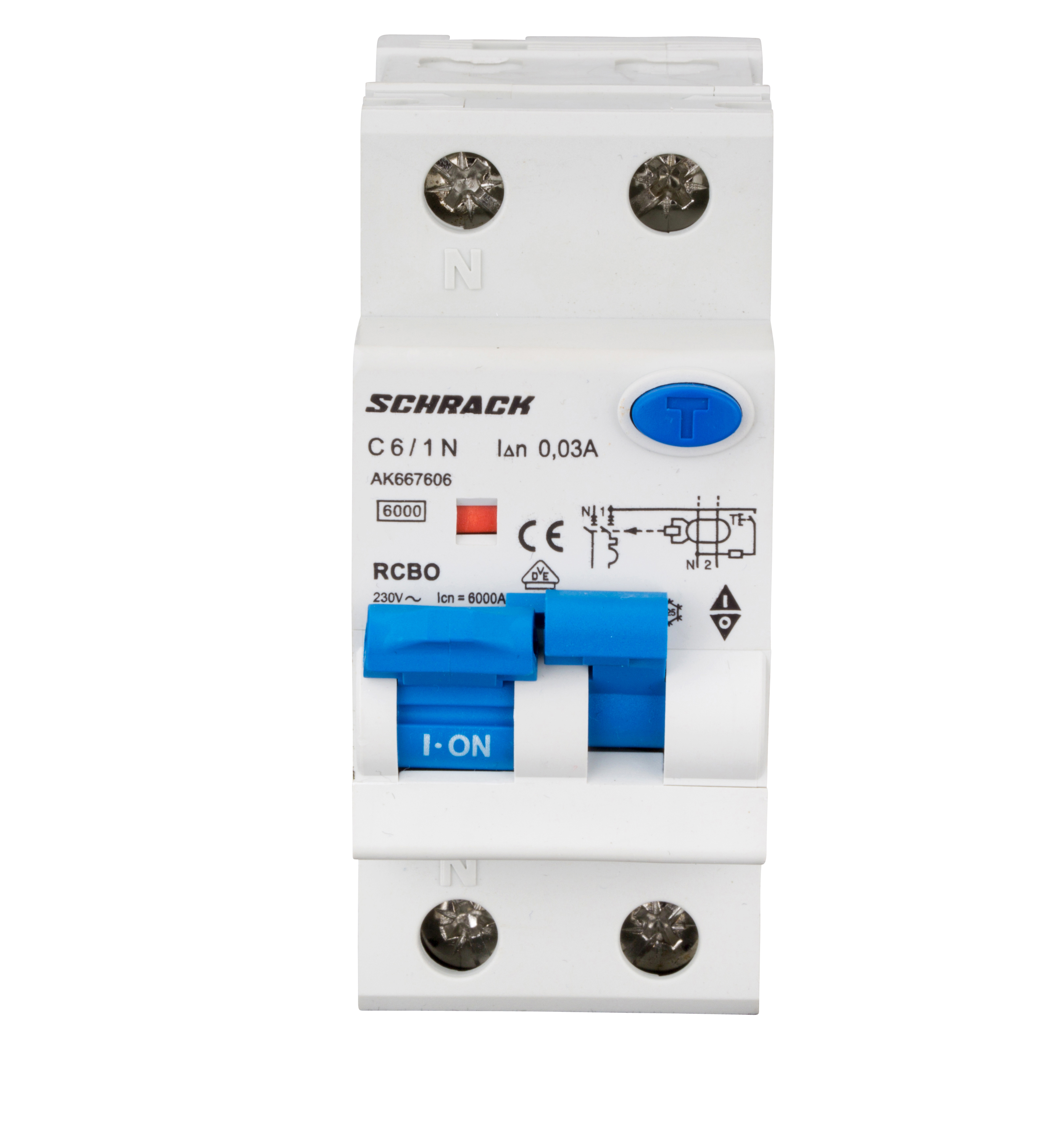

Automatic circuit breaker with RCCB C6A/1+N, 6kA, 30mA, type A
Article: AK667606--
22 300 ₸
To order
Automatic circuit breaker with integrated RCCB designed to protect electrical circuits from overloads, short circuits, and ground fault leakage currents. The device combines the functions of an automatic circuit breaker and a differential circuit breaker in a single housing.
Key parameters:
- Rated current: 6 A
- Rated sensitivity: 30 mA
- Trip type: A (responds to sinusoidal and pulsating leakage currents)
- Trip characteristic: C (for circuits with low inrush currents)
- Breaking capacity: 6 kA
- Number of poles: 1+N (single-phase connection with neutral)
- Response speed: instantaneous disconnection when rated value is exceeded
Operating conditions:
- Temperature range: from -25°C to +60°C
- Power loss: 2.9 W

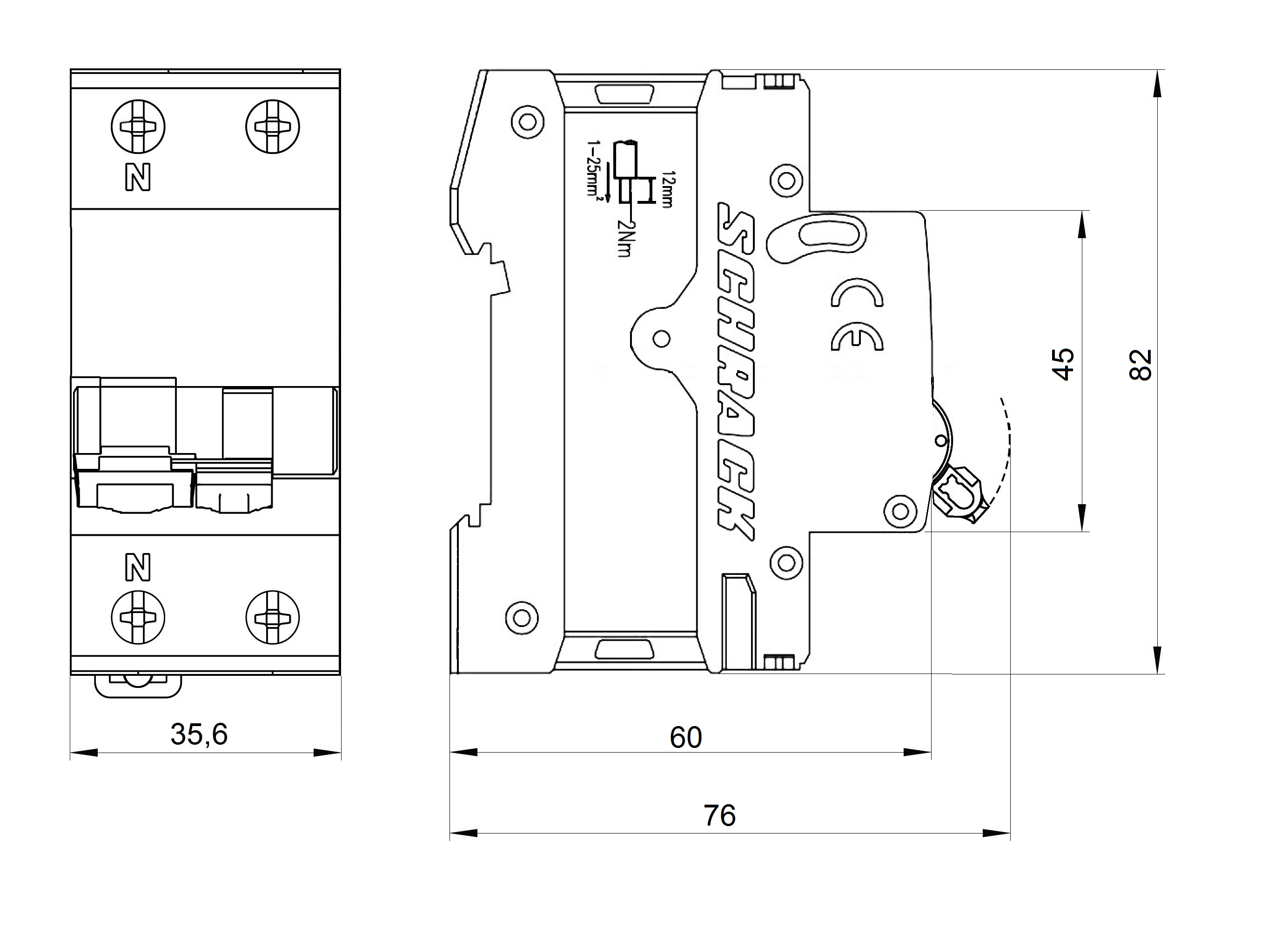

- Dimensions: 77×36×85 mm
- Weight: 0.21 kg
Standards compliance:
The device fully complies with the requirements of EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1.
Series: AMPARO, manufacturer Schrack. Available in packages of 1 or 90 units.
| EAN code | 9004840017229 |
|---|---|
| Length (net) | 77.00 mm |
| Width (net) | 36.00 mm |
| Height (net) | 85.00 mm |
| Weight (net) | 0.21 kg |
| Power loss | 2.90 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Standards | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (sensitivity) | A (sensitive to pulsating current) |
| Trip type | instantaneous |
| Rated sensitivity IΔn | 30 mA |
| Characteristic | C |
| Poles | N+1 |
| Breaking capacity | 6 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 unit, 90 units |
