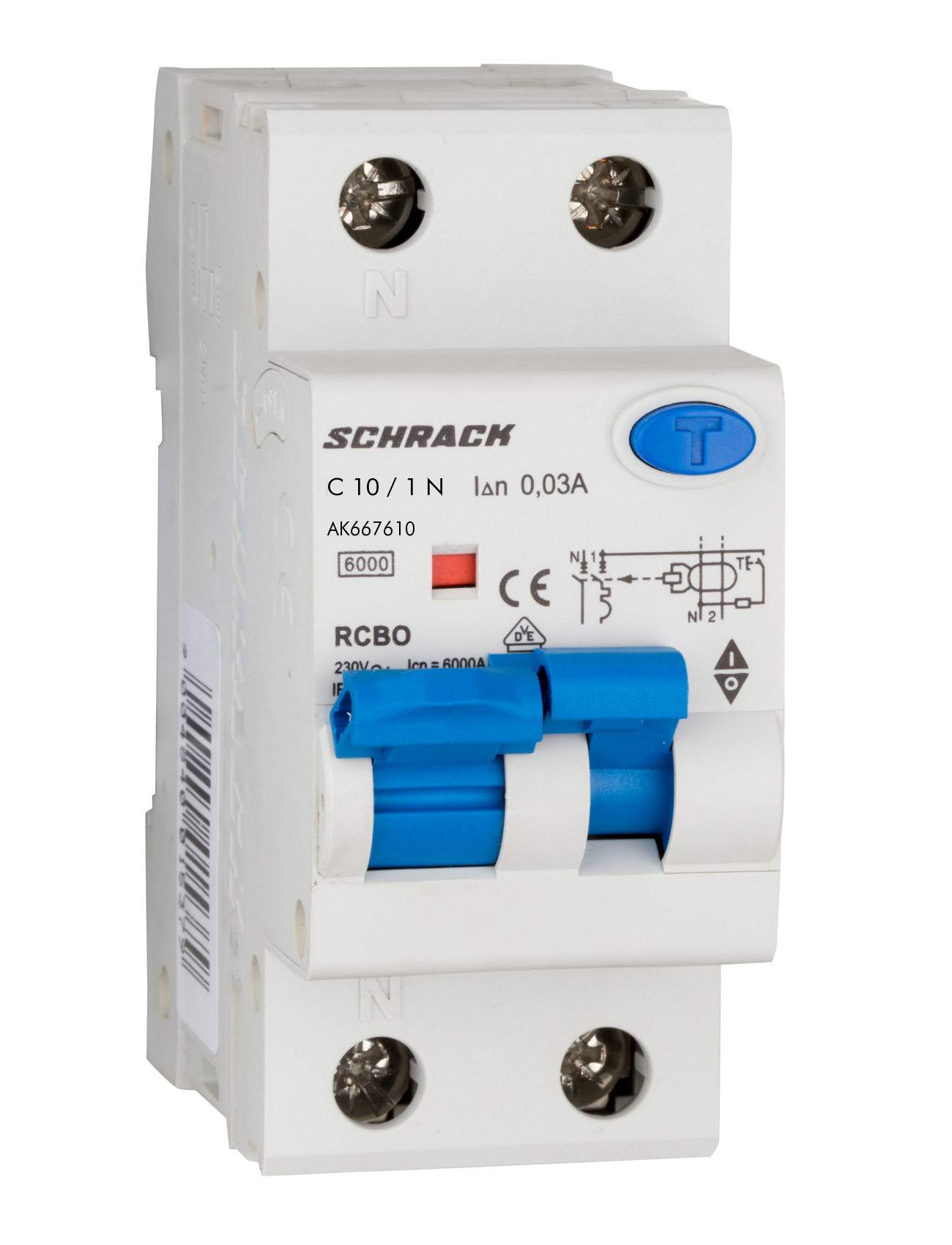

Automatic circuit breaker with RCD C10A/1+N, 6kA, 30mA, type A
23 350 ₸
Combined automatic circuit breaker with integrated residual current device (RCD). Designed for protection of electrical circuits against overcurrents and earth leakage currents in single-phase networks with neutral conductor.
Main parameters:
- Rated current: 10 A
- Rated residual current sensitivity: 30 mA
- Type of operation: A (responsive to pulsating direct current)
- Time-current characteristic: C (for circuits with increased inrush currents)
- Breaking capacity: 6 kA
- Number of poles: 1 pole + neutral (1+N)
- Operating temperature range: from -25°C to +60°C
- Power dissipation: 2.96 W
Physical dimensions:
- Length: 77 mm
- Width: 36 mm
- Height: 85 mm
- Weight: 0.21 kg
Normative basis:
The product complies with standards EN 61009-1:2012 (with amendments A1:2014, A2:2014, A11:2015, A12:2016), EN 61009-2-1:1994 (with supplement A11:1998), as well as international standards IEC 61009-1 and IEC 61009-2-1.
Manufacturer and series:
Manufactured by Schrack (AMPARO series). Compatible with standard DIN 35 mm mounting rails. Applied in residential, commercial and industrial electrical installations for protection against accidental direct contact with live parts and indirect contact through earth leakage.
| EAN code | 9004840017236 |
|---|---|
| Length (net) | 77.00 mm |
| Width (net) | 36.00 mm |
| Height (net) | 85.00 mm |
| Weight (net) | 0.21 kg |
| Power dissipation | 2.96 W |
| Minimum ambient temperature | -25°C |
| Maximum ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (sensitivity) | A (responsive to pulsating current) |
| Type (time-current characteristic) | instantaneous |
| Rated residual current sensitivity IΔn | 30 mA |
| Characteristic | C |
| Poles | N+1 |
| Breaking capacity | 6 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 piece, 90 pieces |
