Automatic Circuit Breaker with RCD C13А/1+N, 6kA, 30mA, Type A
Article: AK667613--
23 350 ₸
To order
Automatic circuit breaker with integrated residual current device (RCD) from the AMPARO series manufactured by Schrack. Designed to protect electrical circuits from overloads, short circuits, and dangerous earth leakage currents.
Main parameters:
- Nominal current: 13 A
- Poles: 1P+N (single pole with neutral)
- Breaking capacity: 6 kA
- Rated sensitivity: 30 mA
- RCD type: A (sensitive to alternating and pulsating direct current)
- Trip characteristic: C (for circuits with moderate inrush currents)
- Trip time: instantaneous
Operating conditions:
- Temperature range: from -25°C to +60°C
- Power loss: 4.99 W
Normative basis:
Complies with the requirements of standards EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1.

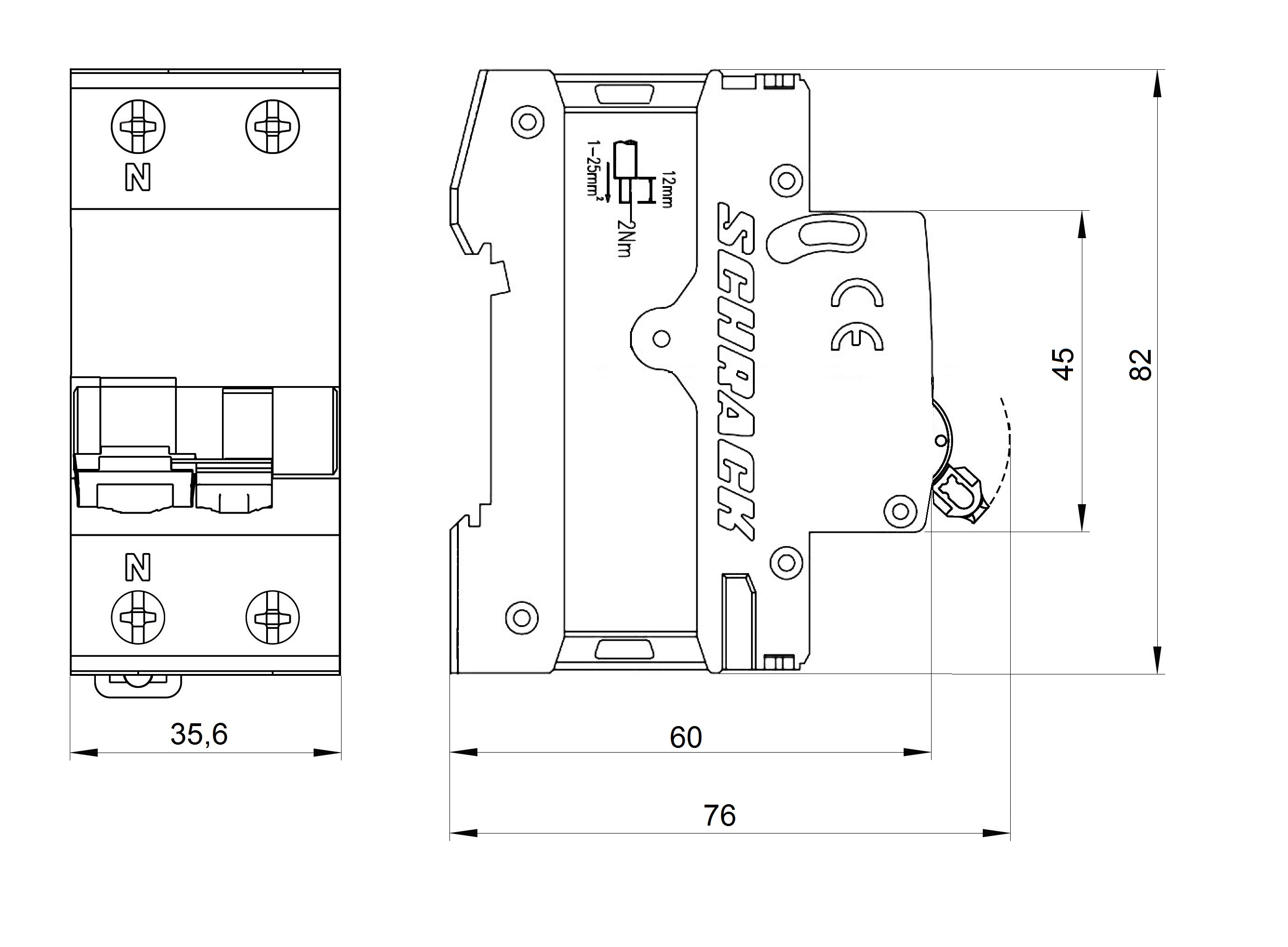

Dimensions and weight:
- Length: 77 mm
- Width: 36 mm
- Height: 85 mm
- Net weight: 0.21 kg
Packaging: available in variants of 1 unit and 90 units.
| EAN code | 9004840017922 |
|---|---|
| Length (net) | 77.00 mm |
| Width (net) | 36.00 mm |
| Height (net) | 85.00 mm |
| Weight (net) | 0.21 kg |
| Power loss | 4.99 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| RCD type | A (sensitive to pulsating current) |
| Trip type | instantaneous |
| Rated sensitivity IΔn | 30 mA |
| Characteristic | C |
| Poles | N+1 |
| Breaking capacity | 6 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 unit, 90 units |
