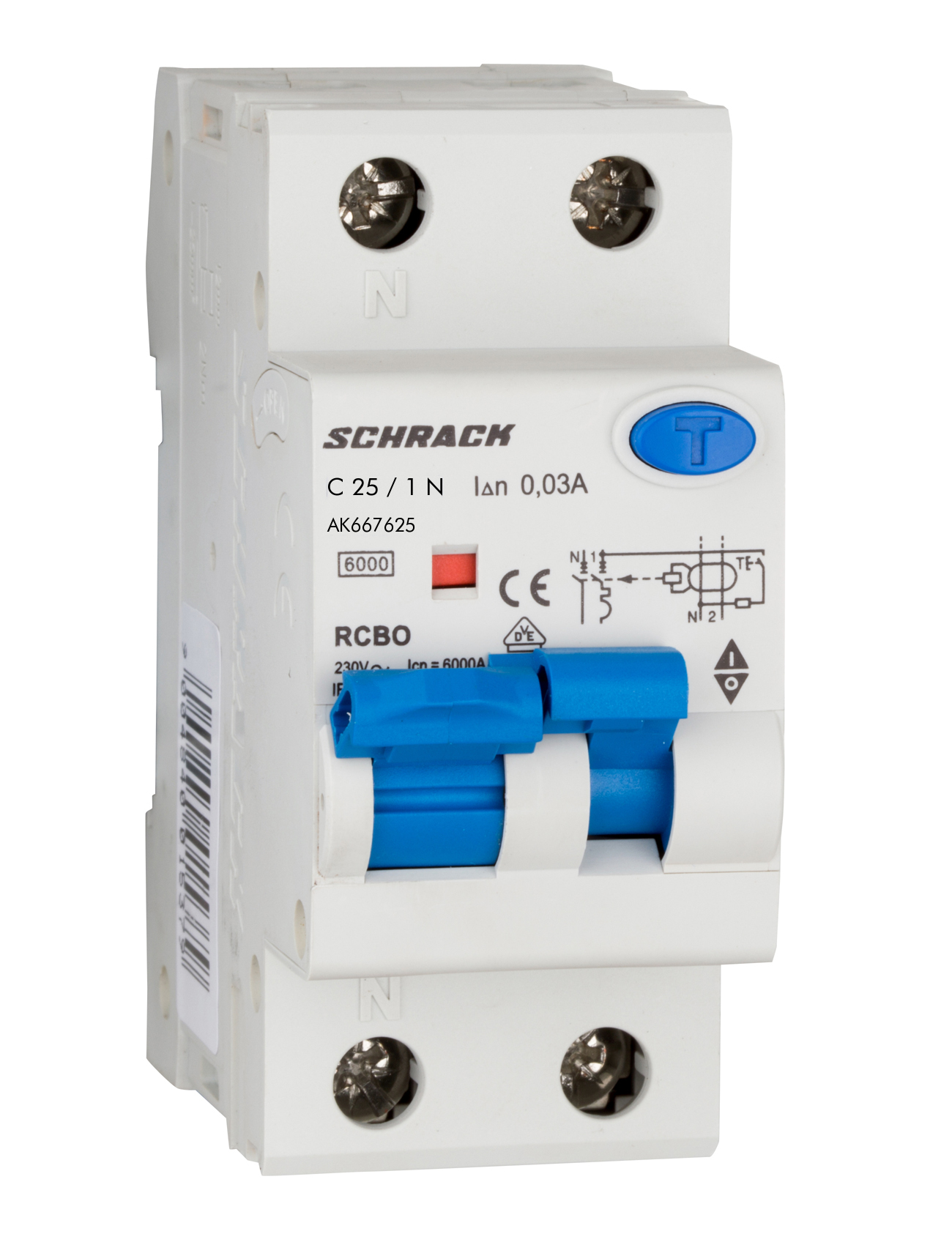

Automatic Circuit Breaker with RCD C25A/1+N, 6kA, 30mA, Type A

An automatic circuit breaker with integrated residual current device (RCD), designed to provide simultaneous protection of electrical circuits from overcurrent and differential leakage current.

Key Characteristics:

• Nominal Current: 25A
• Pole Configuration: 1P+N (single-phase with neutral)
• Breaking Capacity: 6 kA
• Nominal Sensitivity: 30 mA
• Trip Type: A (responds to sinusoidal and pulsating direct current)
• Time-Current Characteristic: C (for circuits with moderate inrush currents)
• Operating Temperature Range: -25°C to +60°C

Construction and Dimensions:

Compact design allows for easy mounting in electrical enclosures. Net dimensions: 77 × 36 × 85 mm, weight 0.21 kg.

Standards Compliance:

The device complies with European and international standards: EN 61009-1:2012 with amendments, IEC 61009-1, and IEC 61009-2-1.

Electrical Parameters:

Power loss is 10.48 W at rated load.

Manufacturer and Series:

Manufactured by Schrack, AMPARO series — reliable equipment for residential and commercial applications.
