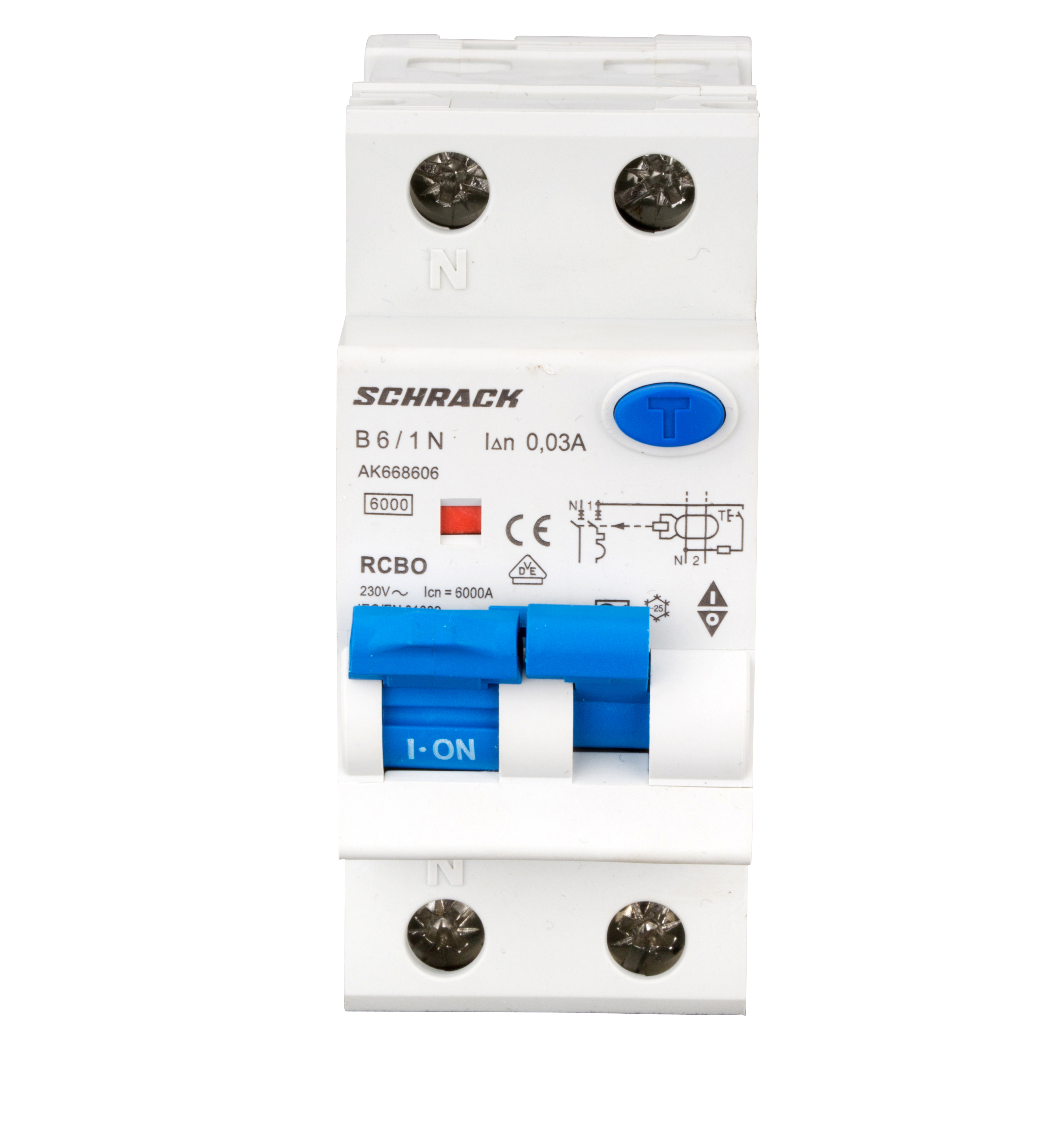

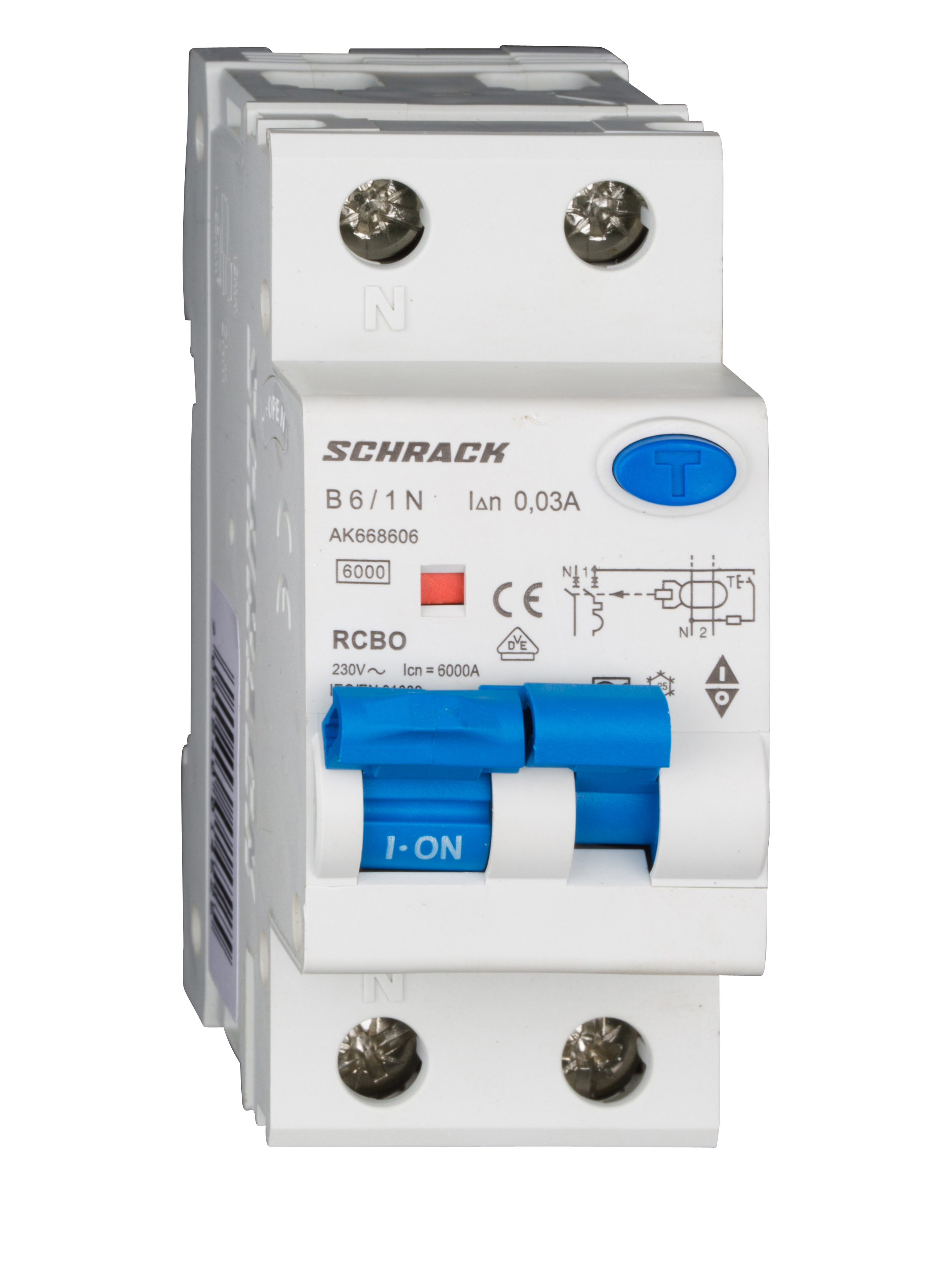

Automatic Circuit Breaker with RCD B6A/1+N, 6kA, 30mA, Type A

An automatic circuit breaker with integrated residual current device (RCD) function designed to protect electrical circuits from overcurrents and leakage currents. The device combines the functions of an automatic circuit breaker and RCD in a single enclosure, providing comprehensive protection.

Main Parameters:

• Rated Current: B6A
• Pole Configuration: 1+N (single pole with neutral)
• Rated Breaking Capacity: 6kA
• Rated Sensitivity: 30mA
• Type of Operation: Type A (sensitive to pulsating DC and AC sinusoidal differential current)
• Disconnection Characteristic: B (instantaneous disconnection)
• Operating Voltage: 230V~

Technical Characteristics:

• Power Loss: 2.90 W
• Operating Temperature Range: -25°C to +60°C

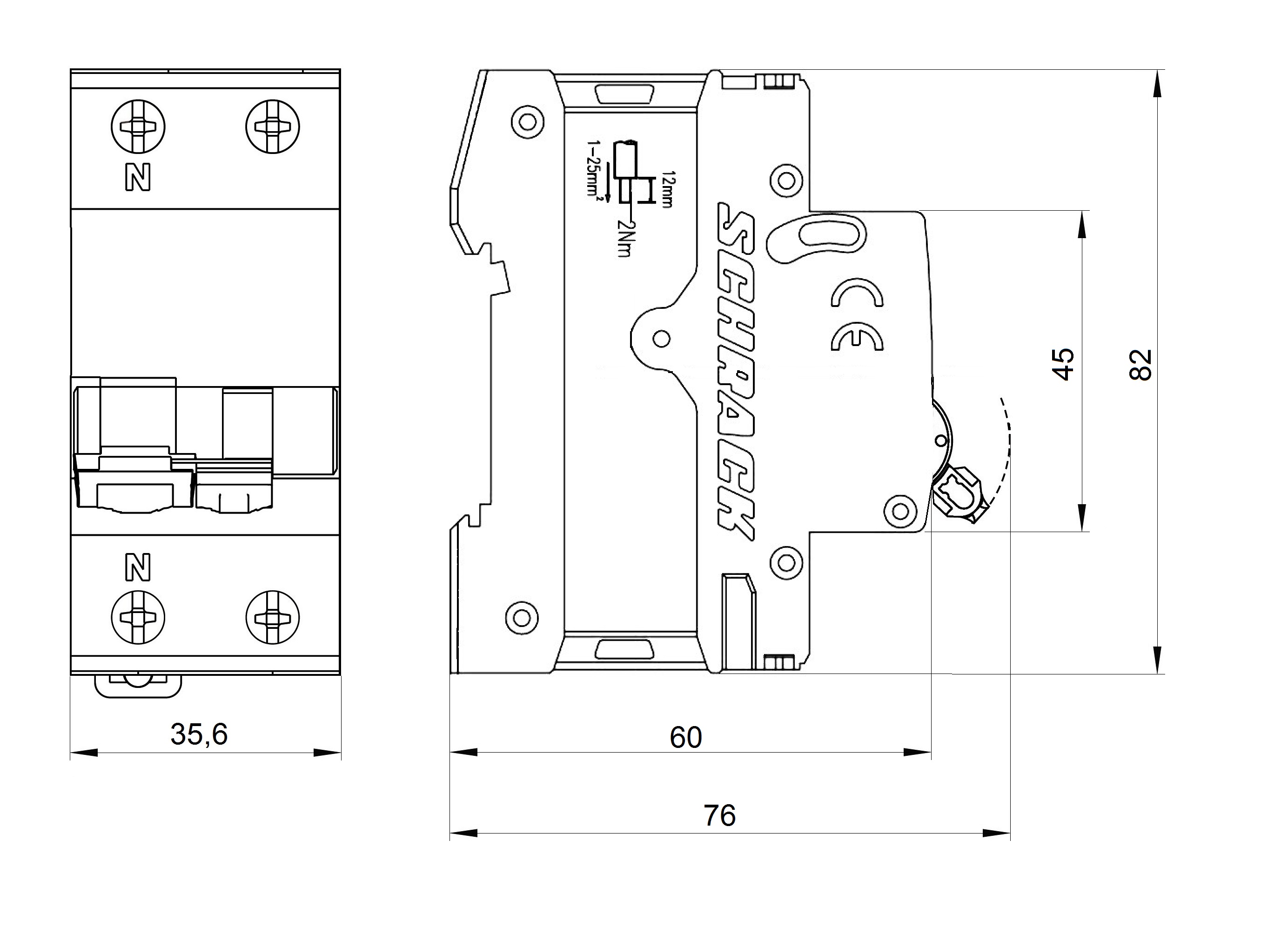

• Standard DIN Rail Dimensions: width 36 mm, height 85 mm, length 77 mm
• Net Weight: 0.21 kg

Standards Compliance:

The device is manufactured in accordance with international standards EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1, which ensures reliability and safety under various operating conditions.

Field of Application:

Used in distribution boards of residential, commercial and industrial facilities to protect individual circuits and consumers from the risk of electric shock. Type A provides sensitivity to DC leakage currents, which is critical when using electronics and power supplies with electronic switching devices.
