Automatic Circuit Breaker with RCD B16А/1+N, 6kA, 30mA, Type A
Article: AK668616--
23 350 ₸
In stock
Combined automatic circuit breaker with integrated residual current device (RCD) from the AMPARO series manufactured by Schrack. The device is designed to protect electrical circuits from overcurrents and residual currents to earth.
Key Parameters:
- Rated Current: 16 A
- Configuration: 1+N (one pole + neutral)
- Breaking Capacity: 6 kA
- Trip Characteristic: B (for general purpose devices)
- Rated Residual Current Sensitivity: 30 mA
- RCD Type: A (responds to pulsating and direct current)
- Trip Time: instantaneous
Standards and Compliance:
The device complies with international standards EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1 and IEC 61009-2-1.

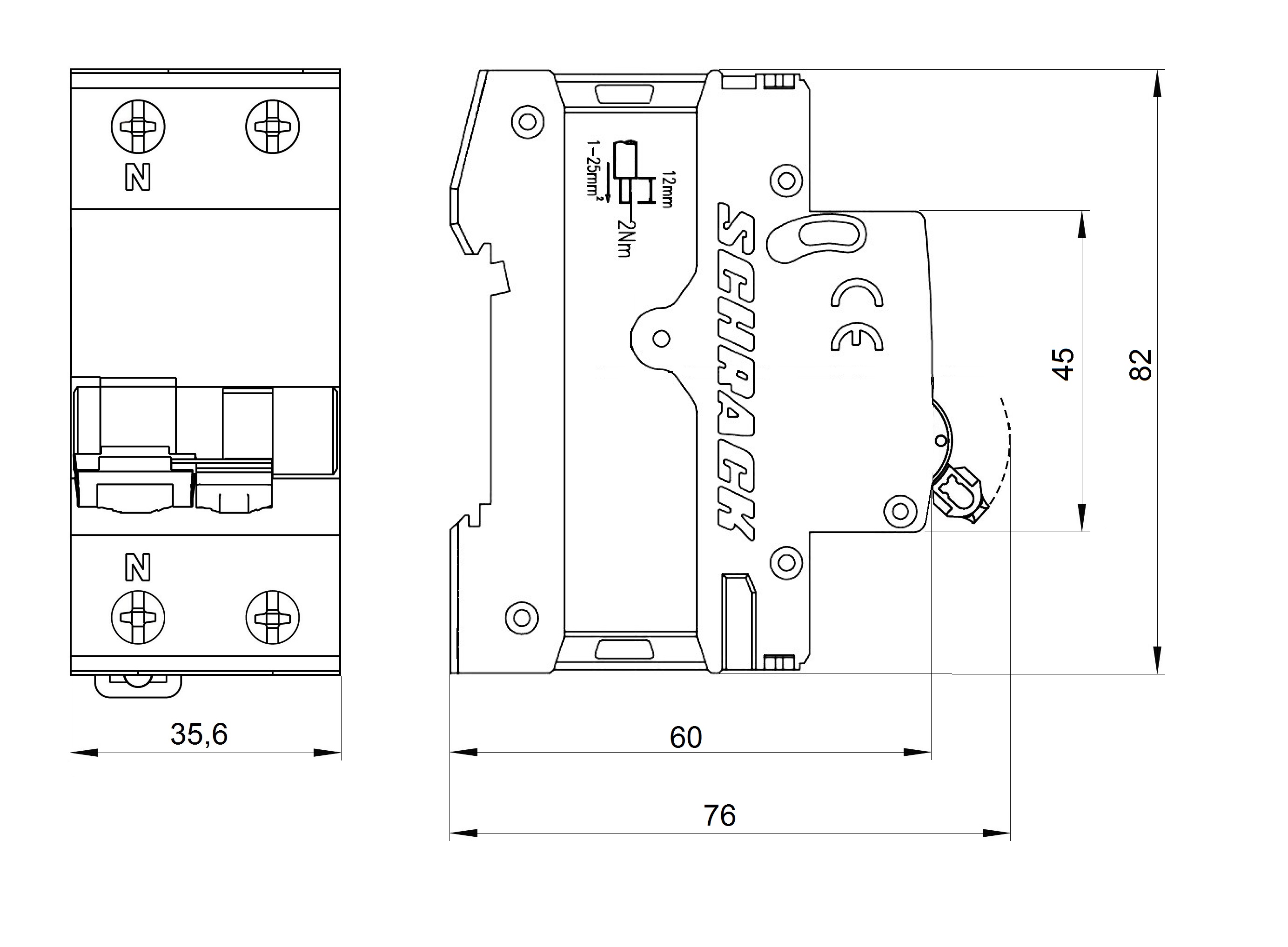

Physical Characteristics:
- Dimensions (L×W×H): 77 × 36 × 85 mm
- Net Weight: 0.21 kg
- Power Loss: 5.98 W
- Operating Temperature Range: -25°C to +60°C
- EAN Code: 9004840015423
Supply Conditions:
Available packaging: 1 pcs or 90 pcs
| EAN Code | 9004840015423 |
|---|---|
| Length net | 77.00 mm |
| Width net | 36.00 mm |
| Height net | 85.00 mm |
| Weight net | 0.21 kg |
| Power Loss | 5.98 W |
| Min. Ambient Temperature | -25°C |
| Max. Ambient Temperature | 60°C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type | A (sensitive to pulsating current) |
| Type | instantaneous |
| Rated Sensitivity IΔn | 30 mA |
| Characteristic | B |
| Poles | N+1 |
| Breaking Capacity | 6 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pcs, 90 pcs |
