Automatic Circuit Breaker with RCD B25А/1+N, 6kA, 30mA, Type A
Article: AK668625--
22 300 ₸
To order
Combined automatic circuit breaker with integrated residual current device (RCD) protection. Designed to protect electrical circuits in residential and industrial facilities from short-circuit currents and differential leakage currents.
Key Characteristics:
- Rated Current: 25 A
- Configuration: 1+N (single-phase circuit + neutral)
- Breaking Capacity: 6 kA
- Rated Residual Sensitivity: 30 mA
- Trip Type: A (sensitive to pulsating and alternating sinusoidal residual current)
- Tripping Characteristic: B (instantaneous tripping)
- Operating Temperature Range: -25°C to +60°C
- Power Loss: 10.48 W

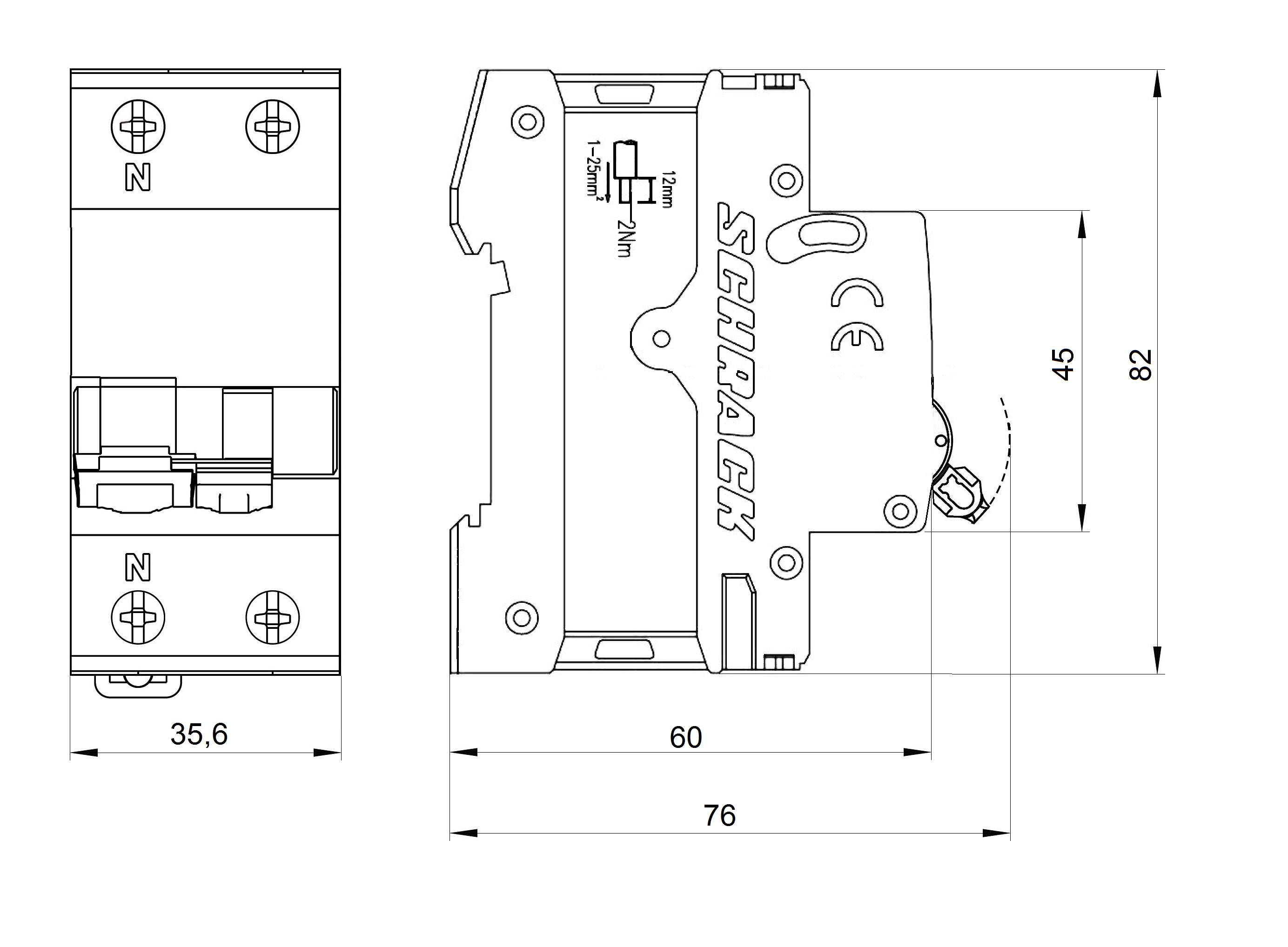

Constructive Dimensions:
- Length: 77 mm
- Width: 36 mm
- Height: 85 mm
- Weight: 0.21 kg
Regulatory Standards:
Manufactured in compliance with standards EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1.
Manufacturer: Schrack (AMPARO series)
Packaging: 1 and 90 pcs.
| EAN Code | 9004840015676 |
|---|---|
| Length (net) | 77.00 mm |
| Width (net) | 36.00 mm |
| Height (net) | 85.00 mm |
| Weight (net) | 0.21 kg |
| Power Loss | 10.48 W |
| Min. Ambient Temperature | -25°C |
| Max. Ambient Temperature | 60°C |
| Standards | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (Residual Current Sensitivity) | A (pulsating current sensitive) |
| Type (Tripping) | Instantaneous |
| Rated Sensitivity IΔn | 30 mA |
| Characteristic | B |
| Pole | N+1 |
| Breaking Capacity | 6 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 90 pcs. |
