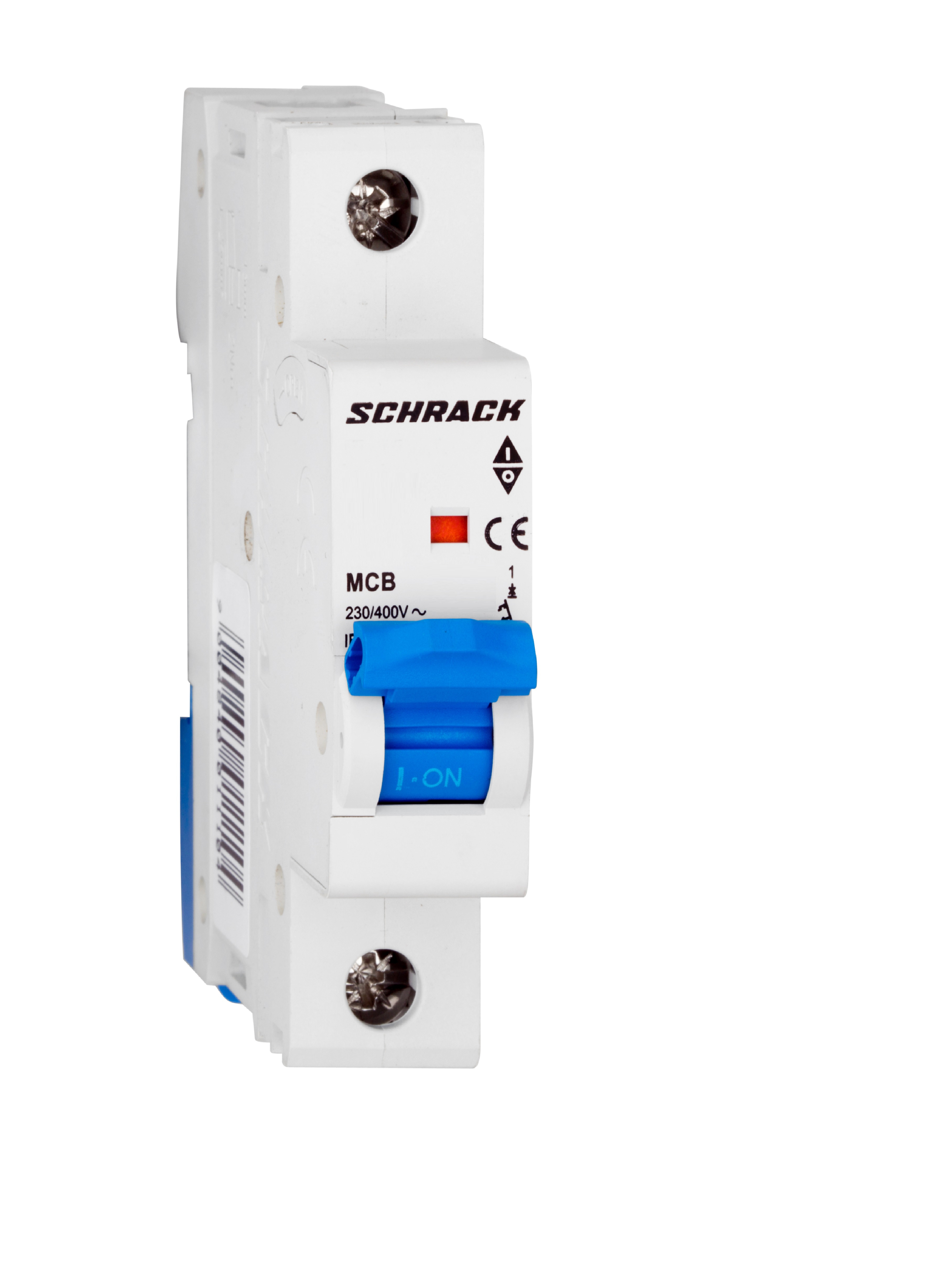

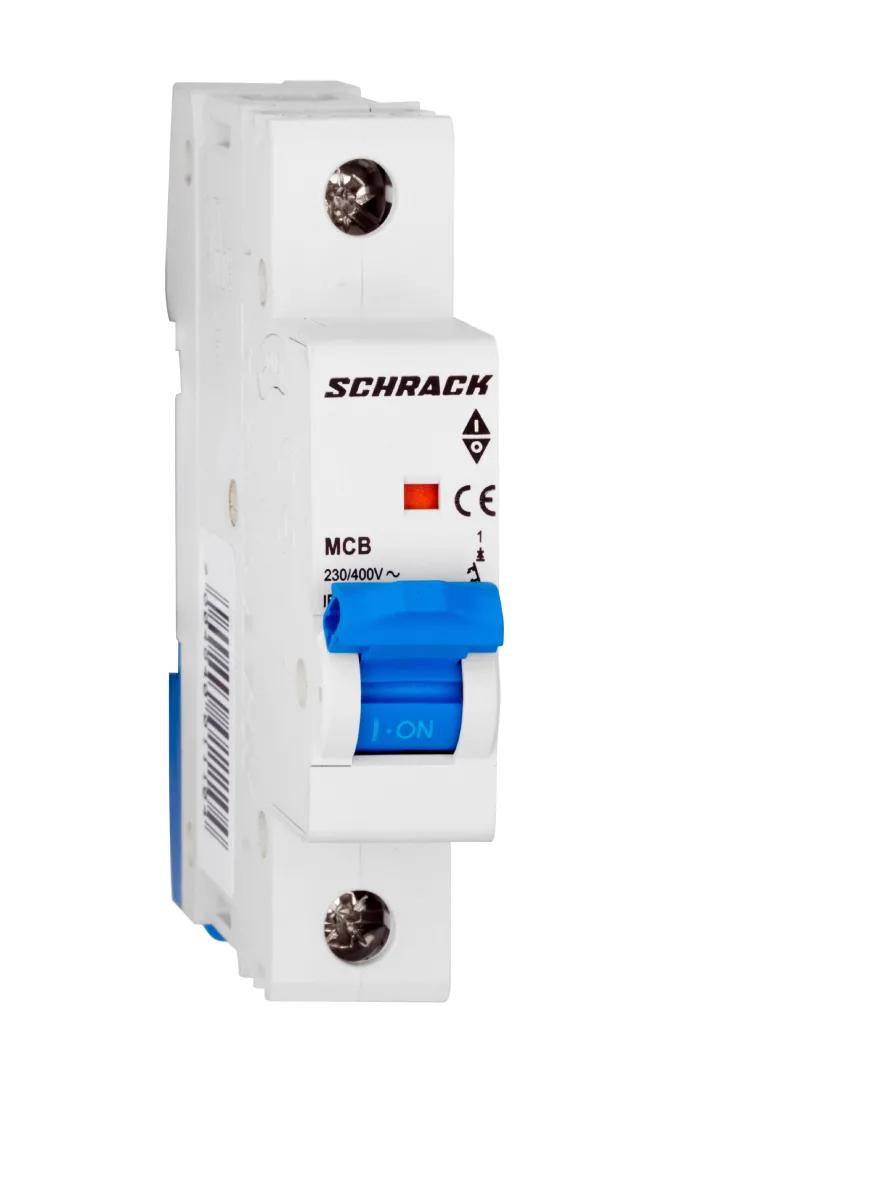

Automatic Circuit Breaker C4A/1, 10kA

Single-pole automatic circuit breaker of the AMPARO series with a rated current of 4A and switching capacity of 10kA. Designed to protect AC electrical circuits from overloads and short-circuit currents.

Main Parameters:

• Tripping characteristic: C (instantaneous tripping at 5-10In current)
• Design: AC-MCB (alternating current automatic circuit breaker)
• Module type: AM10
• Rated voltage: 230V AC
• Frequency: 50/60 Hz

Technical Characteristics:

• Power loss: 2.30W at rated current
• Operating temperature range: from -25°C to +70°C
• Overall dimensions: 86×18×77 mm
• Weight: 0.11 kg

Standards Compliance:

• EN 60898-1:2019
• IEC 60898-1

Manufacturer: Schrack (Austria). Circuit breaker is supplied in packages of 1, 12, or 180 units.
