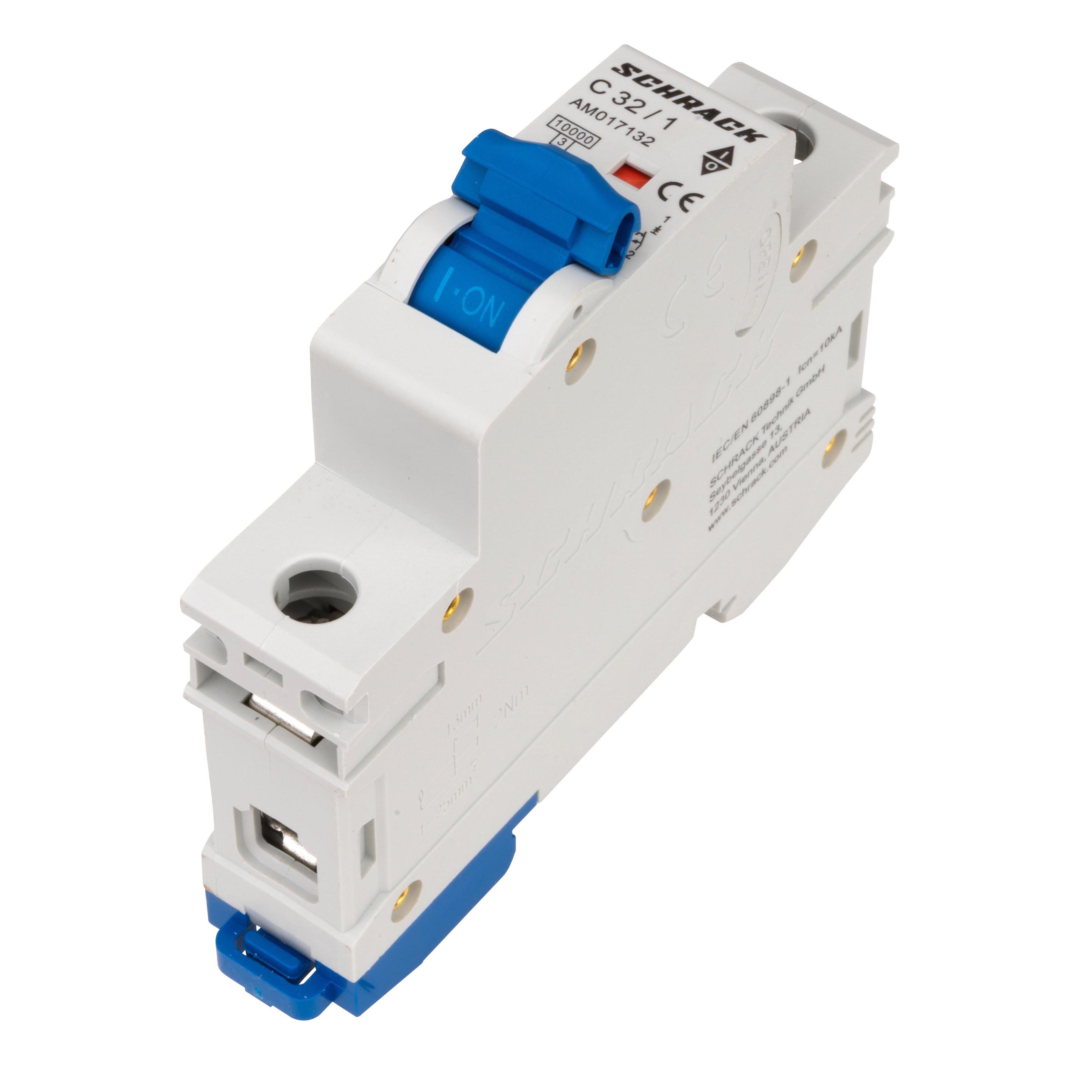

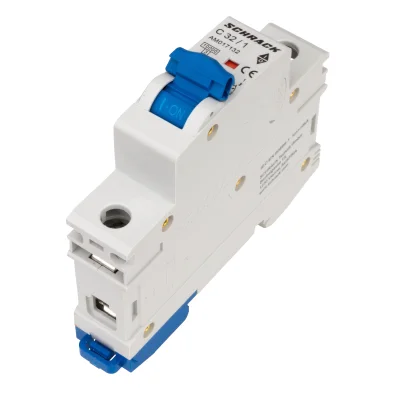

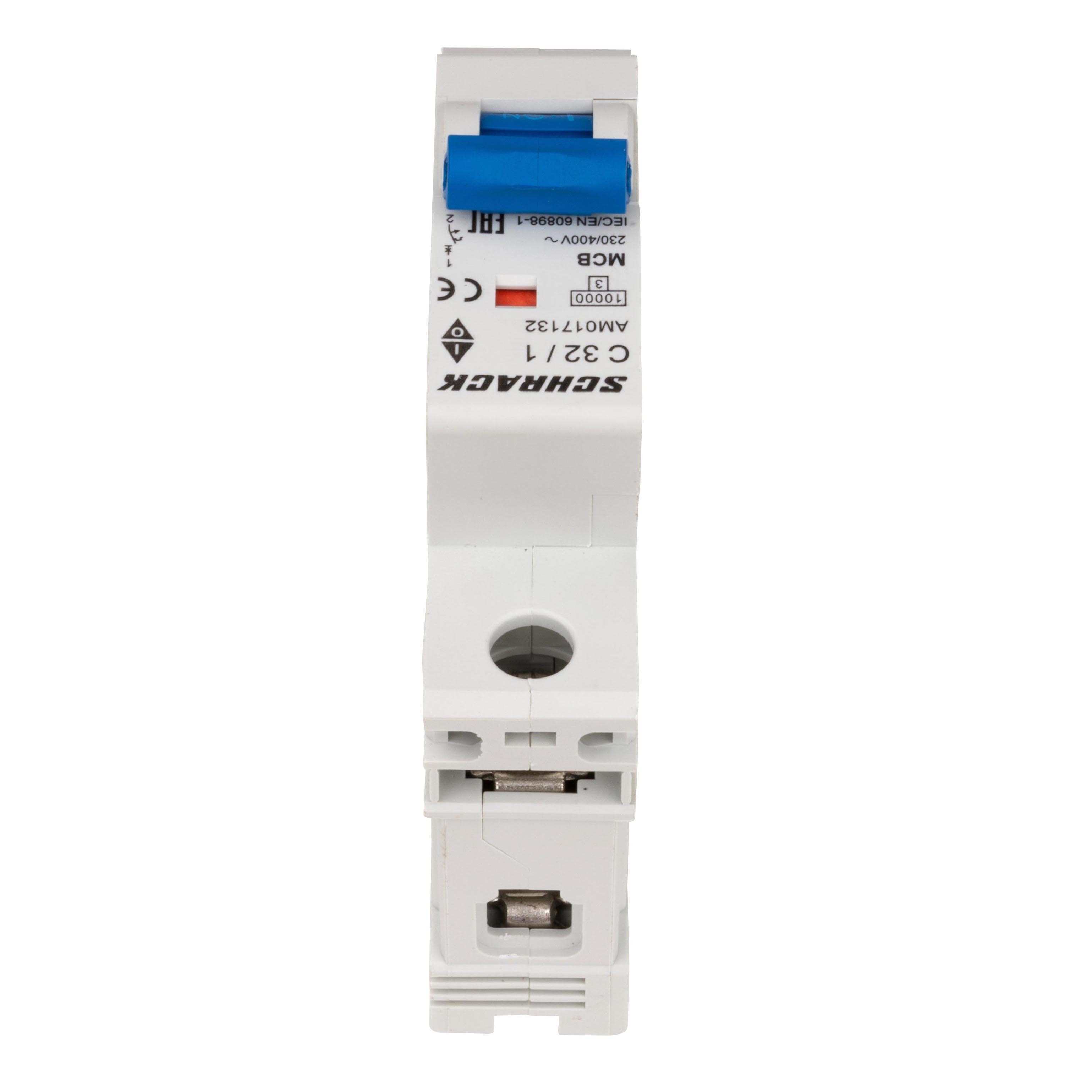

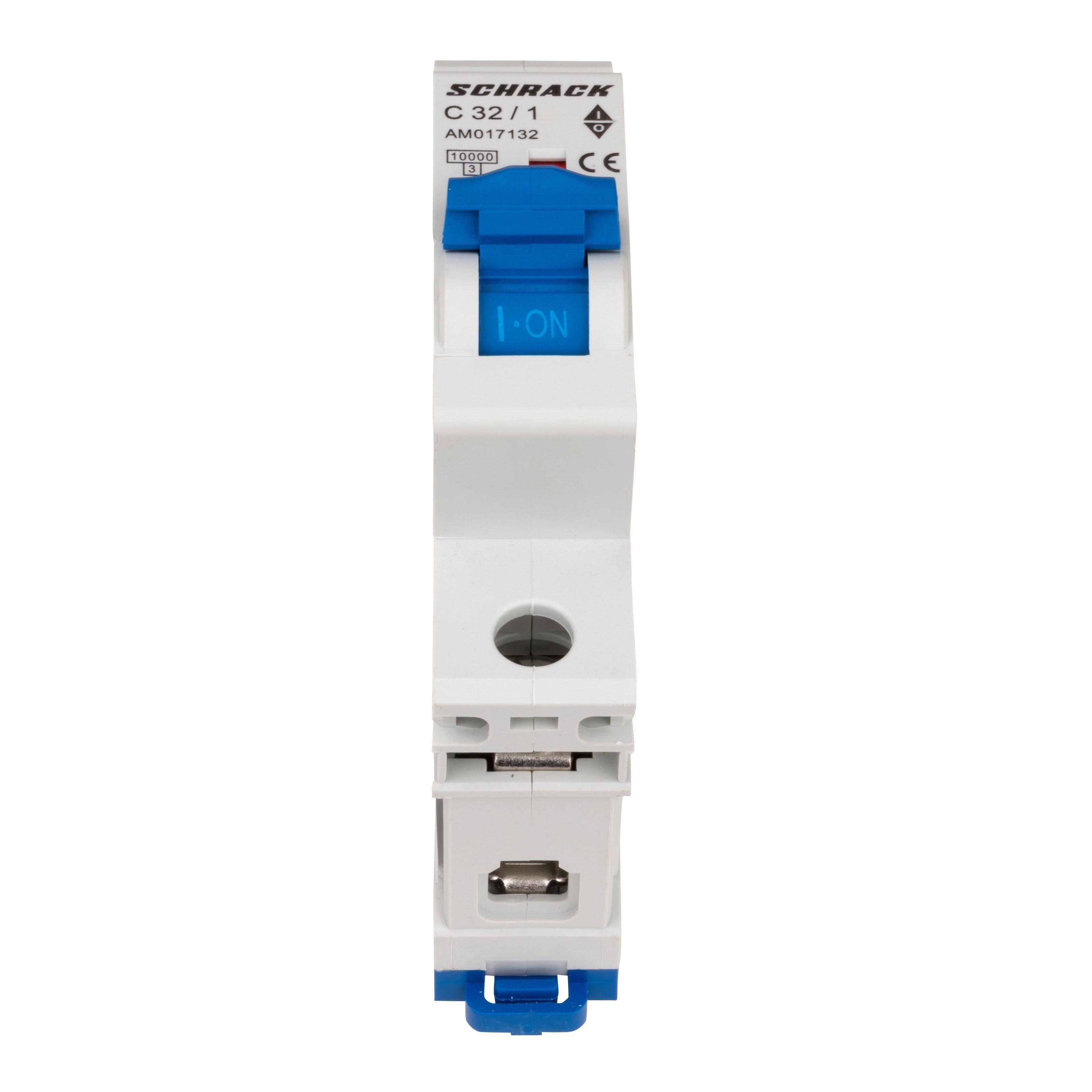

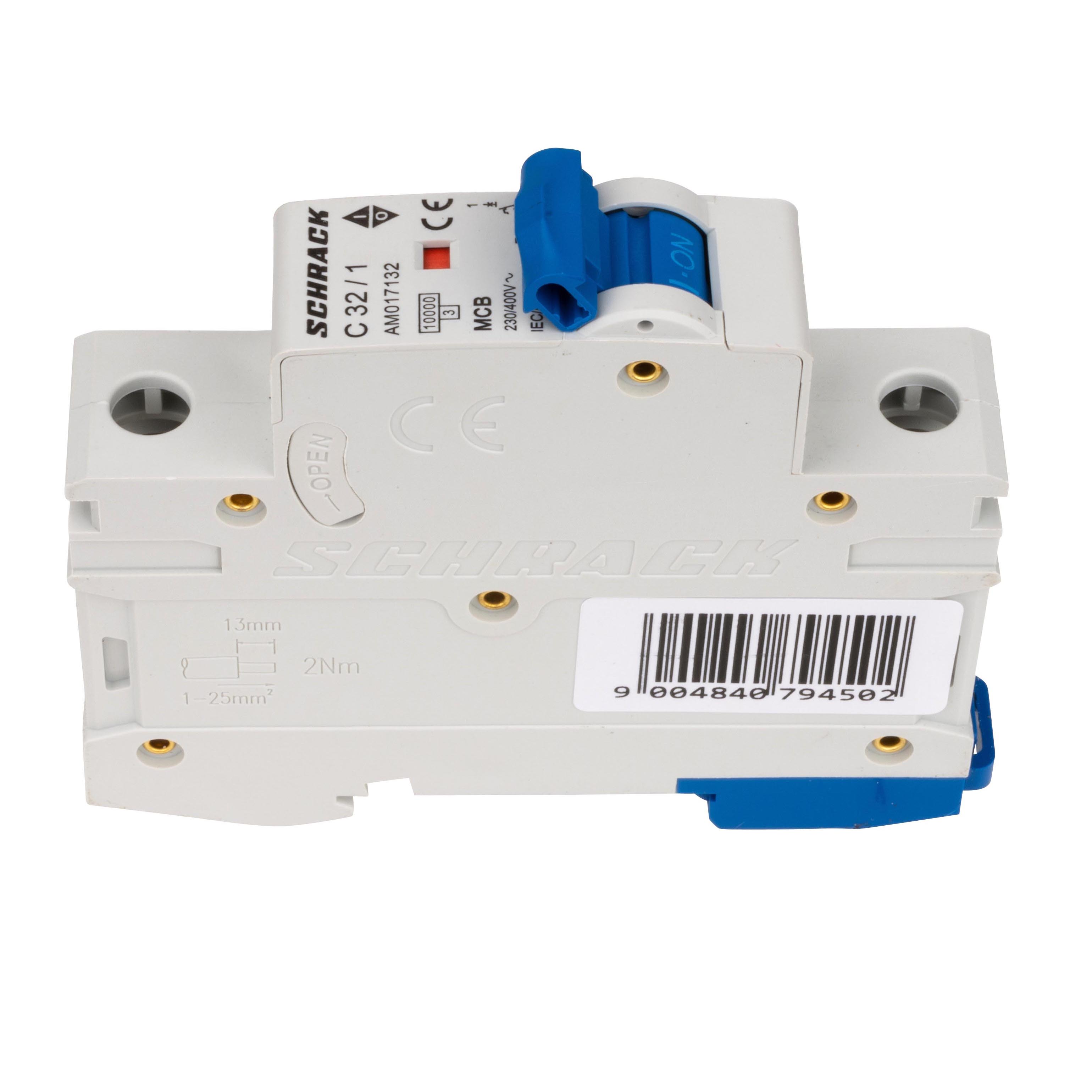

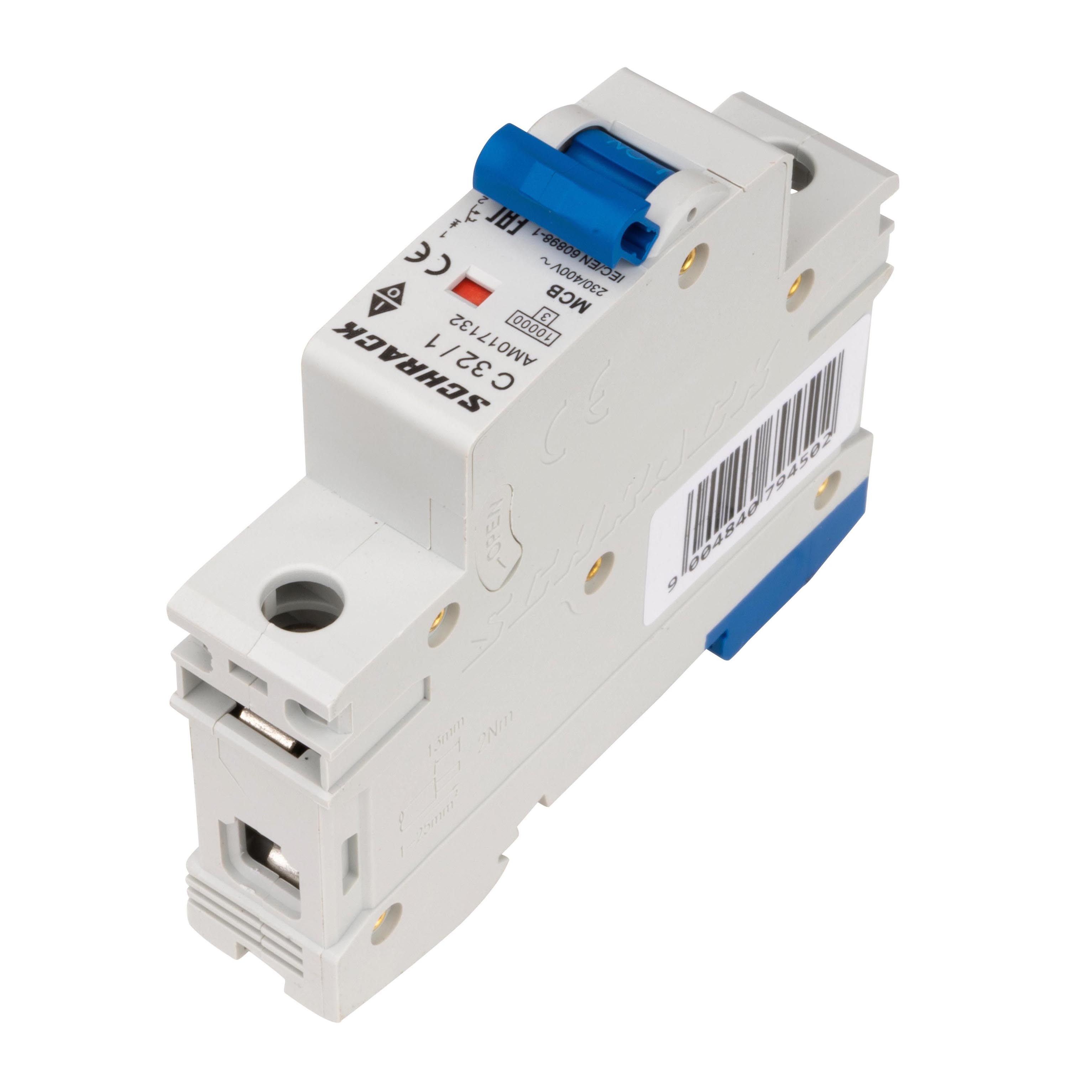

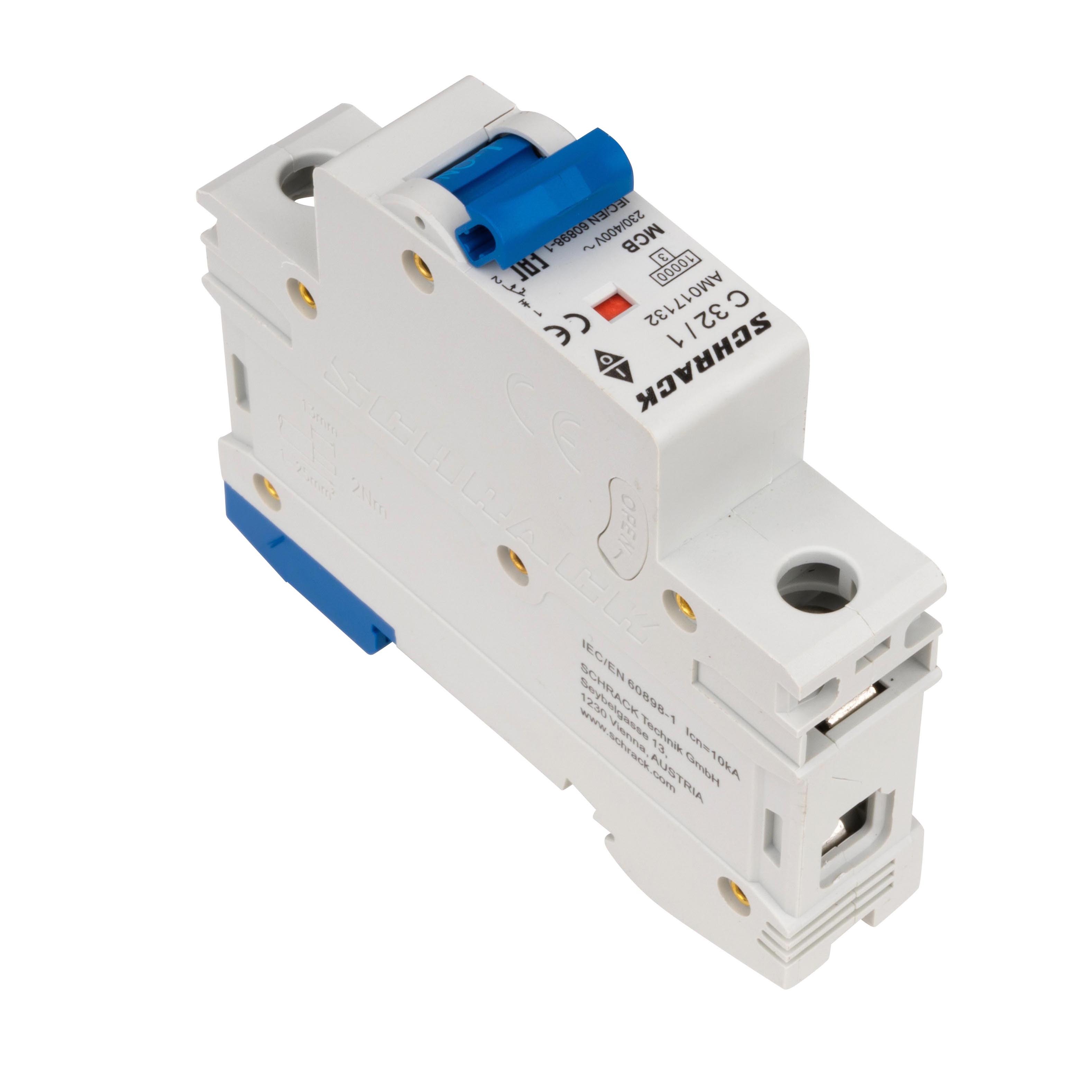

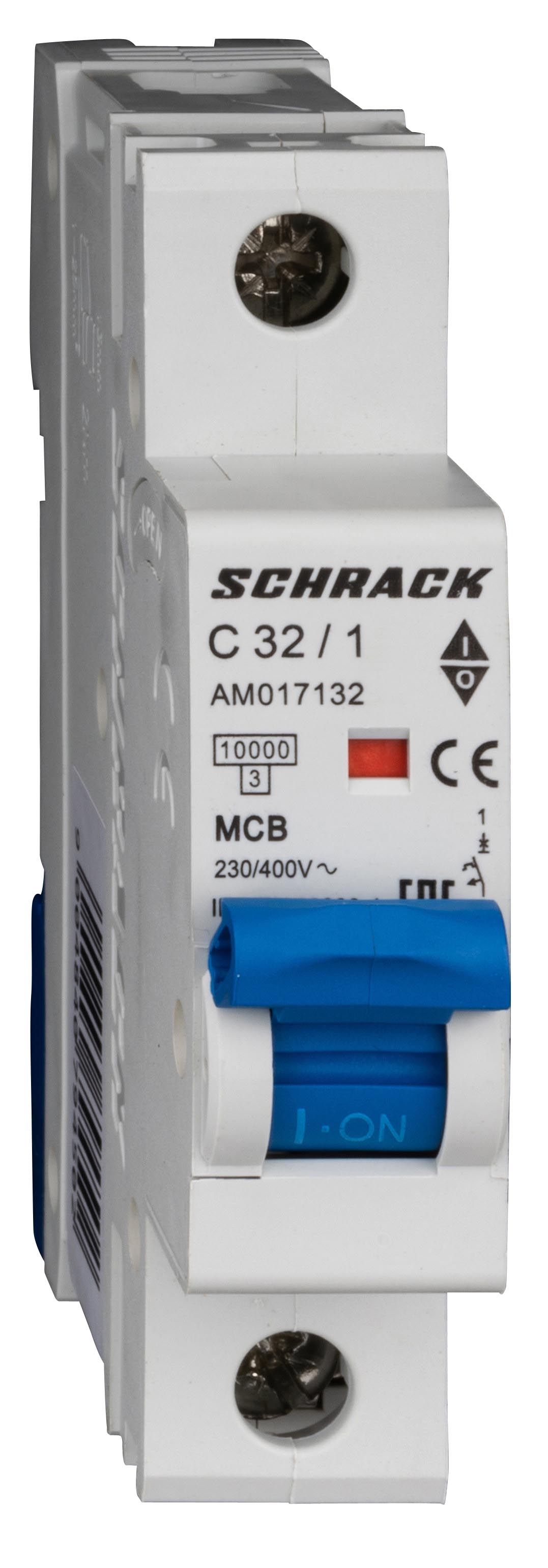

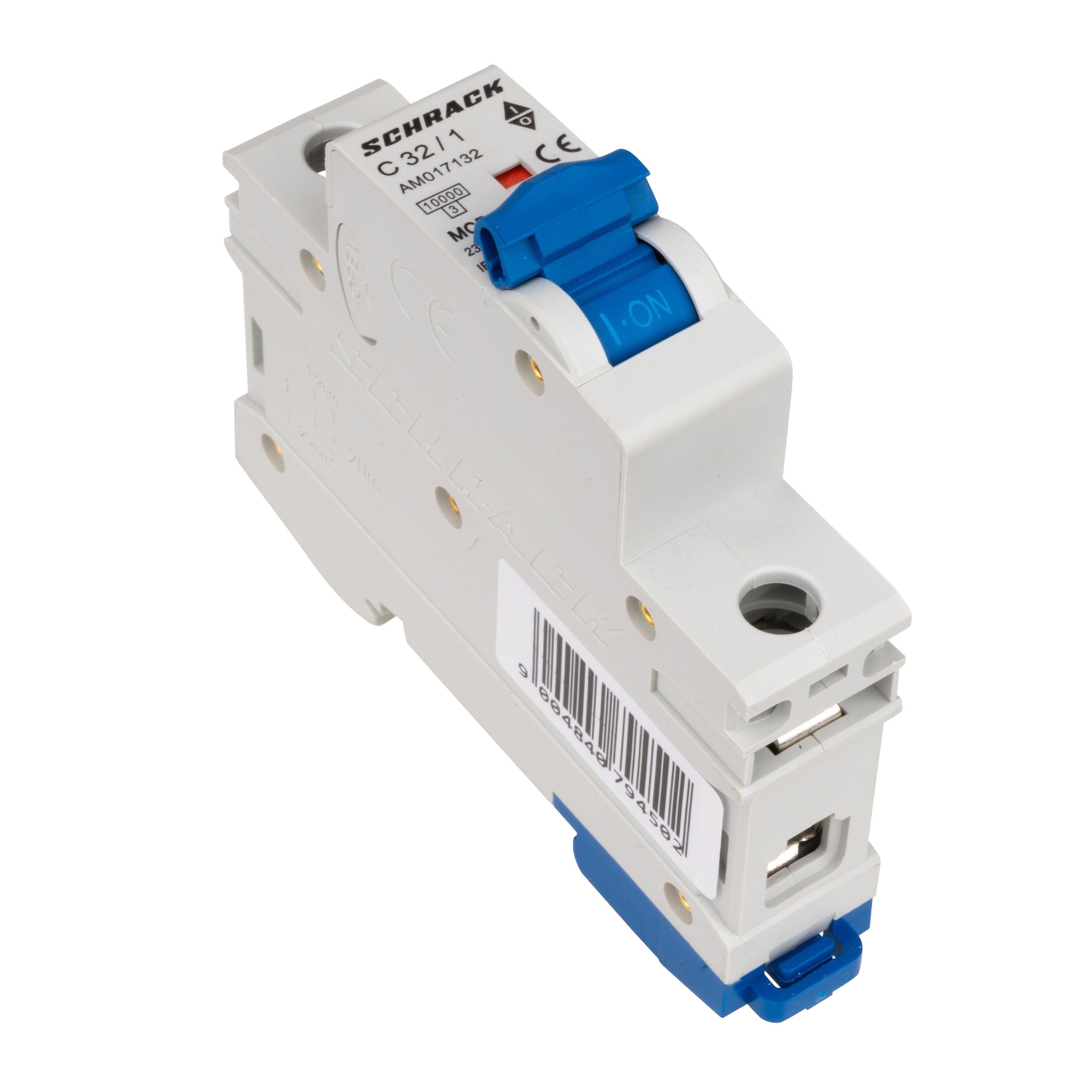

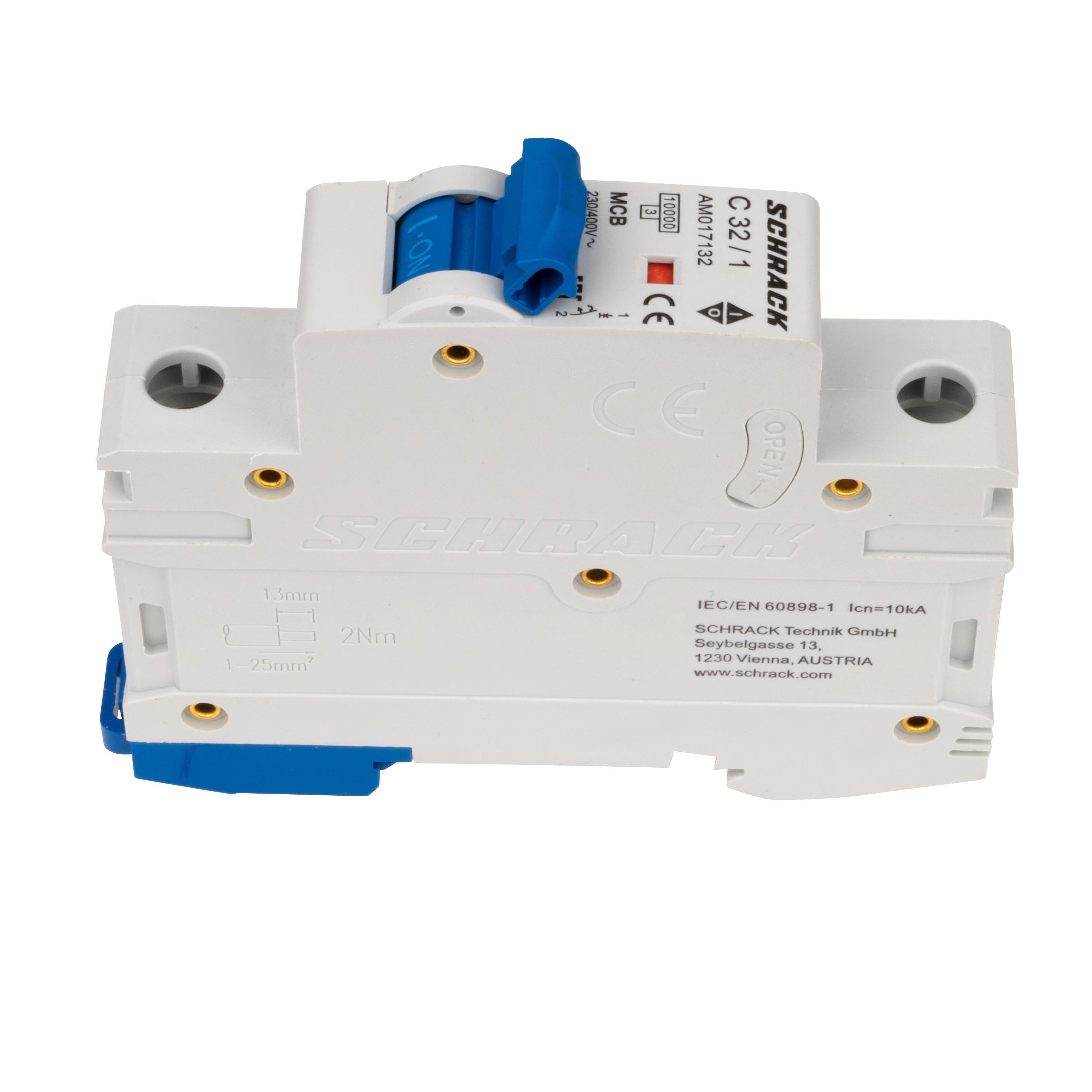

Automatic circuit breaker C32А/1, 10kA
1 / 9
Automatic circuit breaker C32А/1, 10kAAutomatic circuit breaker C32А/1, 10kAAutomatic circuit breaker C32А/1, 10kAAutomatic circuit breaker C32А/1, 10kAAutomatic circuit breaker C32А/1, 10kAAutomatic circuit breaker C32А/1, 10kAAutomatic circuit breaker C32А/1, 10kAAutomatic circuit breaker C32А/1, 10kAAutomatic circuit breaker C32А/1, 10kA

Automatic circuit breaker C32А/1, 10kA

Article: AM017132--

Автоматические выключатели AMPARO

3 250 ₸

In stock
WhatsAppTelegram

Single-pole automatic circuit breaker of AMPARO series, type AM10, designed to protect electrical circuits from overloads and short circuits. The device complies with international standards EN 60898-1:2019 and IEC 60898-1.

Technical characteristics:

  • Rated current: 32 A
  • Breaking capacity: 10 kA (maximum short-circuit current that the breaker can safely disconnect without damage)
  • Trip characteristic: C (for protection of general-purpose cable lines and distribution circuits)
  • Execution: AC-MCB (miniature automatic circuit breaker for alternating current)
  • Design: 1 module, 18 mm width for installation on standard DIN rail

Physical dimensions:

  • Length: 86 mm
  • Width: 18 mm
  • Height: 77 mm
  • Net weight: 0.11 kg

Operating parameters:

  • Permissible ambient temperature range: from –25°C to +70°C
  • Power dissipation: 4.03 W
  • Manufacturer: Schrack (Austria)
  • EAN code: 9004840794502

Packaging options: 1 pc., 12 pcs., 180 pcs.

EAN code9004840794502
Net length86.00 mm
Net width18.00 mm
Net height77.00 mm
Net weight0.11 kg
Power dissipation4.03 W
Min. ambient temperature-25°C
Max. ambient temperature70°C
CharacteristicC
Poles1
Rated current32 A
TypeAM10
SeriesAMPARO
Breaking capacity10 kA
ExecutionAC-MCB
StandardEN 60898-1:2019, IEC 60898-1
ManufacturerSchrack
Packaging1 pc., 12 pcs., 180 pcs.
