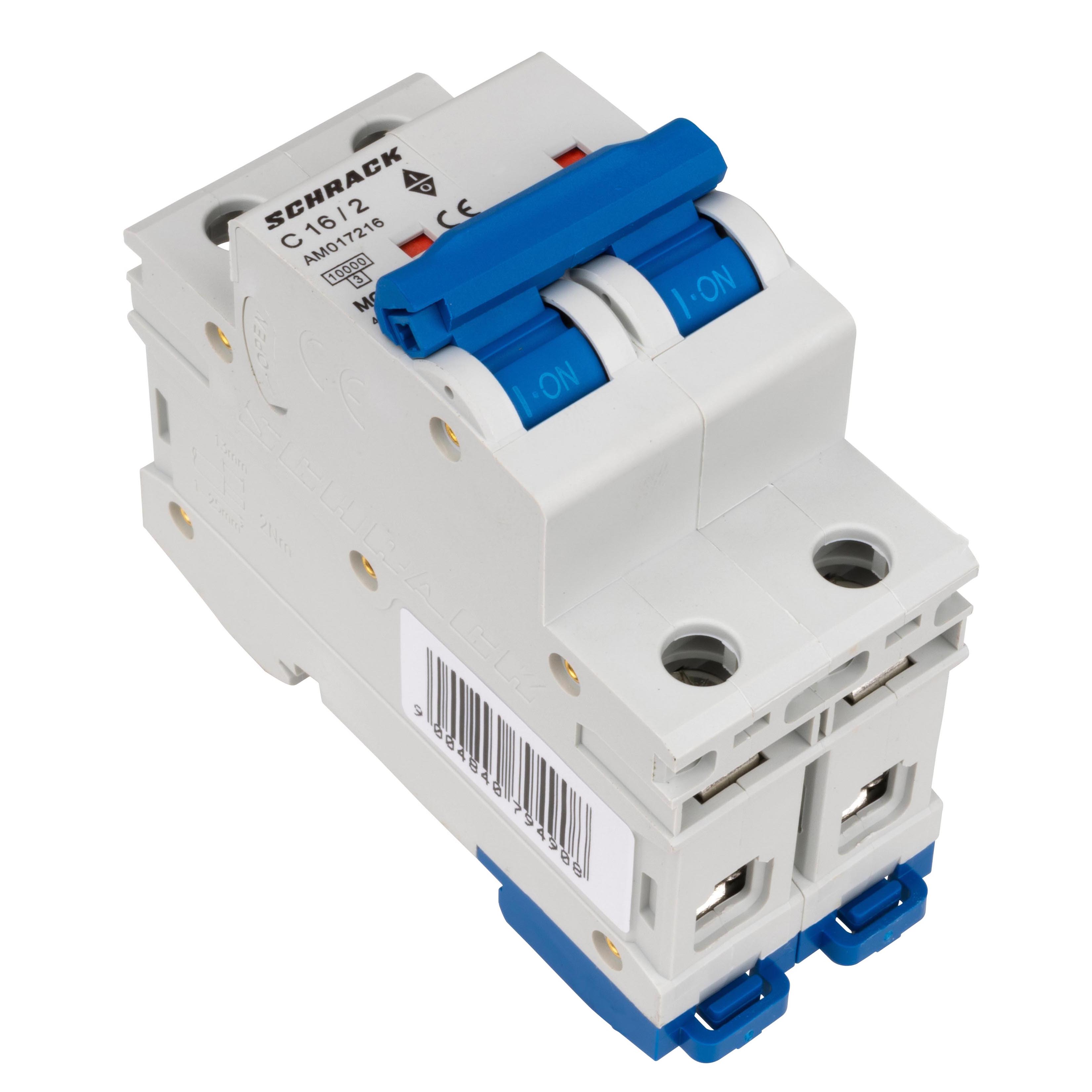

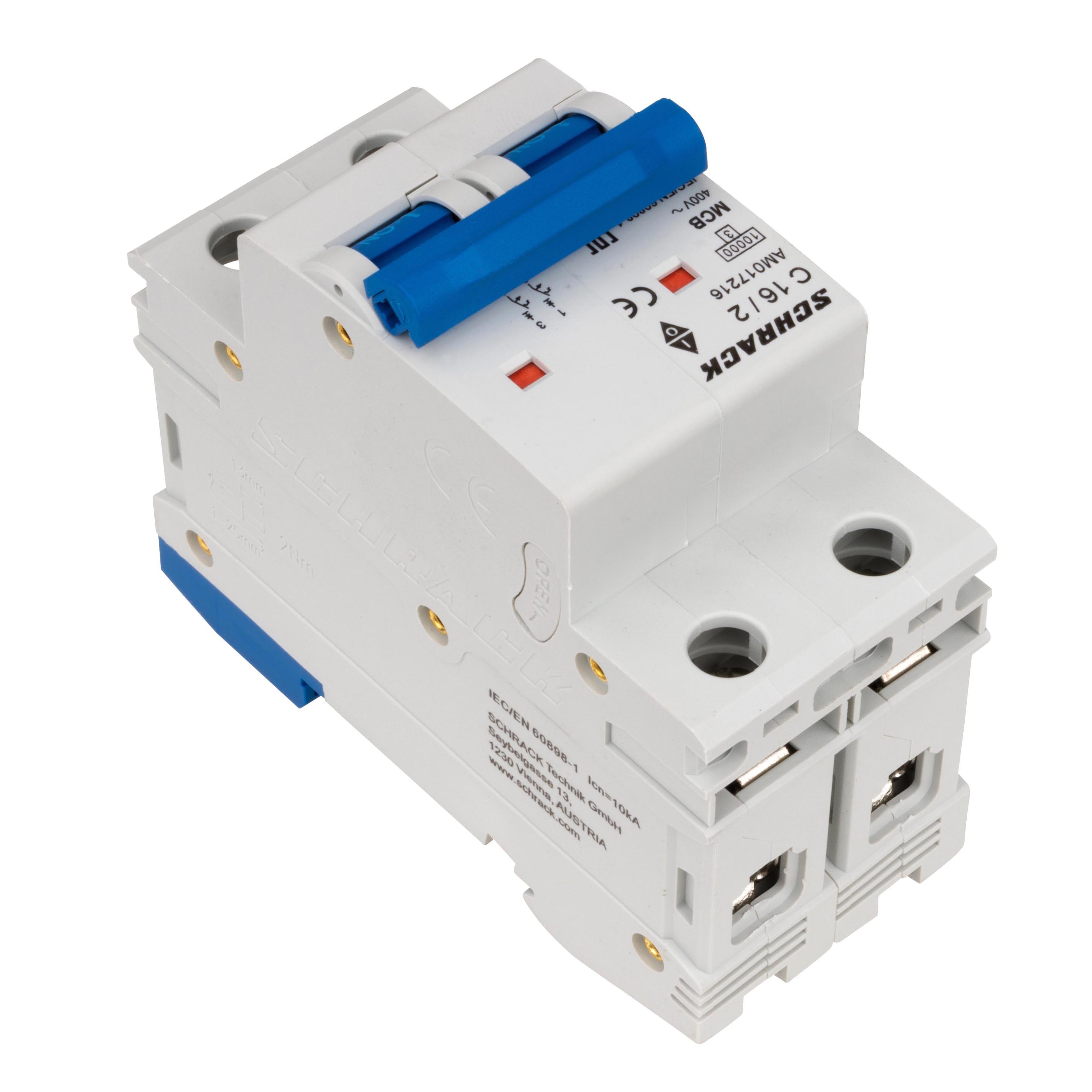

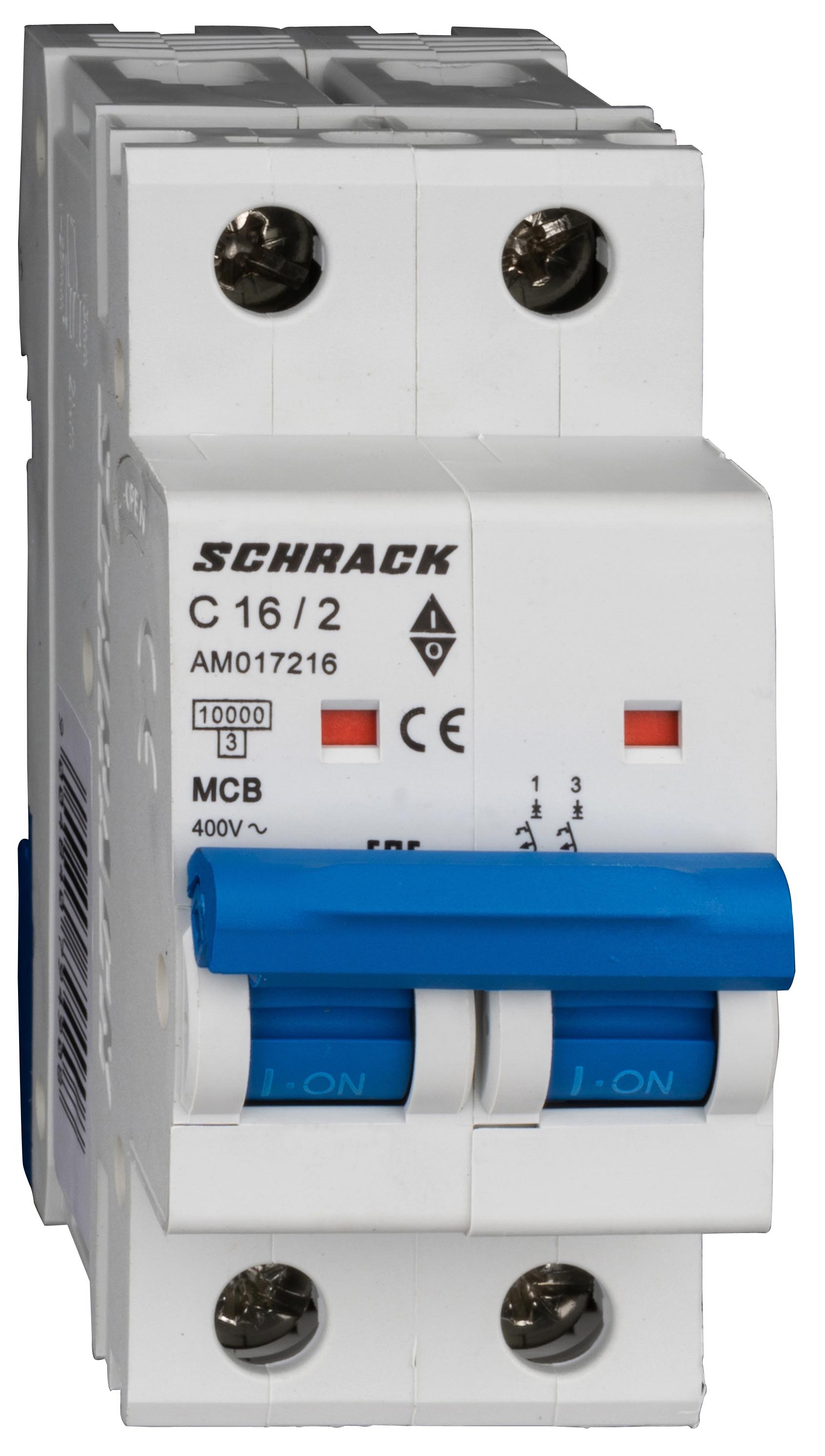

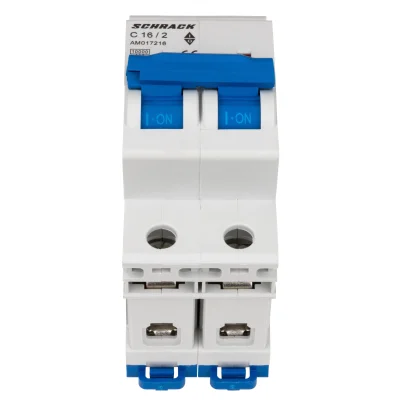

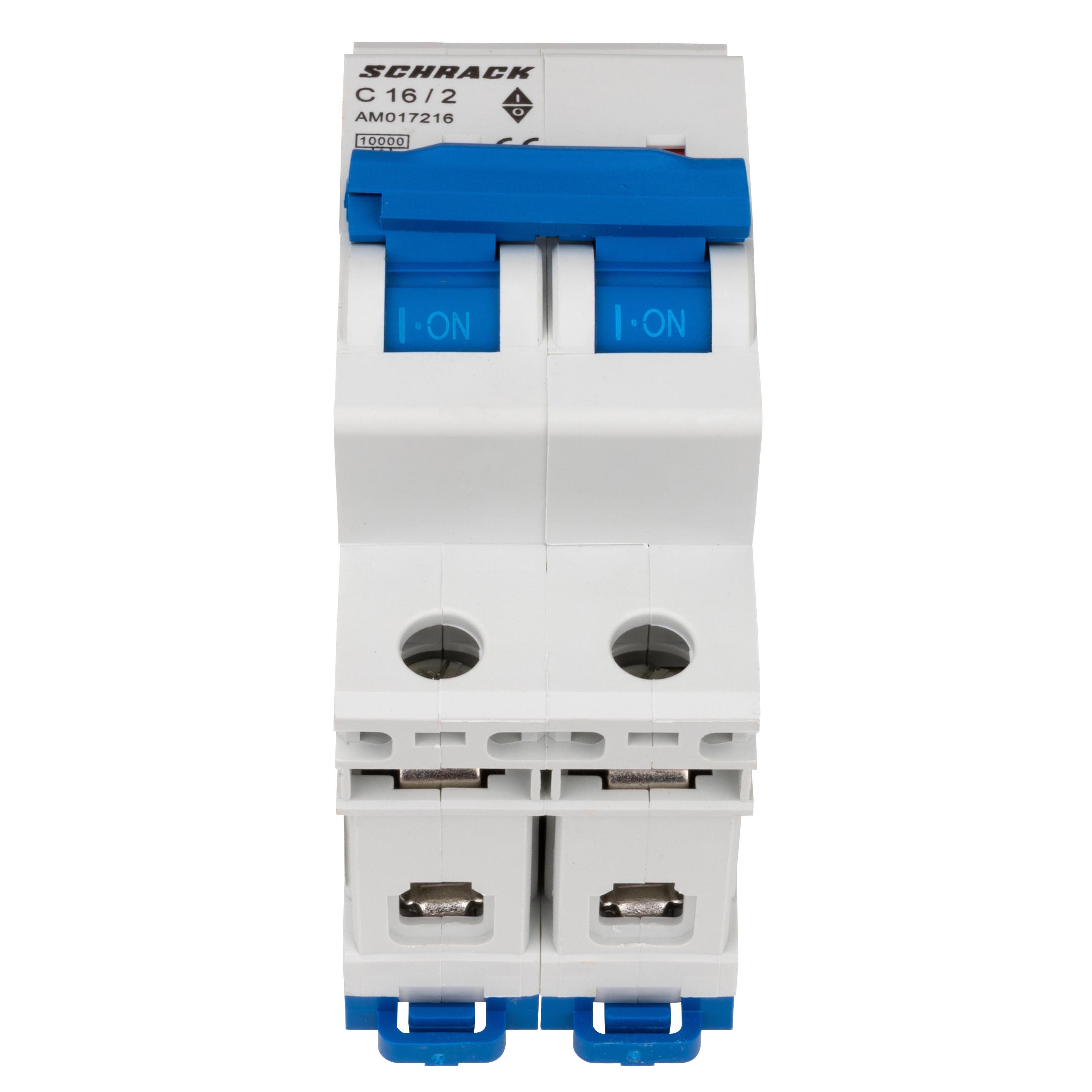

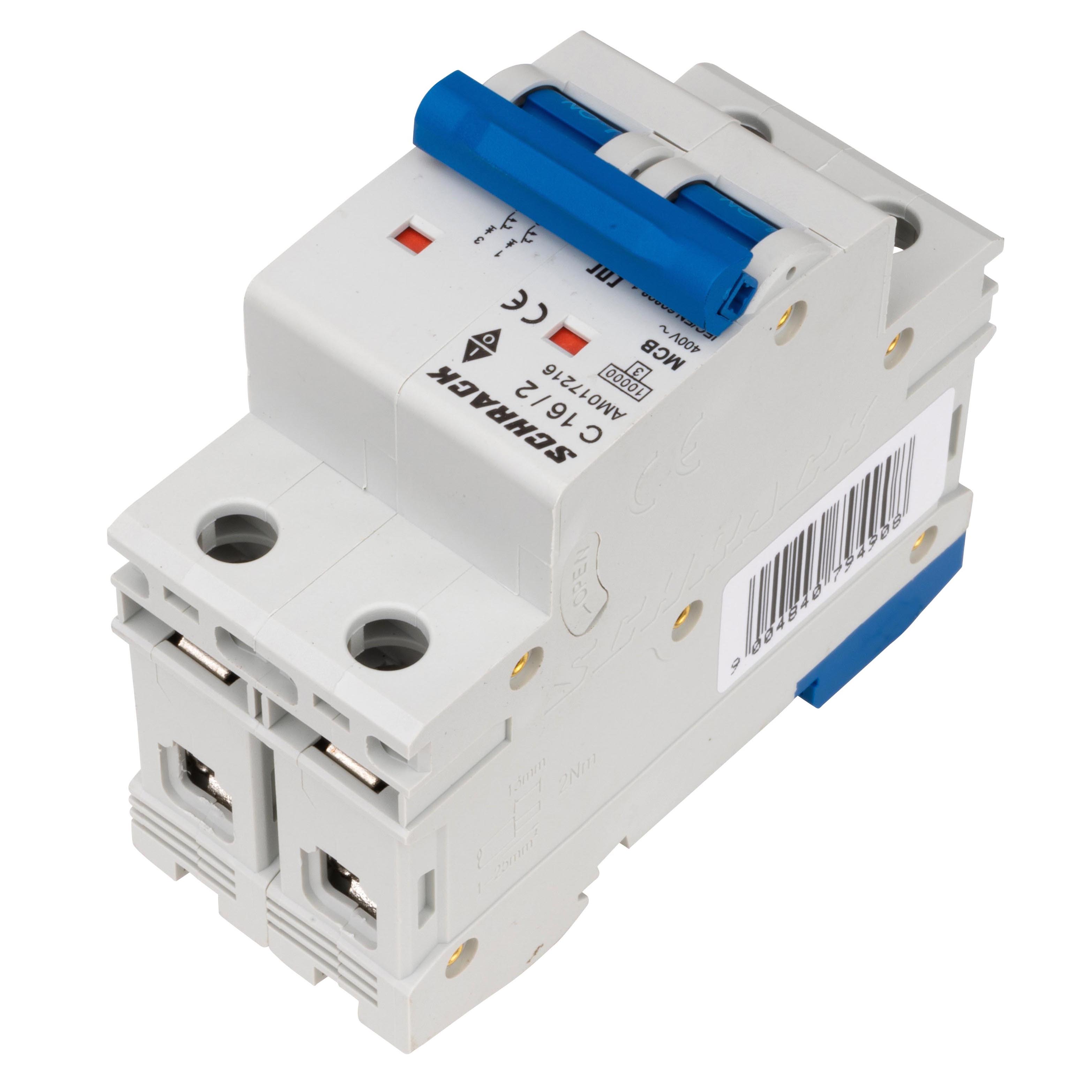

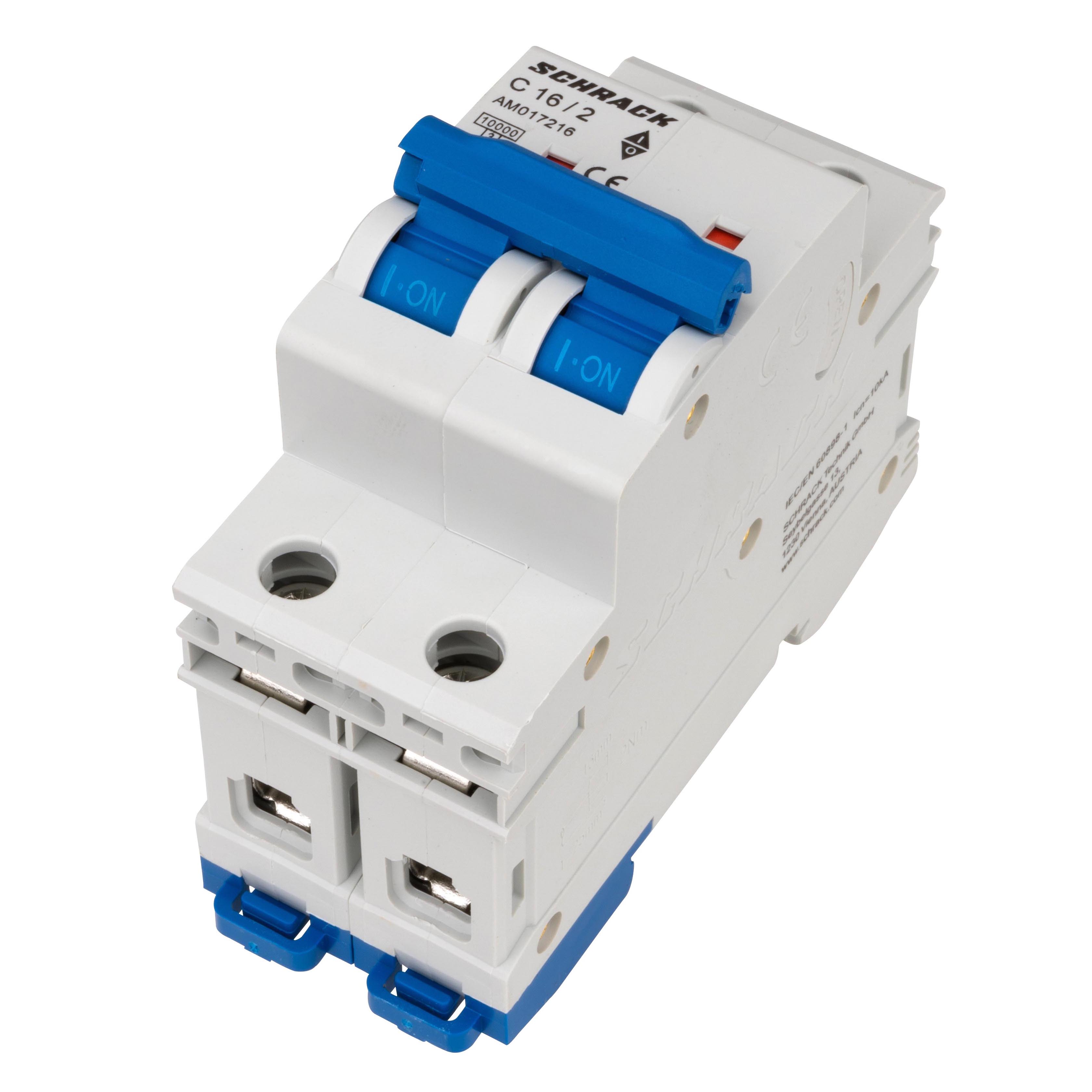

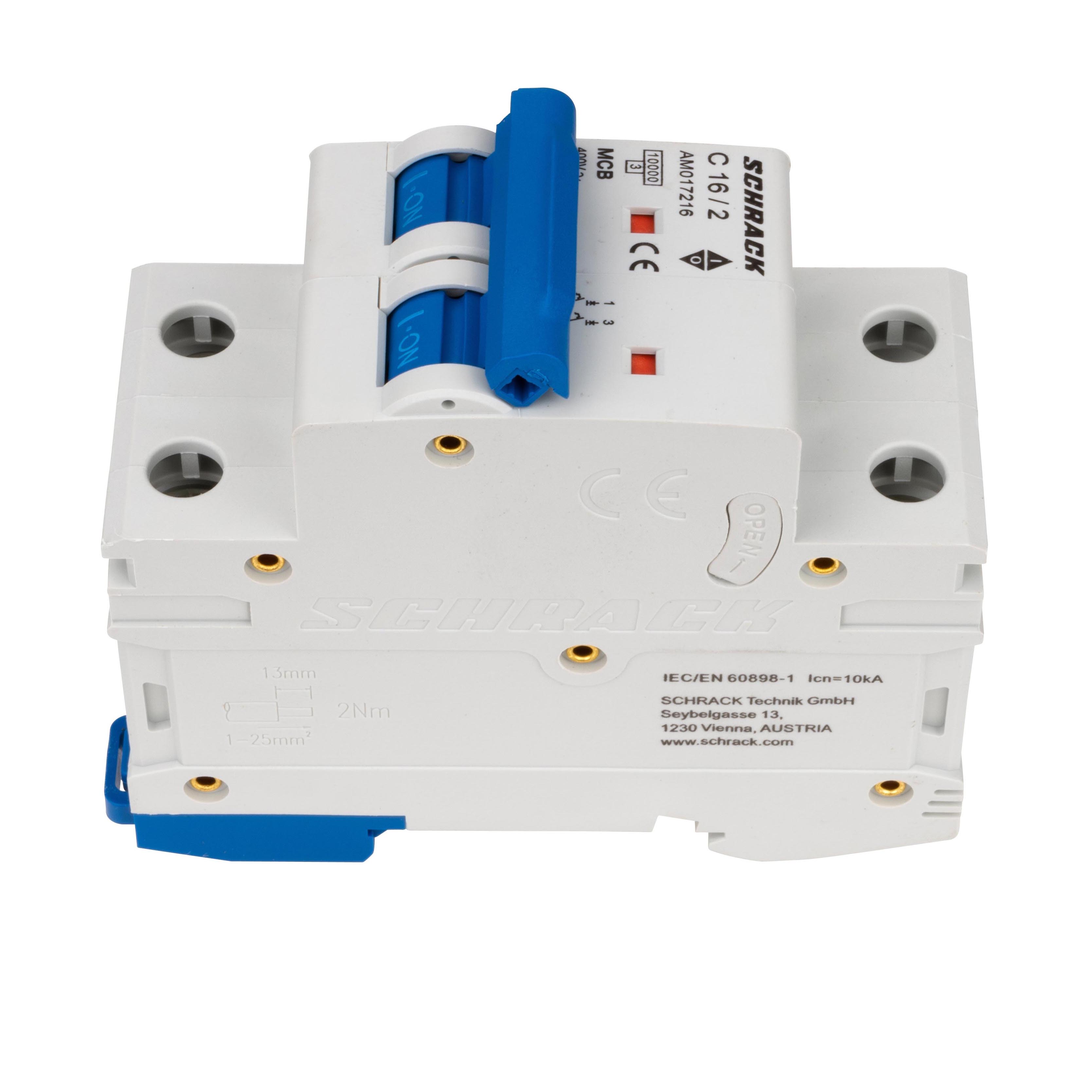

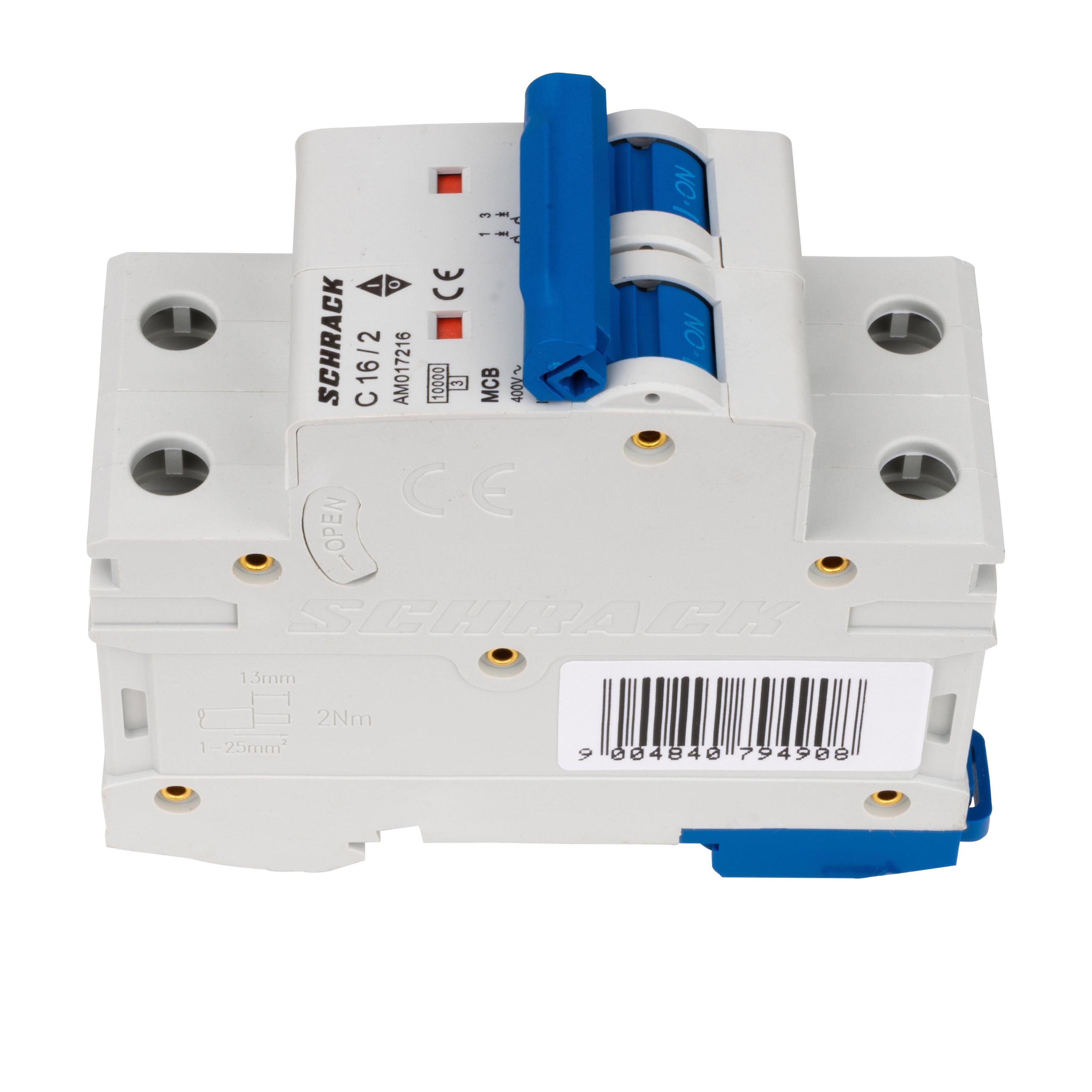

Automatic Circuit Breaker C16A/2, 10kA

AMPARO series automatic circuit breaker model AM10 is designed to protect electrical circuits from overloads and short circuit currents. The device is two-pole with a nominal current of 16A and switching capacity of 10kA.

Technical Specifications:

• Nominal Current: 16A
• Number of Poles: 2
• Tripping Characteristic: C
• Switching Capacity: 10kA
• Type of Execution: AC-MCB (alternating current)
• Compliance with Standards: EN 60898-1:2019, IEC 60898-1
• Power Loss: 8,05W
• Operating Temperature Range: from -25°C to +70°C

Dimensional Parameters:

• Length: 86,00mm
• Width: 36,00mm
• Height: 77,00mm
• Net Weight: 0,23kg

Additional Information:

• Manufacturer: Schrack
• Series: AMPARO
• Device Type: AM10
• EAN Code: 9004840794908
• Packaging Options: 1 pcs., 6 pcs., 90 pcs.

The circuit breaker is used in electrical supply systems of residential and industrial facilities to provide reliable protection of alternating current electrical networks.
