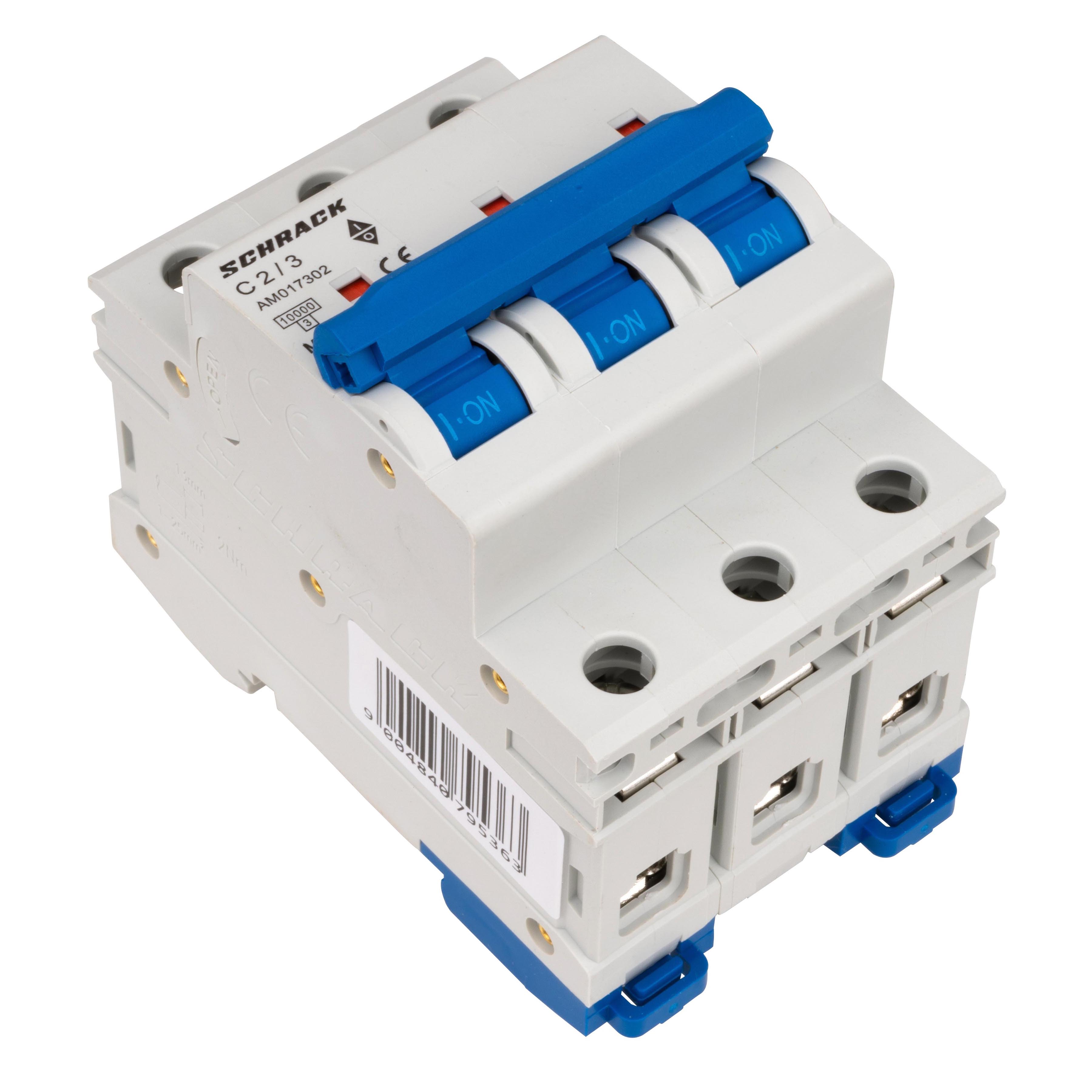

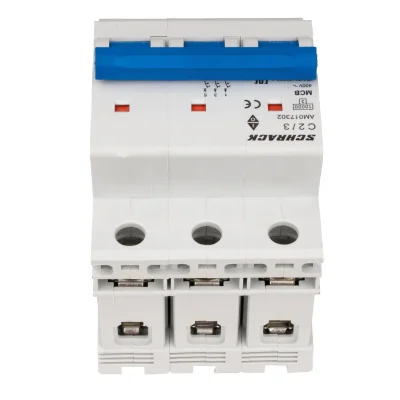

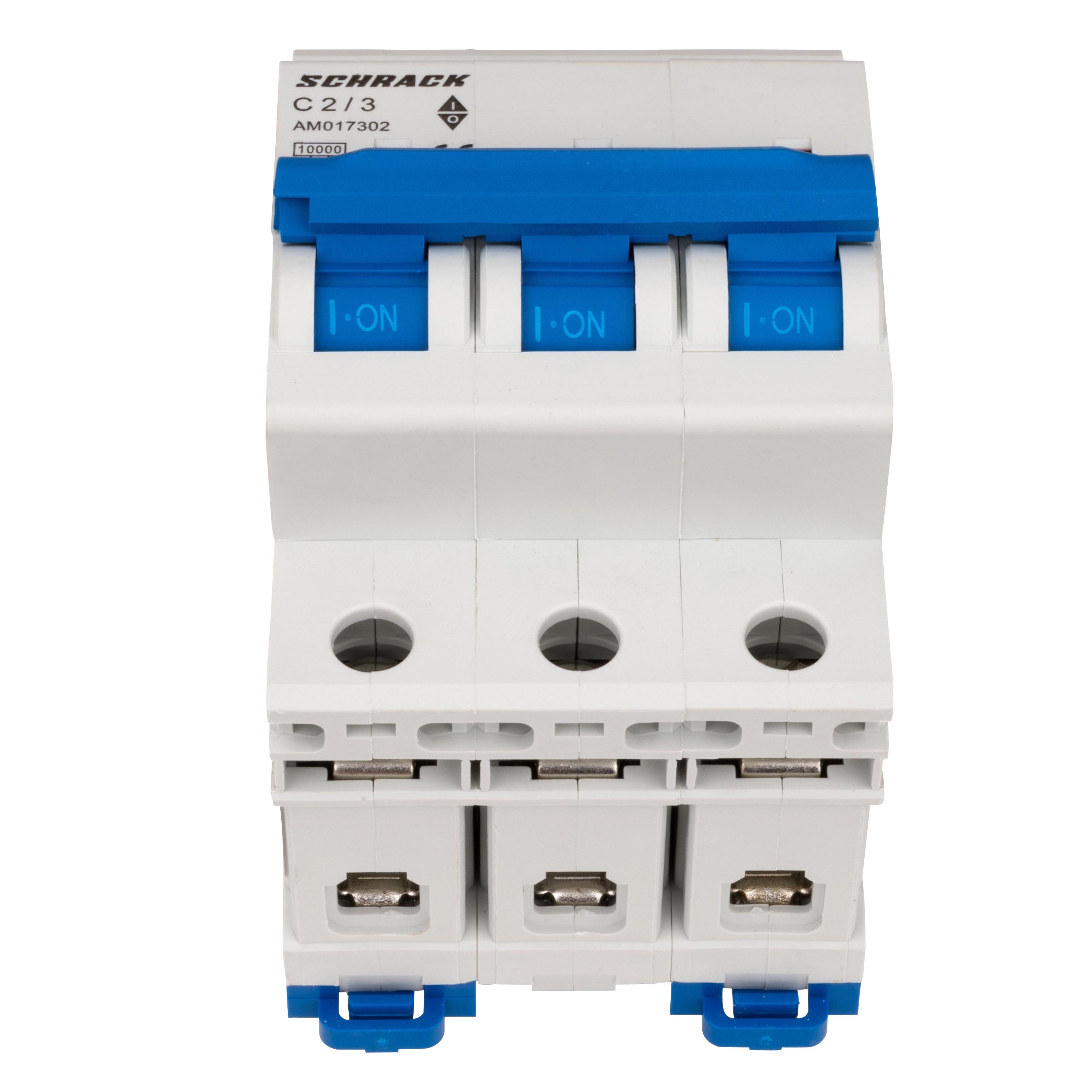

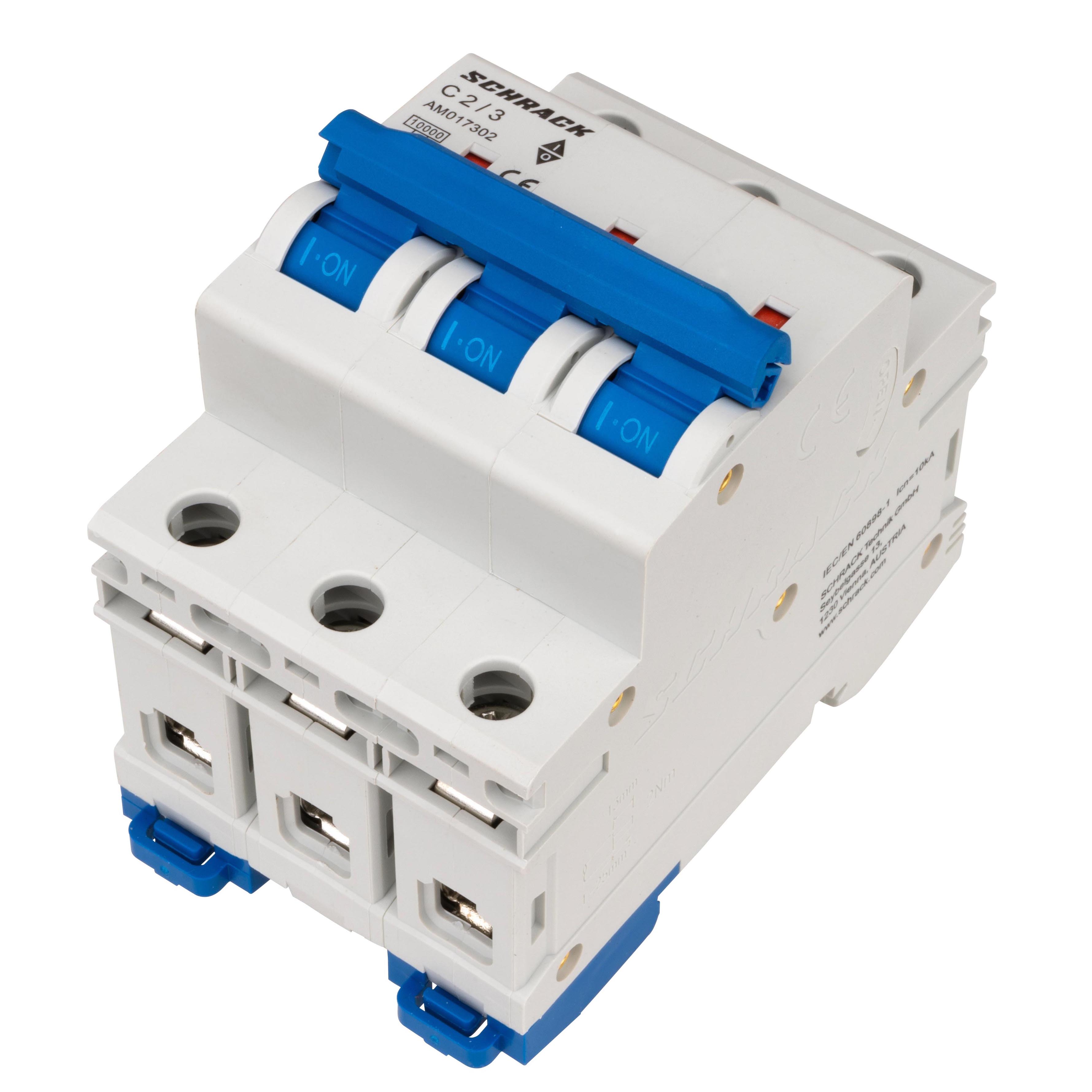

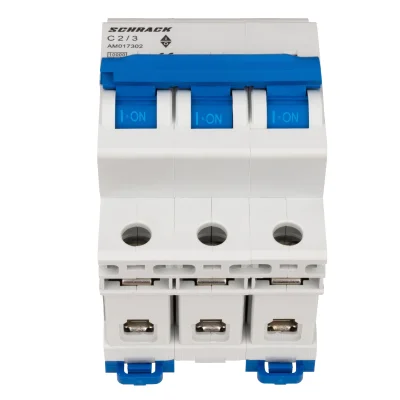

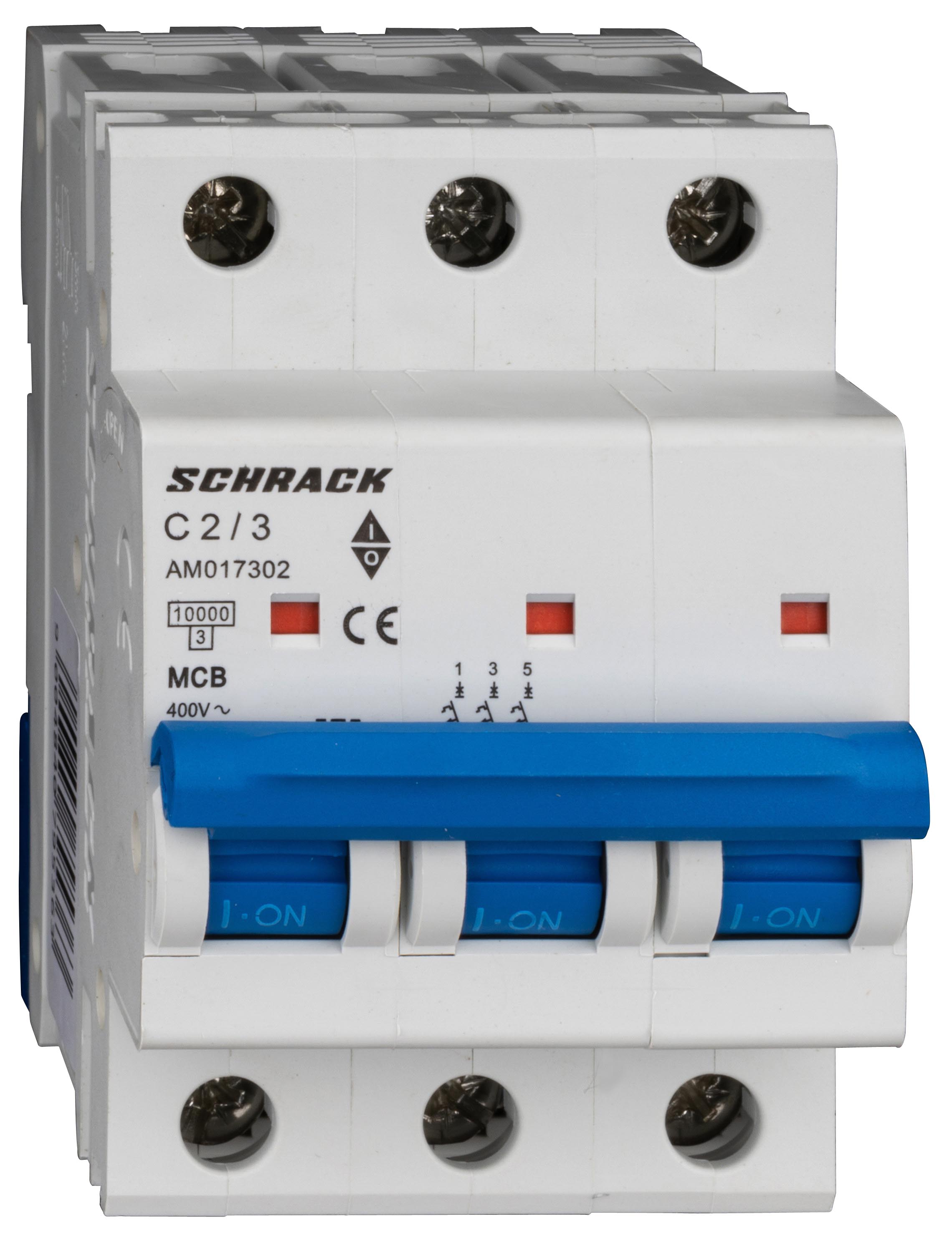

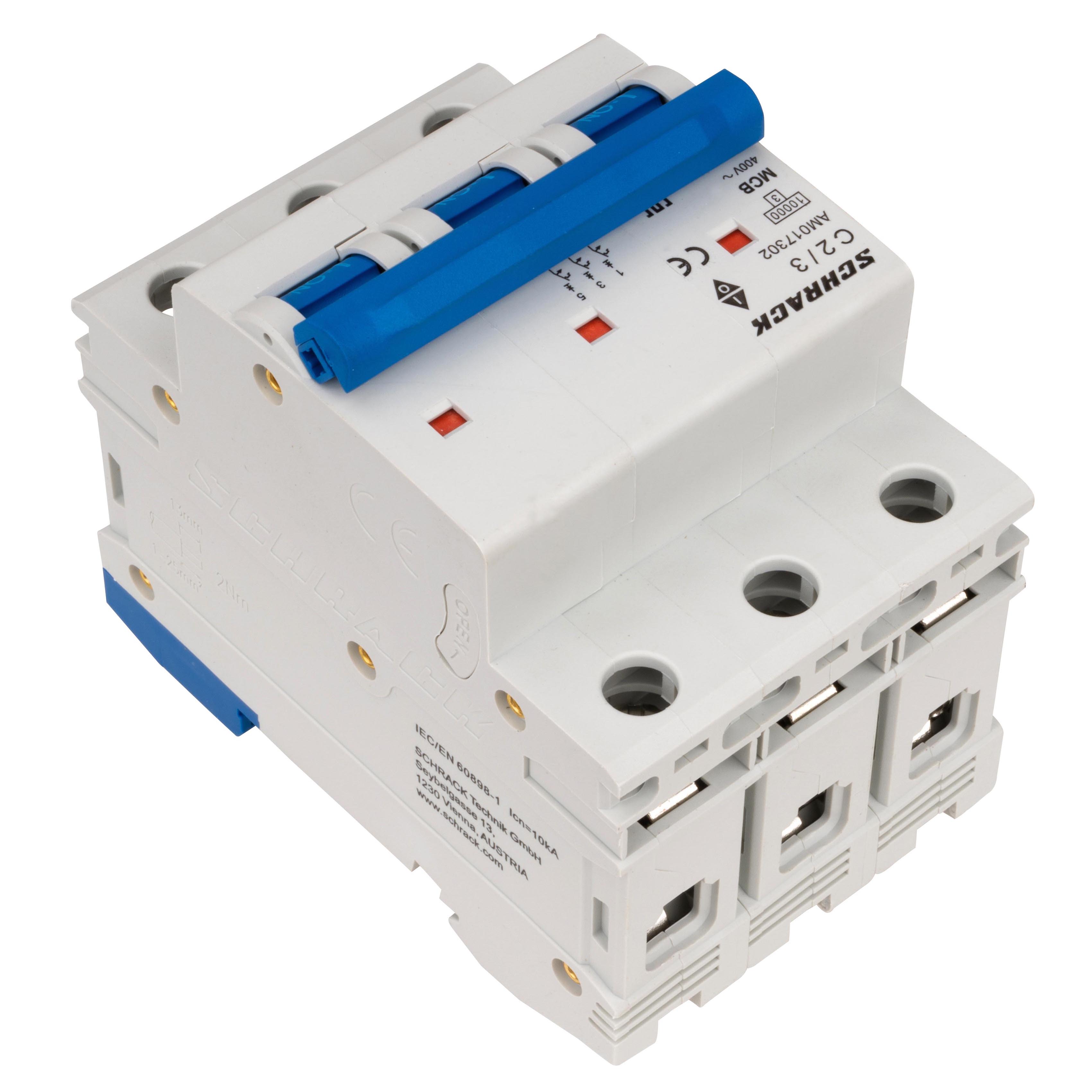

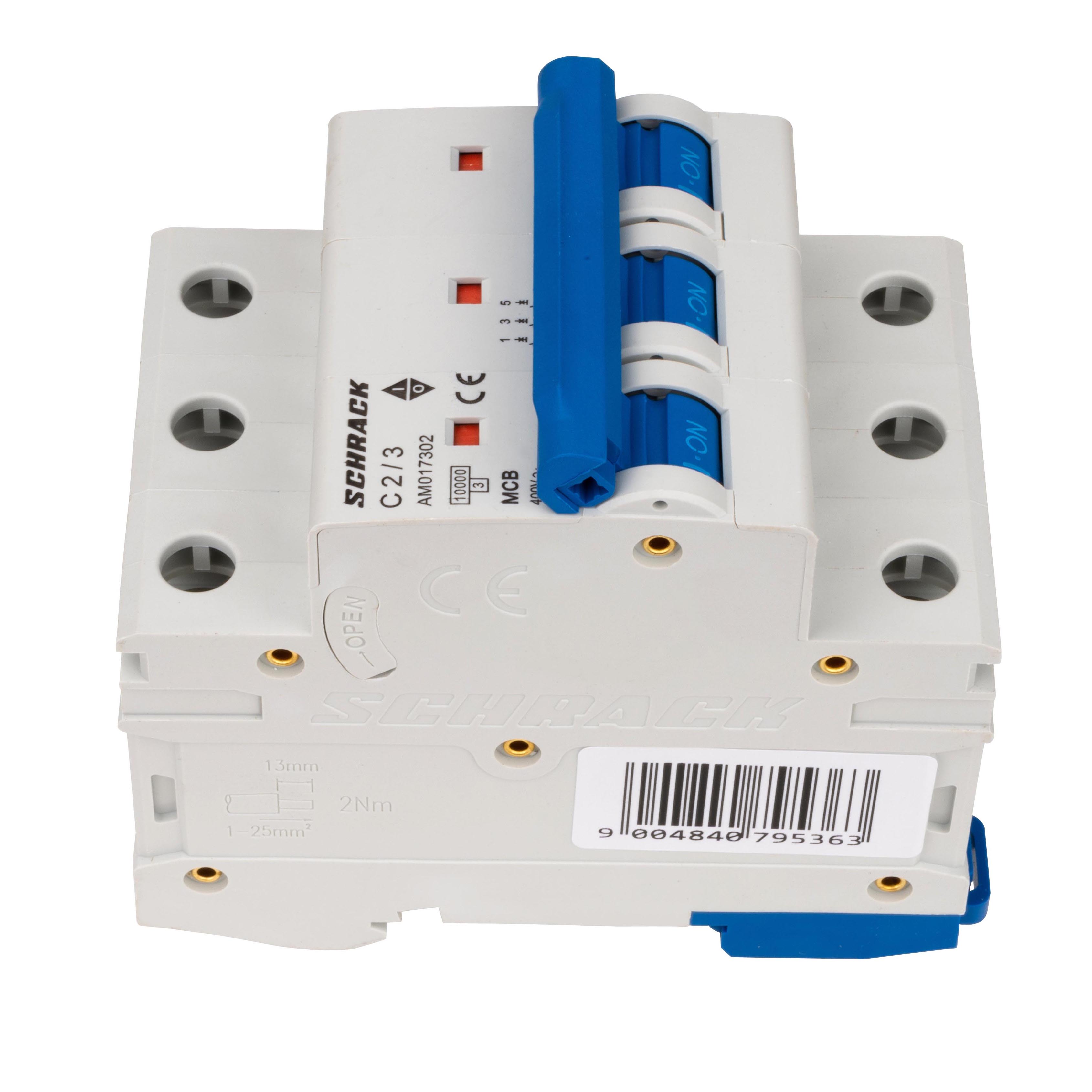

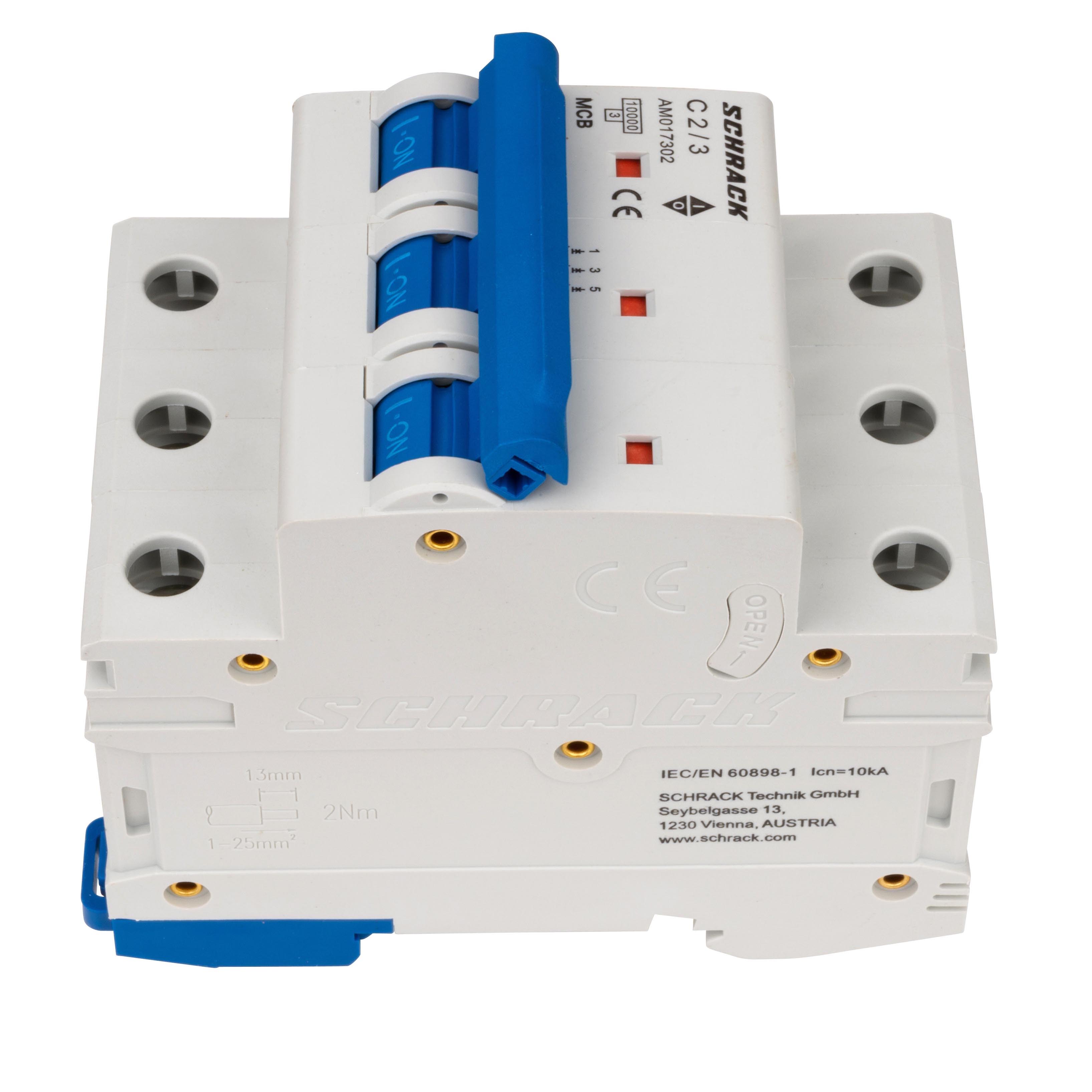

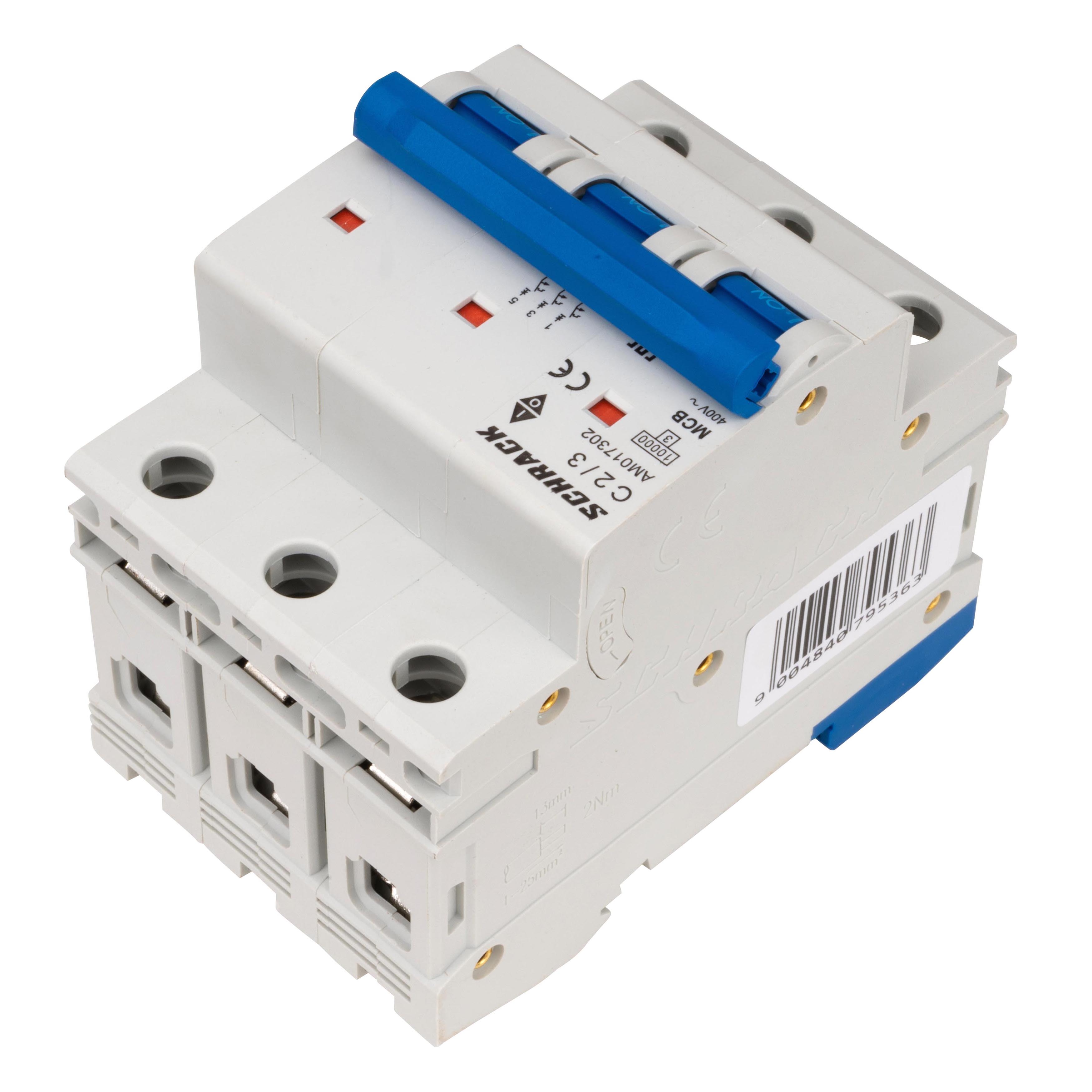

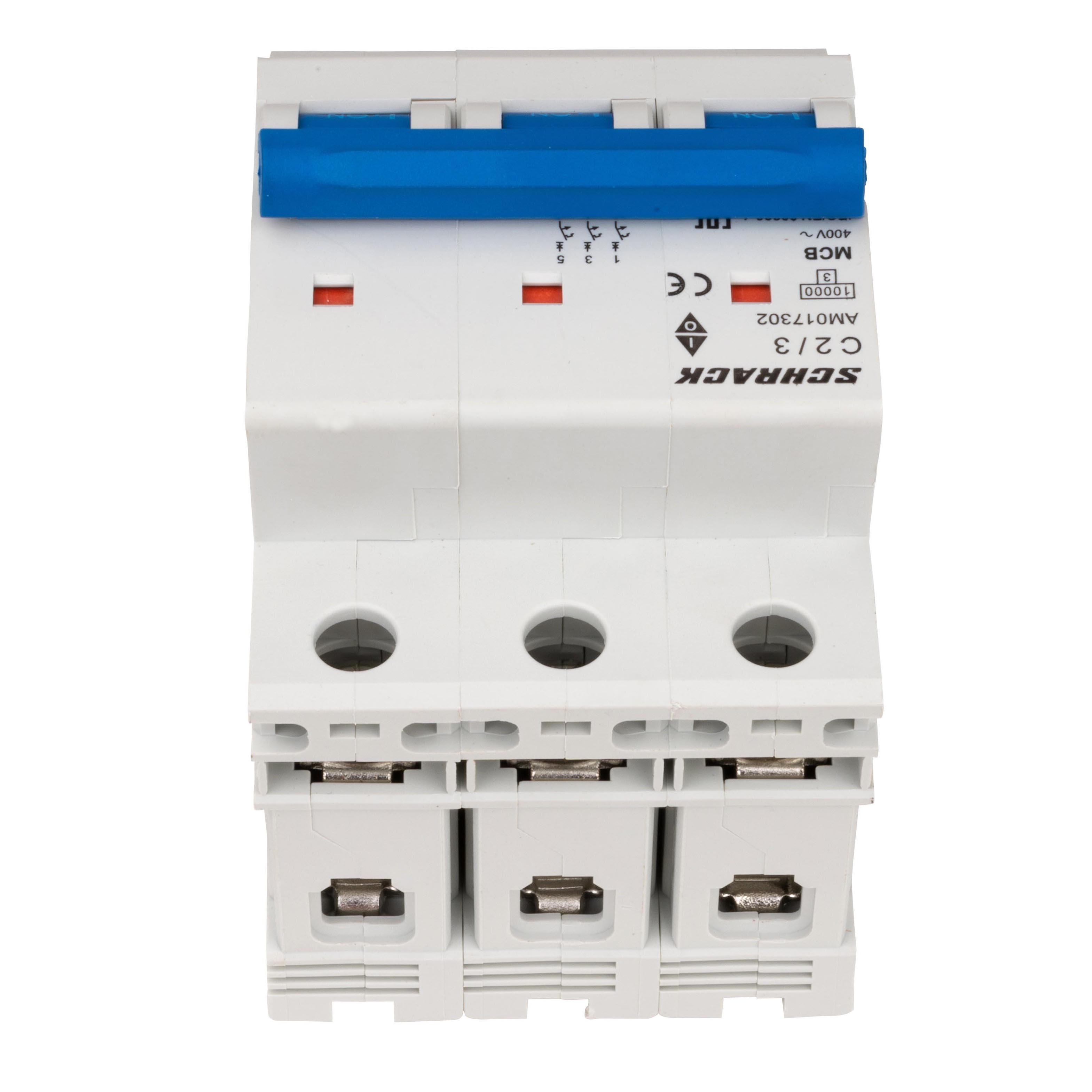

Automatic Circuit Breaker C2A/3, 10kA
1 / 9
Automatic Circuit Breaker C2A/3, 10kAAutomatic Circuit Breaker C2A/3, 10kAAutomatic Circuit Breaker C2A/3, 10kAAutomatic Circuit Breaker C2A/3, 10kAAutomatic Circuit Breaker C2A/3, 10kAAutomatic Circuit Breaker C2A/3, 10kAAutomatic Circuit Breaker C2A/3, 10kAAutomatic Circuit Breaker C2A/3, 10kAAutomatic Circuit Breaker C2A/3, 10kA

Automatic Circuit Breaker C2A/3, 10kA

Article: AM017302--

Автоматические выключатели AMPARO

10 820 ₸

To order
WhatsAppTelegram

Three-pole automatic circuit breaker of the AMPARO series, AM10 type manufactured by Schrack. Designed for protection of electrical circuits against overloads and short circuits.

Main characteristics:

  • Rated current: 2A
  • Number of poles: 3
  • Trip characteristic: C (for circuits with increased inrush currents)
  • Breaking capacity: 10 kA
  • Execution: AC-MCB (single-phase automatic circuit breaker)
  • Rated voltage: according to EN 60898-1:2019

Technical parameters:

  • Power loss: 6.90 W
  • Operating temperature range: −25°C to +70°C
  • Dimensions (L×W×H): 86 × 54 × 77 mm
  • Net weight: 0.34 kg

Standards compliance: EN 60898-1:2019, IEC 60898-1

Packaging options: 1, 4, 60 pieces

EAN code: 9004840795363

EAN code9004840795363
Net length86.00 mm
Net width54.00 mm
Net height77.00 mm
Net weight0.34 kg
Power loss6.90 W
Min. ambient temperature−25°C
Max. ambient temperature70°C
CharacteristicC
Poles3
Rated current2A
TypeAM10
SeriesAMPARO
Breaking capacity10 kA
ExecutionAC-MCB
StandardEN 60898-1:2019, IEC 60898-1
ManufacturerSchrack
Packaging1 piece, 4 pieces, 60 pieces
