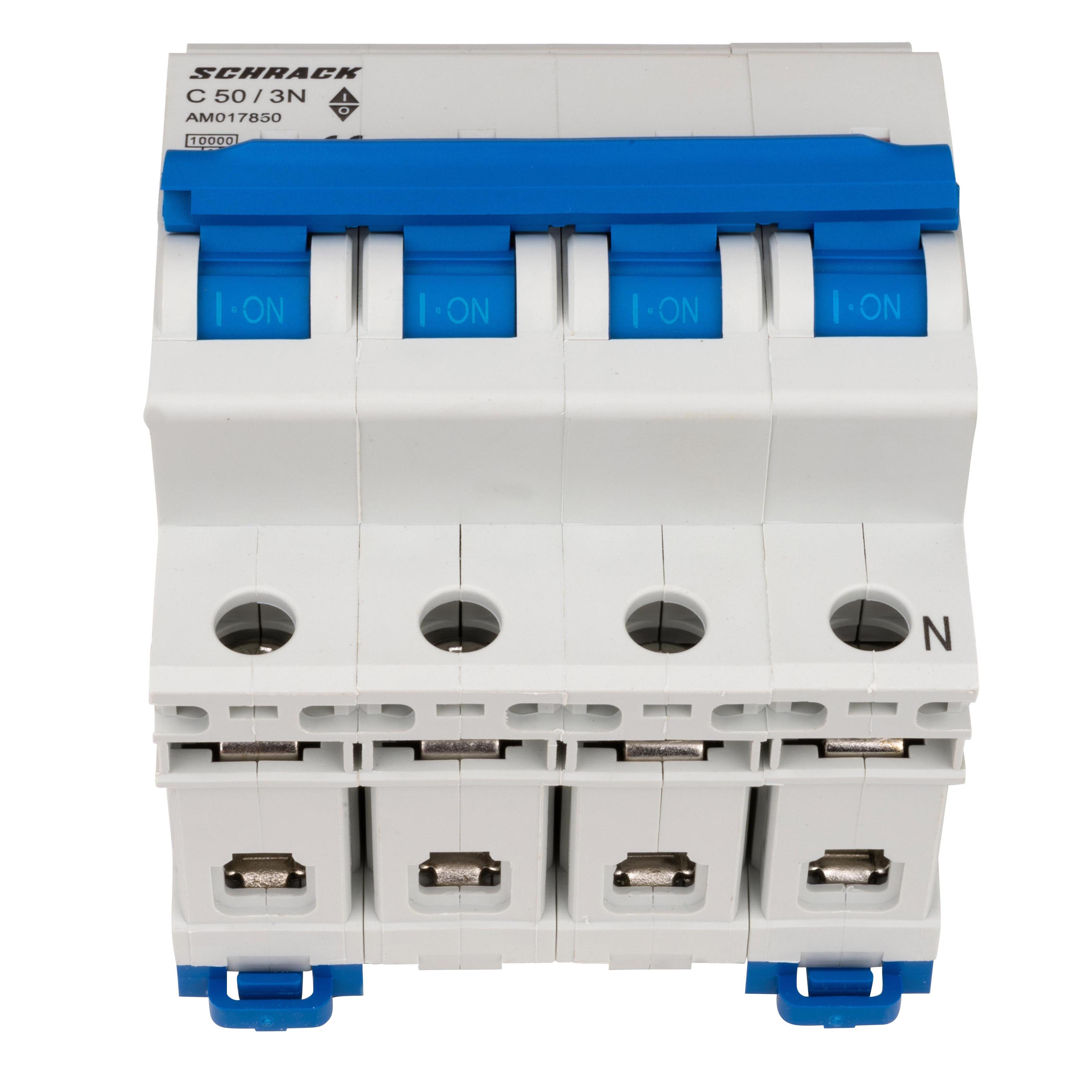

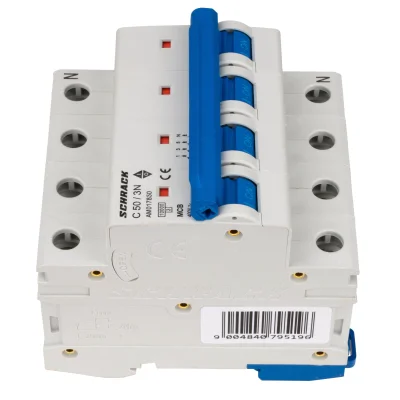

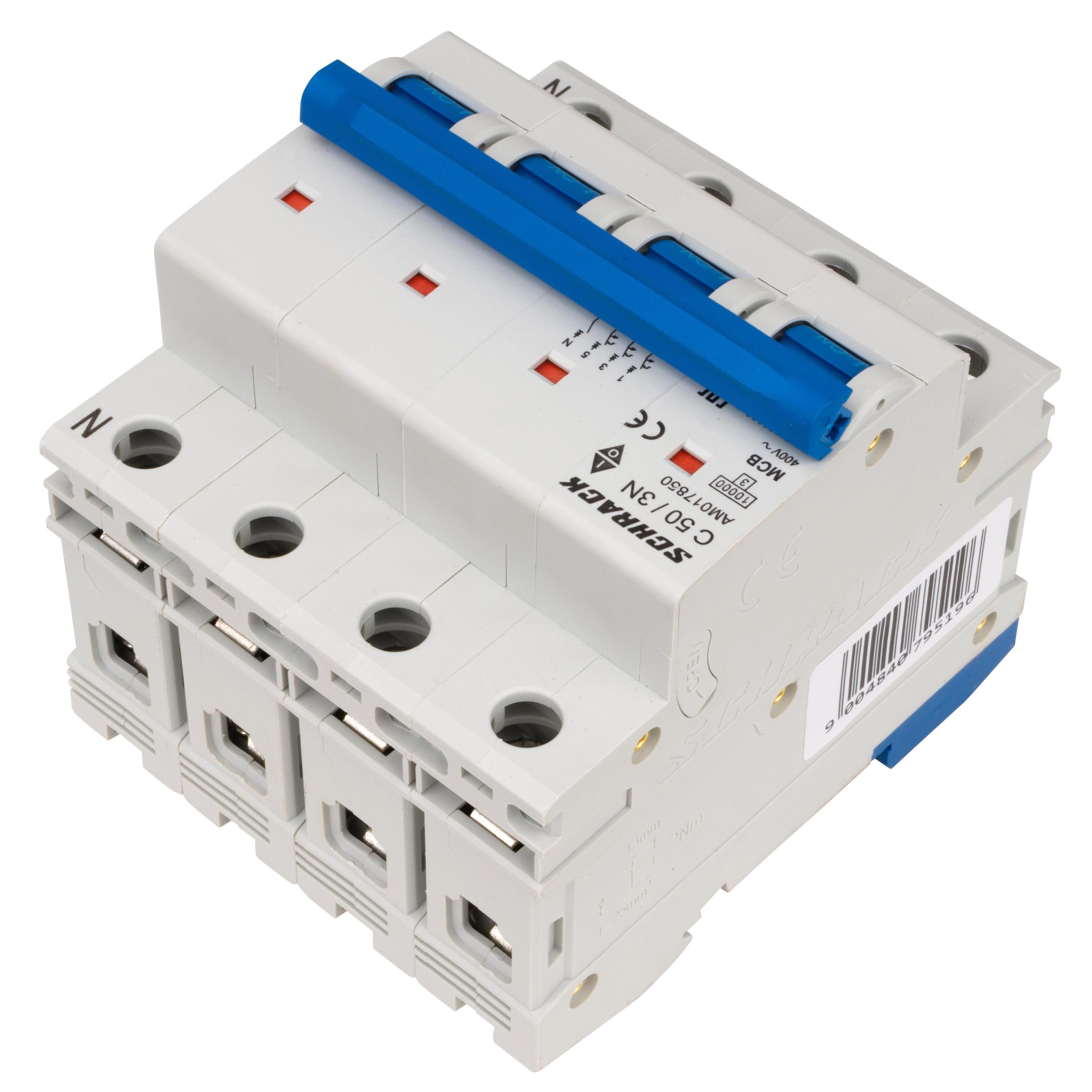

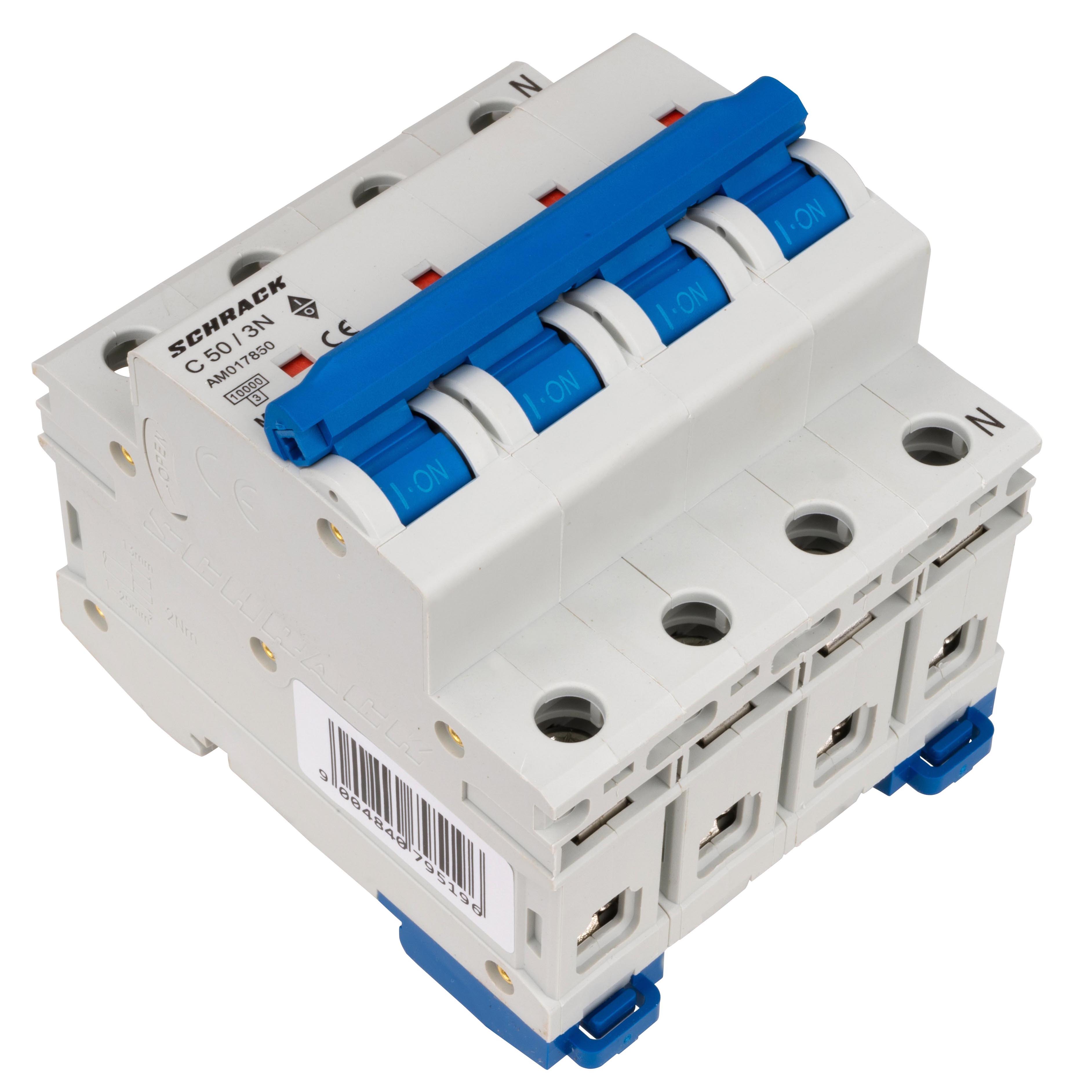

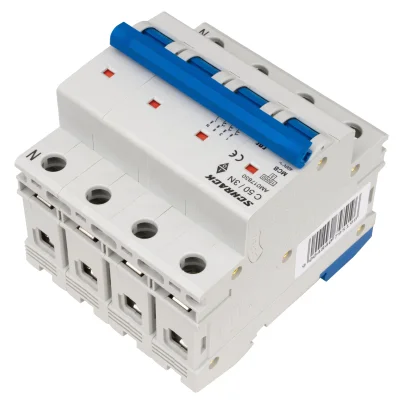

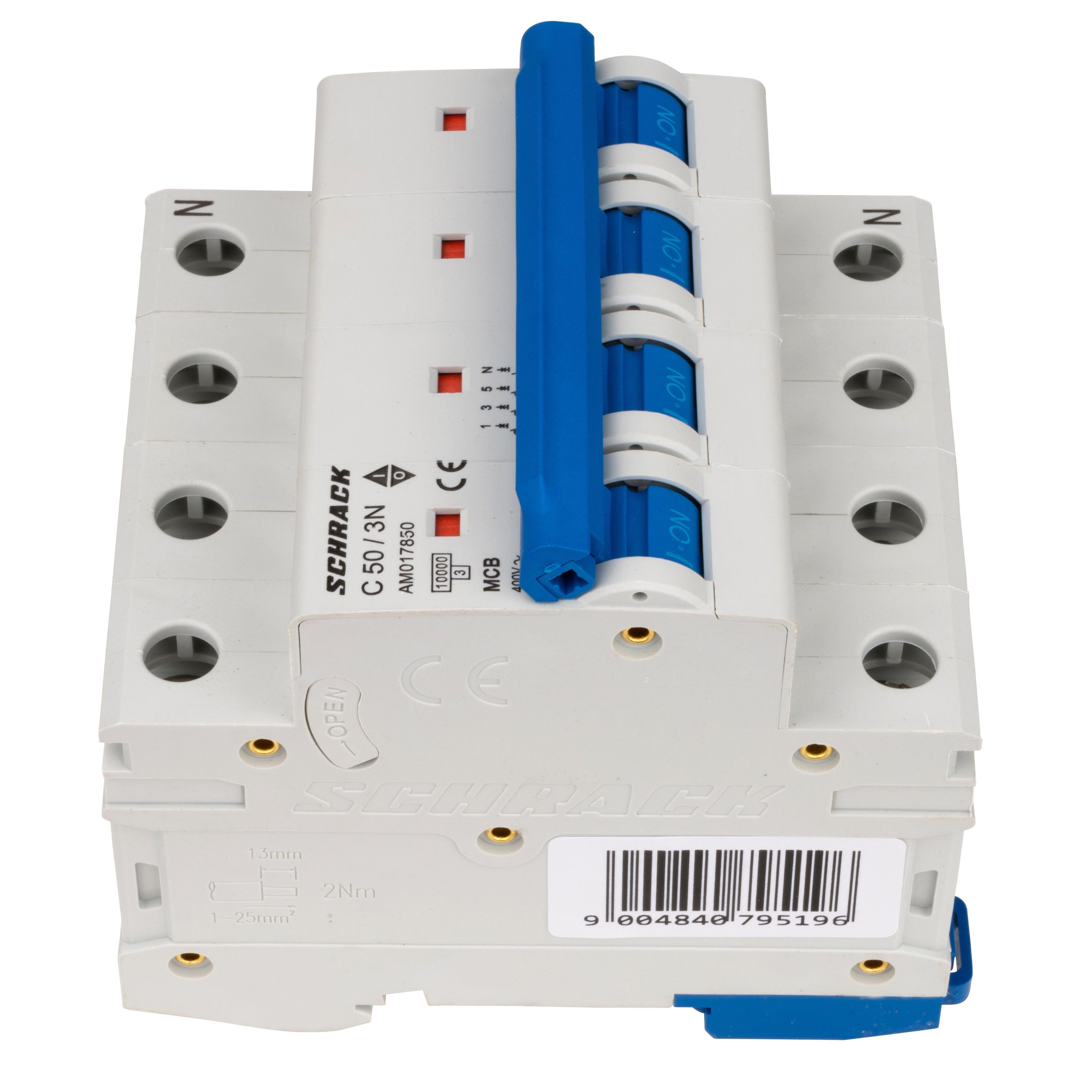

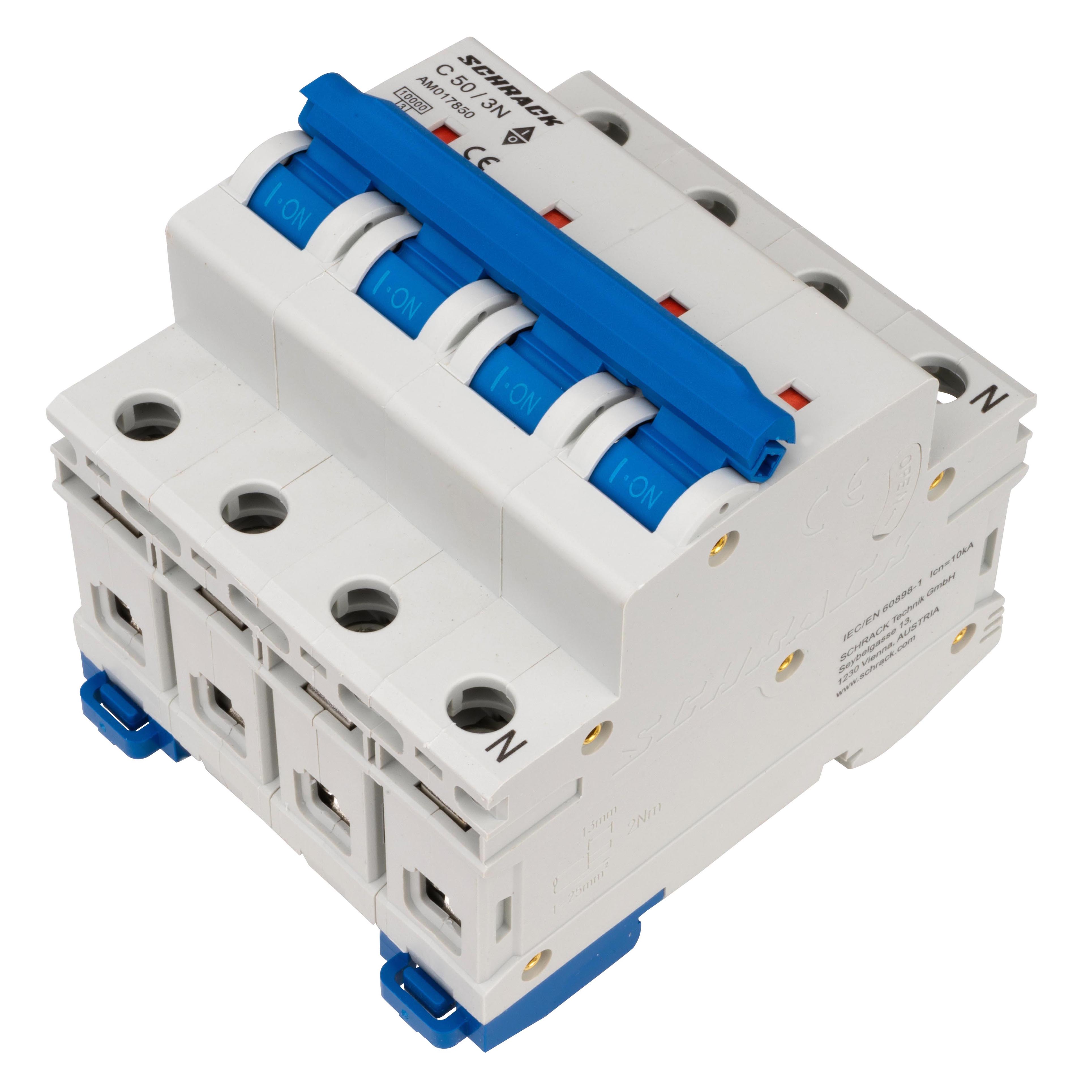

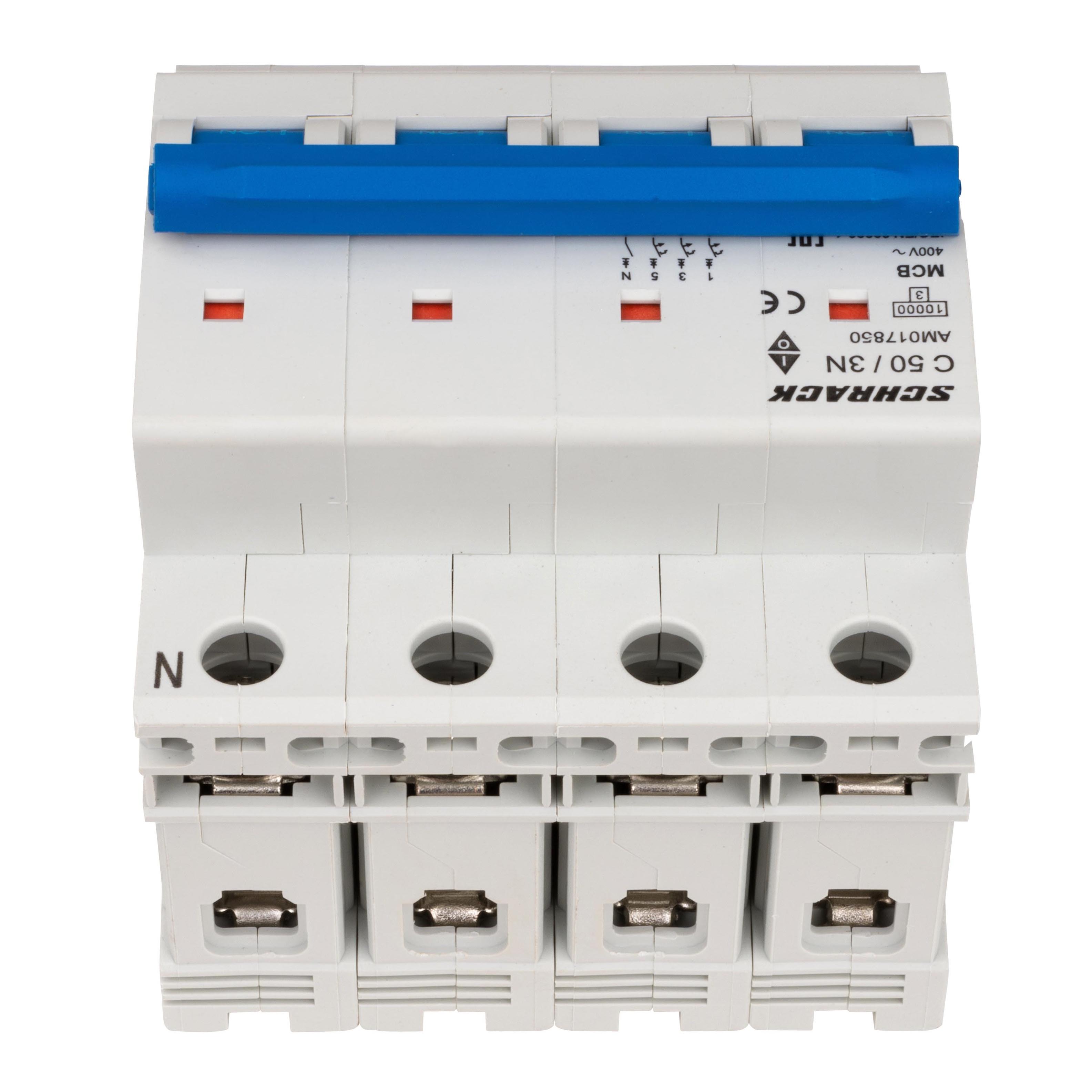

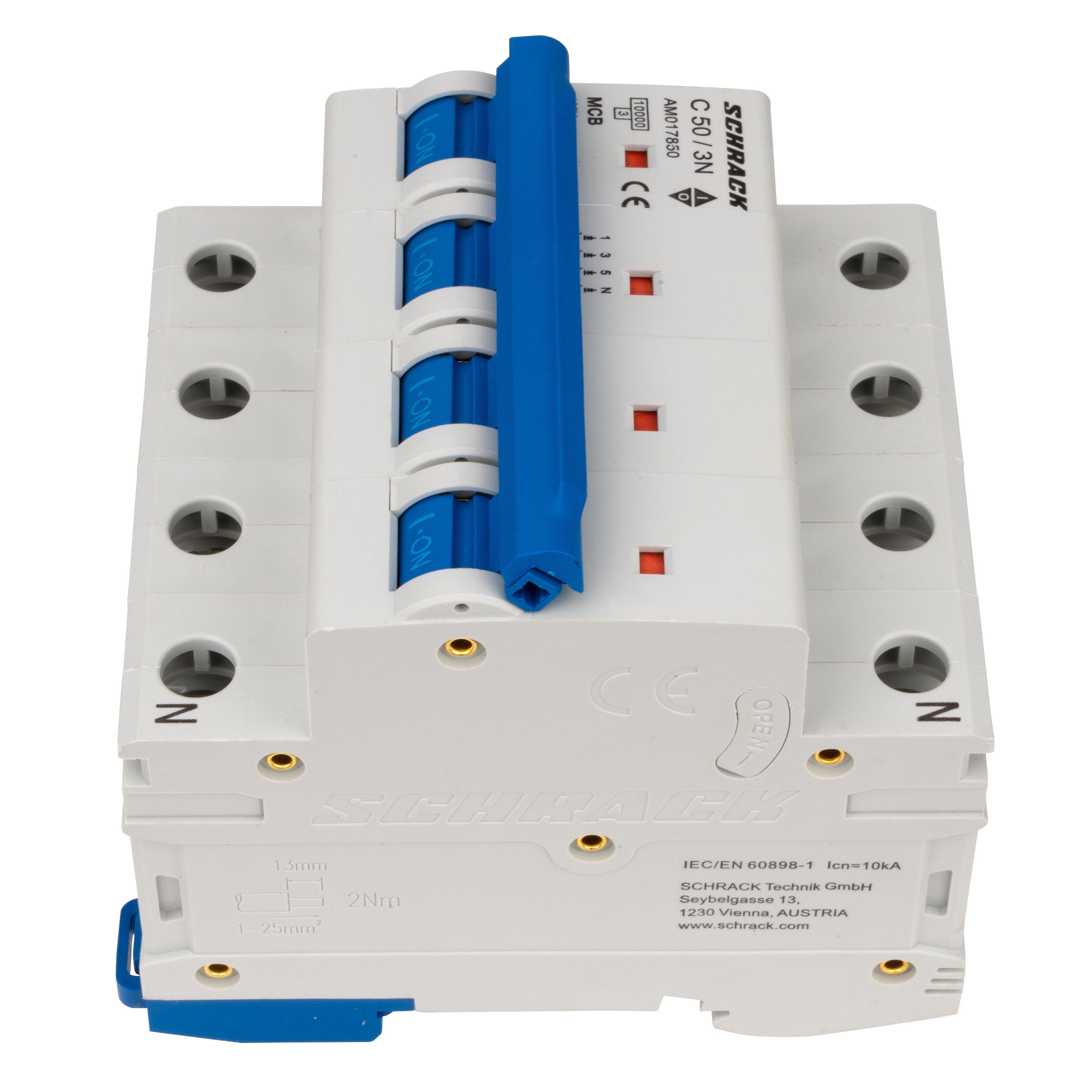

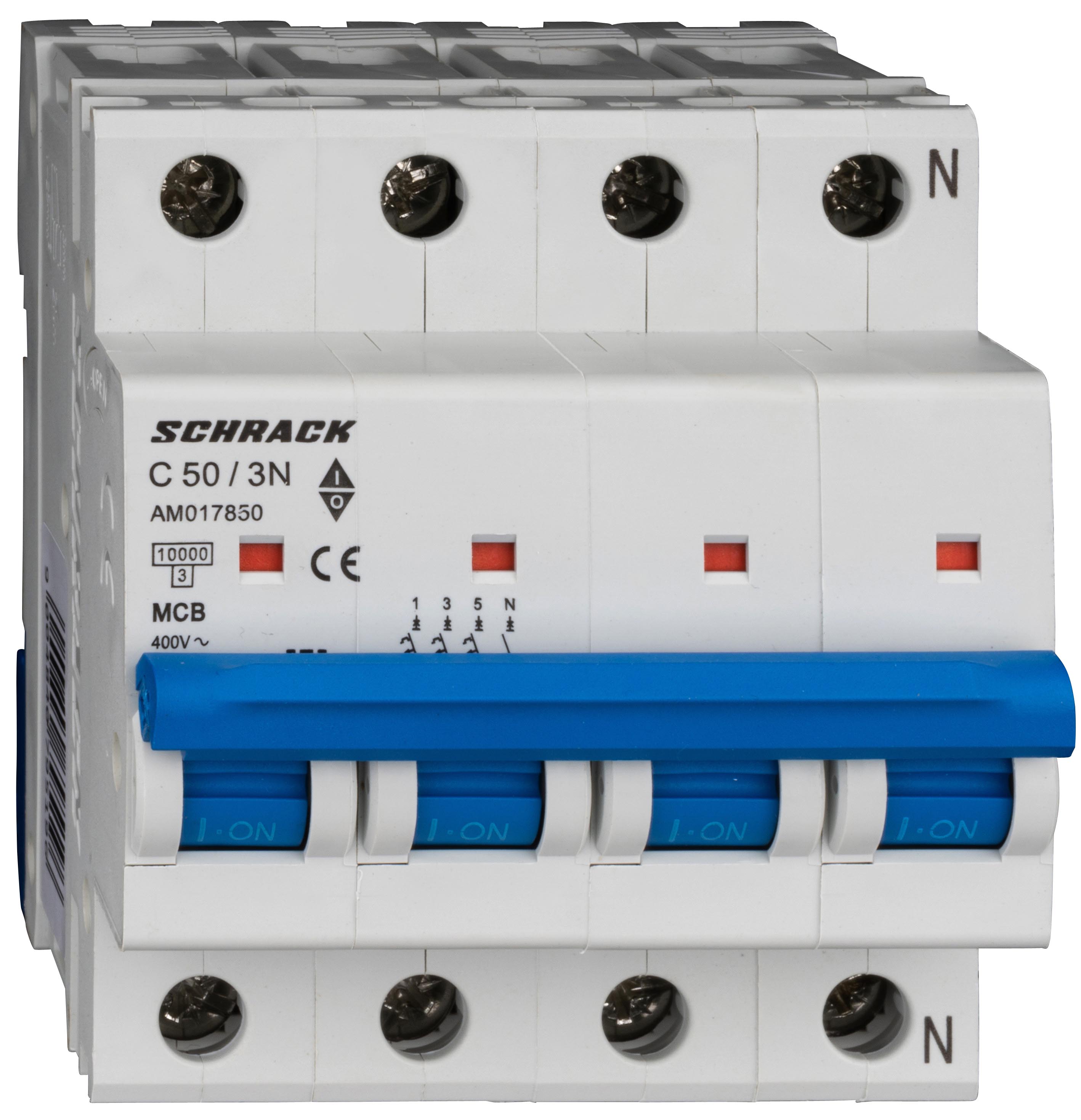

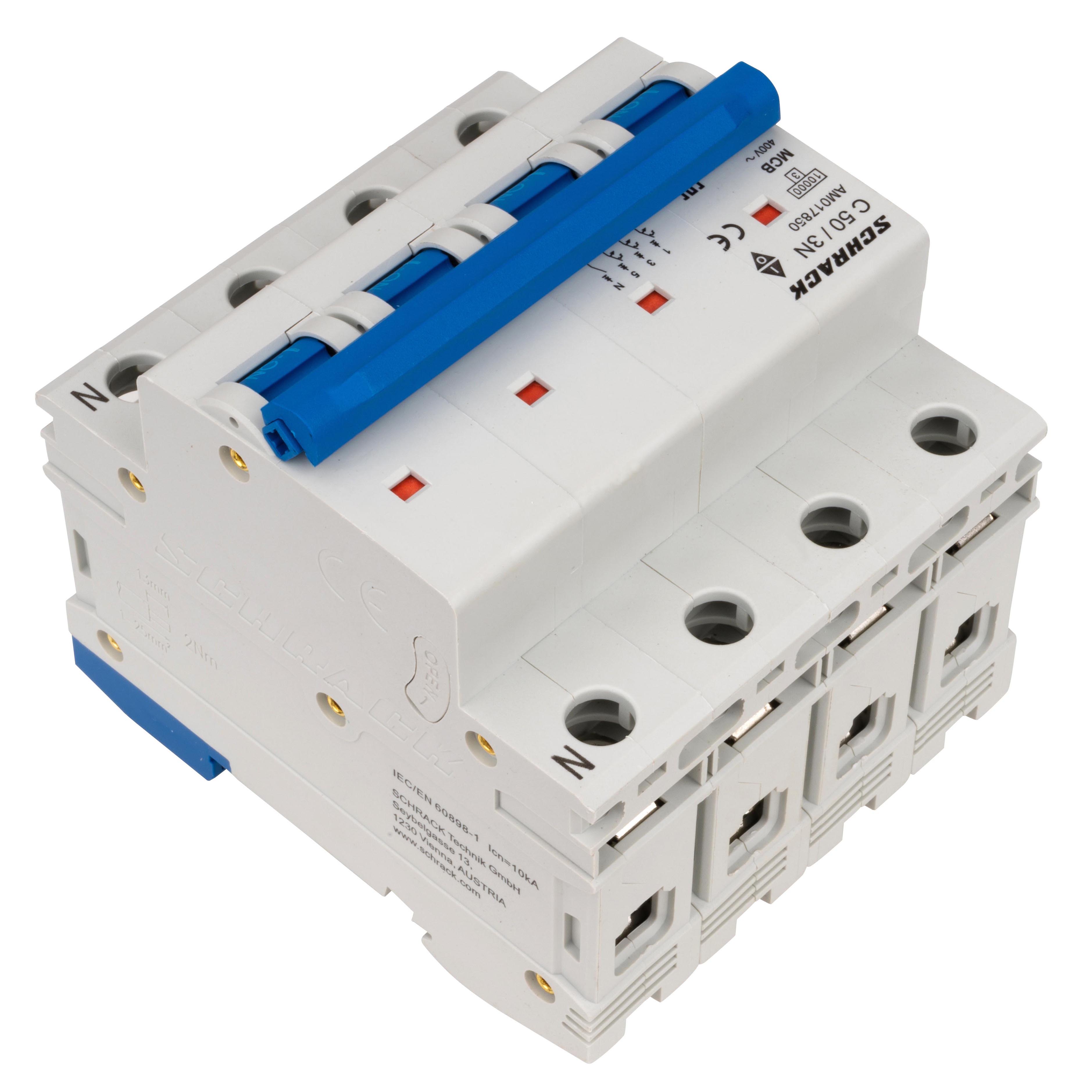

Automatic Circuit Breaker C50A/3+N, 10kA
1 / 9
Automatic Circuit Breaker C50A/3+N, 10kAAutomatic Circuit Breaker C50A/3+N, 10kAAutomatic Circuit Breaker C50A/3+N, 10kAAutomatic Circuit Breaker C50A/3+N, 10kAAutomatic Circuit Breaker C50A/3+N, 10kAAutomatic Circuit Breaker C50A/3+N, 10kAAutomatic Circuit Breaker C50A/3+N, 10kAAutomatic Circuit Breaker C50A/3+N, 10kAAutomatic Circuit Breaker C50A/3+N, 10kA

Automatic Circuit Breaker C50A/3+N, 10kA

Article: AM017850--

Автоматические выключатели AMPARO

13 550 ₸

In stock
WhatsAppTelegram

The AMPARO series AM10 type automatic circuit breaker is designed to protect electrical circuits from overloads and short-circuit currents. The device has a rated current of 50A with C response characteristic and is suitable for operation with three-phase supply plus neutral (3+N).

Technical Parameters:

  • Breaking capacity: 10 kA
  • Execution: alternating current (AC-MCB)
  • Operating temperature range: from -25°C to +70°C
  • Power loss at rated current: 17.25 W
  • Overall dimensions: 86 × 72 × 77 mm
  • Weight: 0.41 kg

Standards Compliance: The device is developed in accordance with EN 60898-1:2019 and IEC 60898-1, which ensures reliable operation as part of low-voltage distribution systems.

Manufacturer: Schrack (Austria)

Available Packaging Options: 1 pc., 3 pcs., 45 pcs.

EAN Code9004840795196
Net Length86.00 mm
Net Width72.00 mm
Net Height77.00 mm
Net Weight0.41 kg
Power Loss17.25 W
Min. Ambient Temperature-25°C
Max. Ambient Temperature70°C
CharacteristicC
Poles3+N
Current Rating50 A
TypeAM10
SeriesAMPARO
Breaking Capacity10 kA
ExecutionAC-MCB
StandardEN 60898-1:2019, IEC 60898-1
ManufacturerSchrack
Packaging1 pc., 3 pcs., 45 pcs.
