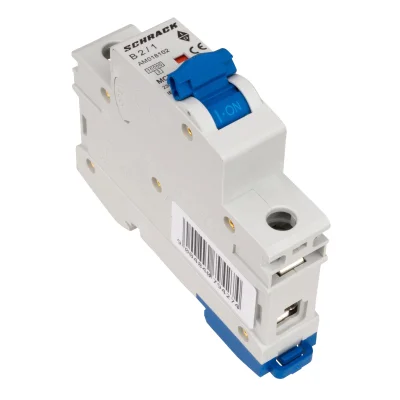

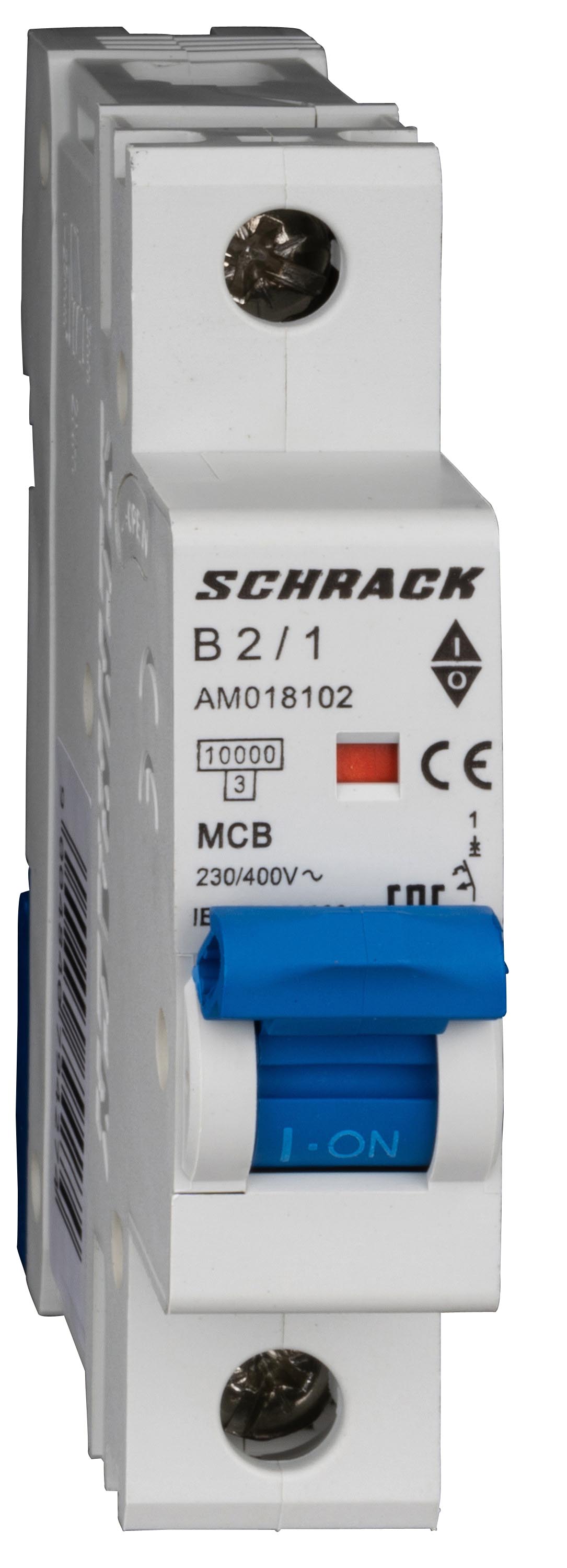

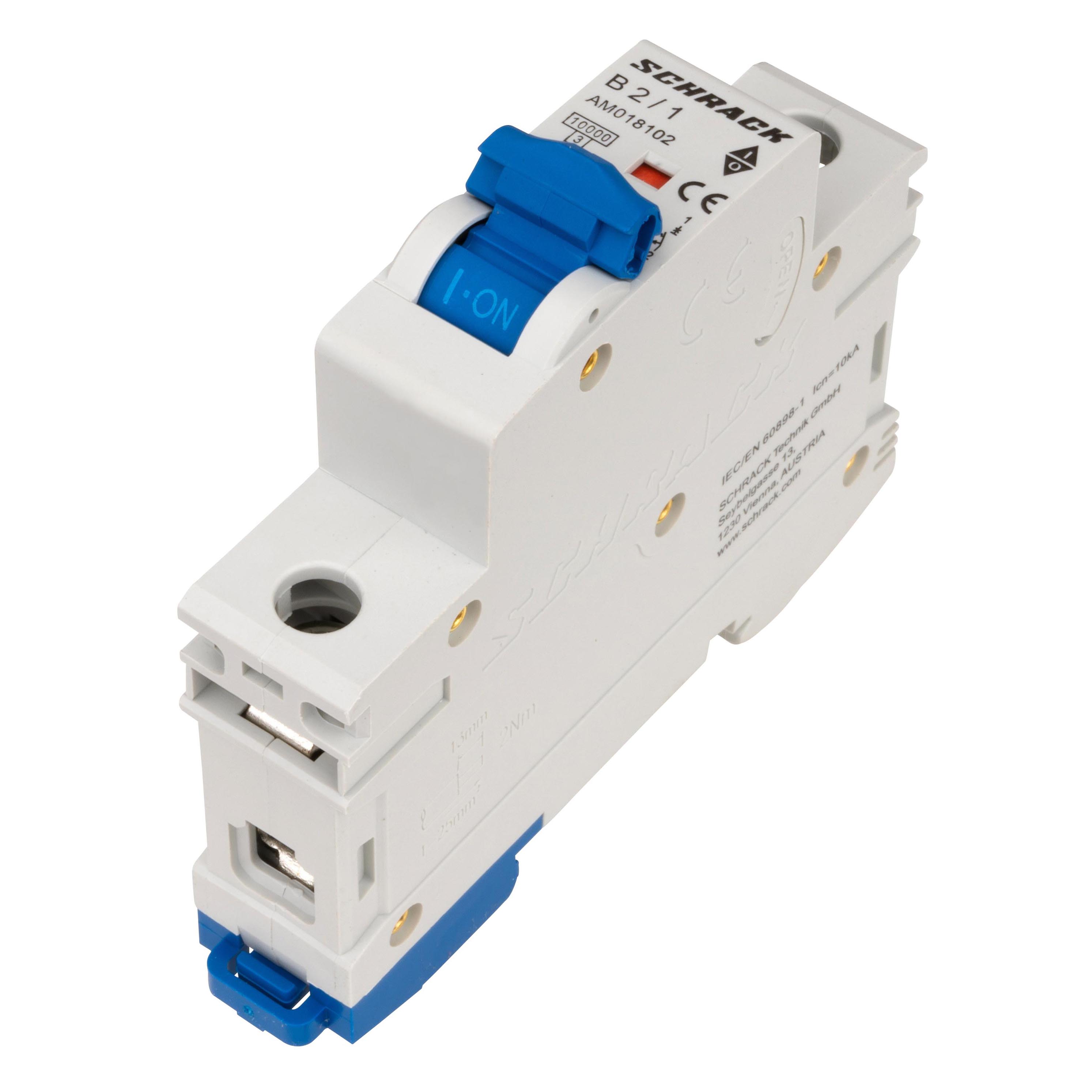

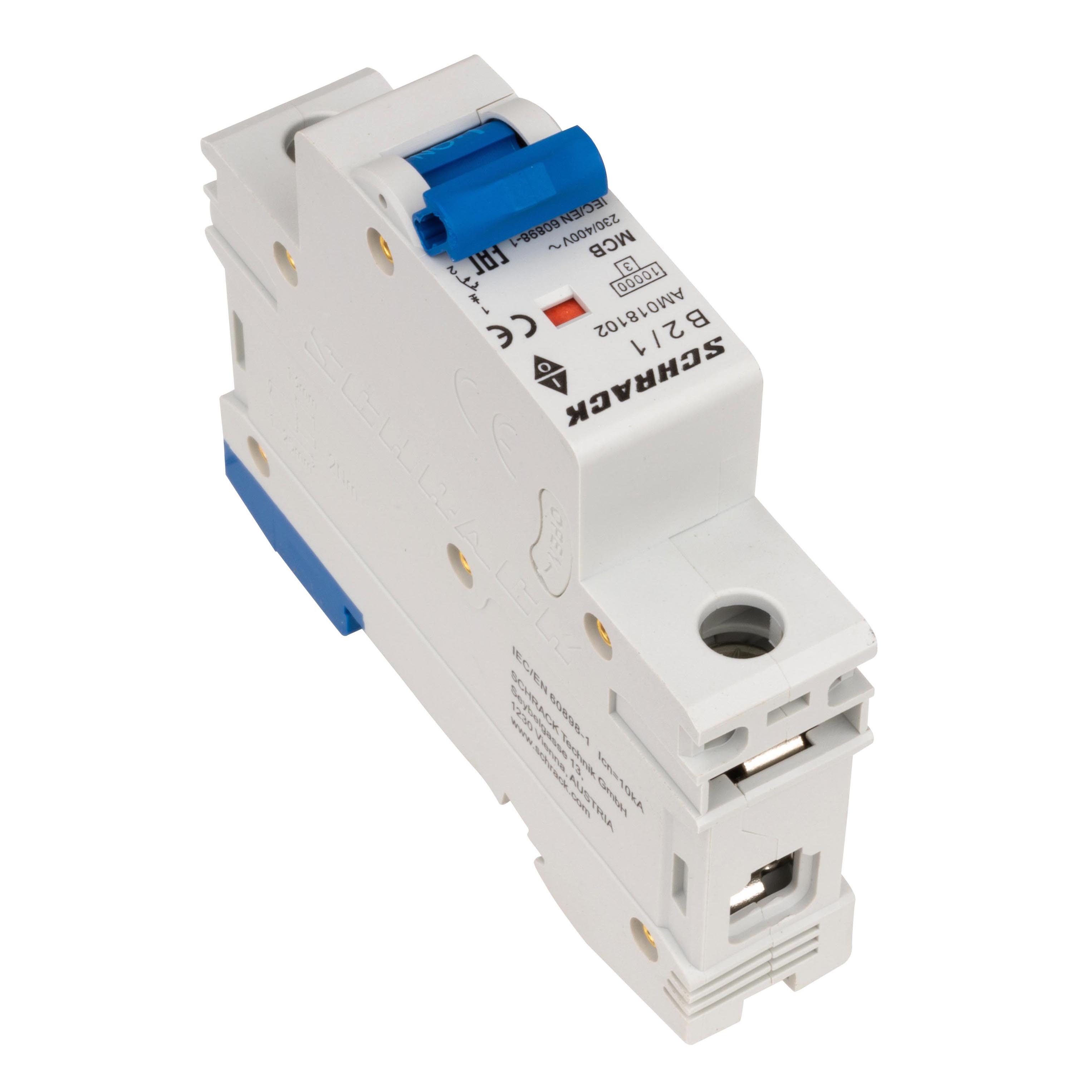

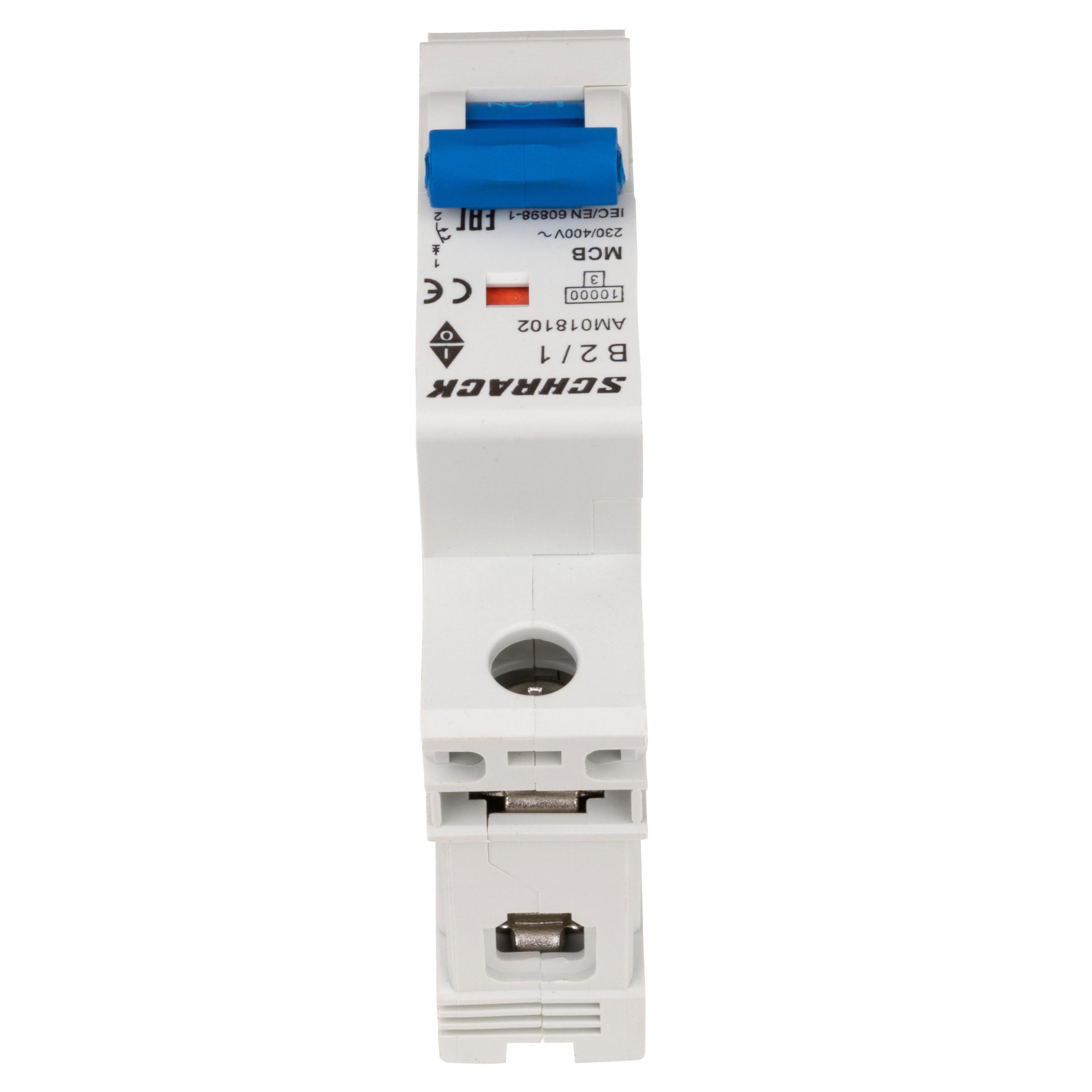

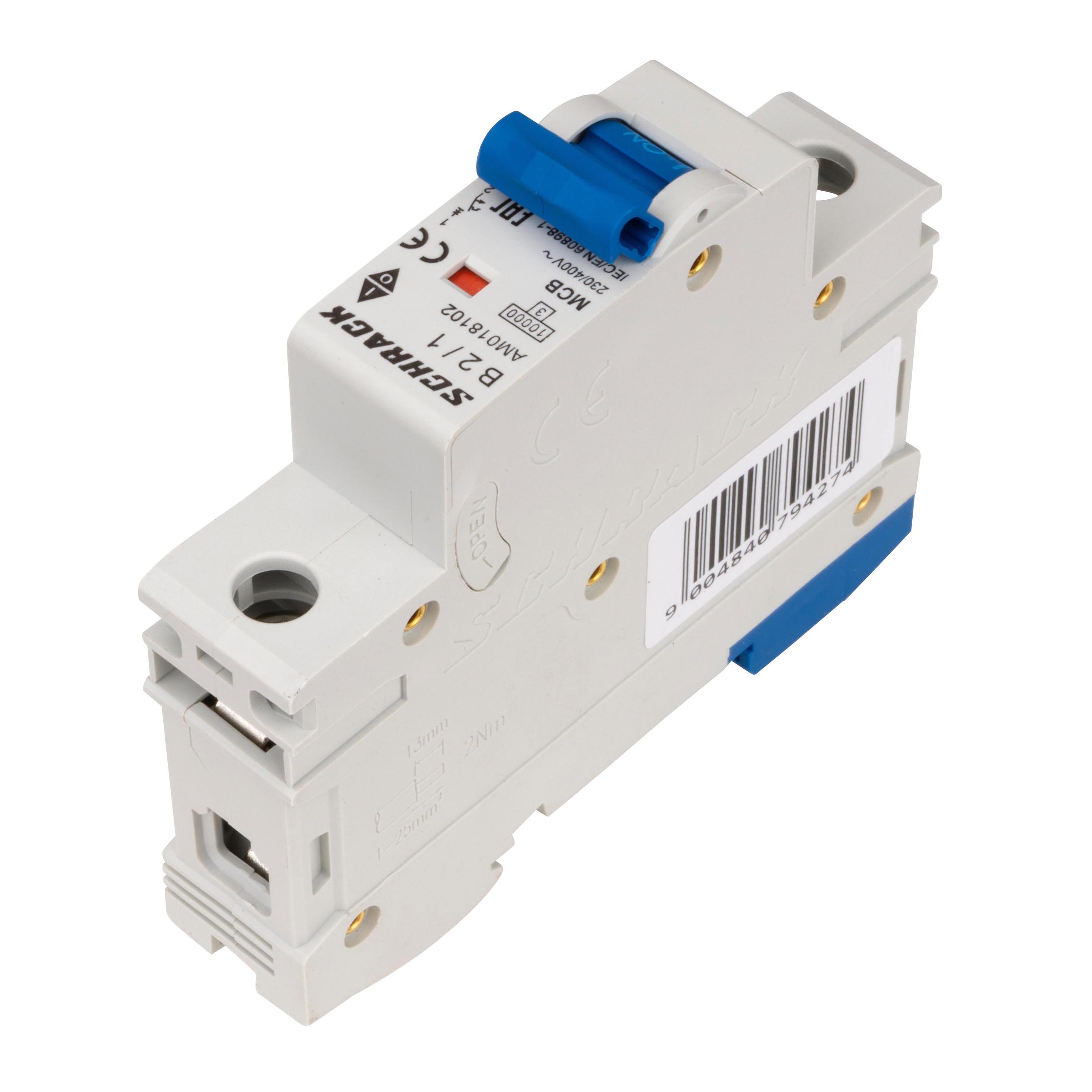

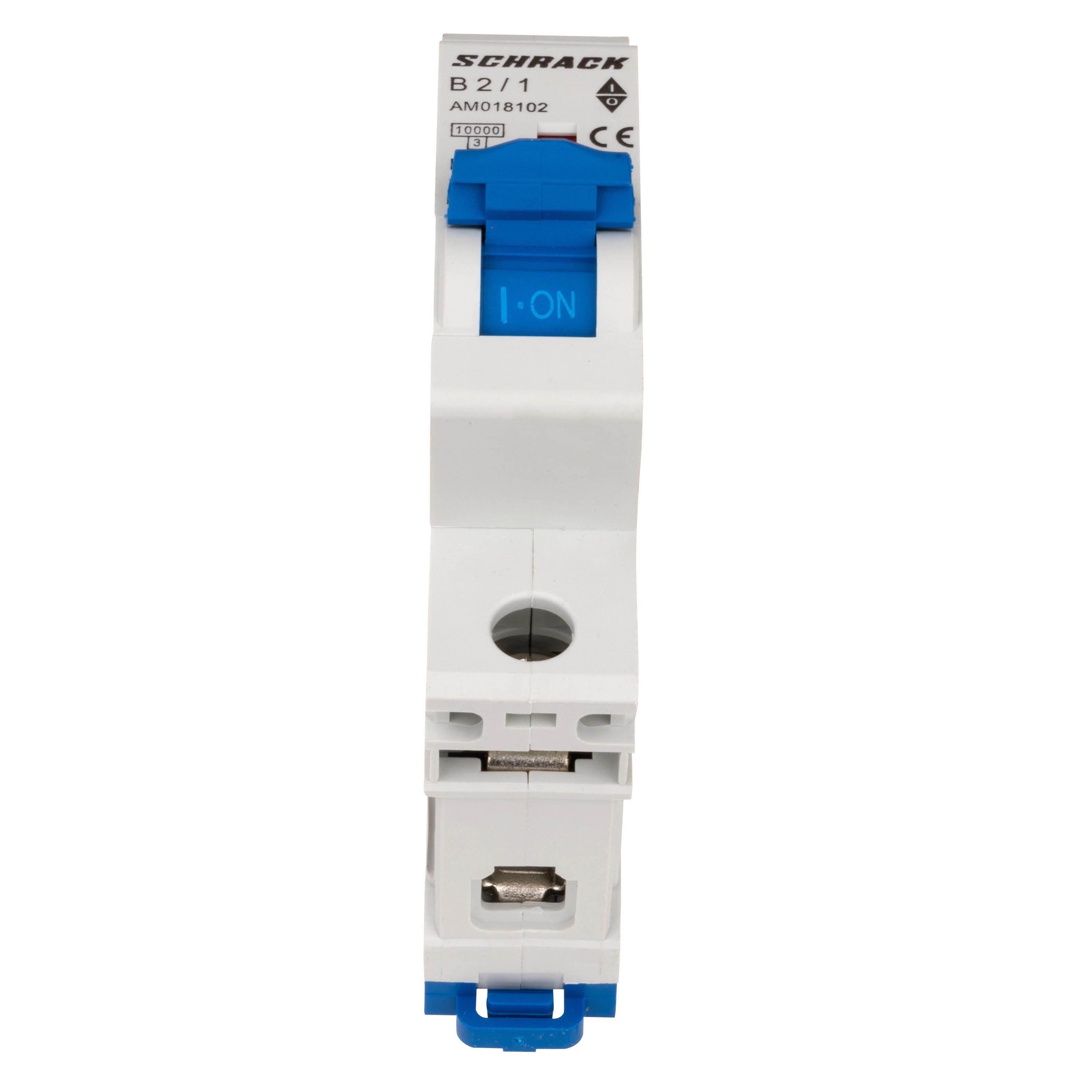

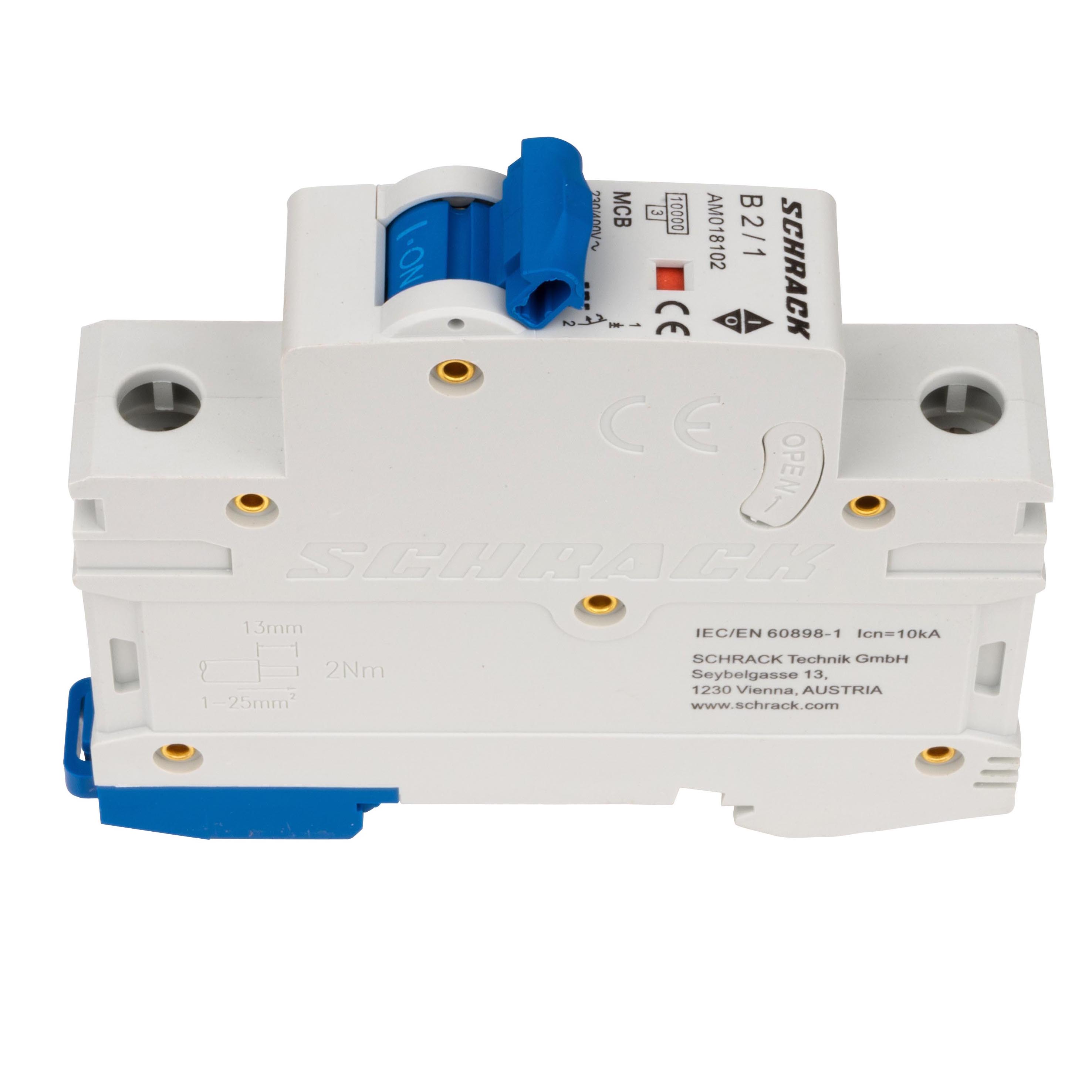

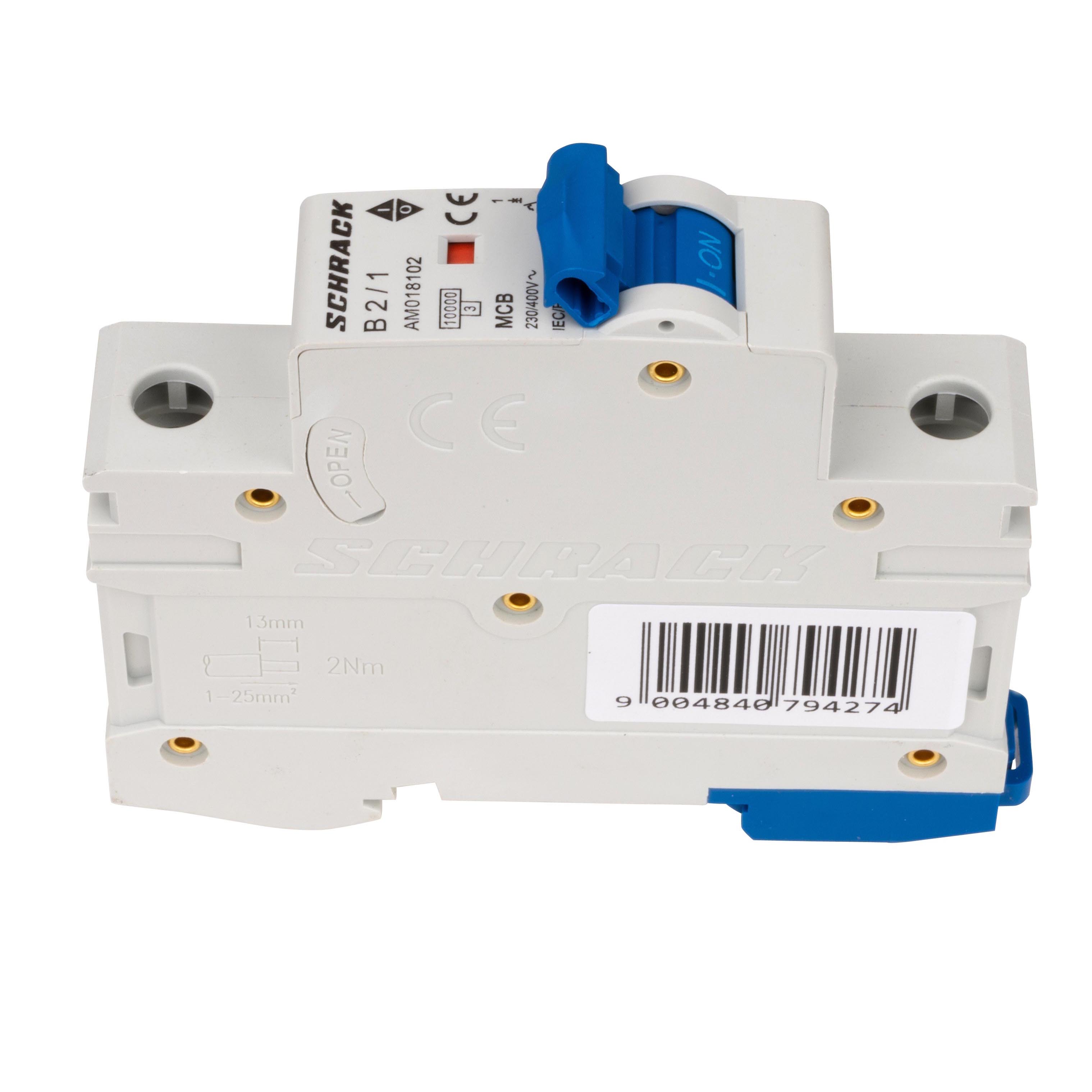

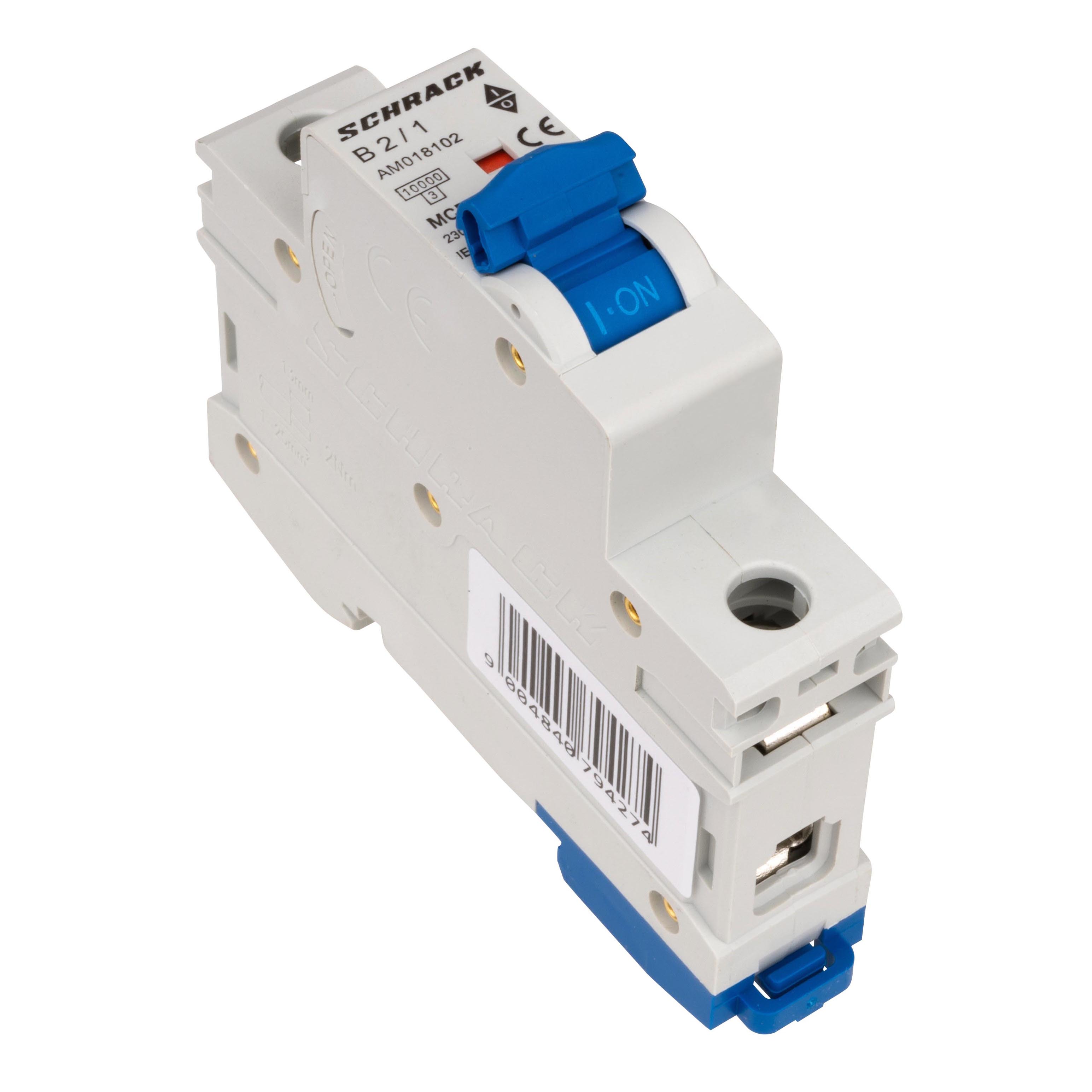

Automatic Circuit Breaker B2A/1, 10kA
1 / 9
Automatic Circuit Breaker B2A/1, 10kAAutomatic Circuit Breaker B2A/1, 10kAAutomatic Circuit Breaker B2A/1, 10kAAutomatic Circuit Breaker B2A/1, 10kAAutomatic Circuit Breaker B2A/1, 10kAAutomatic Circuit Breaker B2A/1, 10kAAutomatic Circuit Breaker B2A/1, 10kAAutomatic Circuit Breaker B2A/1, 10kAAutomatic Circuit Breaker B2A/1, 10kA

Automatic Circuit Breaker B2A/1, 10kA

Article: AM018102--

Автоматические выключатели AMPARO

3 771 ₸

To order
WhatsAppTelegram

Single-pole automatic circuit breaker of the AMPARO series, designed to protect electrical circuits from overloads and short circuits. Used in distribution panels and control boards.

Main Characteristics:

  • Rated Current: 2A
  • Breaking Capacity: 10kA
  • Trip Characteristic: B (tripping at 3-5 In)
  • Number of Poles: 1
  • Execution: AC-MCB (AC automatic circuit breaker)
  • Standards: EN 60898-1:2019, IEC 60898-1
  • Manufacturer: Schrack

Technical Parameters:

  • Power Loss: 2.30W
  • Temperature Range: -25°C to +70°C
  • Dimensions: 86 × 18 × 77 mm
  • Weight: 0.11 kg
  • EAN Code: 9004840794274

Packaging Options: 1 pcs., 12 pcs., 180 pcs.

EAN Code9004840794274
Net Length86.00mm
Net Width18.00mm
Net Height77.00mm
Net Weight0.11kg
Power Loss2.30W
Min. Ambient Temperature-25°C
Max. Ambient Temperature70°C
CharacteristicB
Poles1
Current Rating2A
TypeAM10
SeriesAMPARO
Breaking Capacity10kA
ExecutionAC-MCB
StandardEN 60898-1:2019, IEC 60898-1
ManufacturerSchrack
Packaging1 pcs., 12 pcs., 180 pcs.
