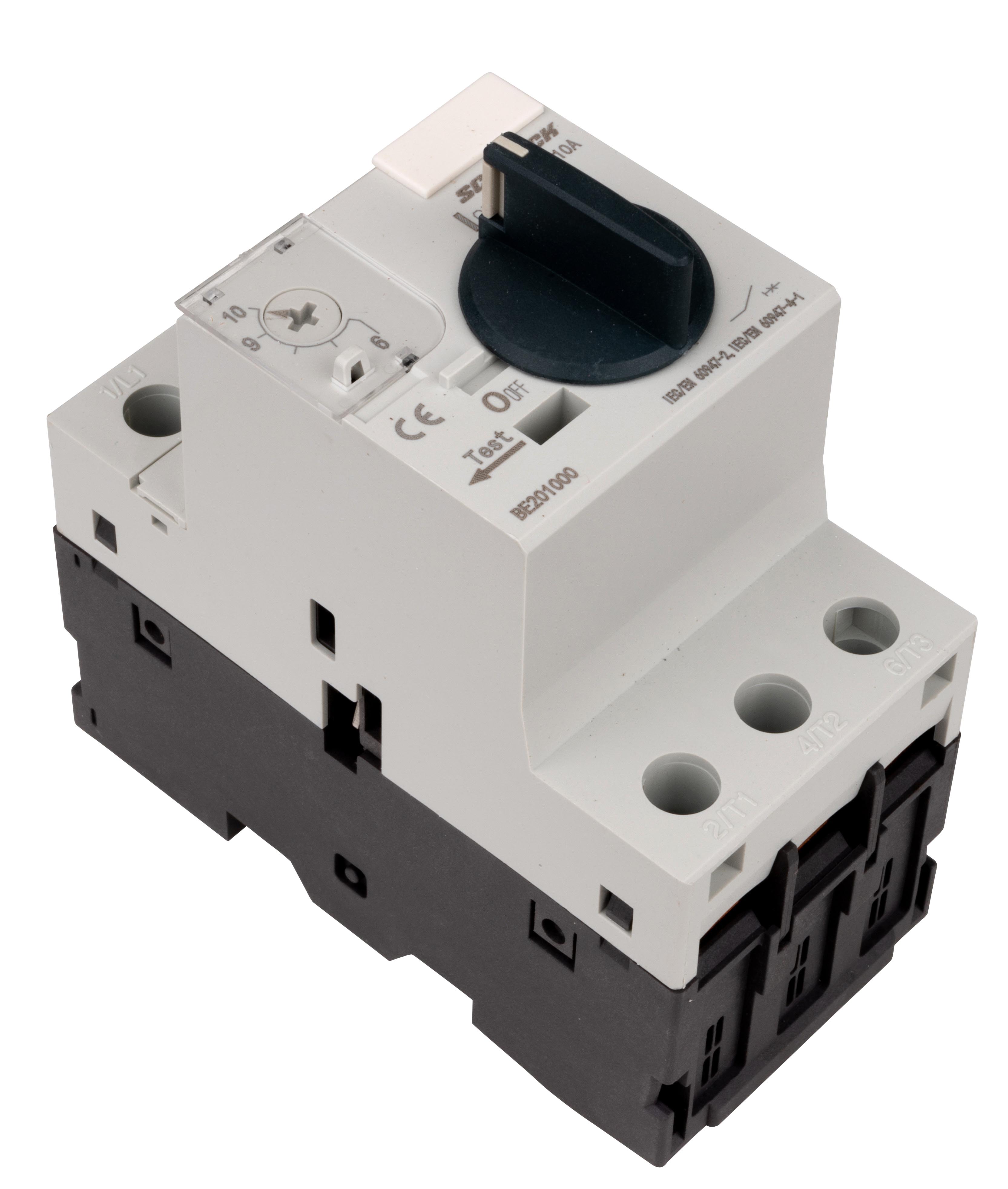

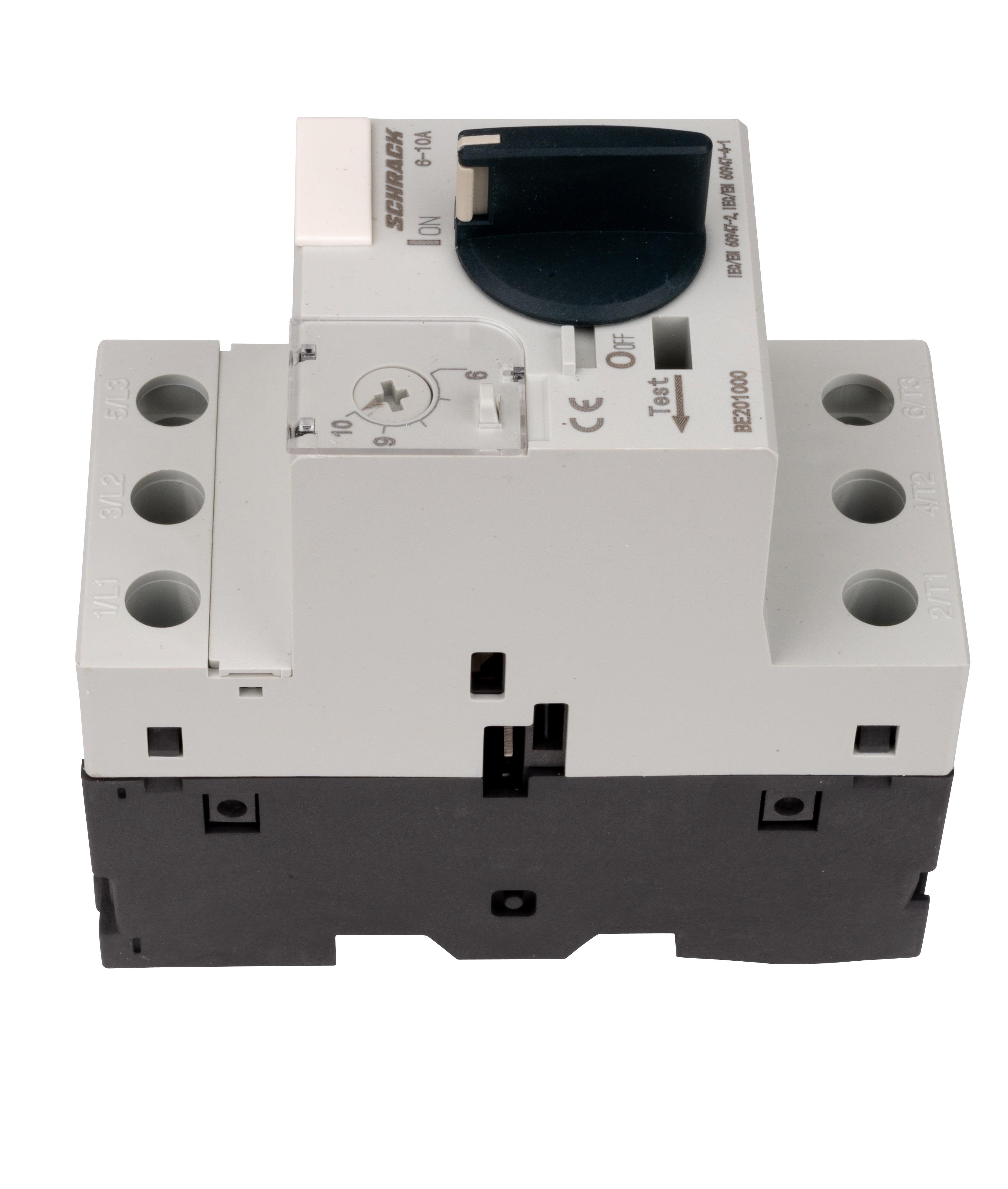

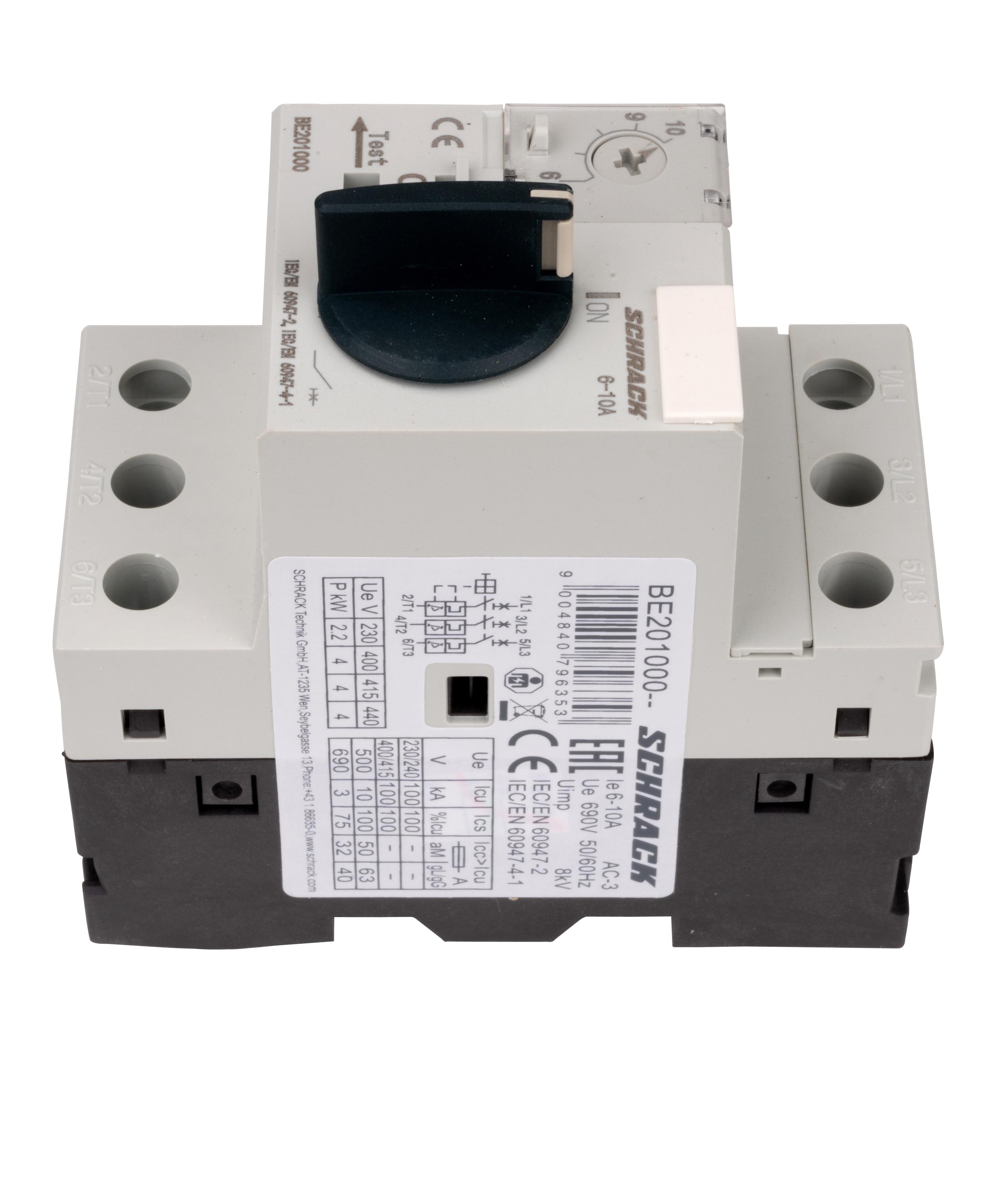

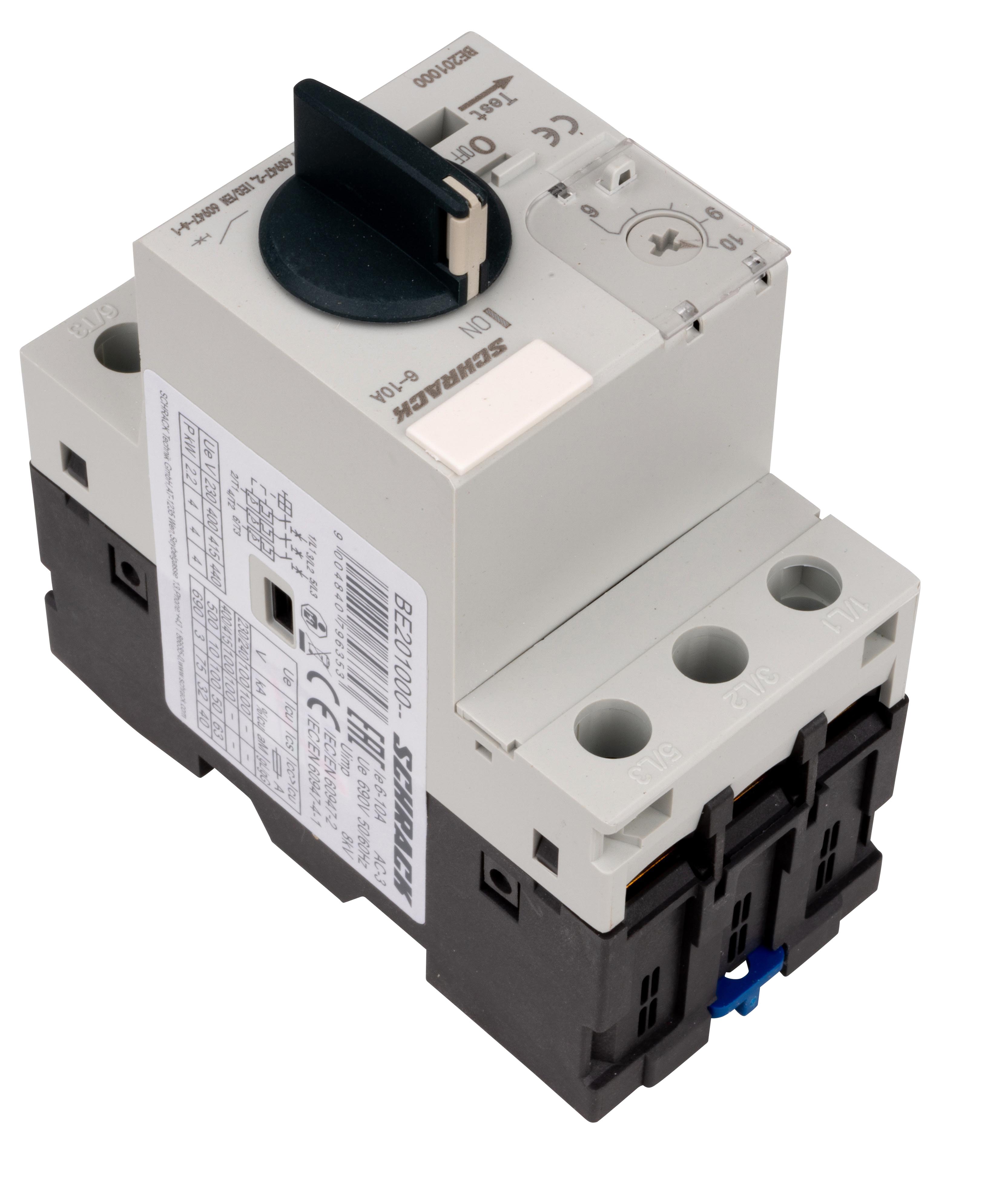

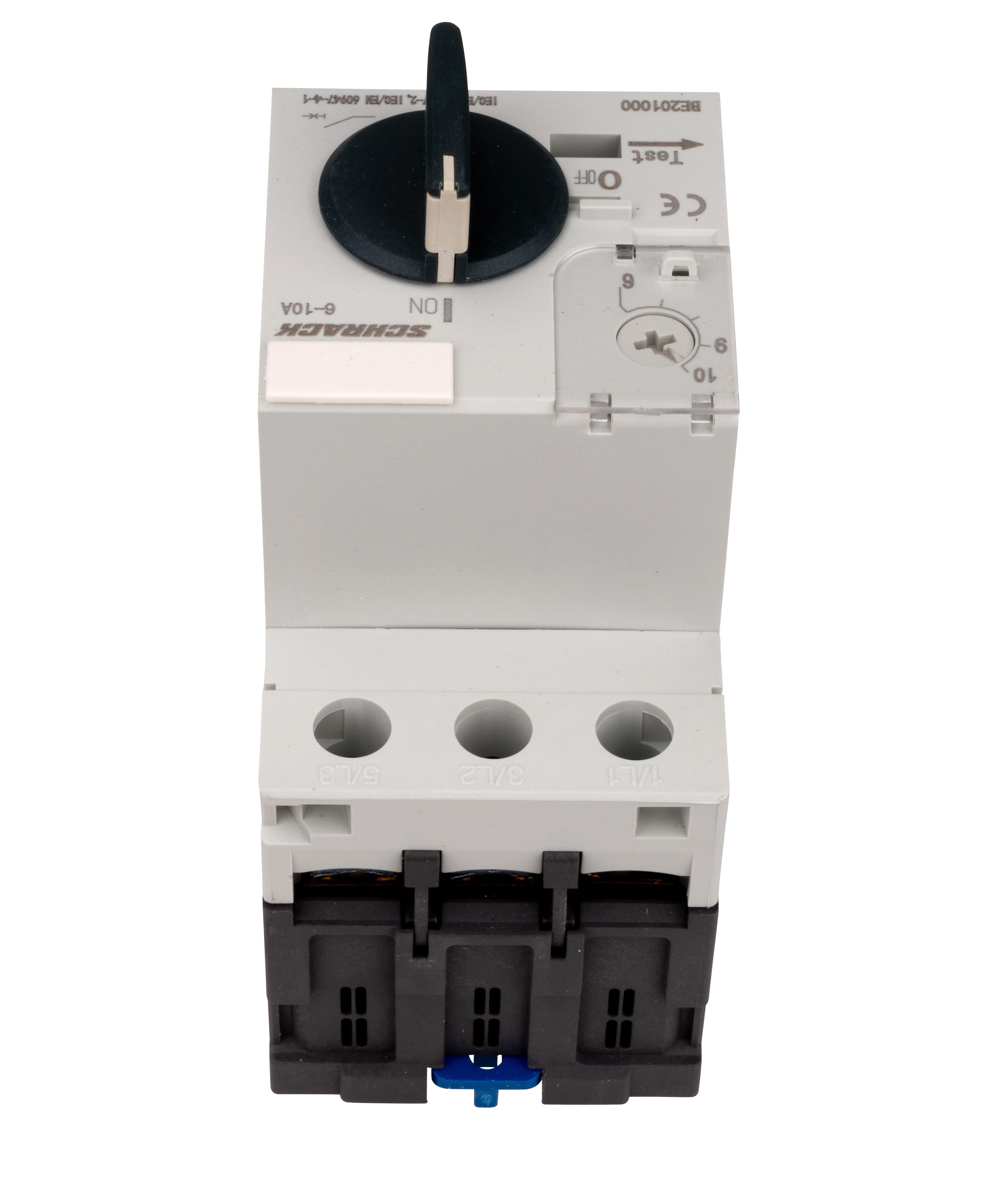

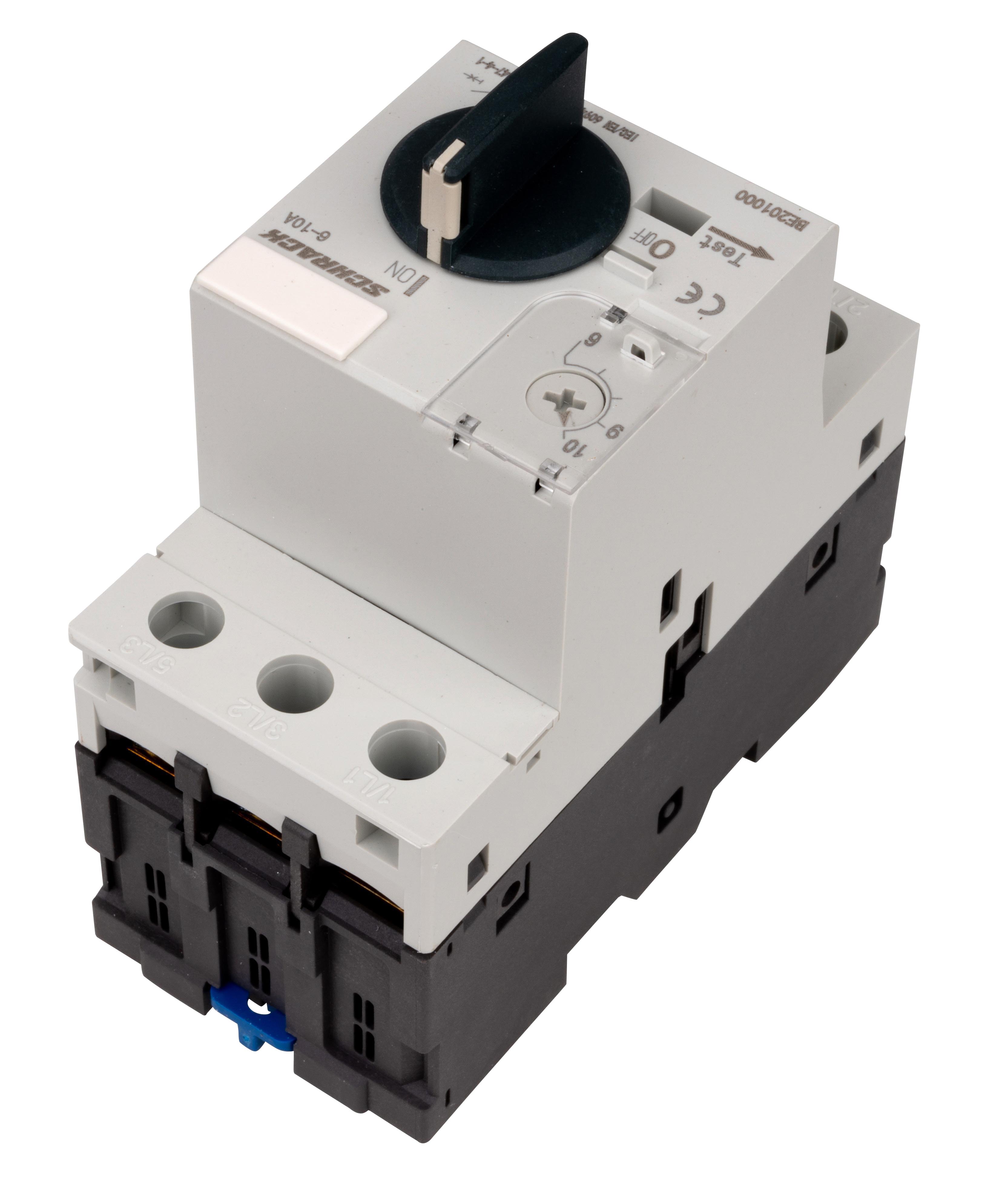

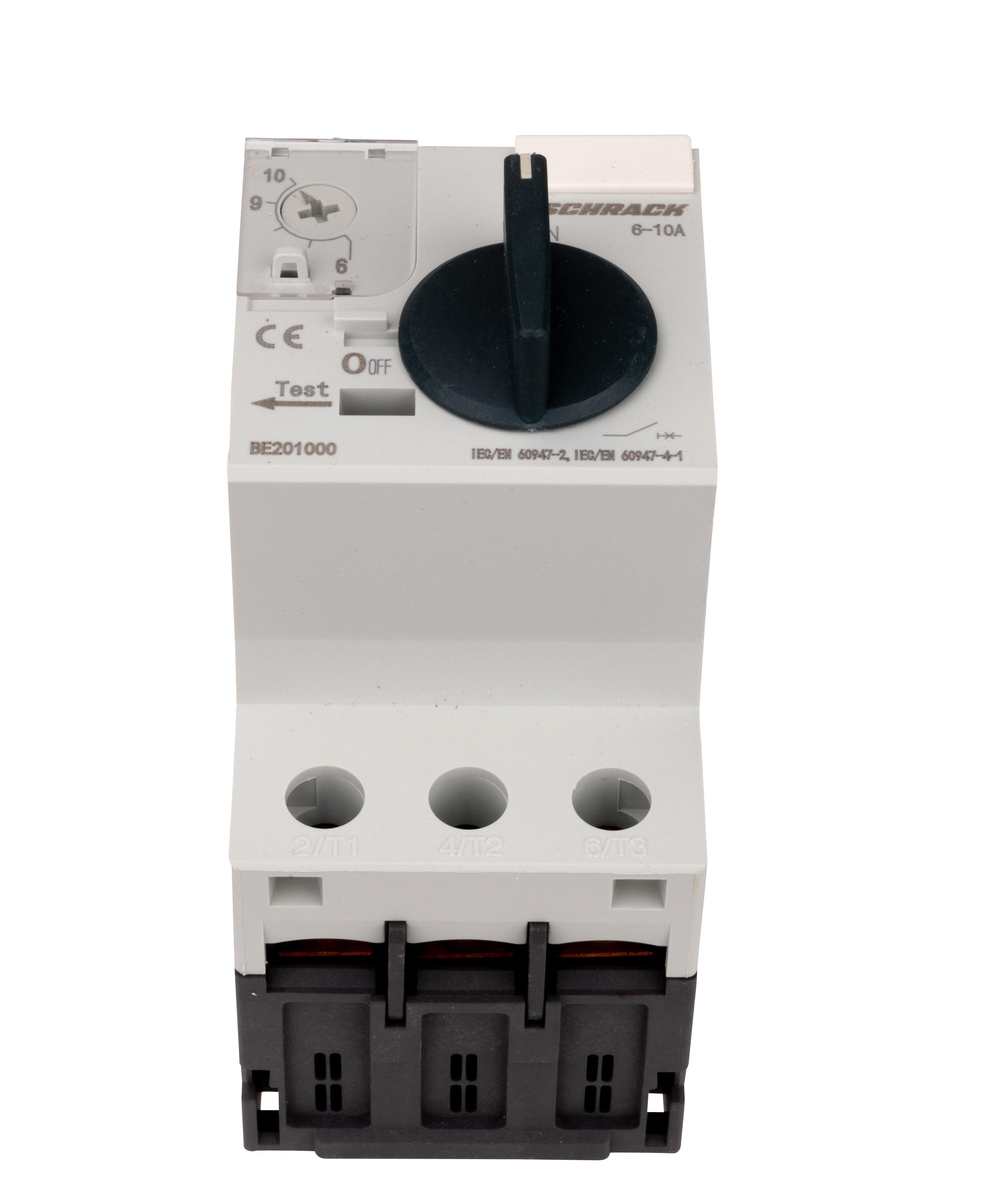

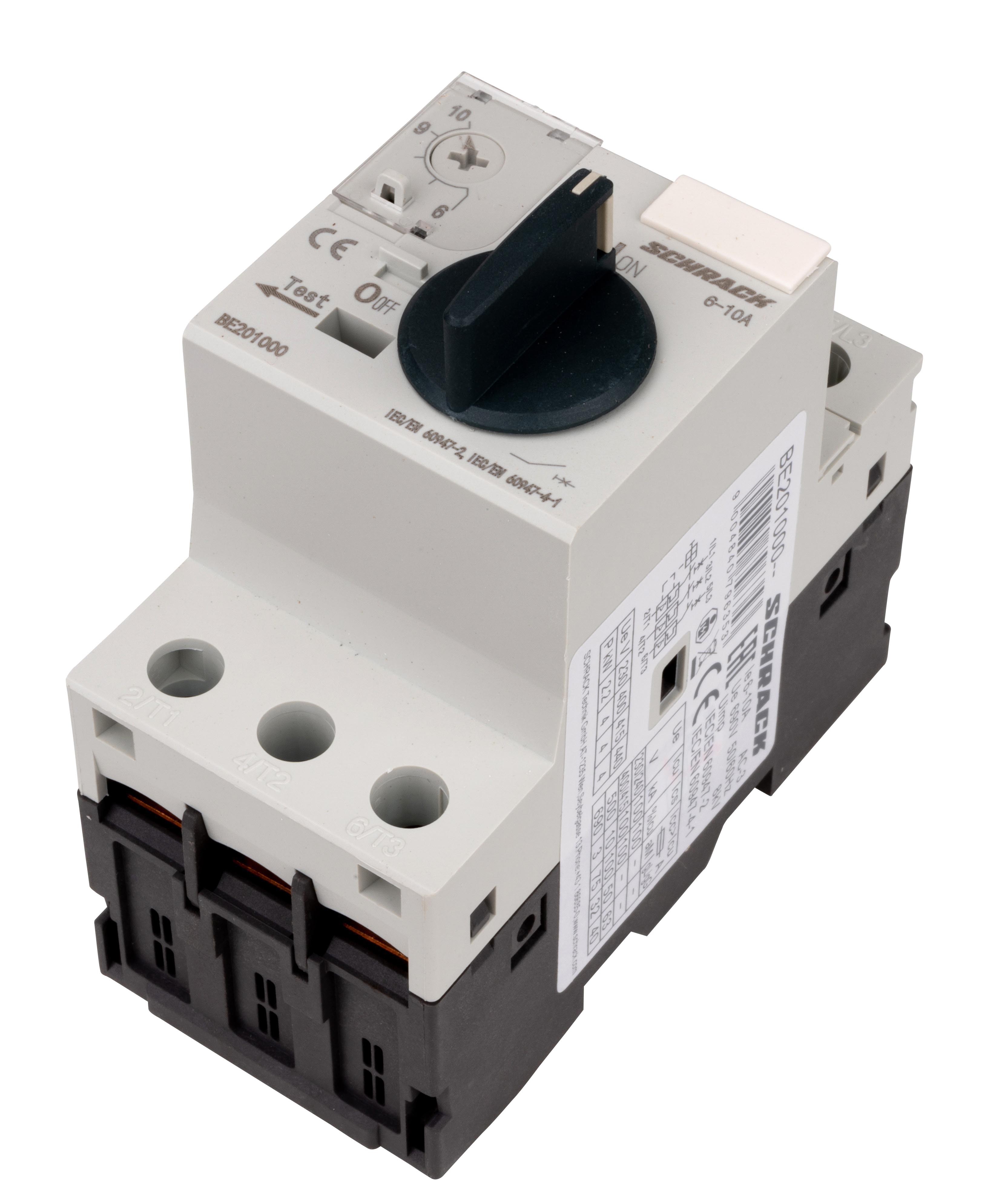

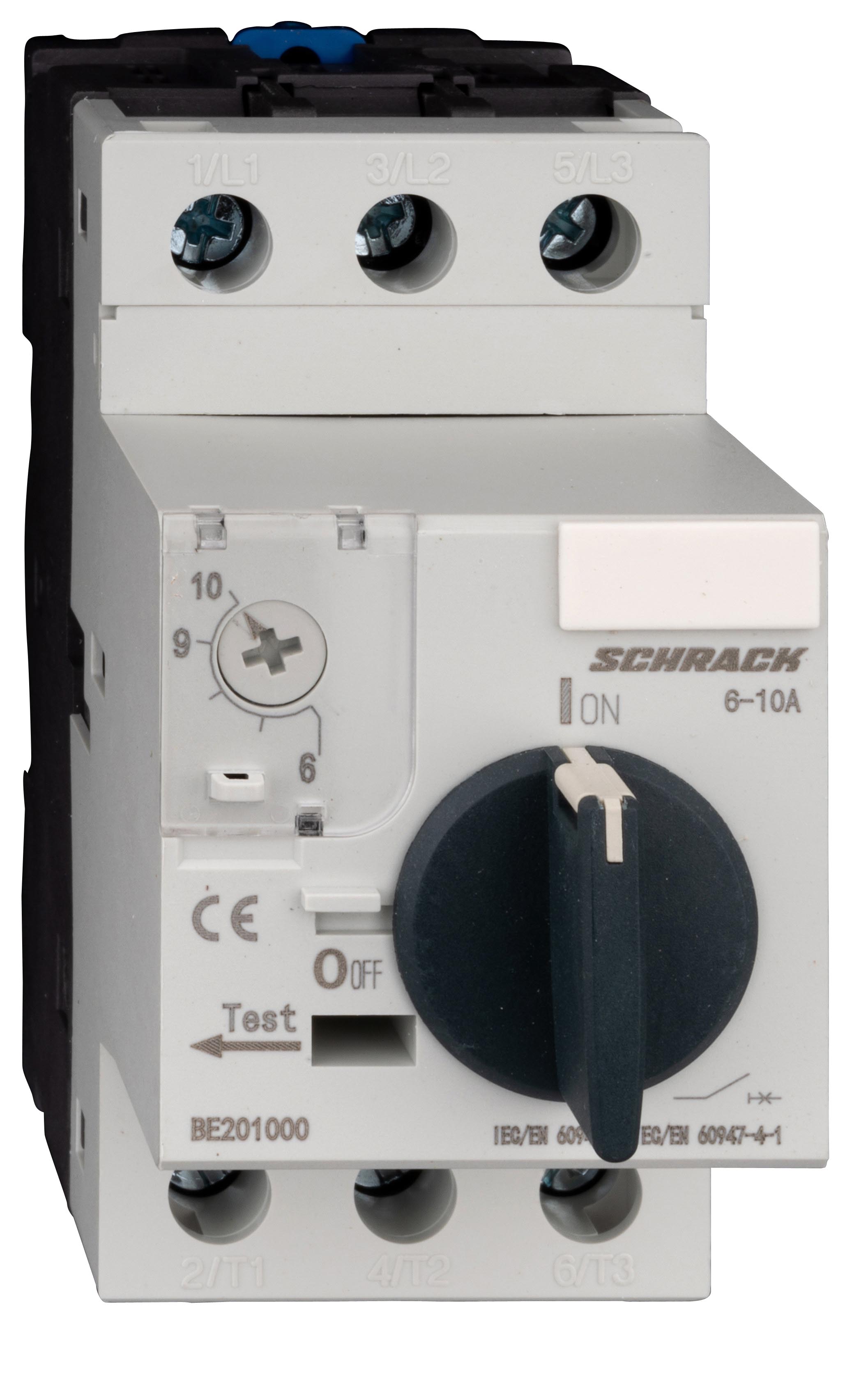

Motor Protection Switch 6-10/3 BE2

Motor Protection Switch 6-10/3 BE2 — three-pole motor protection switch with adjustable current range of 6-10A. Designed for protection of asynchronous motors against overload and short circuit.

Main Characteristics:

• Rated operating voltages: 230/240V, 400/415V, 440V, 500V, 690V
• Rated frequency: 50/60Hz
• Number of poles: 3 poles
• Current adjustment range: 6-10A
• Rated current at AC-3: 10A
• Short circuit current: 138A
• Release class: Class 10A
• Rated insulation voltage [Ui]: 690V
• Rated impulse withstand voltage [Uimp]: 8000V

Design Features:

• Type of overload release: Thermal
• Main contacts: 3 make contacts
• Auxiliary contacts: 1 make contact + 1 break contact
• Mechanical endurance: 100000 operations (main and auxiliary contacts)
• Maximum switching frequency at AC-3: 30 per hour
• Degree of protection: IP20
• Protection against electrical shock: Finger-proof

Technical Parameters:

• Power loss: 6.0W
• Type of connection: Screw terminal
• Cable cross-section: 8.8mm²
• Tightening torque of main cable: 1.7Nm
• Tightening torque of control circuit cables: 1.2Nm
• Mounting: U-shaped busbar
• Maximum deviation in vertical direction: 5°
• Maximum deviation in horizontal plane: 5°

Operating Conditions:

• Ambient temperature: from -5°C to +40°C
• Relative humidity: up to 50%
• Maximum altitude above sea level: 2000m
• Pollution degree: 3

Standards compliance: IEC EN 60947-2, IEC EN 60947-4-1

Dimensions and Weight:

• Width: 44.50mm
• Height: 94.90mm
• Depth: 91.30mm
• Net weight: 0.29kg

Manufacturer: Schrack

Package contents: 1 pc., package of 60 pcs.
