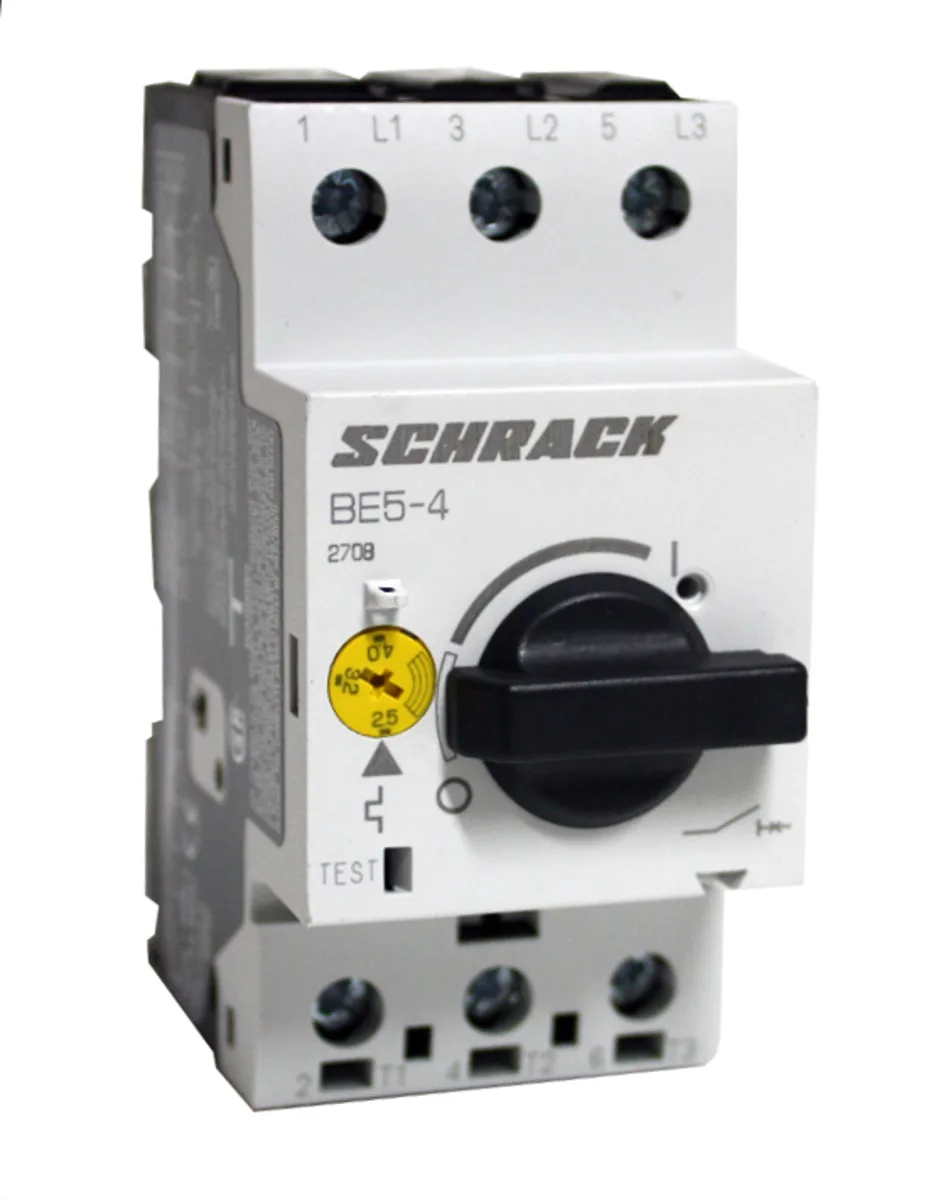

Motor Protection Switch 2.5-4.0A/3 BE5
Article: BE504000--
26 160 ₸
To order
Motor protection switch designed for protecting three-phase asynchronous electric motors from overload and short circuit conditions. The device ensures reliable disconnection when the set current threshold is exceeded and guarantees safety of electrical equipment.
Main parameters:
- Current adjustment range: 2.5–4.0 A
- Number of poles: 3 (three-phase network)
- Form factor: BE5 (DIN-rail mounting)
- Rated breaking capacity: 100 kA
- Power loss: 6 W
- Dimensions: 45 × 93 × 76 mm (width × height × depth)
- Weight: 0.30 kg
- Operating temperature range: −25…+55 °C
Application:
Used in distribution cabinets and control panels to protect small and medium-power electric motors from fault conditions. Compatible with standard DIN-rails.
| EAN code | 9004840256215 |
|---|---|
| Width (net) | 45.00 mm |
| Height (net) | 93.00 mm |
| Depth (net) | 76.00 mm |
| Weight (net) | 0.30 kg |
| Power loss | 6.00 W |
| Min. ambient temperature | −25 °C |
| Max. ambient temperature | +55 °C |
| Current range | 2.5–4 A |
| Rated short circuit power | 100 kA |
| Type | Motor protection switch |
| Size | BE5 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 70 pcs. |
