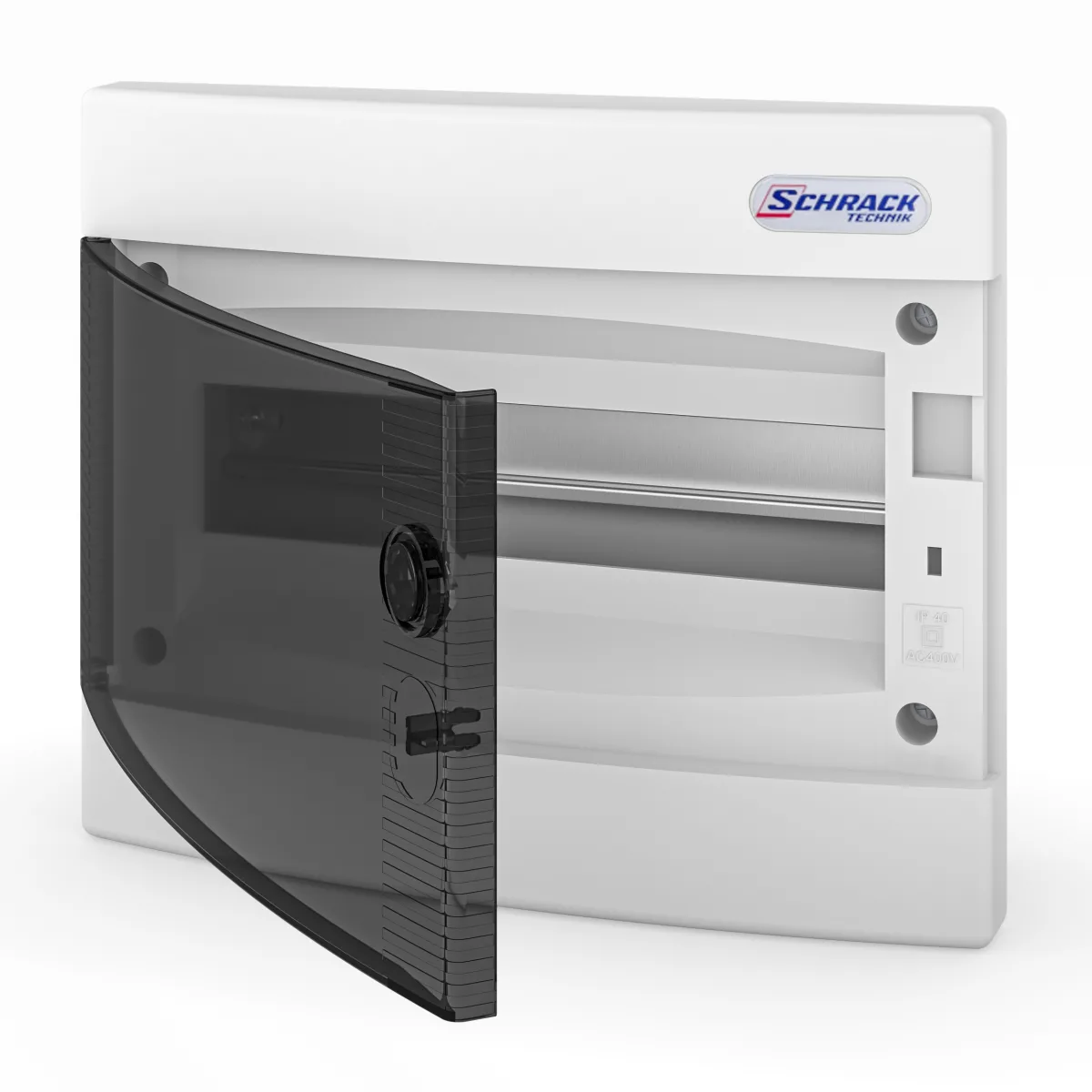

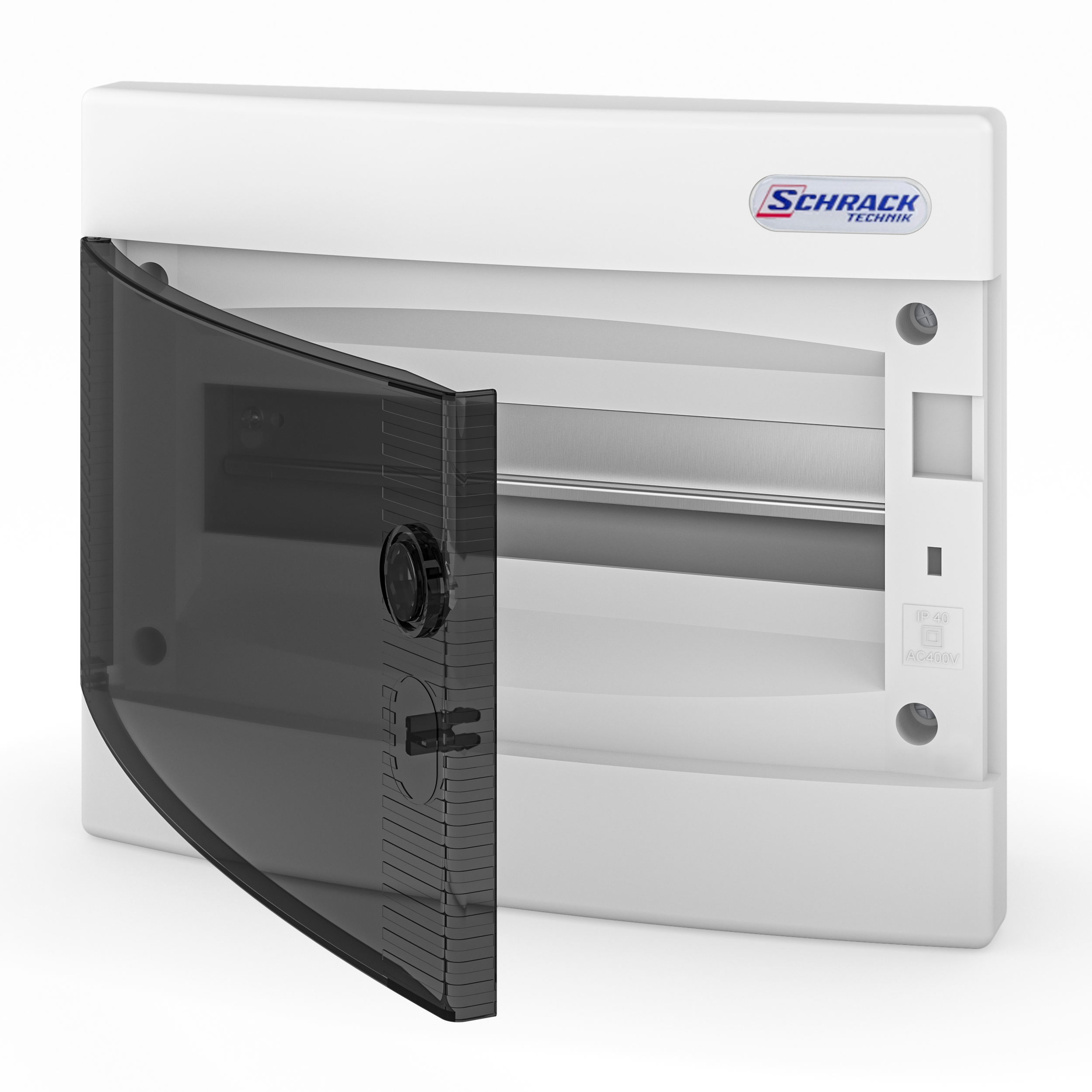

Flush-mounted distribution board, 1 row, 12 modules, transparent door

Flush-mounted electrical distribution board for concealed installation with one row for 12 modules. Designed for placement in wall cavity for finishing.

Main Characteristics:

• Construction: concealed installation (built into wall)
• Capacity: 1 row, 12 modular positions (TE)
• Degree of protection: IP40 (protection against direct spray ingress)
• Door: transparent plastic, provides visual control without opening

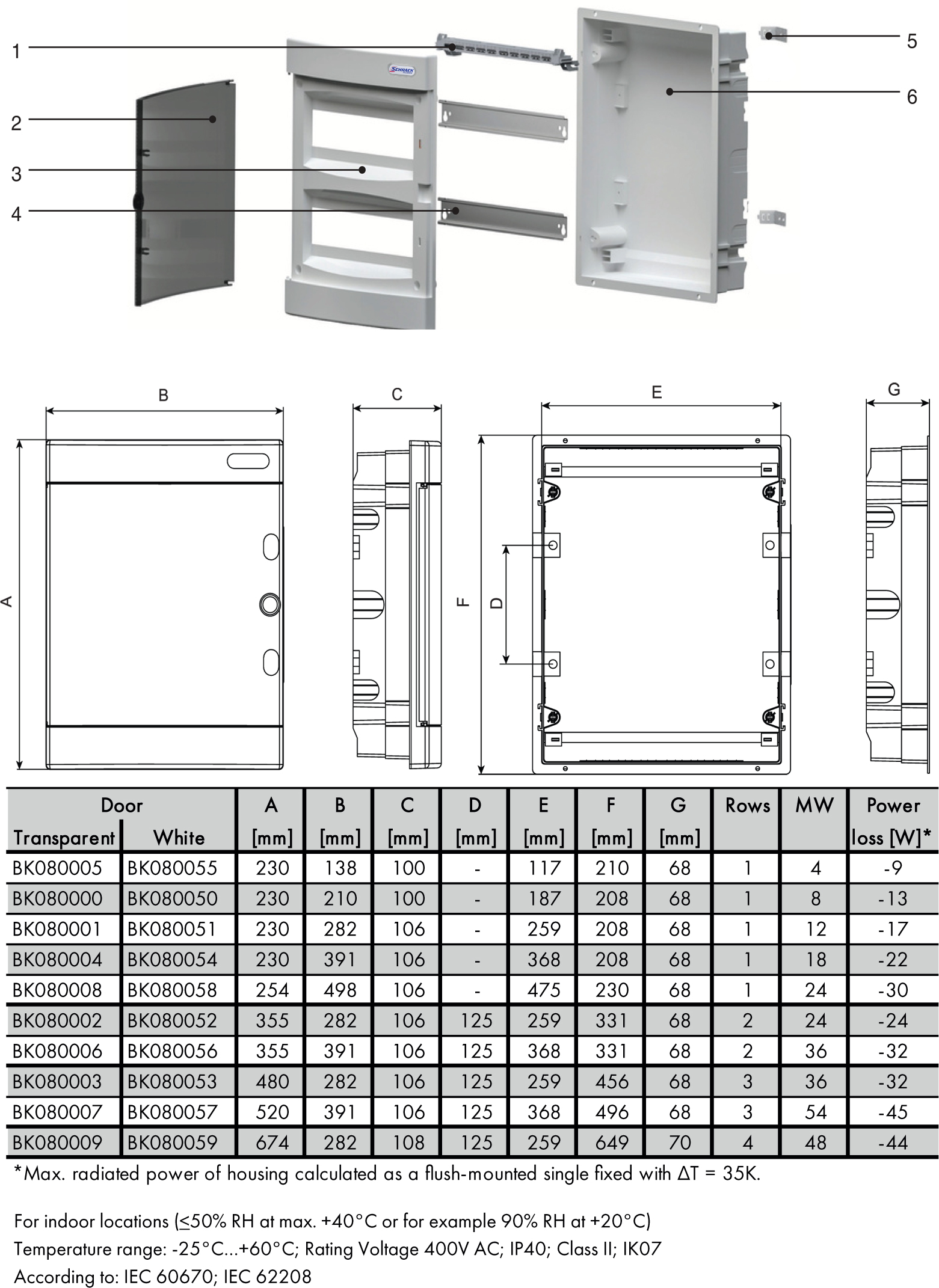

• Dimensions (net): 282 × 230 × 106 mm
• Weight: 0.92 kg
• Enclosure color: RAL 9010 (pure white)
• Temperature range: -25…+60°C
• Door material: transparent plastic
• Safety: halogen-free (Halogen-free)
• Power loss: -17 W

Application:

The board is used in residential and commercial facilities for distribution of electrical energy and placement of protective and switching apparatus (automatic circuit breakers, RCDs, relays, etc.). The flush-mounted design allows integration of the board into wall finishing with minimal visual protrusion.

Manufacturer: Schrack (Austria)

Packaging options: 1 or 5 pcs.
