Recessed distribution board, 3 rows, 36 modules, transparent door
Article: BK080003--
21 810 ₸
In stock

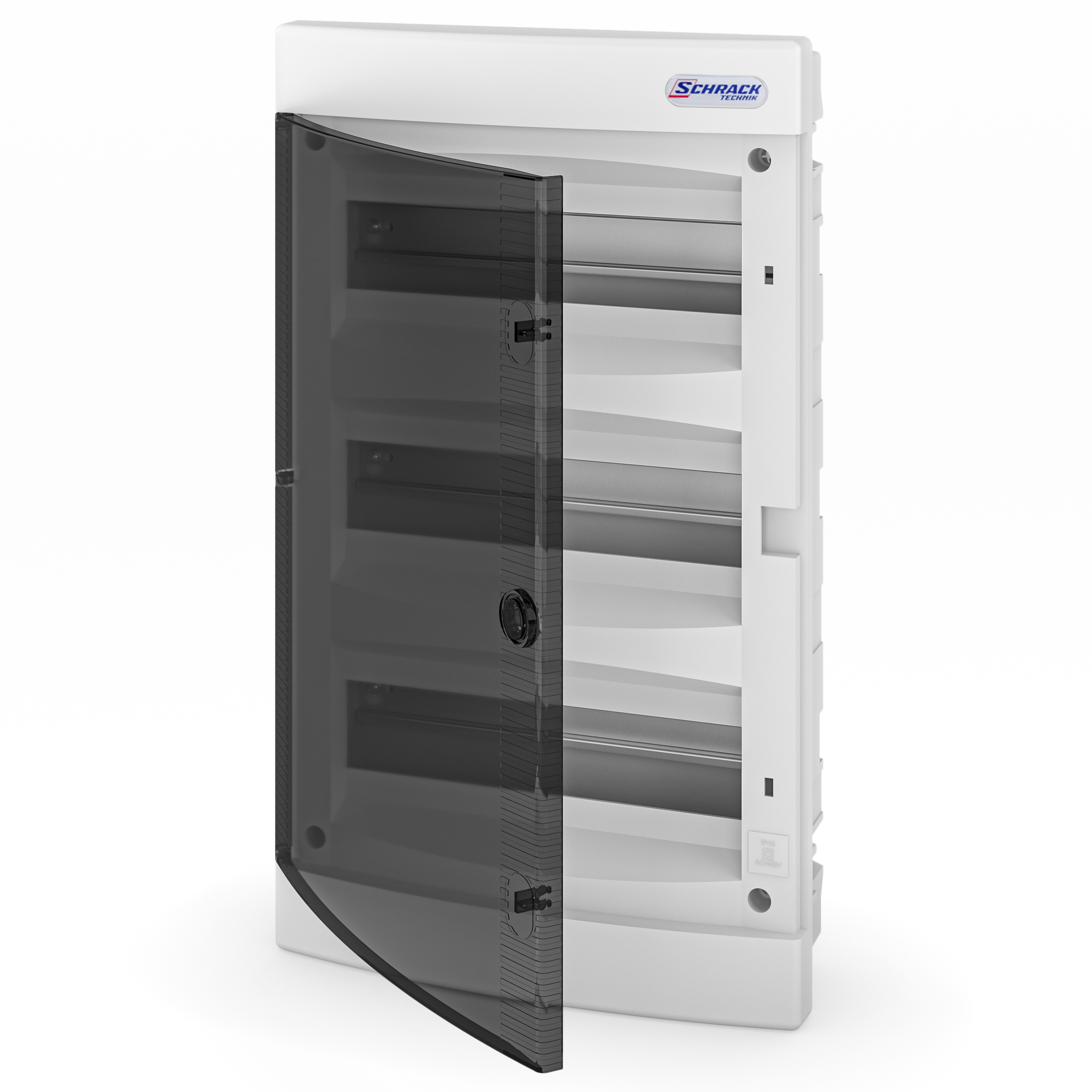

Recessed distribution board for 36 modules (3 rows × 12 modules) manufactured by Schrack for concealed installation in a wall cavity.
Constructive parameters:

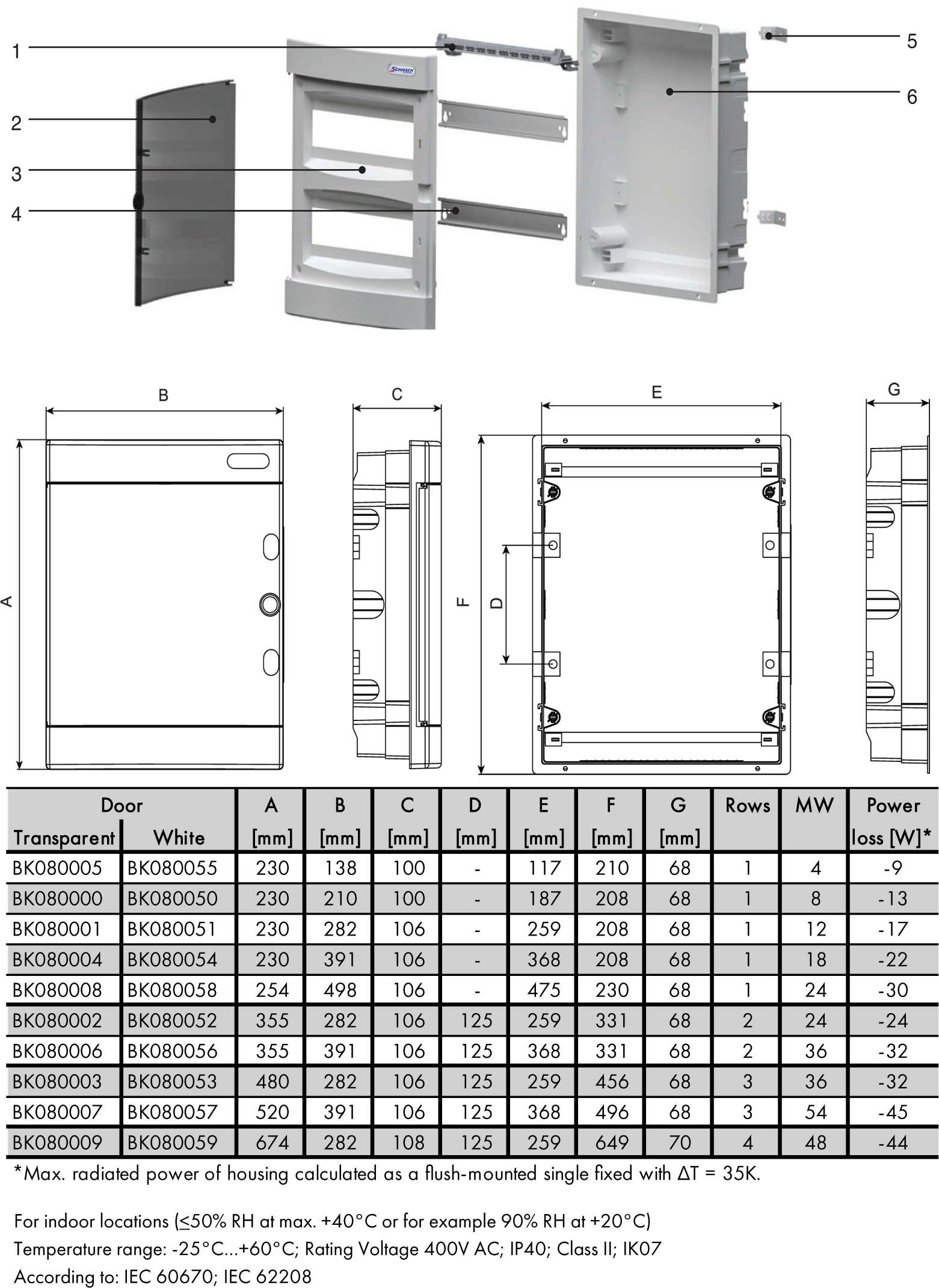

- Overall dimensions (H×W×D): 480 × 282 × 106 mm
- Weight: 1.79 kg
- Installation: recessed (concealed)
- Door: transparent plastic for visual inspection of the contents
Protection and safety:
- Degree of protection: IP40 (protection against direct contact and splashing water)
- Material: halogen-free
- Color: white
Operating conditions:
- Temperature range: −25 to +60 °C
- Power loss due to heating: −32 W
Technical information:
- Module capacity: 36 DIN-modules of TE standard (12 per row)
- EAN: 9004840466782
- Supply: 1 unit or package of 5 units
The board is intended for placement and protection of modular devices (automatic circuit breakers, differential devices, single-phase and three-phase meters) in residential and commercial buildings requiring compact and aesthetic installation.
| EAN code | 9004840466782 |
|---|---|
| Net width | 282.00 mm |
| Net height | 480.00 mm |
| Net depth | 106.00 mm |
| Net weight | 1.79 kg |
| Power loss | -32.00 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Execution | Recessed installation, with door |
| Rows | 3 |
| TE per row | 12 |
| Degree of protection | IP40 |
| Color | white |
| Manufacturer | Schrack |
| Installation | Recessed |
| Material - Door | Plastic, transparent |
| Halogen-free | Yes |
| Packaging | 1 unit, 5 units |
