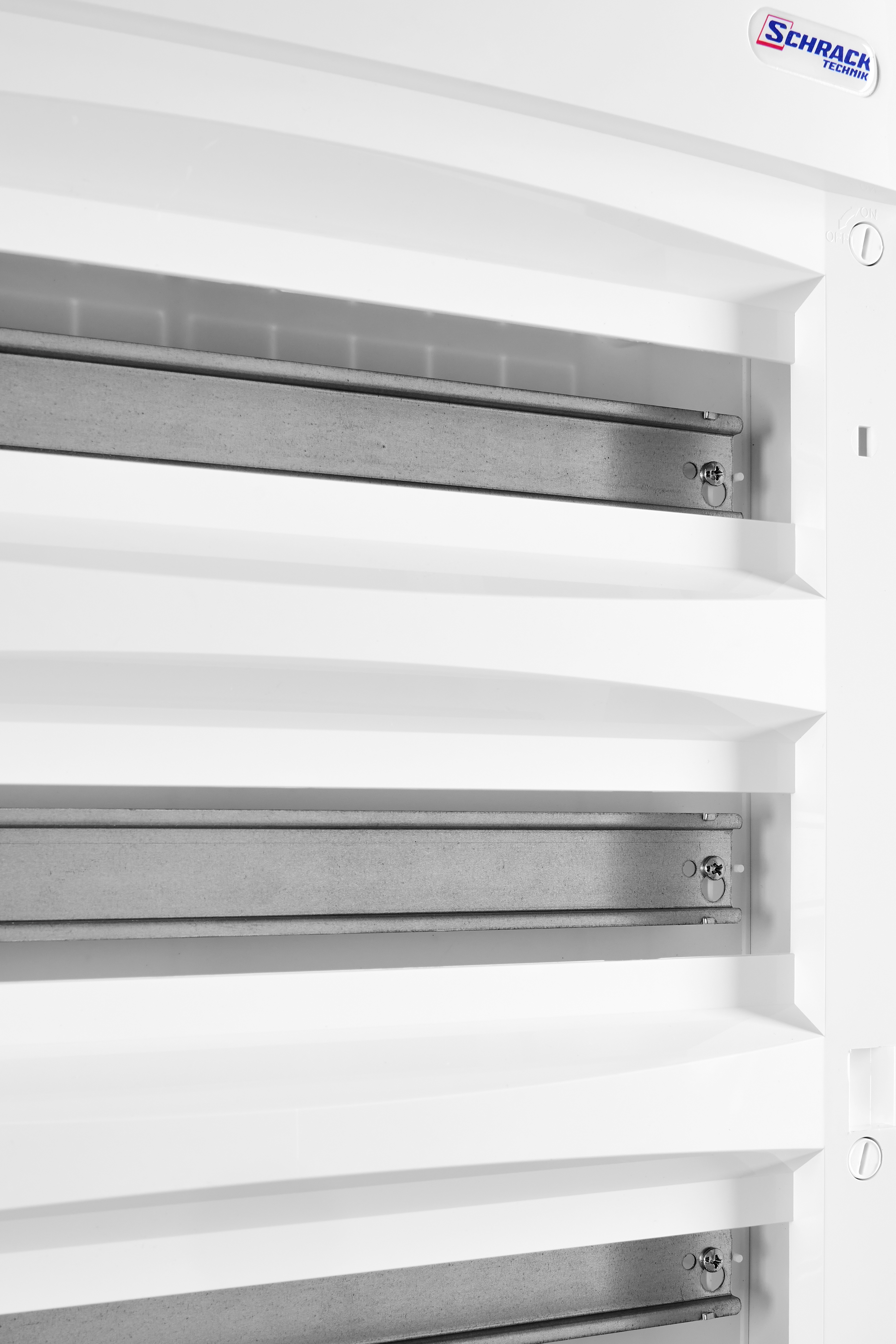

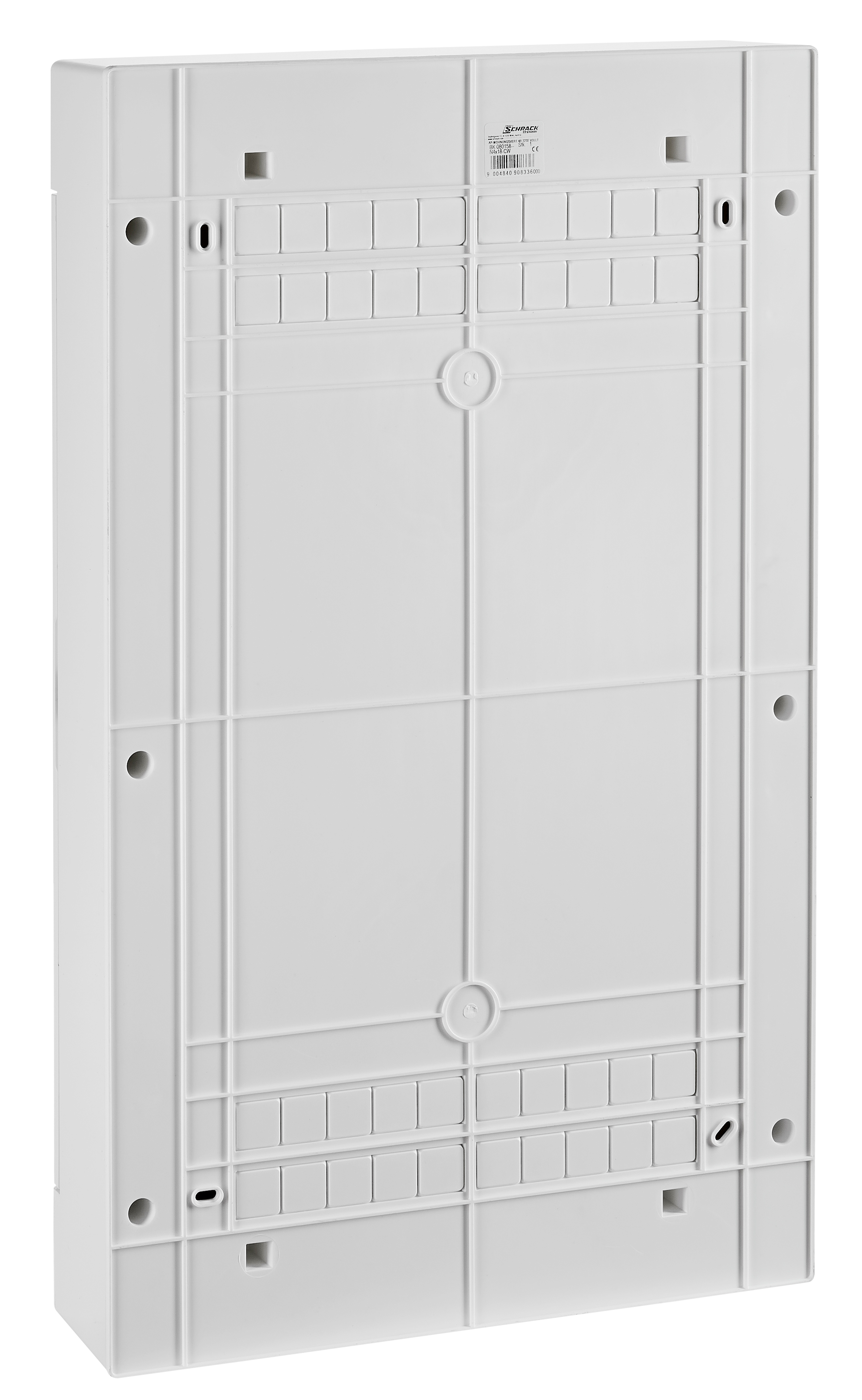

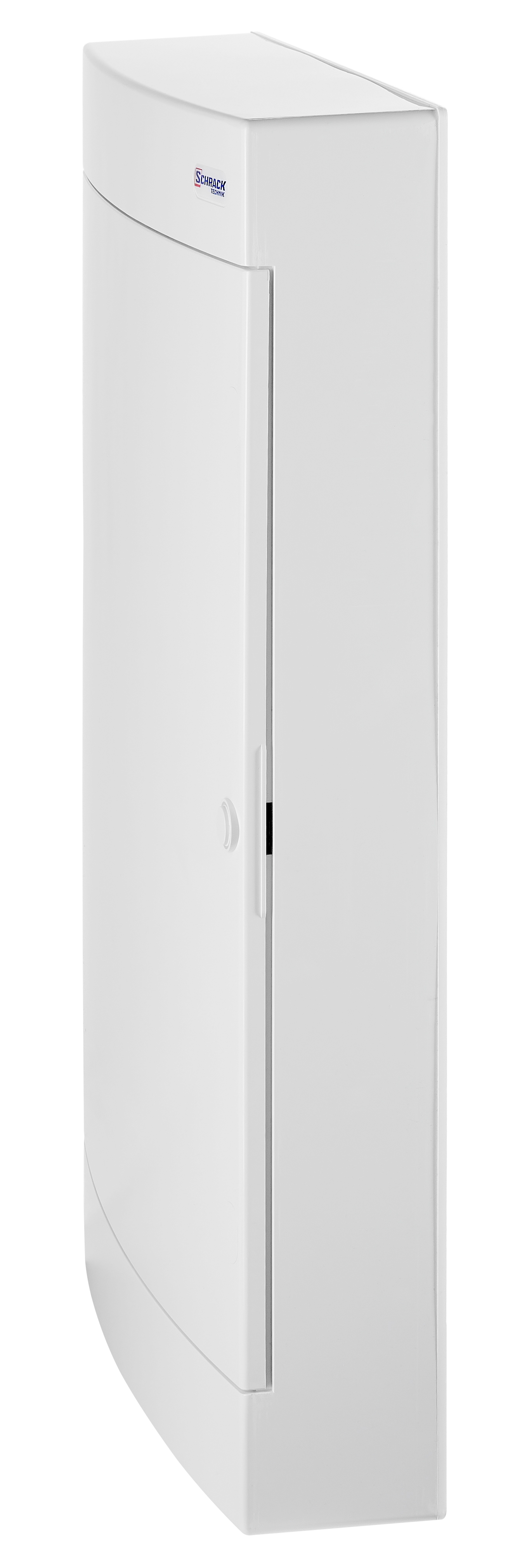

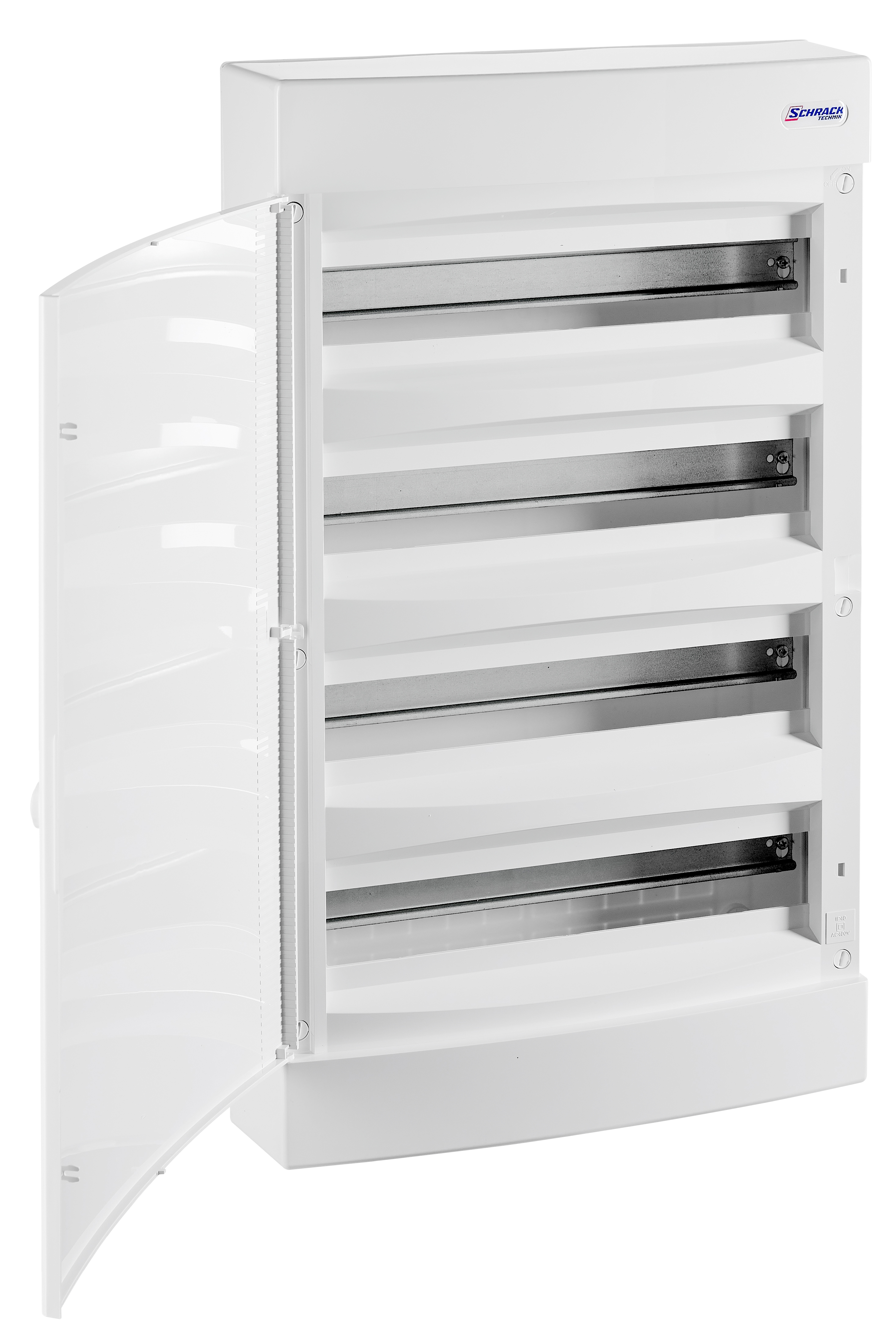

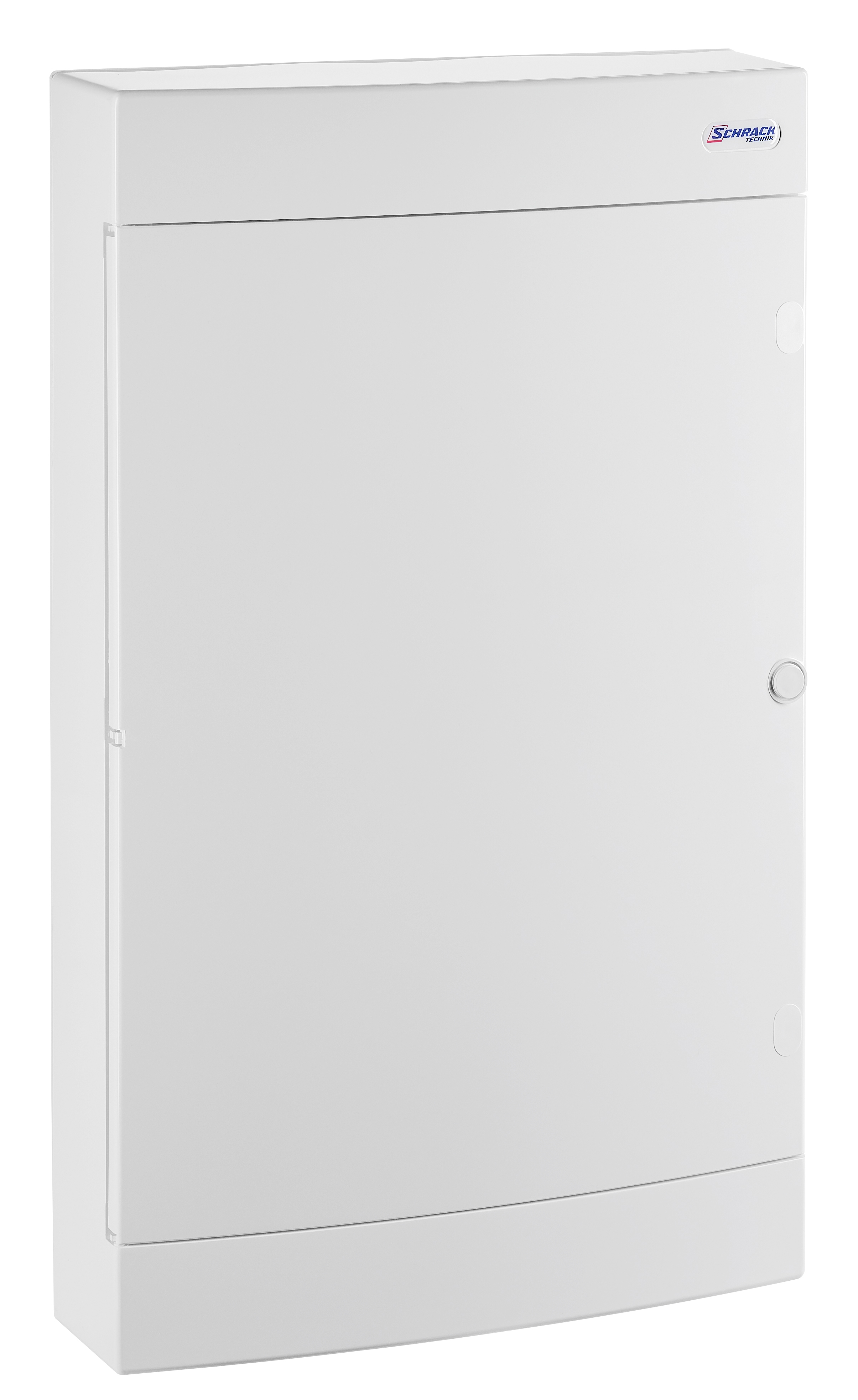

Surface-mounted distribution board, 4 rows, 72 modules, white door

Surface-mounted distribution board for wall-mounted installation, designed for placement and protection of electrical components in industrial and commercial facilities.

Main characteristics:

• Number of modules: 72 pcs. (4 rows of 18 modules each)
• Type of installation: surface-mounted (external)
• Door: white plastic, RAL 9003 (signal white)
• Degree of protection: IP40
• Overall dimensions: 395 × 654 × 112 mm (H × W × D)
• Weight: 3.0 kg

Operating conditions:

• Ambient temperature range: −25…+60 °C
• Heat dissipation: −68 W
• Material: halogen-free

Included components:

• TE per row: 18 pcs.
• Available packaging options: 1 pc. or 5 pcs.

Manufacturer: Schrack

EAN codes: 9004840908336, 9007985024084

The board is designed for mounting standard modular electrical components and ensures reliable protection of electrical equipment when used in damp and dusty rooms.
