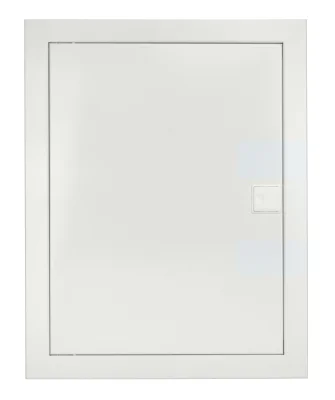

Recessed Distribution Board, 2 rows, 24+4 modules, metal door, for brick walls
1 / 5
Recessed Distribution Board, 2 rows, 24+4 modules, metal door, for brick wallsRecessed Distribution Board, 2 rows, 24+4 modules, metal door, for brick wallsRecessed Distribution Board, 2 rows, 24+4 modules, metal door, for brick wallsRecessed Distribution Board, 2 rows, 24+4 modules, metal door, for brick wallsRecessed Distribution Board, 2 rows, 24+4 modules, metal door, for brick walls

Recessed Distribution Board, 2 rows, 24+4 modules, metal door, for brick walls

Article: BK0850022-

Щиты встраиваемые AMPARO

38 750 ₸

In stock
WhatsAppTelegram

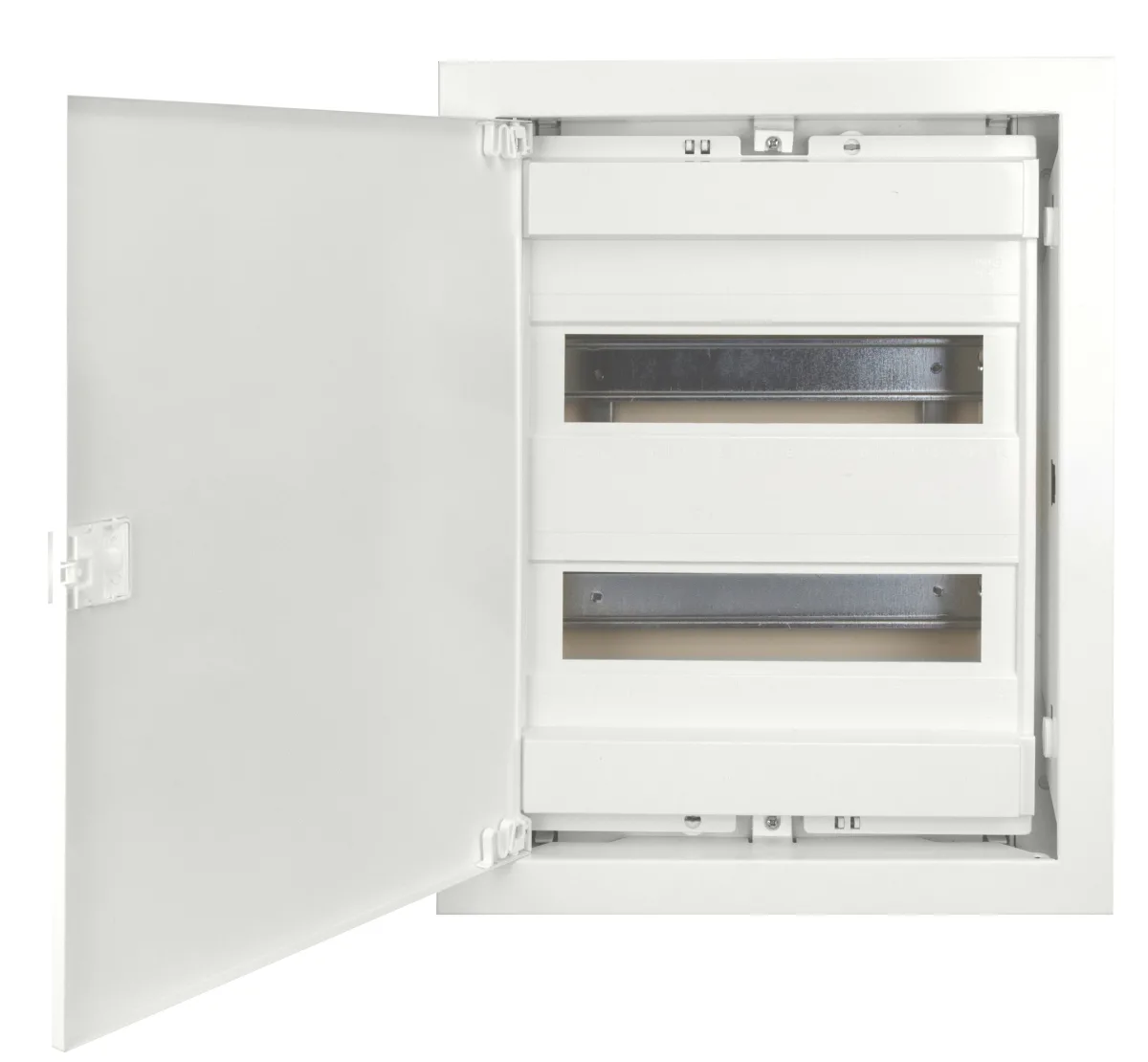

Recessed distribution board for 24+4 modules (TE) in two rows for installation in solid brick walls. Equipped with a metal door made from sheet steel with powder coating RAL 9003 (signal white).

Technical Parameters:

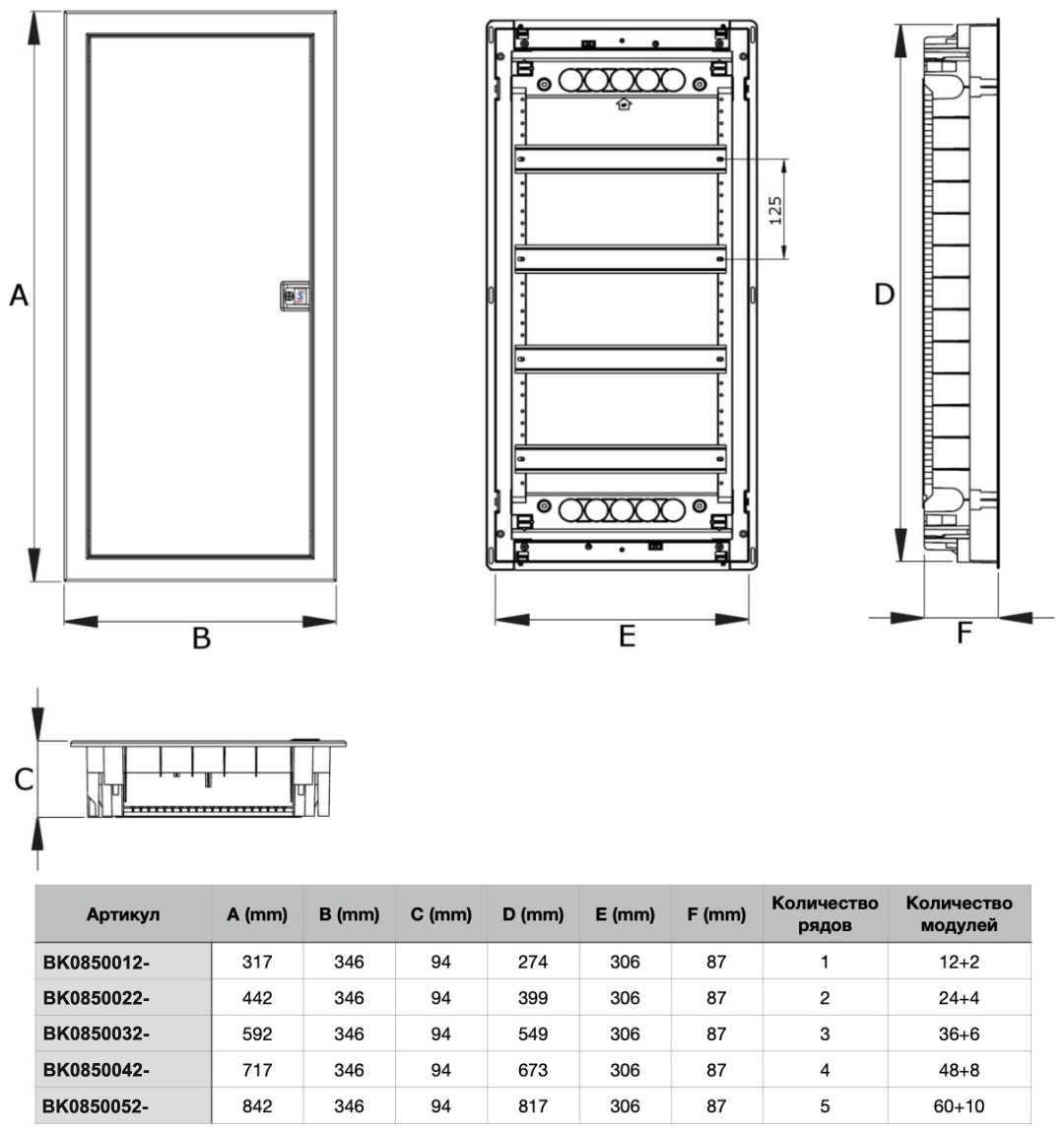

  • Dimensions: 346 × 442 × 96 mm
  • Weight: 2.5 kg
  • Degree of Protection: IP40
  • Protection Class: II
  • Impact Resistance of Enclosure: IK08
  • Operating Temperature Range: from -25°C to +60°C
  • Power Loss: 34 W

Features:

  • Designed for recessed mounting in solid brick walls
  • Enclosure material: metal with protective coating
  • Door material: sheet steel
  • Halogen-free design (Halogen-free)
  • Modular system: ability to accommodate up to 12 modules per row

Manufacturer: Schrack (Austrian company) Packaging: 1 piece

EAN Code9004840507997
Net Width346.00 mm
Net Height442.00 mm
Net Depth96.00 mm
Net Weight2.50 kg
Power Loss34.00 W
Min. Ambient Temperature-25°C
Max. Ambient Temperature60°C
DesignRecessed mounting, with door
Rows2
TE in Series12
Degree of ProtectionIP40
Protection Class2
Impact ResistanceIK08
ColorWhite
ManufacturerSchrack
InstallationRecessed
Material - DoorSheet Steel
Halogen-freeYes
Packaging1 piece

Optional accessories (5)
