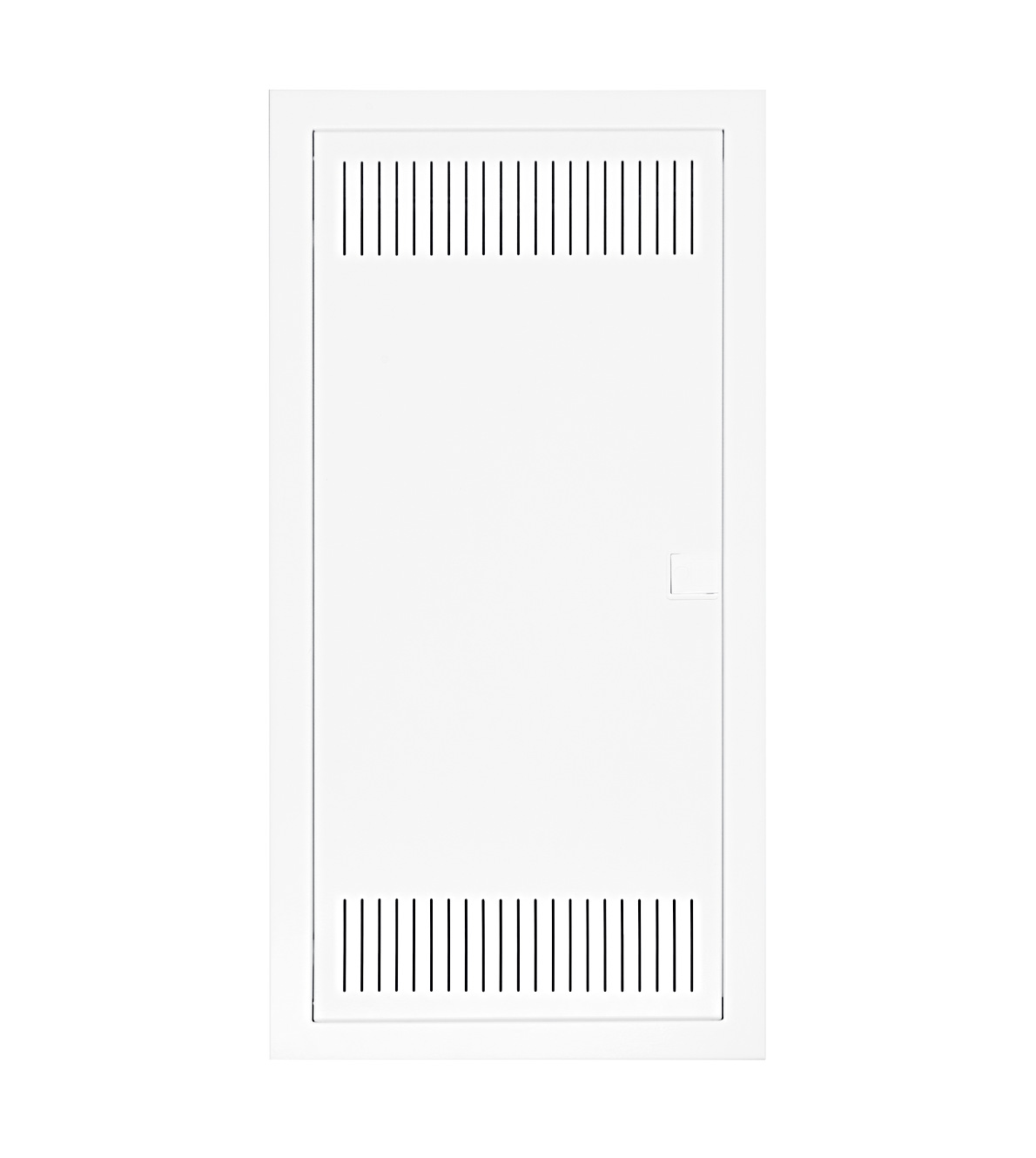

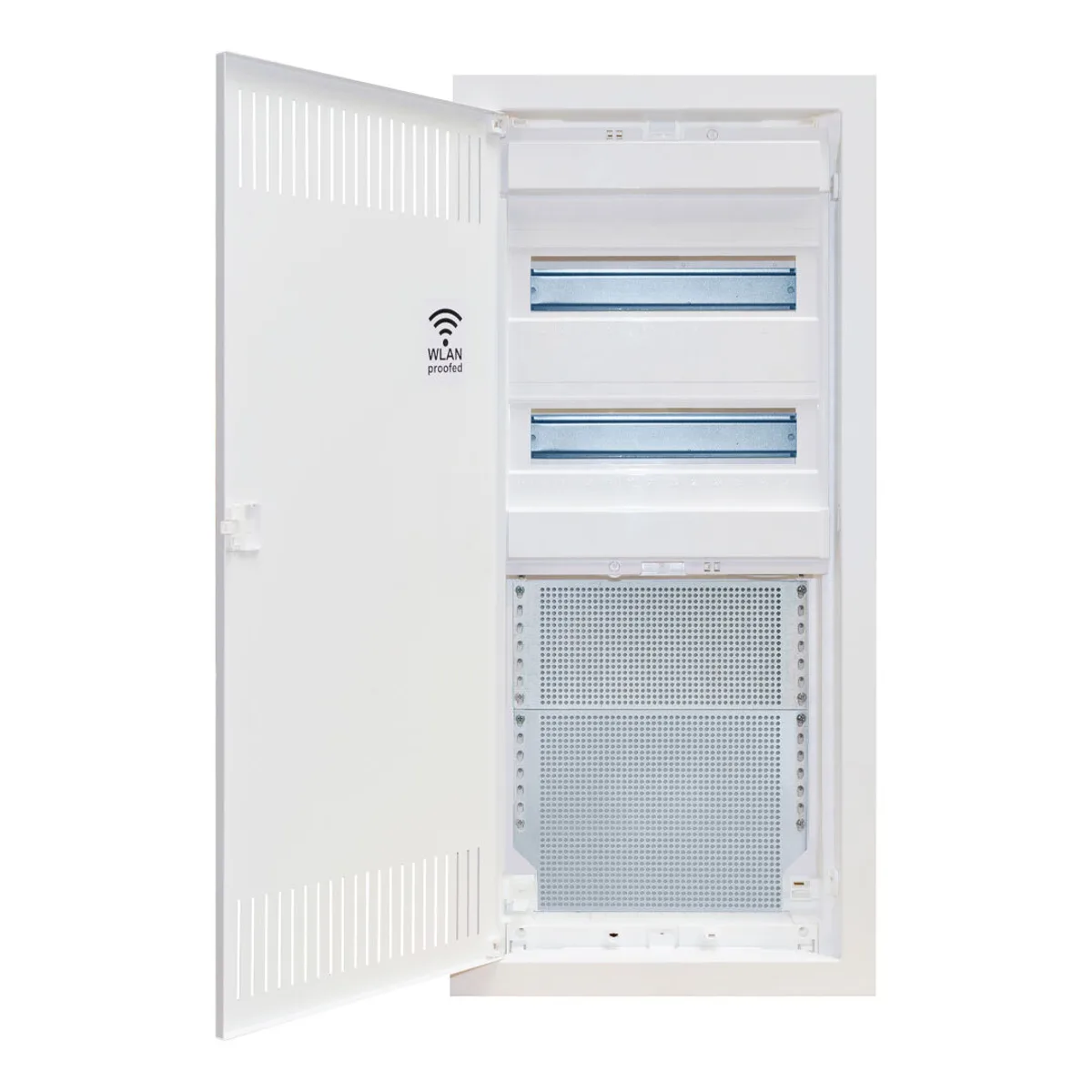

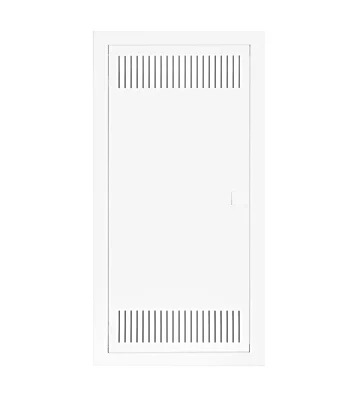

Recessed combined distribution board, 24+4 modules+2 IT mounting panels, metal door

Article: BK0855042

Щиты комбинированные

113 000 ₸

In stock

Recessed combined distribution board with metal door for concealed installation. Designed for organization and distribution of electrical circuits in residential and industrial premises.

Configuration:

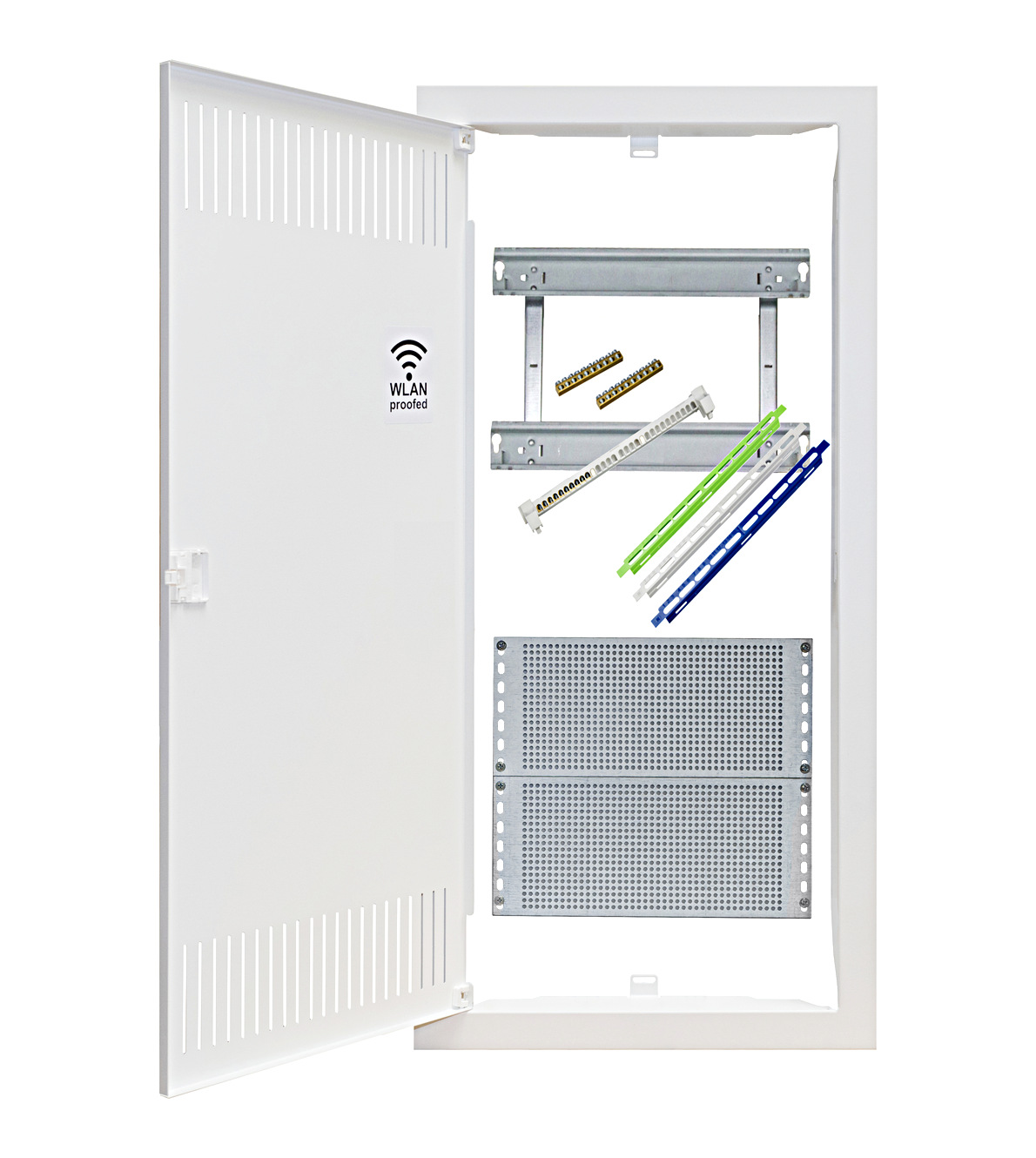

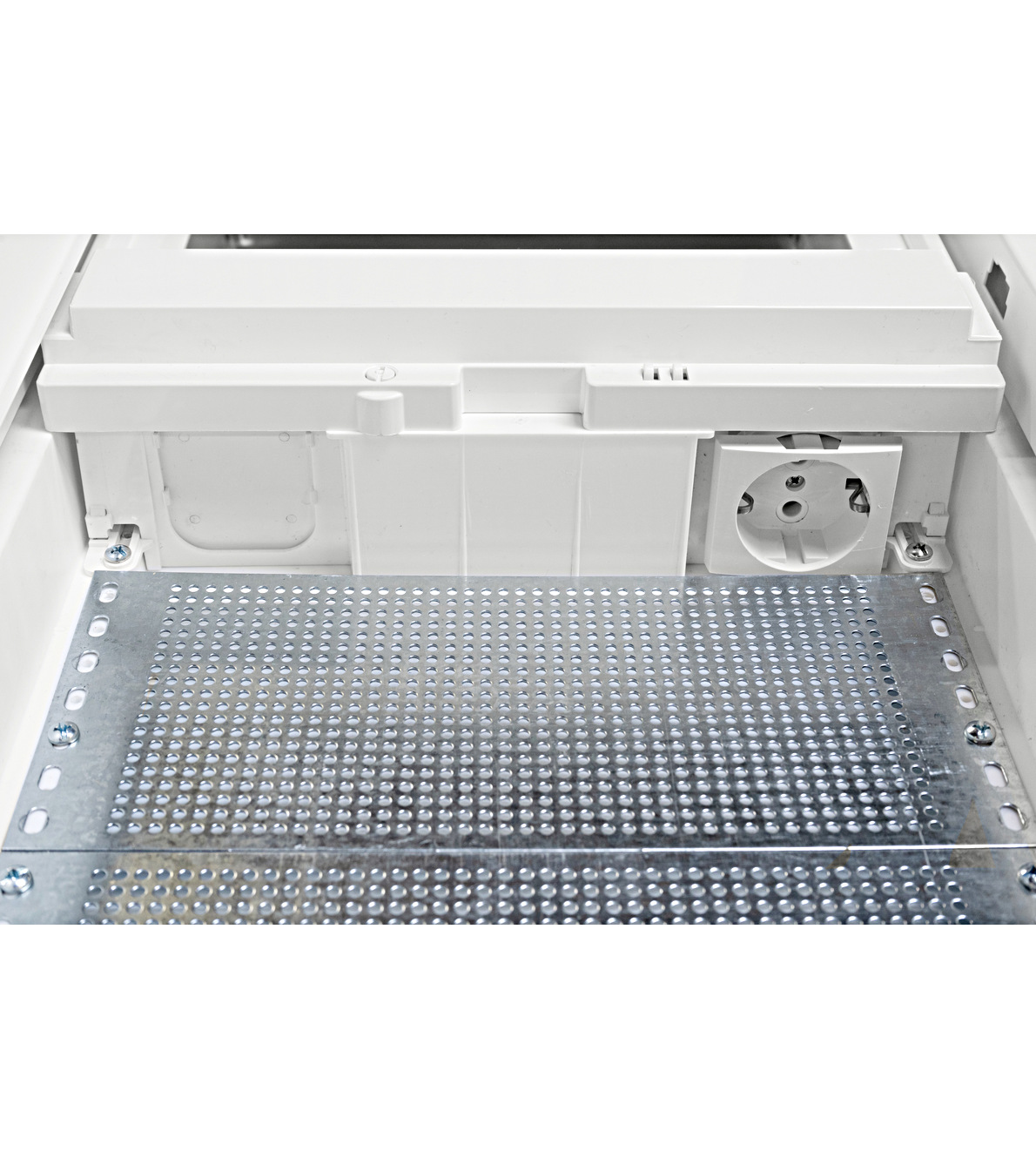

  • Modular capacity: 24 modules + 4 modules + 2 IT mounting panels
  • Number of rows: 2
  • TE in series: 12
  • Single-phase and three-phase distribution

Technical parameters:

  • Degree of protection: IP30
  • Protection class: II
  • Impact resistance: IK08
  • Door material: sheet steel (RAL 9003 — signal white)
  • Halogen-free: Yes

Overall dimensions:

  • Width: 346 mm
  • Height: 717 mm
  • Depth: 36 mm
  • Weight: 3.6 kg

Operating conditions:

  • Ambient temperature range: from −25°C to +60°C
  • Power loss: 54 W

Design:

  • Recessed installation (concealed)
  • Complete package: 1 unit
  • Manufacturer: Schrack
  • EAN code: 9004840977783
EAN code9004840977783
Net width346.00 mm
Net height717.00 mm
Net depth36.00 mm
Net weight3.60 kg
Power loss54.00 W
Min ambient temperature−25°C
Max ambient temperature60°C
DesignRecessed installation, with door
Rows2
TE in series12
Degree of protectionIP30
Protection class2
Impact resistanceIK08
ColorRAL 9003 (signal white)
ManufacturerSchrack
InstallationRecessed
Door materialSheet steel
Halogen-freeYes
Packaging1 unit
