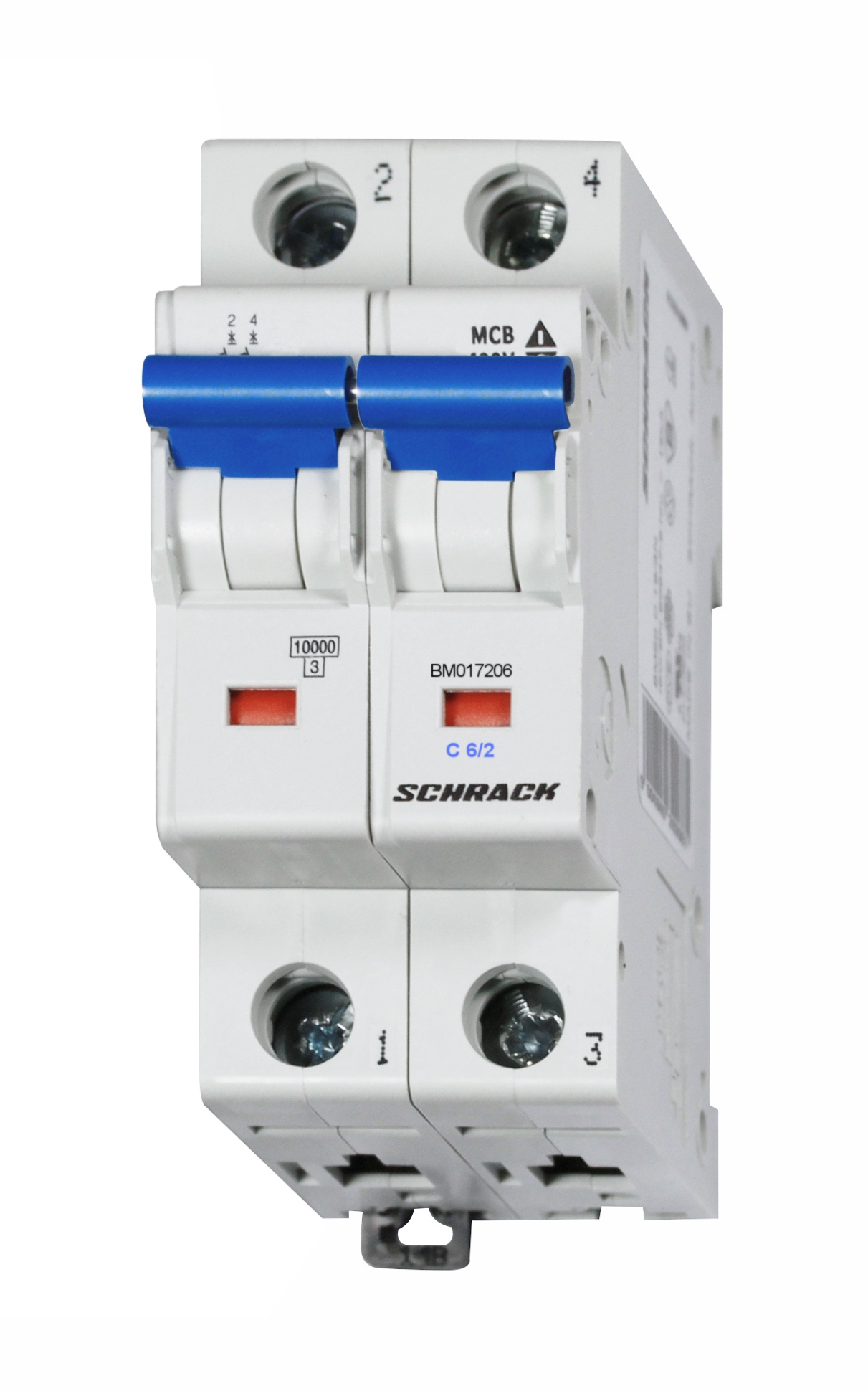

Automatic circuit breaker BM C6/2 10kA
Article: BM017206--
15 310 ₸
In stock
The automatic circuit breaker of the BMS0 series is designed to protect electrical circuits from overloads and short circuits. A two-pole device with a nominal current of 6A and a breaking capacity of 10kA provides reliable operation in alternating current networks.
Key characteristics:
- Nominal current: 6A
- Number of poles: 2 poles
- Tripping characteristic: C (designed for cable and general-purpose network protection)
- Breaking capacity: 10kA
- Design: AC-MCB (alternating current automatic circuit breaker)
- Operating temperature range: -40°C to +75°C
- Power loss: 2.90W
Physical dimensions:
- Width: 35.60mm
- Height: 83.00mm
- Depth: 74.90mm
- Net weight: 0.24kg
Normative basis: EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
Manufacturer: Schrack
Available packaging options: 1 pcs., 6 pcs., 60 pcs.
| EAN code | 9004840391855 |
|---|---|
| Width (net) | 35.60mm |
| Height (net) | 83.00mm |
| Depth (net) | 74.90mm |
| Weight (net) | 0.24kg |
| Power loss | 2.90W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 75°C |
| Characteristic | C |
| Poles | 2 |
| Nominal current | 6A |
| Type | BMS0 |
| Series | BMS0 |
| Breaking capacity | 10kA |
| Design | AC-MCB |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 6 pcs., 60 pcs. |
