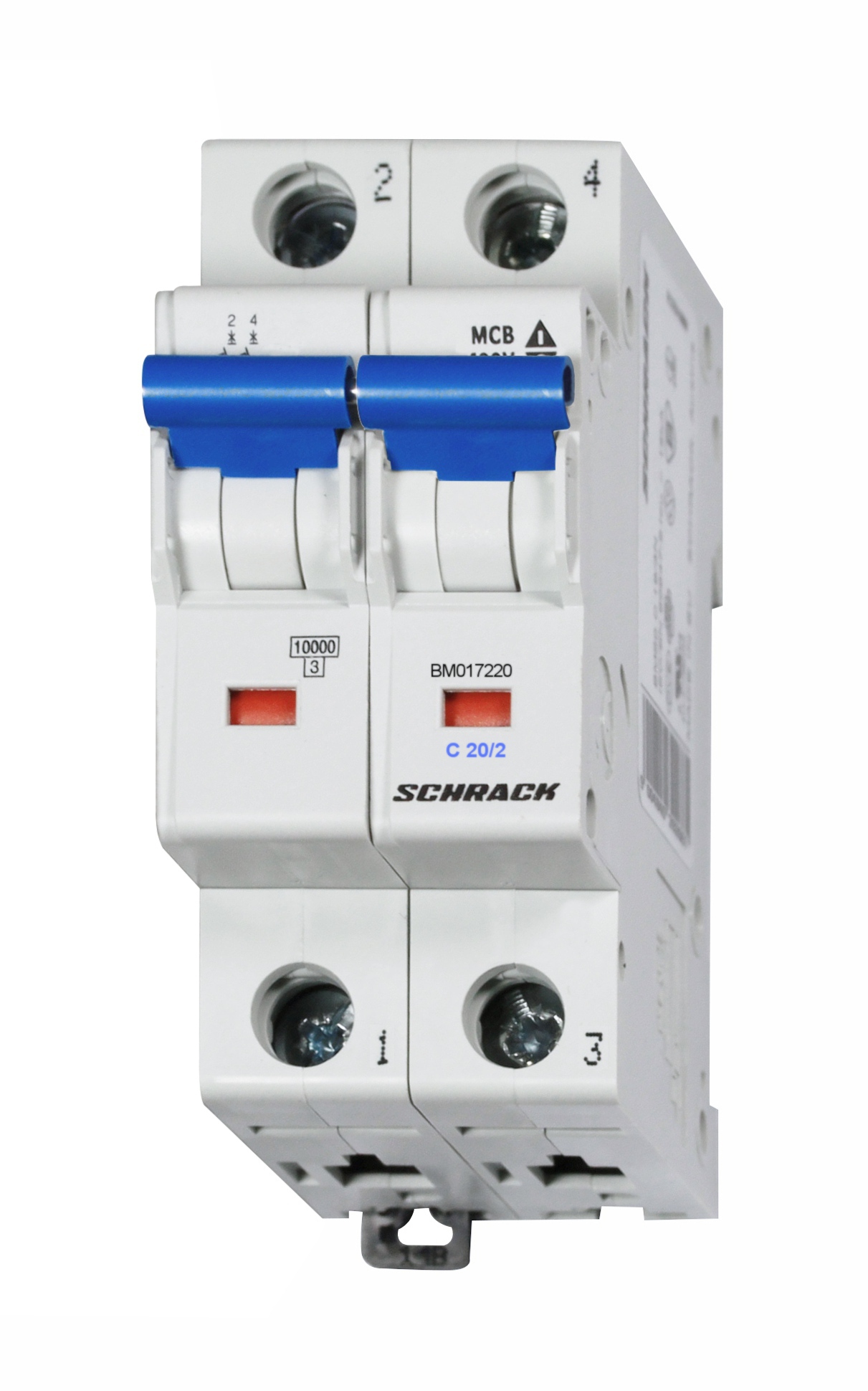

Automatic circuit breaker BM C20/2, 10kA
Article: BM017220--
15 090 ₸
To order
Two-pole automatic circuit breaker of the BMS0 series for protection of alternating current electrical circuits. Designed for switching and protection against overloads and short circuits in residential and commercial electrical installations.
Main parameters:
- Rated current: 20 A
- Breaking capacity: 10 kA
- Trip characteristic: C (for circuits with moderate inrush current)
- Number of poles: 2
- Design: AC-MCB (automatic circuit breaker for alternating current)
Operating conditions:
- Temperature range: from -40°C to +75°C
- Power loss: 6.60 W
- Dimensions: width 35.60 mm × height 83.00 mm × depth 74.90 mm
- Weight: 0.24 kg
Regulatory basis:
The circuit breaker complies with standards EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.
Manufacturer: Schrack
Packaging options: 1 pc., 6 pc., 60 pc.
| EAN code | 9004840391893 |
|---|---|
| Net width | 35.60 mm |
| Net height | 83.00 mm |
| Net depth | 74.90 mm |
| Net weight | 0.24 kg |
| Power loss | 6.60 W |
| Min. ambient temperature | -40°C |
| Max. ambient temperature | 75°C |
| Characteristic | C |
| Poles | 2 |
| Rated current | 20 A |
| Type | BMS0 |
| Series | BMS0 |
| Breaking capacity | 10 kA |
| Design | AC-MCB |
| Standard | EN 60898-1:2019, EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 6 pc., 60 pc. |
